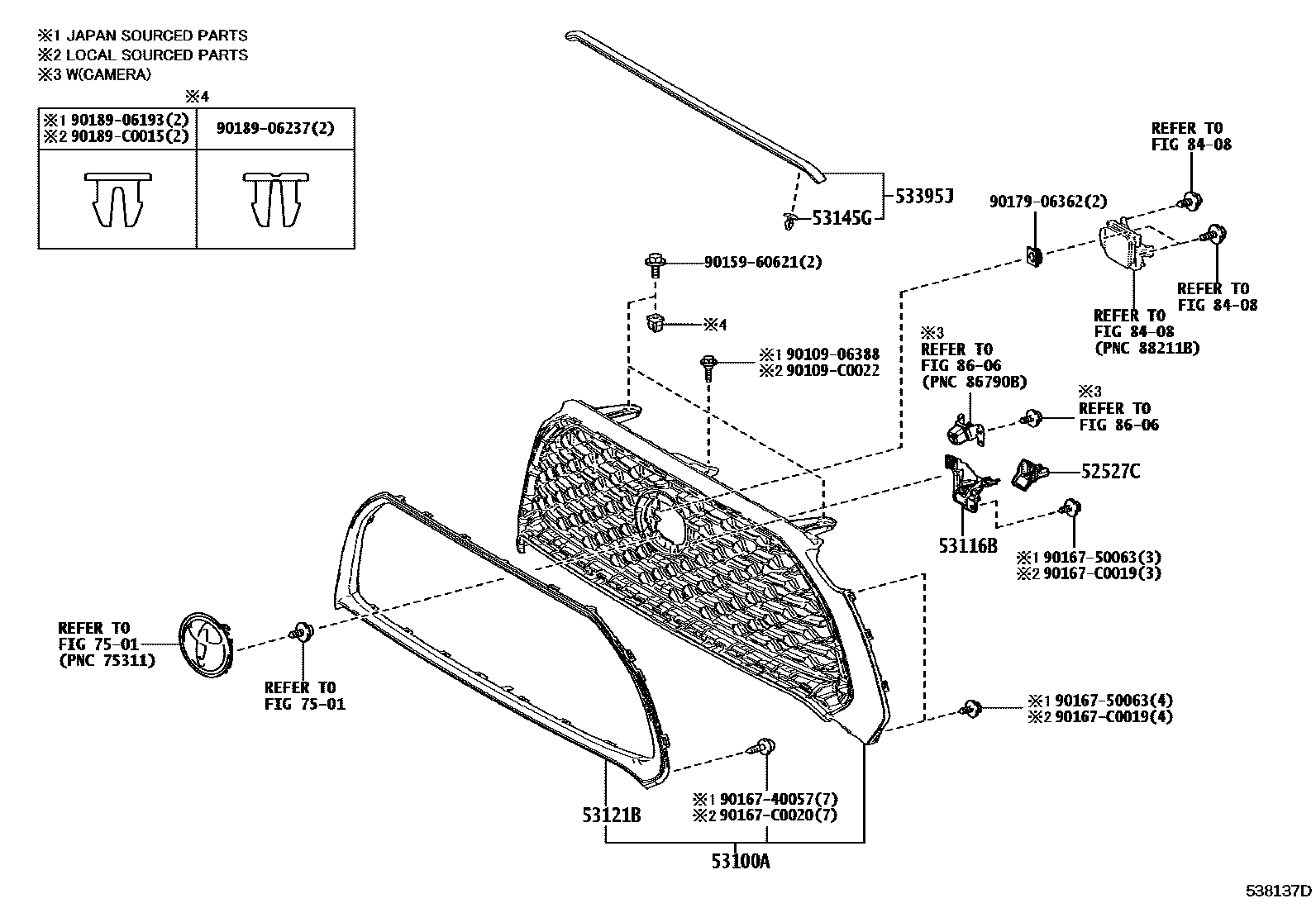

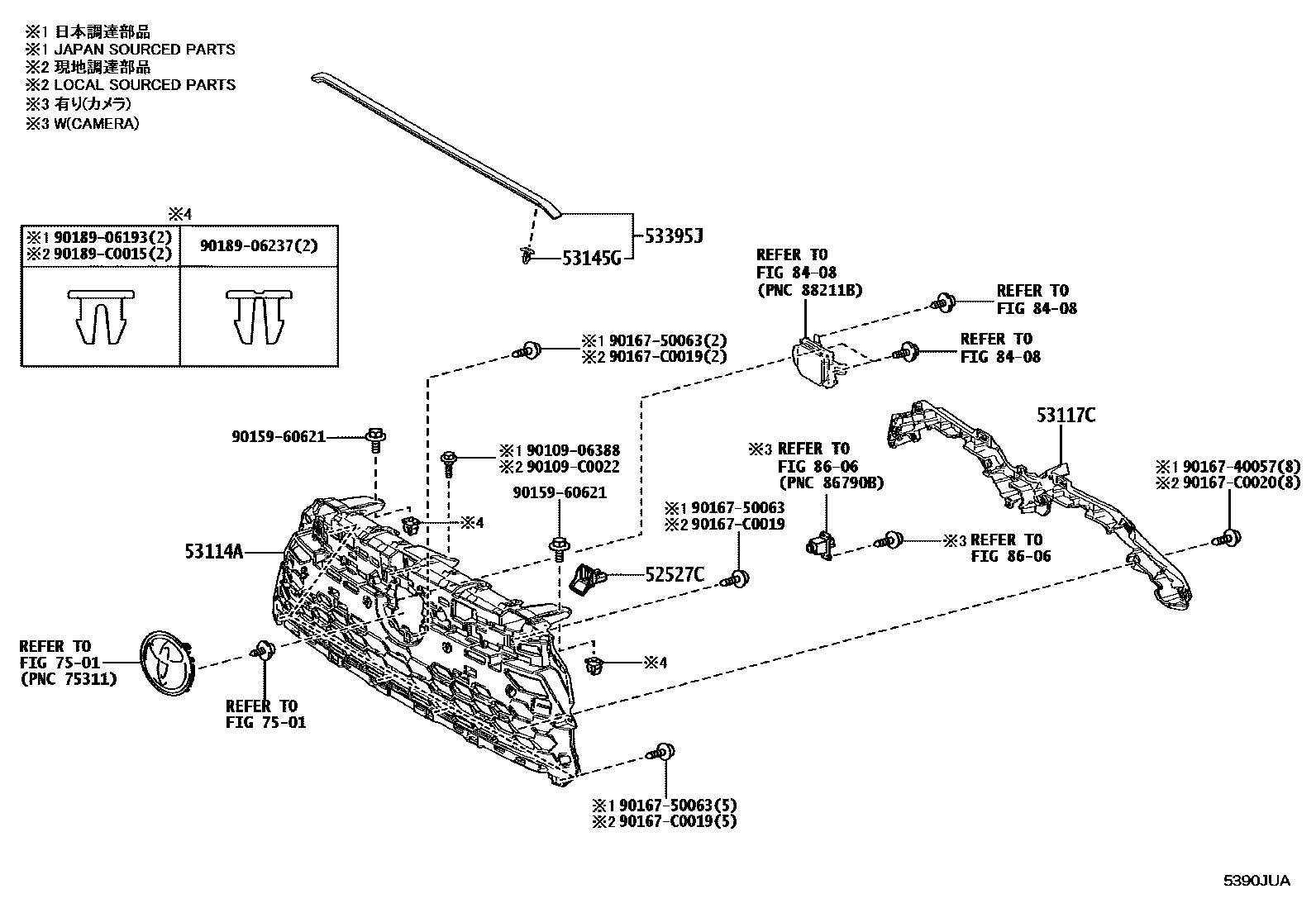

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-02100 |
| 53100A | Radiator grille assembly | 53100-0A070 · 53100-0A080 · 53100-0A090 |
| 53114A | inner radiator grille | 53114-0A250 · 53114-0A260 |
| 53116B | Radiator grille bracket No. 2 | 53116-0A010 |
| 53117C | Radiator grille fixing No. 1 | 53117-0A090 |
| 53121B | Protective strips on radiator grille | 53121-0A080 · 53121-0A090 |
| 53145G | Radiator grille clip | 53145-02040 · 53145-60030 |
| 53395J | Engine cover to front end plate seal | 53395-0A040 |
