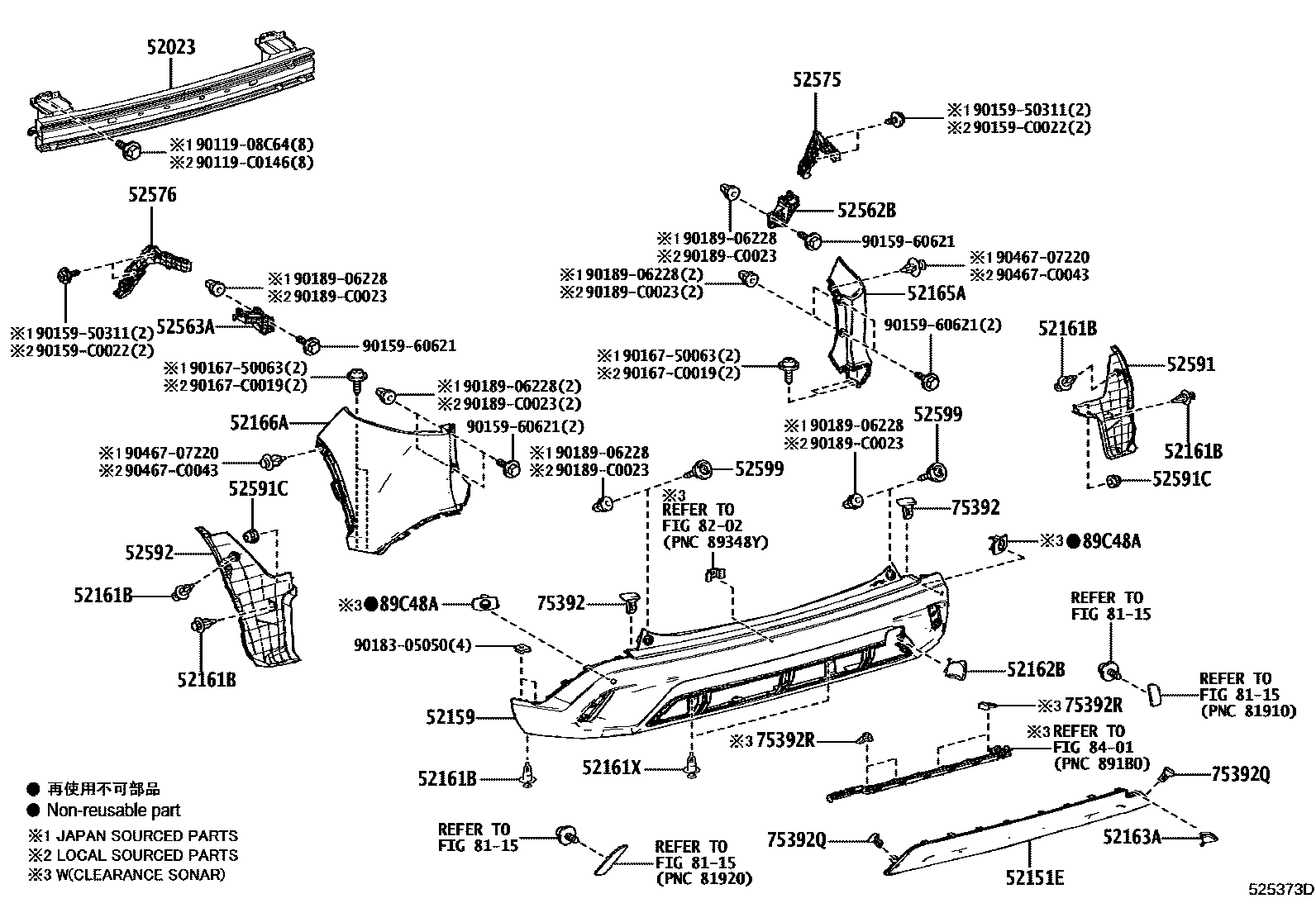

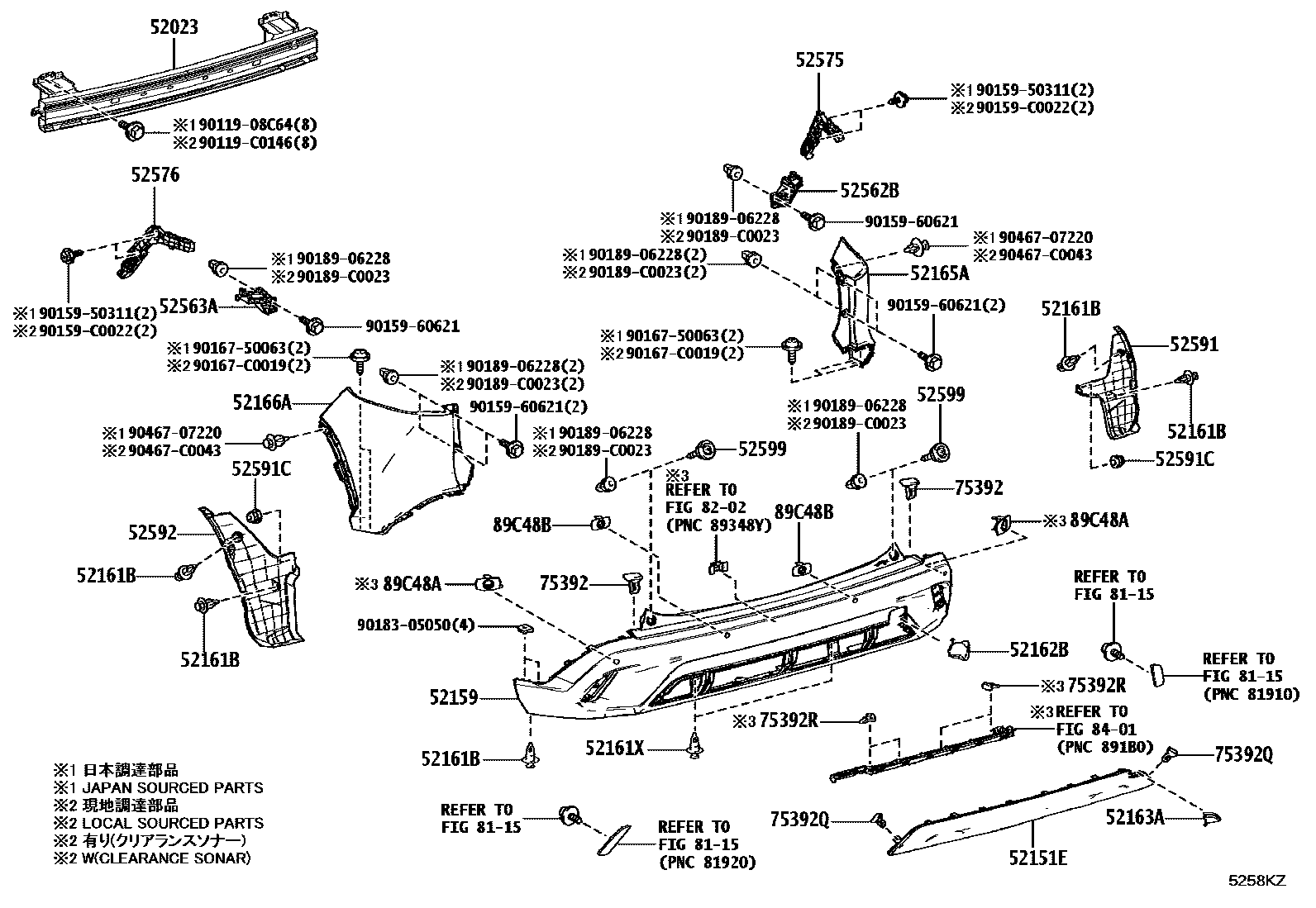

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0A020 |
| 52151E | rear bumper | 52151-0A906 |
| 52159 | rear bumper cover | 52159-0A160 · 52159-0A170 · 52159-0A340 |
| 52161B | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52161X | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52162B | Rear bumper No. 1 fender | 52162-0A040 |
| 52163A | Rear bumper right side fender | 52163-0A906 |
| 52165A | Rear bumper right upper cover | 52165-0A906 |
| 52166A | Rear bumper left upper cover | 52166-0A906 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0A040 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0A040 |
| 52575 | Rear bumper right side fixing bracket | 52575-0A040 |
| 52576 | Rear bumper left side fixing bracket | 52576-0A040 |
| 52591 | Rear bumper right seal | 52591-0A050 |
| 52592 | Rear bumper left seal | 52592-0A040 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
| 75392 | External protective strip fixings | 75392-0R030 · 75392-35220 |
| 75392Q | No. 2 outer protective strip fixings | 75392-0R030 · 75392-35220 |
| 75392R | No. 3 outer protective strip fixings | 75392-0R030 · 75392-35220 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-0A071 · 89348-0A130 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-0A120 |
