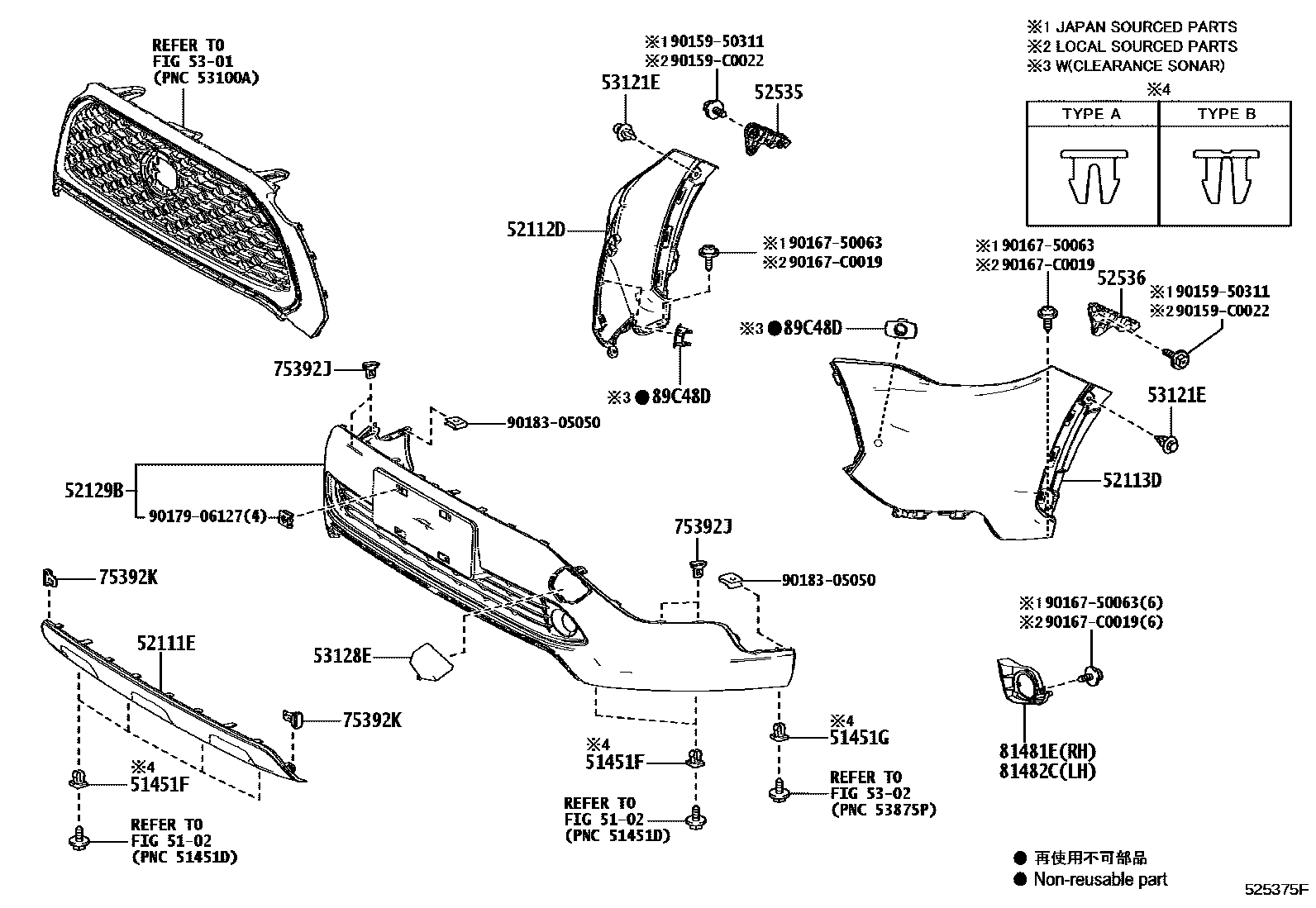

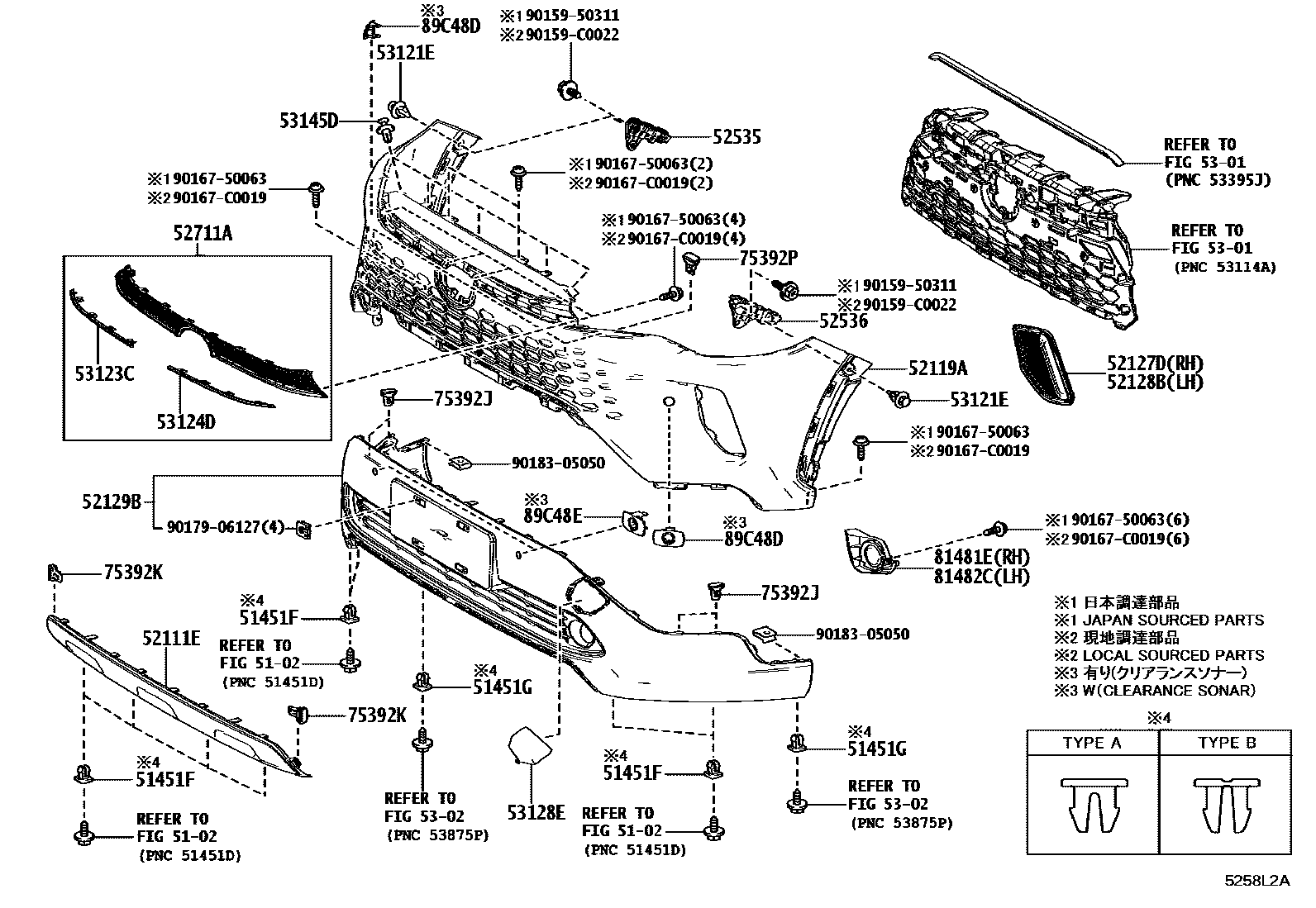

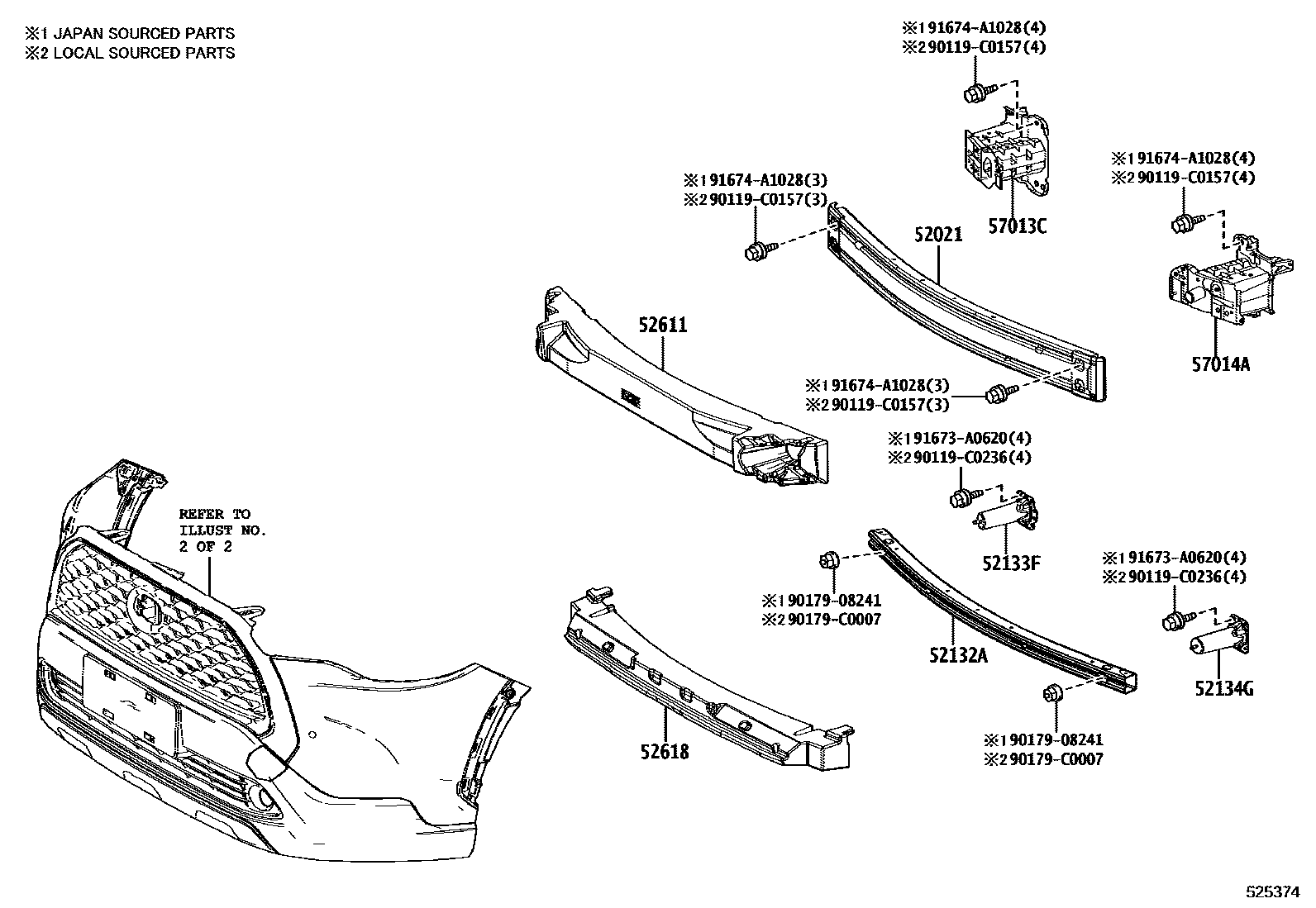

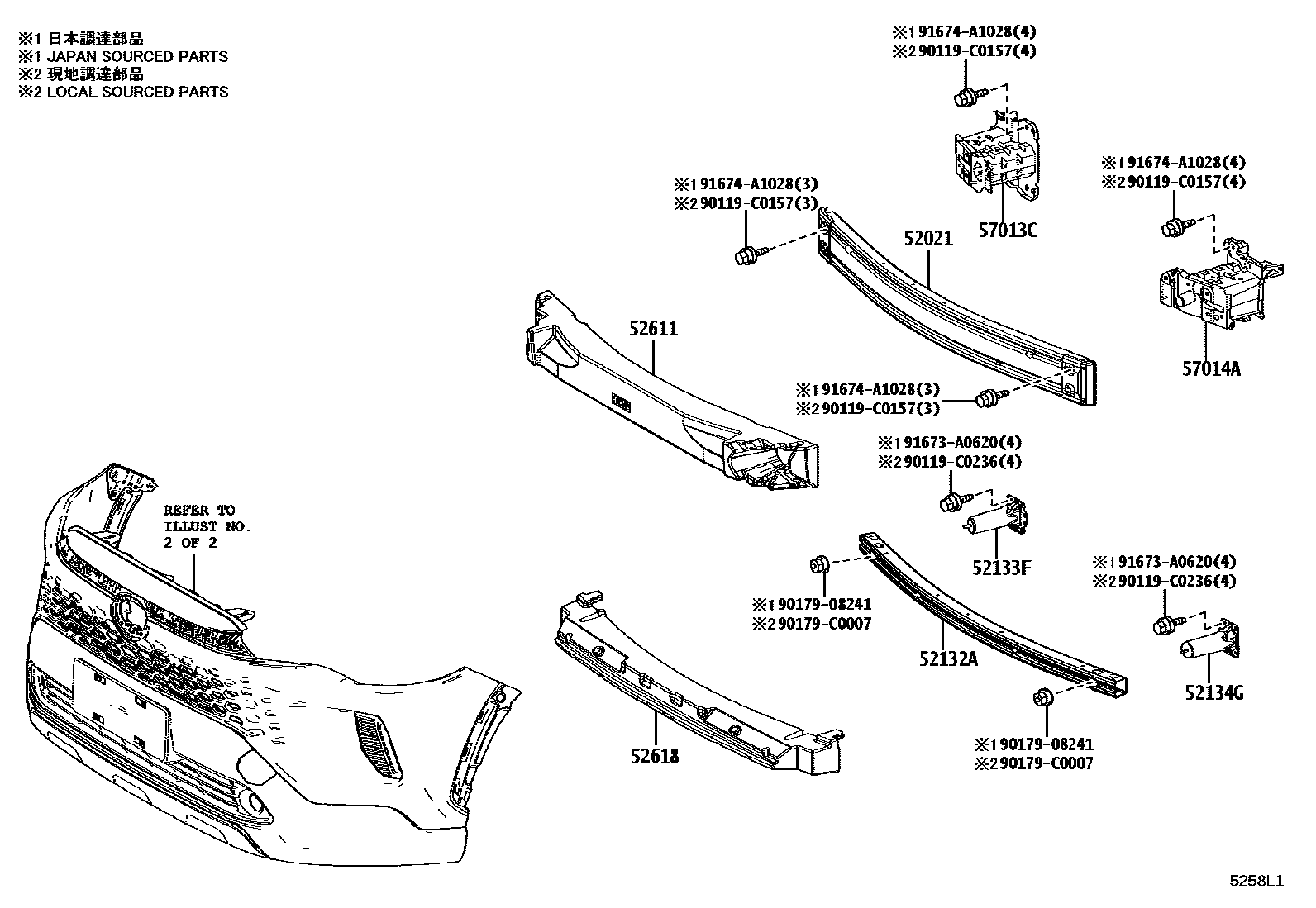

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Gasket No. 1 | 90189-06193 · 90189-06237 · 90189-C0015 |
| 51451G | Gasket No. 2 | 90189-06193 · 90189-06237 · 90189-C0015 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0A050 |
| 52111E | front bumper stay | 52111-0A906 · 52111-0A909 |
| 52112D | Front bumper right extension | 52112-0A910 · 52112-0A911 |
| 52113D | Front bumper left extension | 52113-0A910 · 52113-0A911 |
| 52119A | front bumper cover | 52119-0A974 · 52119-0A975 |
| 52127D | Front bumper right hole cover | 52127-0A100 |
| 52128B | Front bumper left hole cover | 52128-0A110 |
| 52129B | Front bumper lower cover | 52129-0A040 · 52129-0A190 |
| 52132A | No. 2 front bumper reinforcement | 52132-02120 |
| 52133F | Front bumper right side bracket | 52133-02180 · 52133-02200 |
| 52134G | Front bumper left bracket | 52133-02180 · 52133-02200 |
| 52535 | Front bumper right side fixing bracket | 52535-0A040 |
| 52536 | Front bumper left fixed bracket | 52536-0A040 |
| 52611 | front bumper energy absorber | 52611-0A040 |
| 52618 | Front bumper lower shock absorber | 52618-0A040 |
| 52711A | front bumper decorative panel | 52711-0A180 · 52711-0A190 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-07220 · 90467-C0043 |
| 53123C | Radiator grille lower right protective strip | 53123-0A180 |
| 53124D | Radiator grille lower left protective strip | 53124-0A180 |
| 53128E | Lower left radiator grille | 53128-0A040 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0A020 · 57013-0A060 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0A020 · 57014-0A040 |
| 75392J | External protective strip fixings | 75392-0R030 · 75392-35220 |
| 75392K | No. 2 outer protective strip fixings | 75392-0R030 · 75392-35220 |
| 75392P | No. 3 outer protective strip fixings | 75392-0R030 · 75392-35220 |
| 81481E | Right fog light cover | 81481-0A060 · 81481-0A070 |
| 81482C | Left fog light cover | 81482-0A060 · 81482-0A070 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-0A120 · 89348-0E311 |
| 89C48E | Front central ultrasonic sensor holder | 89348-02620 |
