Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

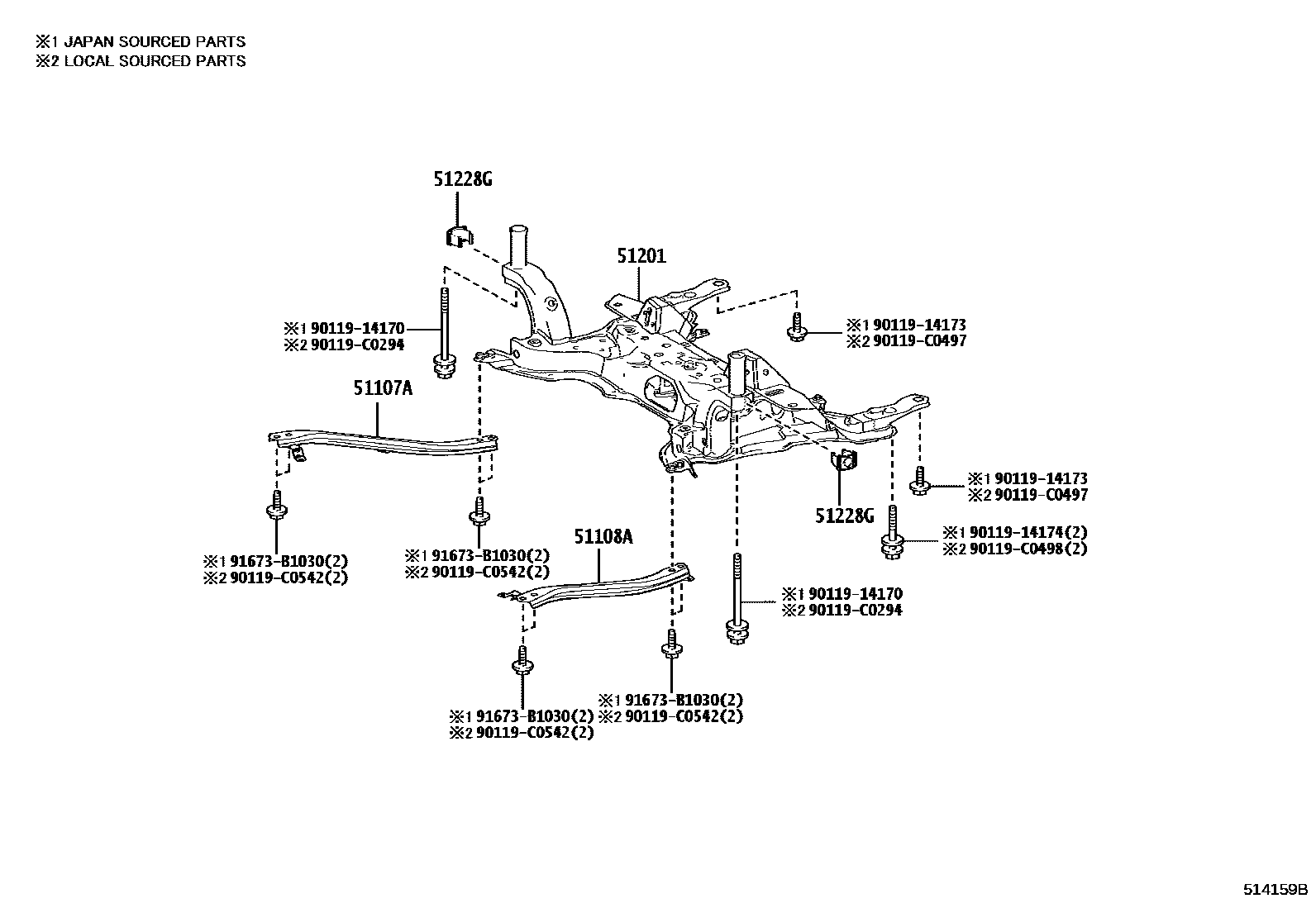

| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-0A040 · 51107-0A060 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-0A040 · 51108-0A060 |
| 51201 | Front suspension cross member sub-assembly | 51201-F4032 |
| 51228G | front suspension cross member plate | 51228-F4030 |

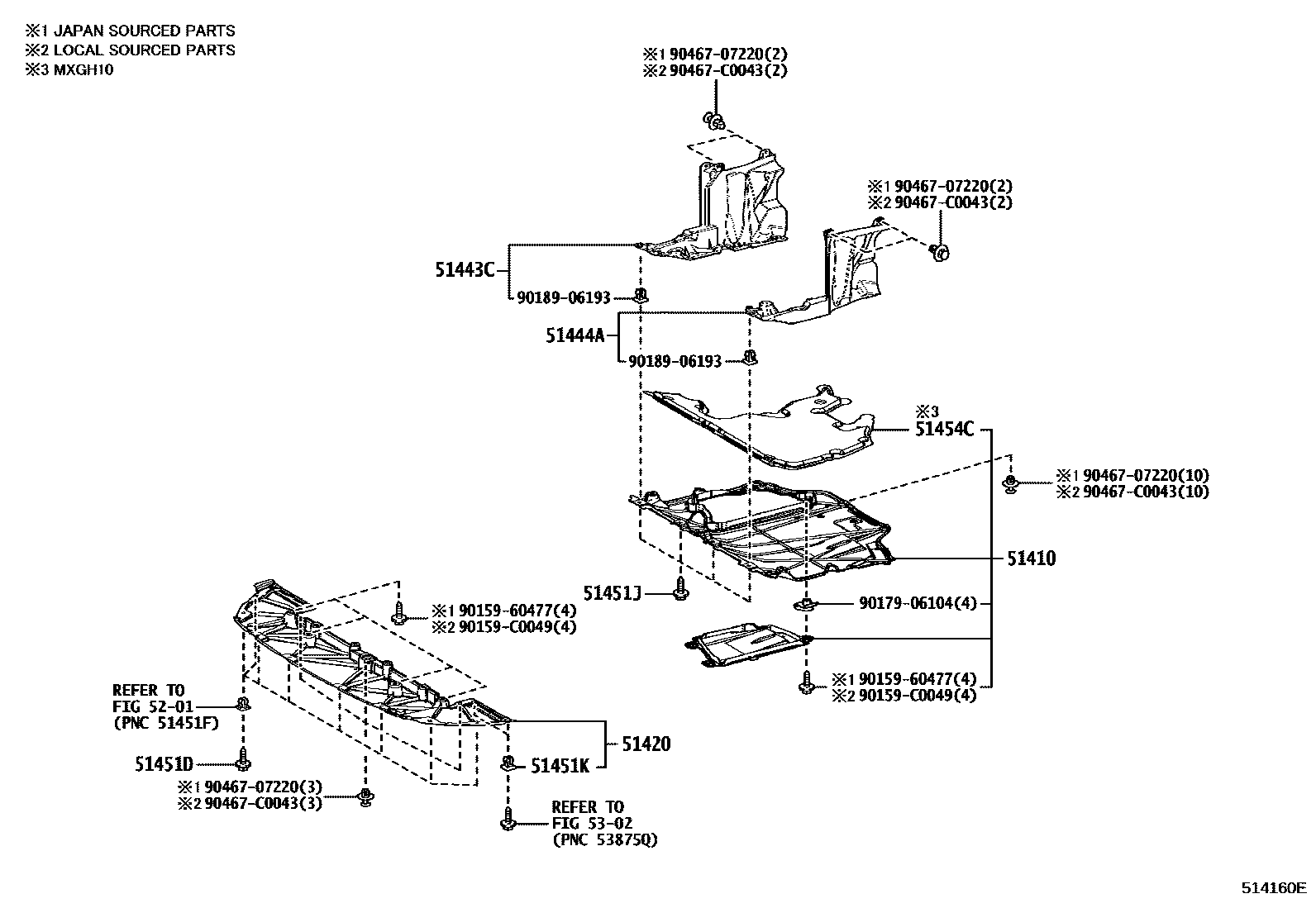

| 51410 | Engine No. 1 bottom cover assembly | 51410-0A040 · 51410-0A230 |
| 51420 | Engine No. 2 bottom cover assembly | 51420-0A010 |
| 51443C | Engine right rear bottom cover | 51443-0A020 |
| 51444A | Engine left rear bottom cover | 51444-0A020 |
| 51451D | Screw No. 1 | 90159-60477 · 90159-C0049 |
| 51451J | Bolt No. 1 | 90119-06A13 · 90119-C0520 |
| 51451K | No. 1 screw seal | 90189-06237 |
| 51454C | Engine rear bottom cover silencer panel | 51454-0A090 |
