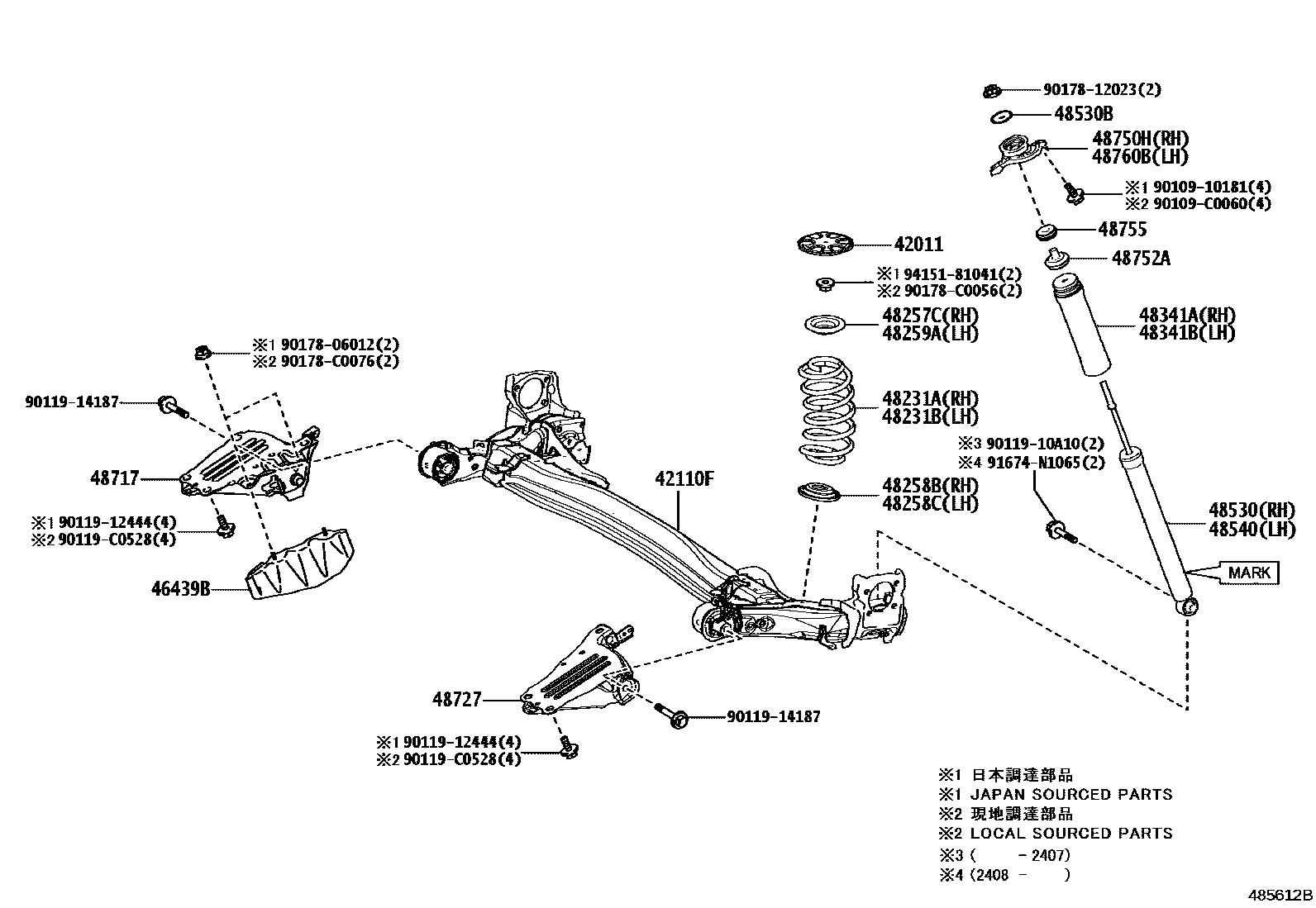

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42011 | Rear spring seat sub-assembly | 42011-0A070 |
| 42110F | rear axle assembly | 42110-0A070 |
| 46439B | Parking brake cable insulation pad | 46439-0A060 |
| 48231A | Right rear coil spring | 48231-0A160 · 48231-0A161 · 48231-0A310 |
| 48231B | Left rear coil spring | 48231-0A160 · 48231-0A161 · 48231-0A310 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-06040 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-0A050 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-0A050 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-06040 |
| 48341A | No. 1 right rear spring buffer block | 48341-0A060 |
| 48341B | No. 1 left rear spring buffer block | 48341-0A060 |
| 48530 | Right rear shock absorber assembly | 48530-0A140 · 48530-0A370 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48540 | Left rear shock absorber assembly | 48530-0A140 · 48530-0A370 |
| 48717 | Right rear suspension arm bracket | 48717-0A060 |
| 48727 | Left rear suspension arm bracket | 48727-0A060 |
| 48750H | Right rear suspension support assembly | 48750-0A070 |
| 48752A | Rear suspension mount block | 48752-0A050 · 48752-0A051 |
| 48755 | rear suspension mount | 48755-0A050 · 48755-0A051 |
| 48760B | Left rear suspension support assembly | 48760-0A080 |
