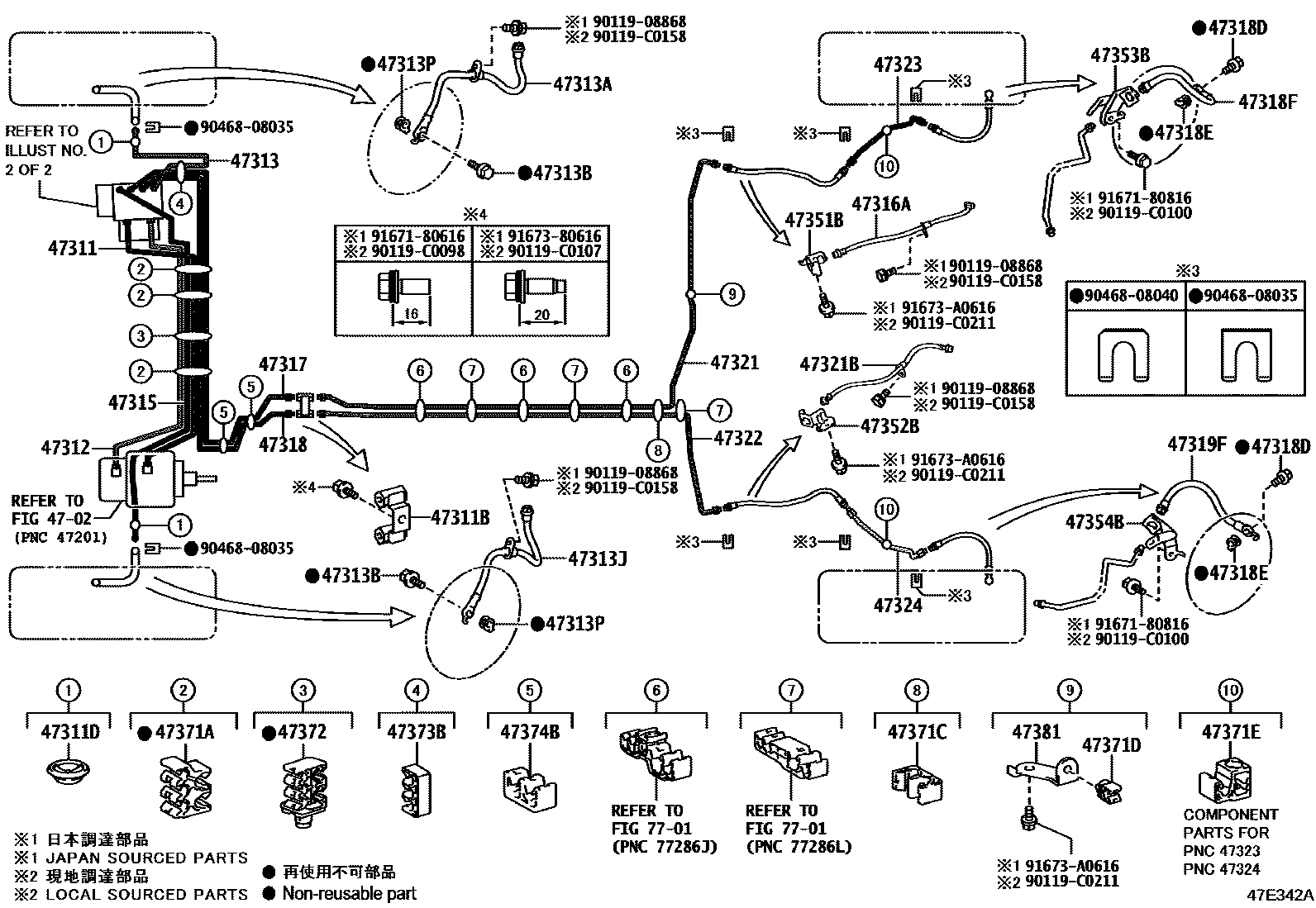

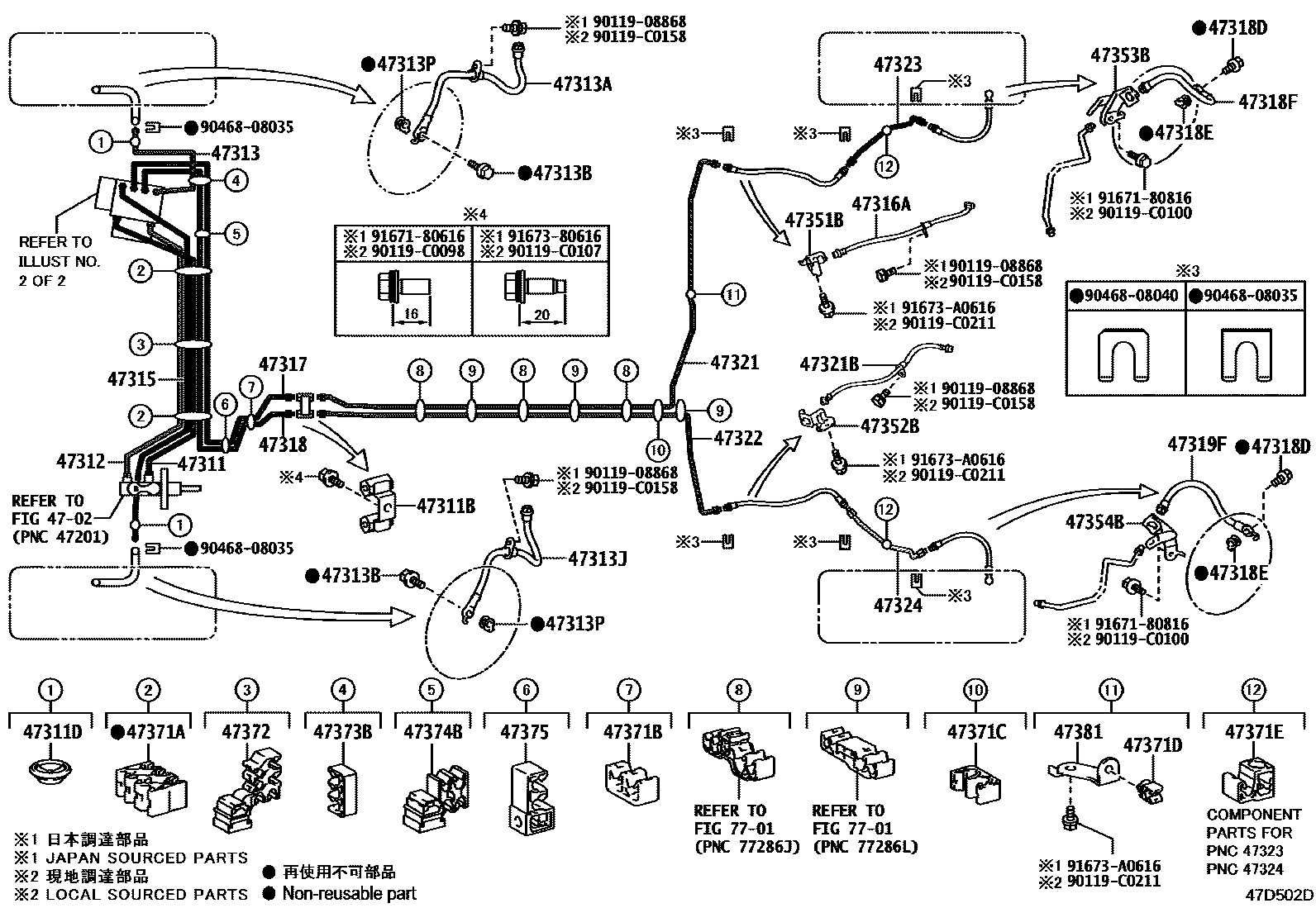

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

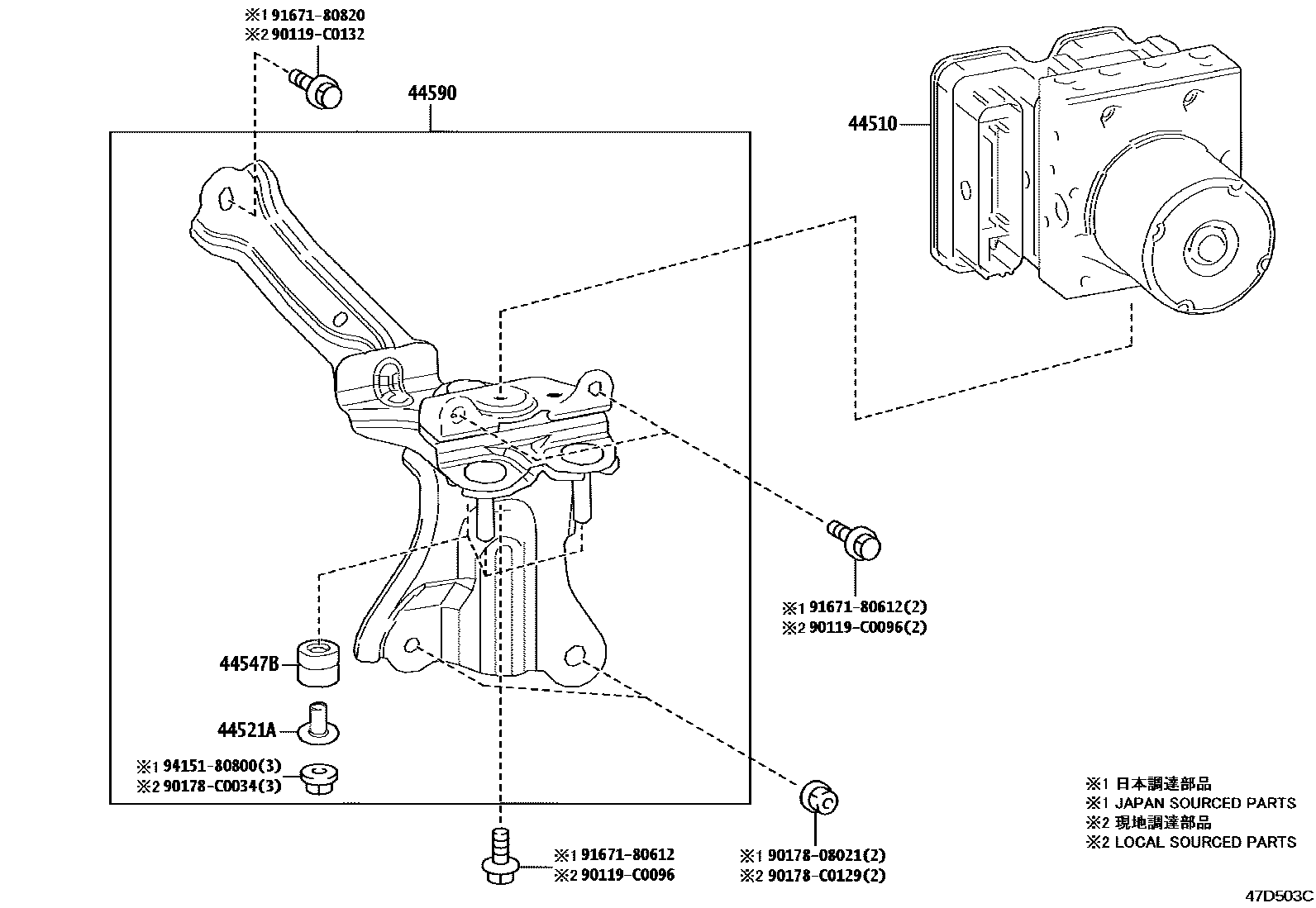

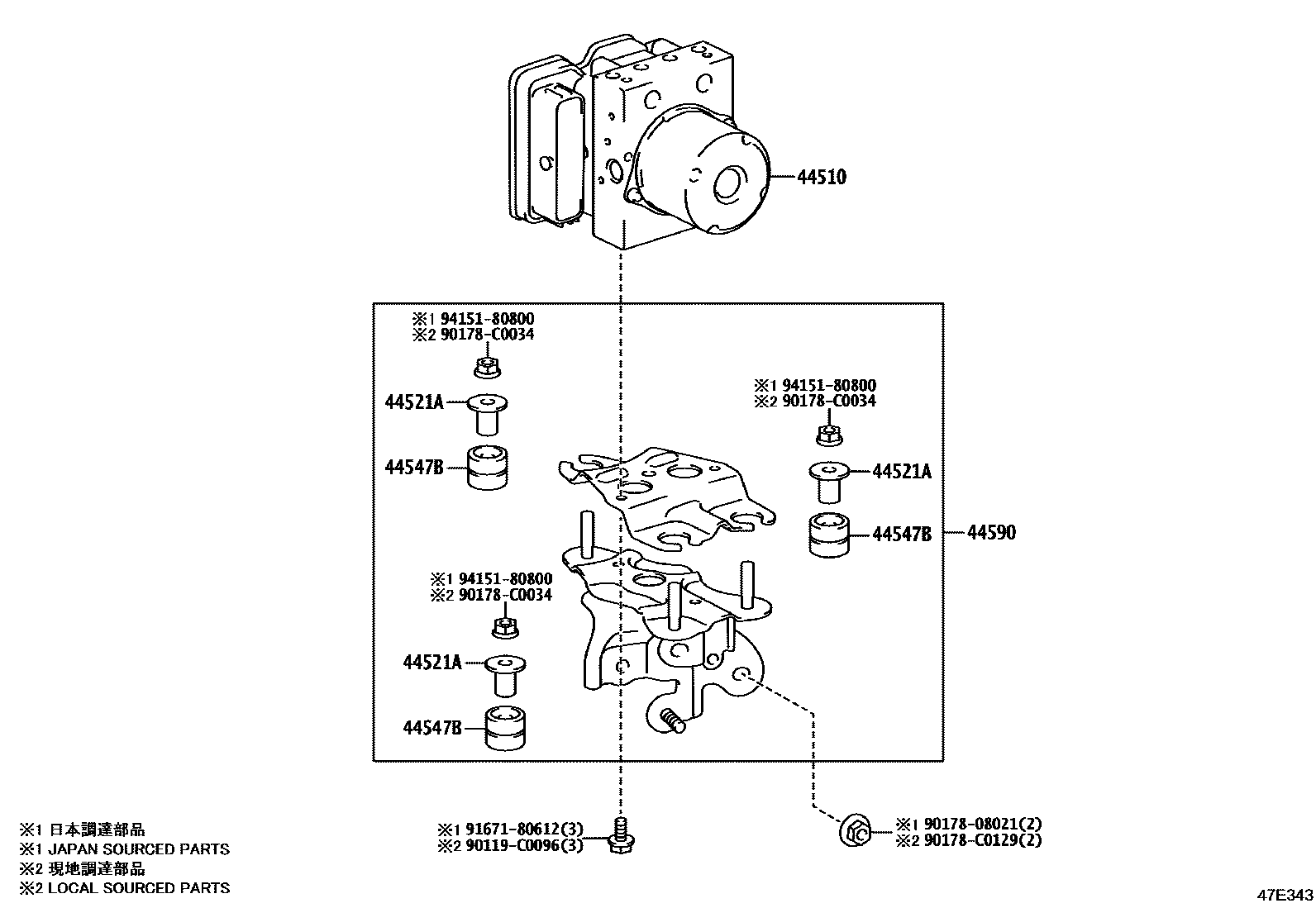

| 44510 | brake actuator assembly | 44050-0A100 · 44050-0A160 · 44050-0A250 · 44050-0A260 · 44050-0A440 |
| 44521A | No. 1 brake actuator housing collar | 44521-33020 |
| 44547B | brake actuator bracket cushion | 44547-02070 · 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-02630 · 44590-02650 · 44590-02670 |
| 47311 | No. 1 front brake pipe | 47311-02J10 · 47311-02J40 · 47311-F4070 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 · 90412-C0004 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-02F70 · 47312-F4070 |
| 47313 | No. 3 front brake pipe | 47313-02J30 · 47313-F4070 |
| 47313A | No. 1 front flexible hose | 90947-C2082 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2083 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-02660 · 47315-02730 · 47315-F4070 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-C2110 |
| 47317 | No. 7 front brake pipe | 47317-02G30 · 47317-F4070 |
| 47318 | No. 8 front brake pipe | 47318-02G50 · 47318-F4070 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-C2100 |
| 47319F | Left rear flexible hose | 90947-C2100 |
| 47321 | No. 1 rear brake pipe | 47321-0A140 · 47321-0A170 · 47321-0A180 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-C2111 |
| 47322 | No. 2 rear brake pipe | 47322-0A110 · 47322-0A130 · 47322-0A140 |
| 47323 | No. 3 rear brake pipe | 47323-0A080 |
| 47324 | No. 4 rear brake pipe | 47324-0A080 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-0A200 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-0A200 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-0A170 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-0A170 |
| 47371A | No. 1 brake pipe clamp | 90949-01E40 · 90949-01E44 |
| 47371B | No. 6 brake pipe clamp | 90949-01D91 |
| 47371C | No. 7 brake pipe clamp | 90464-00904 |
| 47371D | No. 8 brake pipe clamp | 90949-01E01 |
| 47371E | No. 9 brake pipe clamp | 90949-01C82 |
| 47372 | No. 2 brake pipe clamp | 90949-01E42 · 90949-01E79 |
| 47373B | No. 3 brake pipe clamp | 90949-01D92 |
| 47374B | No. 4 brake pipe clamp | 90949-01D91 · 90949-01E51 |
| 47375 | No. 5 brake pipe clamp | 90949-01E33 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-0A020 |
