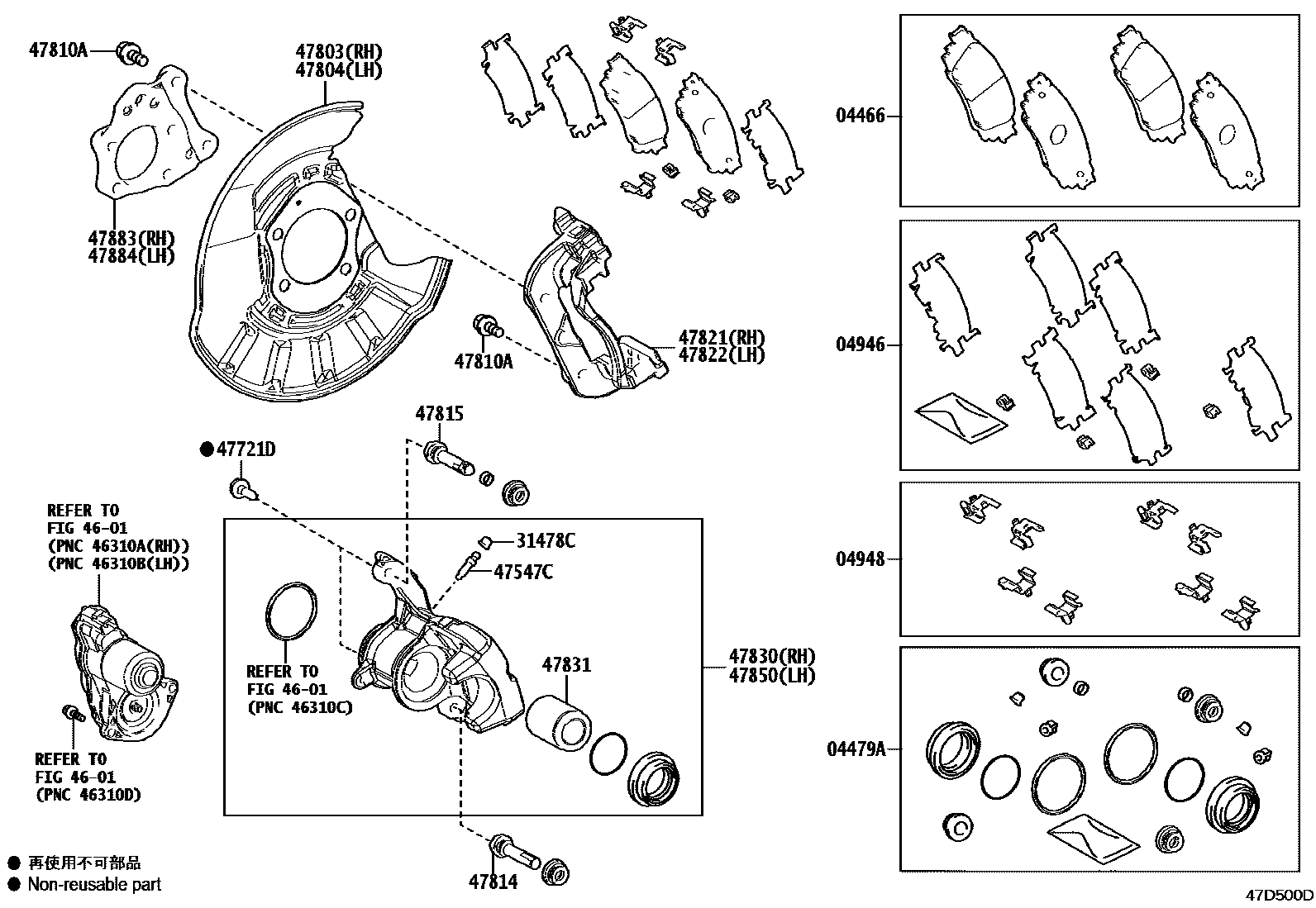

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-0R000 |
| 04479A | Rear disc brake cylinder assembly | 04479-06392 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-06150 |
| 04948 | Rear disc brake mounting assembly | 04948-06070 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-0N010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA612 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-0A020 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-0A020 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12208 · 90105-C0021 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-06180 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-06180 |
| 47821 | Right rear disc brake cylinder retainer | 47821-F4010 |
| 47822 | Left rear disc brake cylinder retainer | 47822-F4010 |
| 47830 | Right rear disc brake cylinder assembly | 47830-0R060 |
| 47831 | rear disc brake piston | 47831-0R060 · 47831-0R061 |
| 47850 | Left rear disc brake cylinder assembly | 47850-0R060 |
| 47883 | Right rear brake caliper bracket | 47883-0A050 |
| 47884 | Left rear brake caliper bracket | 47884-0A050 |
