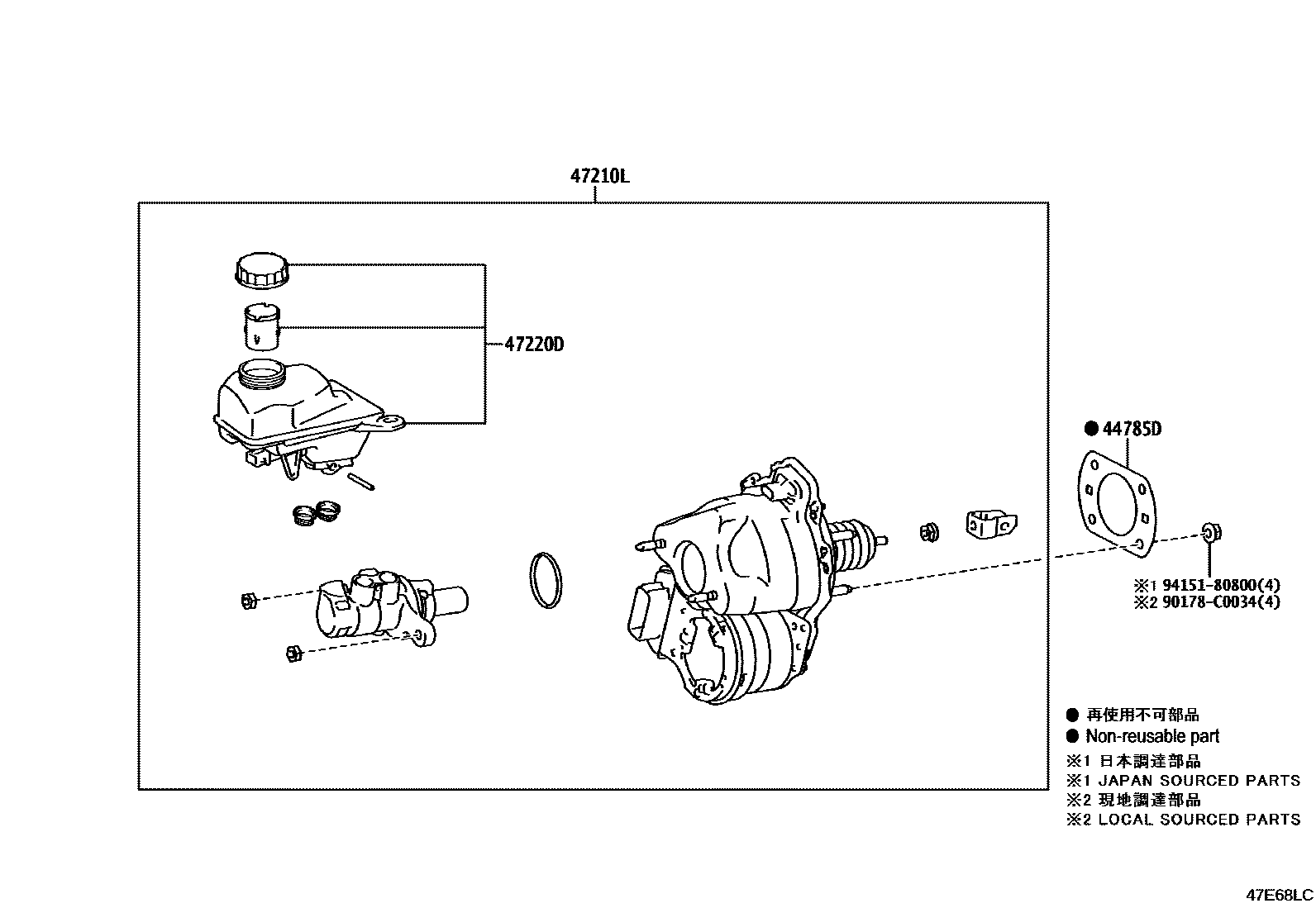

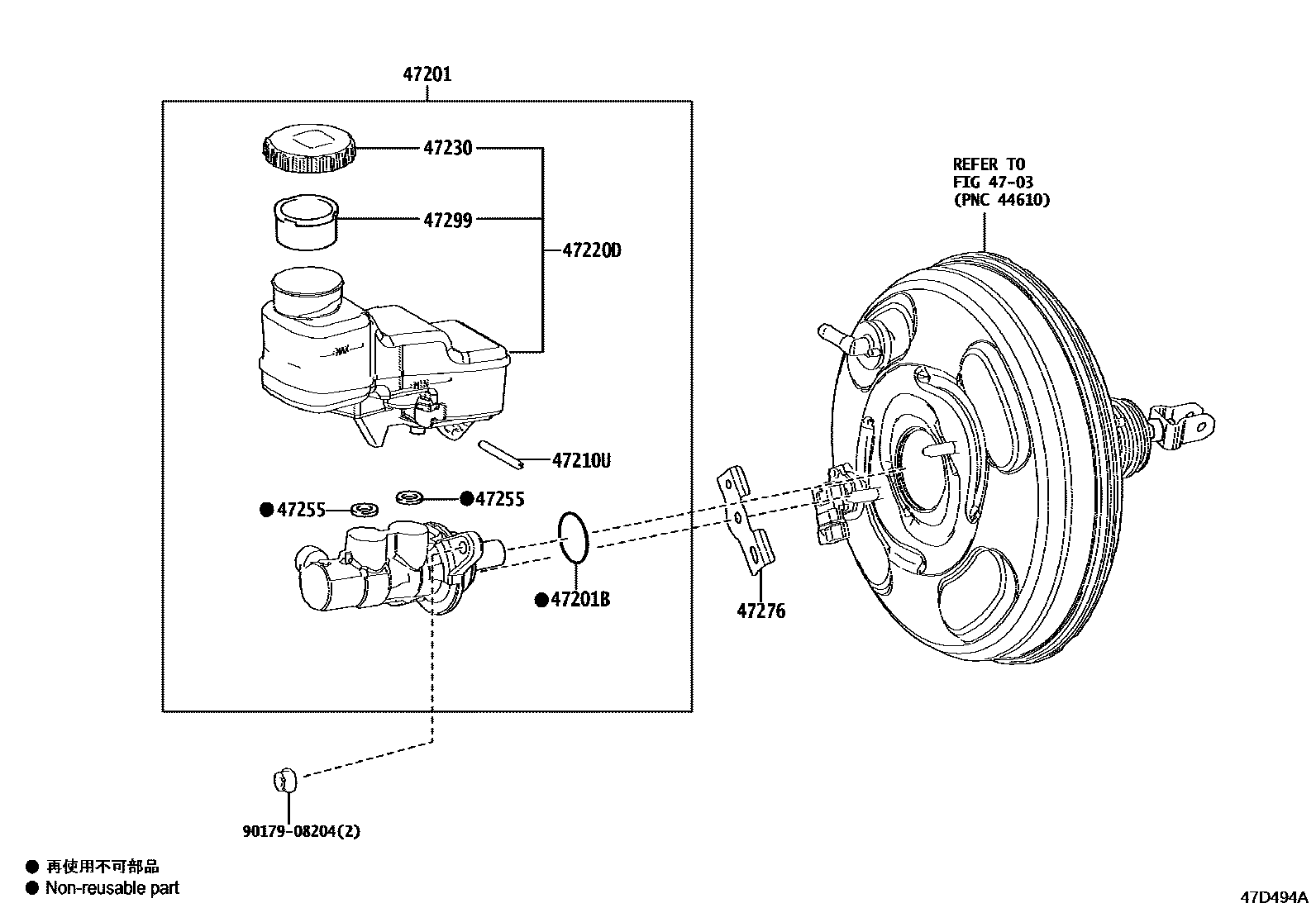

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785D | brake master cylinder gasket | 44785-02080 |
| 47201 | Brake master cylinder sub-assembly | 47201-F4030 |
| 47201B | O-ring (for brake master cylinder) | 90016-AH902 |
| 47210L | Brake booster assembly with master cylinder | 47210-0A020 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-02530 · 47220-F4030 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0R100 · 47230-47090 |
| 47255 | Master pump reservoir seal | 90016-AT002 |
| 47276 | brake master cylinder bracket | 47276-F4010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
