Toyota COROLLA Brake Pedal & Bracket — Figure 4701

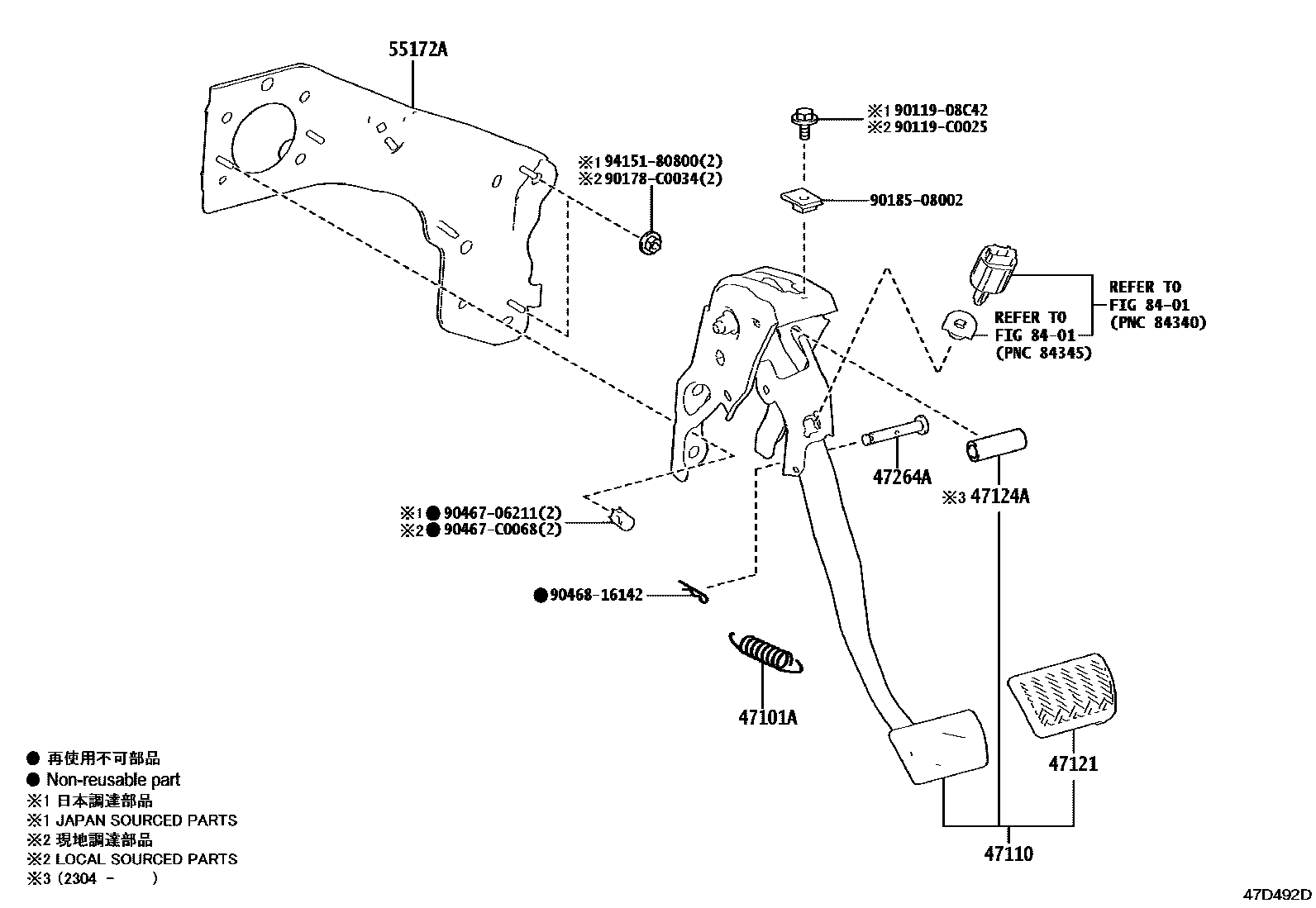

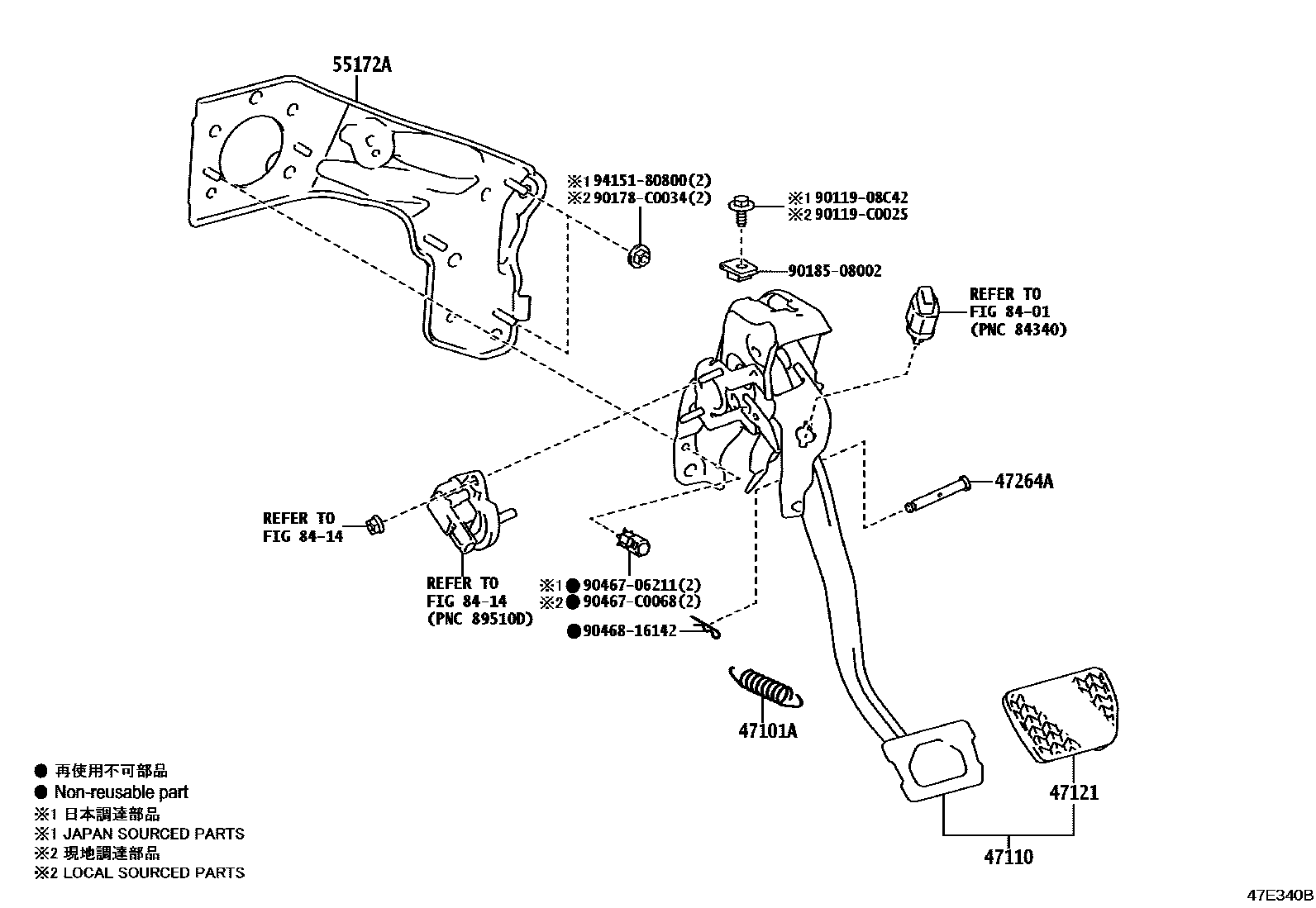

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-15010 · 90507-16030 · 90507-C0006 · 90507-C0008 |
| 47110 | Brake pedal bracket assembly | 47110-0A130 · 47110-0A190 |
| 47121 | brake pedal pad | 47121-02130 · 47121-F4050 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47264A | Pin (for push rod) | 90249-08221 |
| 55172A | Brake pedal bracket base | 55172-F4030 |
