Toyota COROLLA Front Drive Shaft — Figure 4302

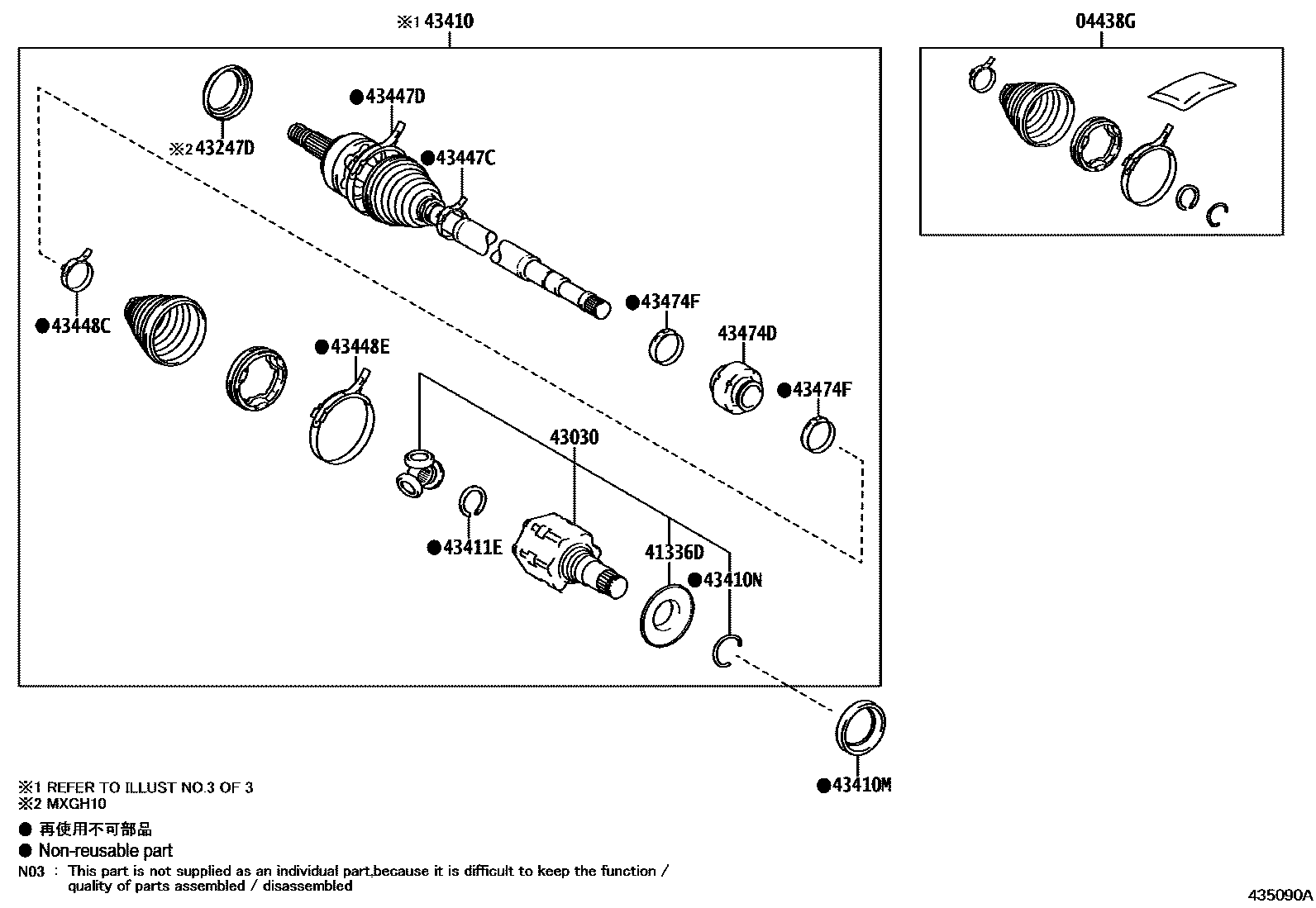

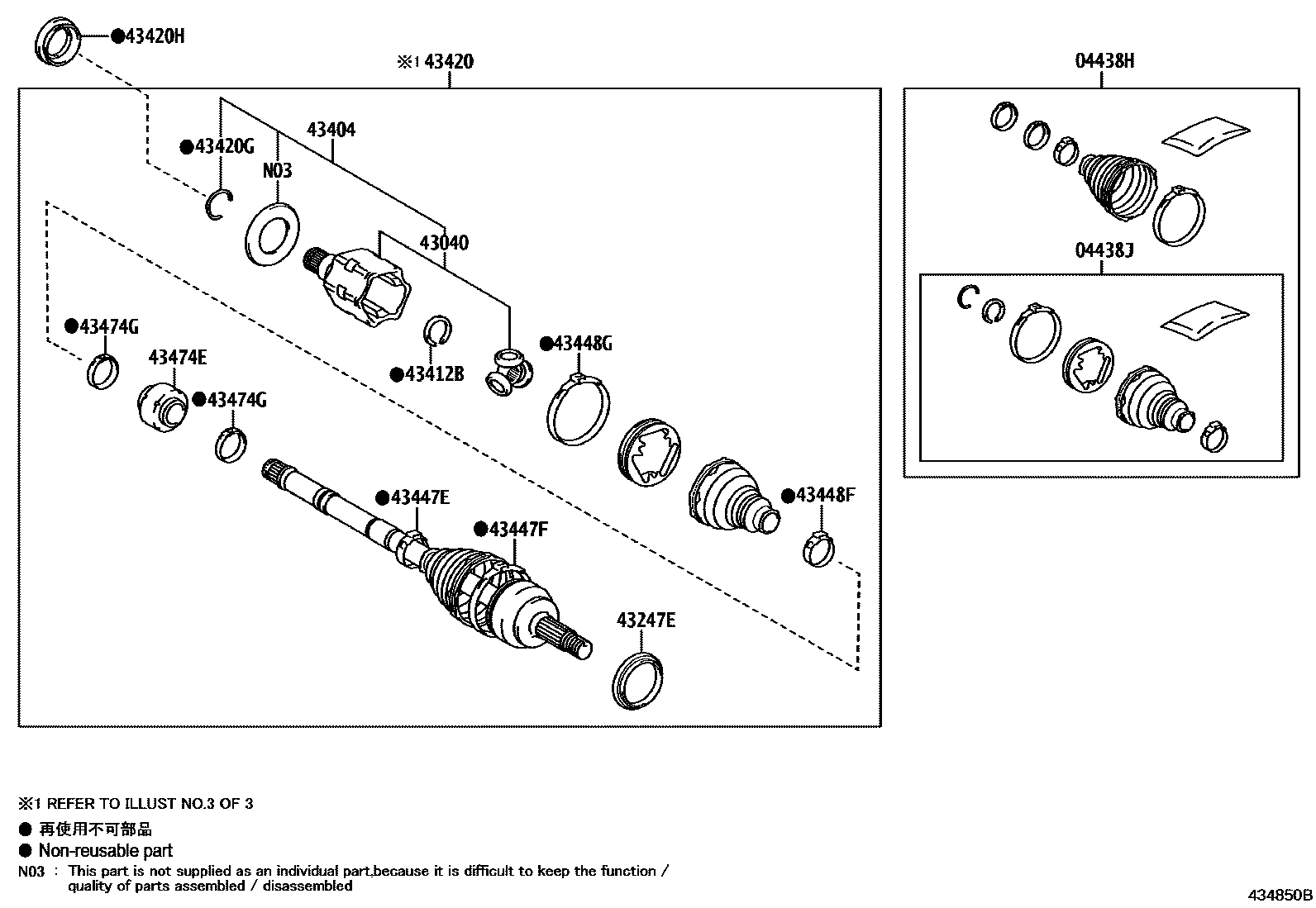

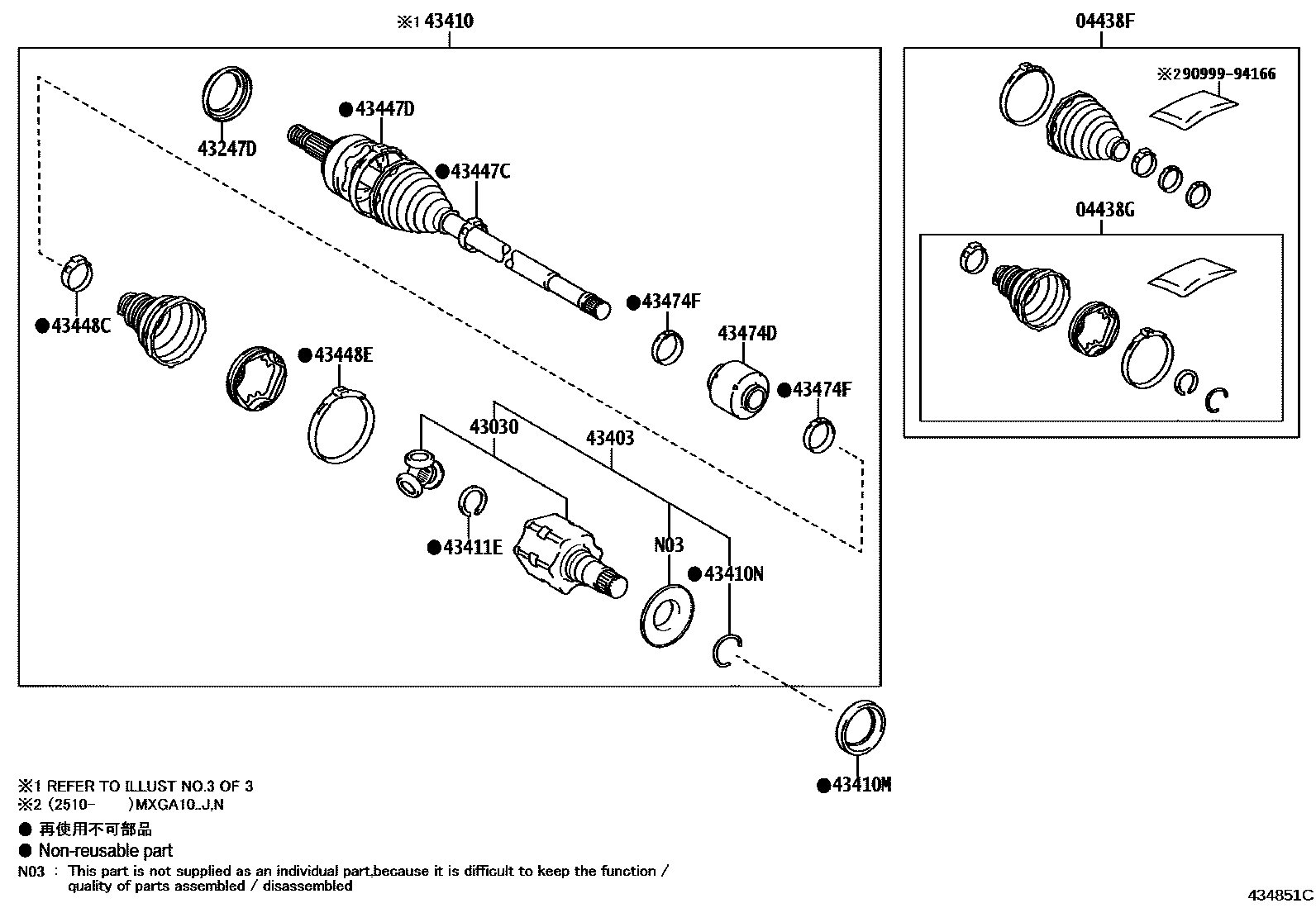

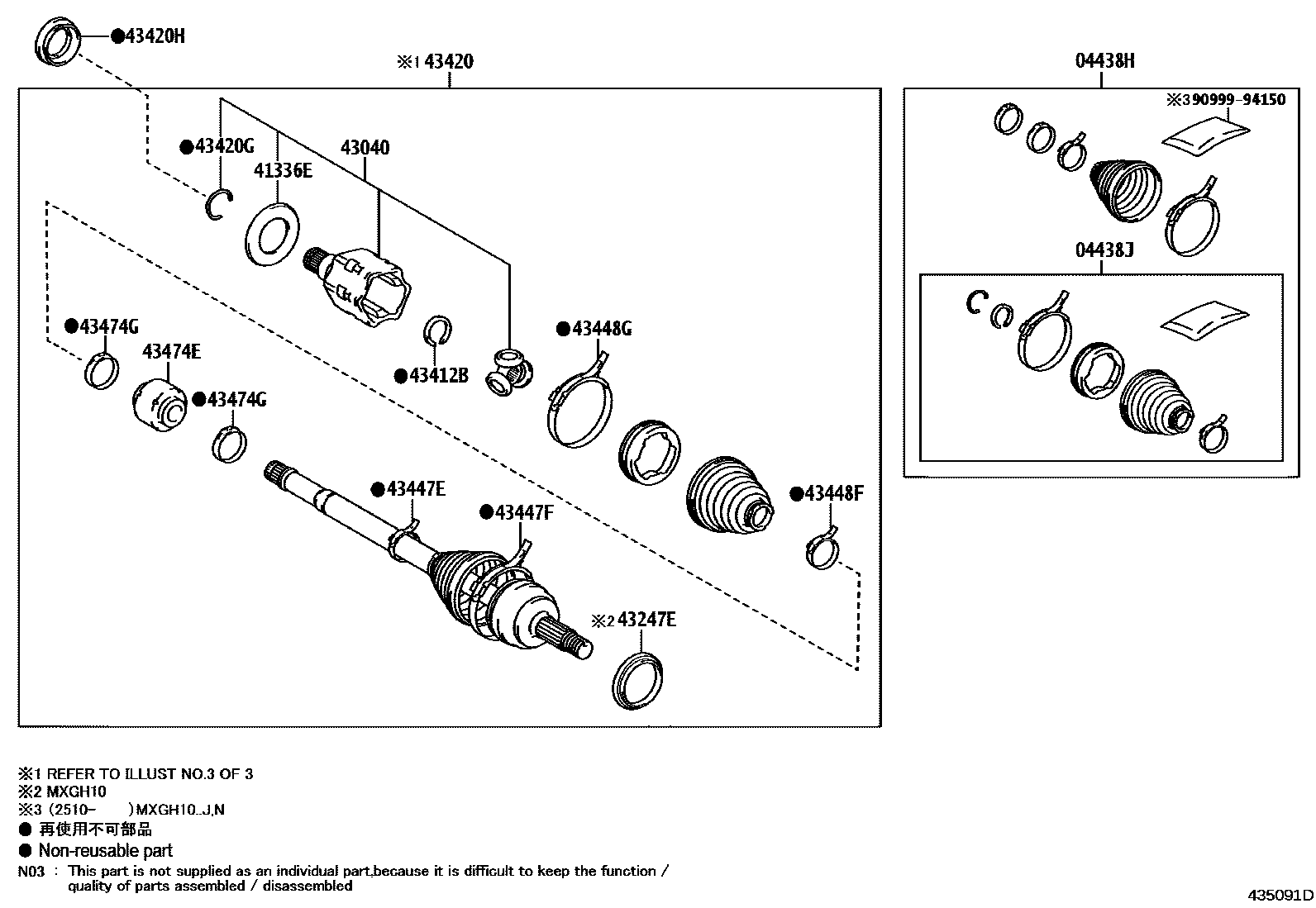

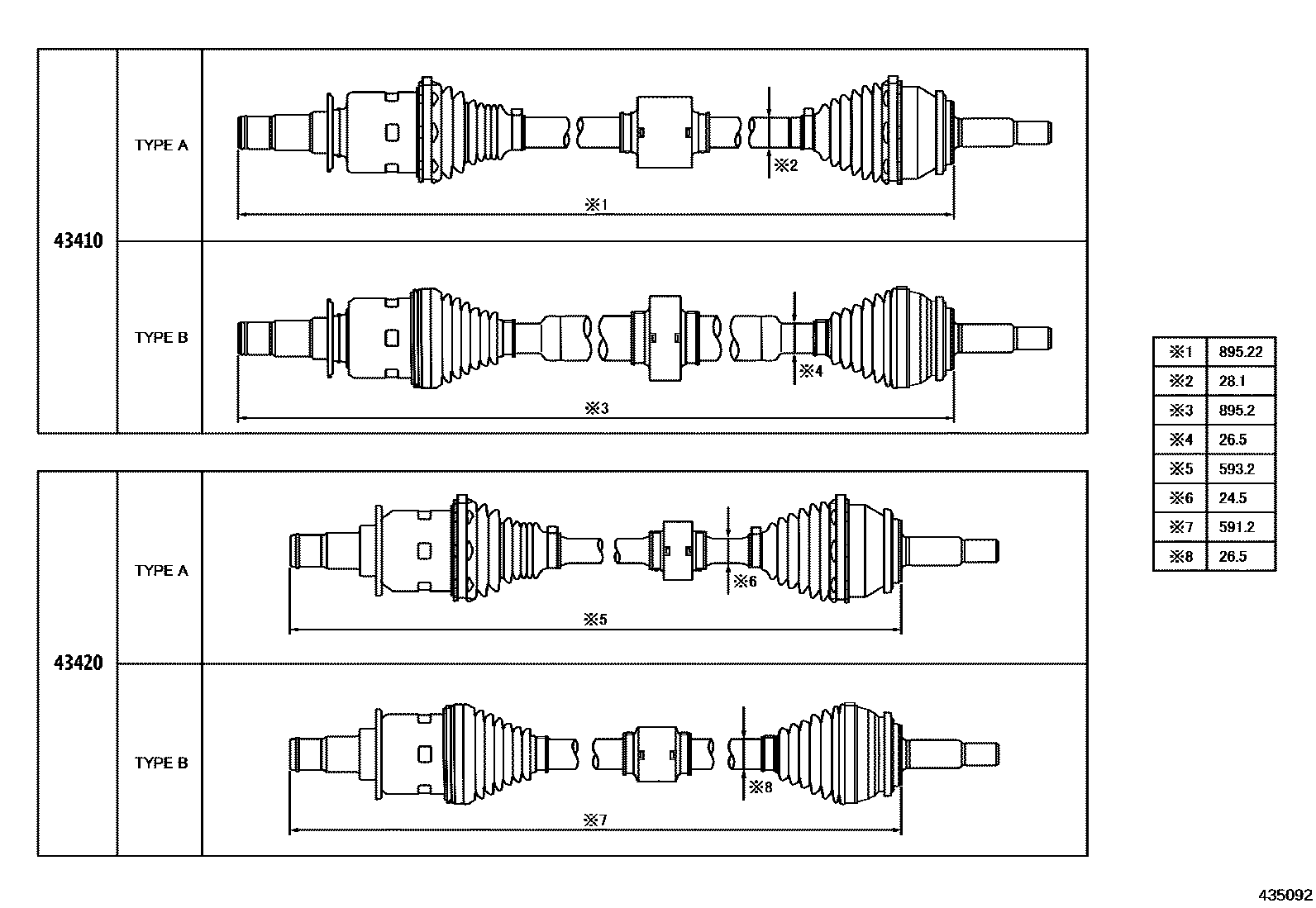

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02B70 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02A70 · 04437-10040 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-02B70 · 04428-10042 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02A70 · 04437-10050 |
| 41336D | Right front driveshaft dust cover | 41336-02390 |
| 41336E | Left front driveshaft dust cover | 41336-06340 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-F4070 · 43040-F4071 · 43040-F4090 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-F4080 · 43040-F4081 · 43040-F4190 |
| 43247D | No. 2 right front wheel bearing dust cover | 43247-F4020 · 43247-F4030 |
| 43247E | No. 2 left front wheel bearing dust cover | 43247-F4020 · 43247-F4030 |
| 43403 | Right front axle inner universal joint assembly | 43403-F4010 |
| 43404 | Left front axle inner universal joint assembly | 43404-F4040 |
| 43410 | Right front driveshaft assembly | 43410-0A160 · 43410-F4080 |
| 43410M | Front drive shaft right oil seal | 90311-40047 · 90311-C0048 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-0E300 · 90520-C0040 · 90521-33002 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-12070 · 43425-F4070 · 90520-C0029 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-12070 · 43425-F4070 · 90520-C0029 |
| 43420 | Left front drive shaft assembly | 43420-0A160 · 43420-F4060 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-0E300 · 90520-C0040 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-50058 · 90311-C0045 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12230 · 42345-F4170 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12240 · 42345-F4180 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12230 · 42345-F4170 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12240 · 42345-F4180 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-12230 · 42345-F4170 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12180 · 42345-F4200 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-12230 · 42345-F4170 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12180 · 42345-F4200 |
| 43474D | Right front driveshaft shock absorber | 43474-02570 · 43474-F4040 |
| 43474E | Left front driveshaft shock absorber | 43474-02550 · 43474-F4090 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02310 · 42345-F4210 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06420 · 42345-12090 · 42345-F4210 |
