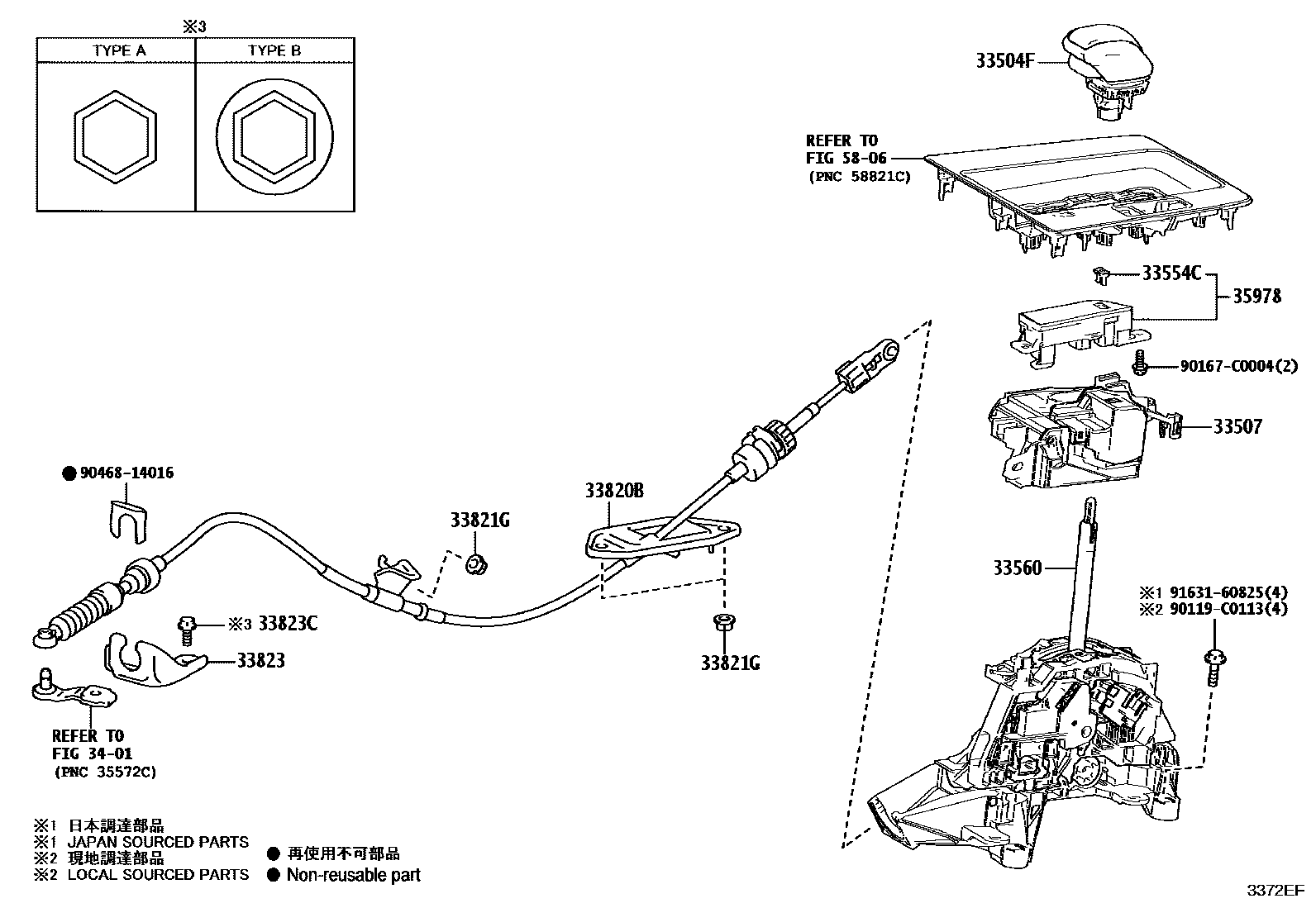

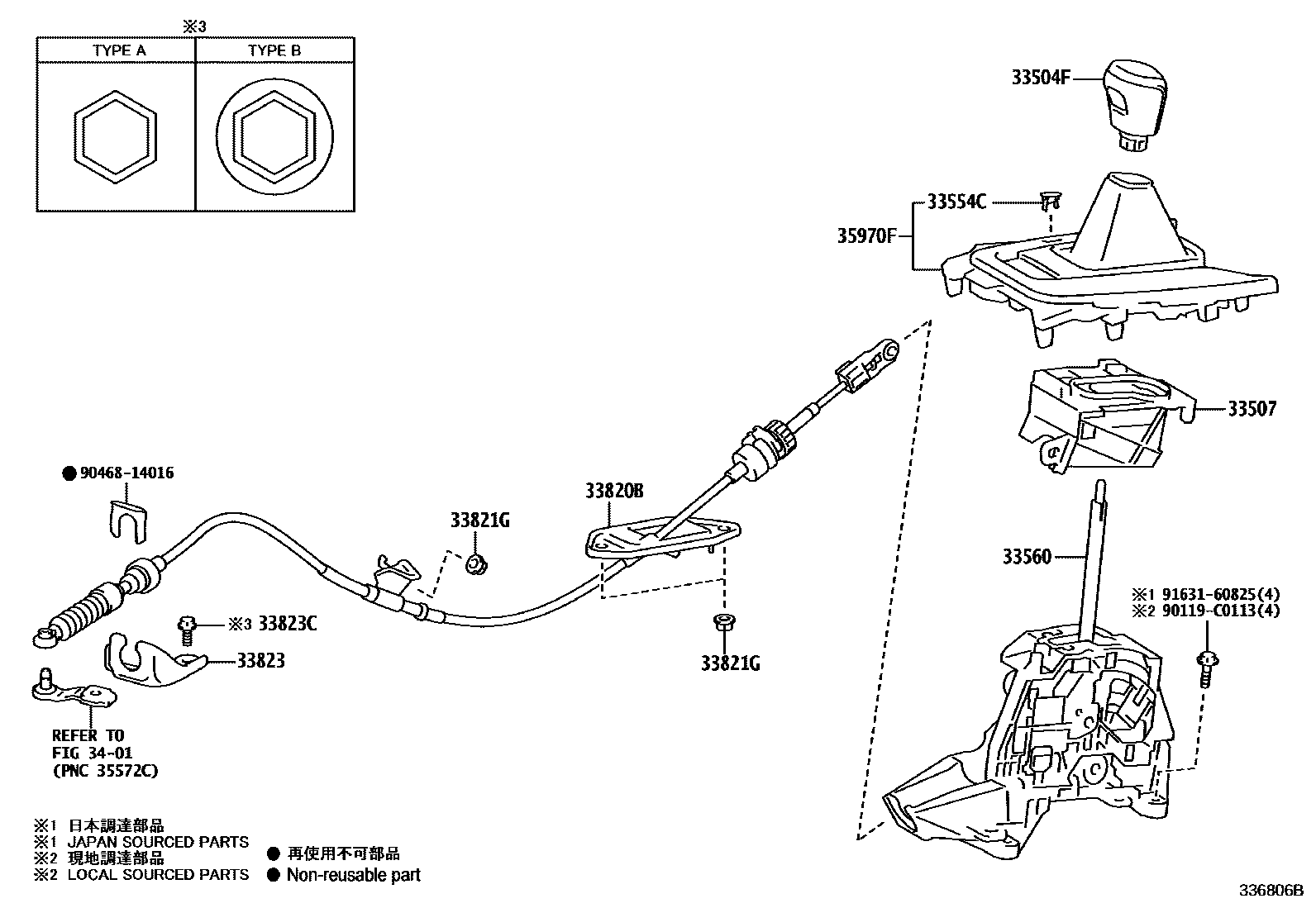

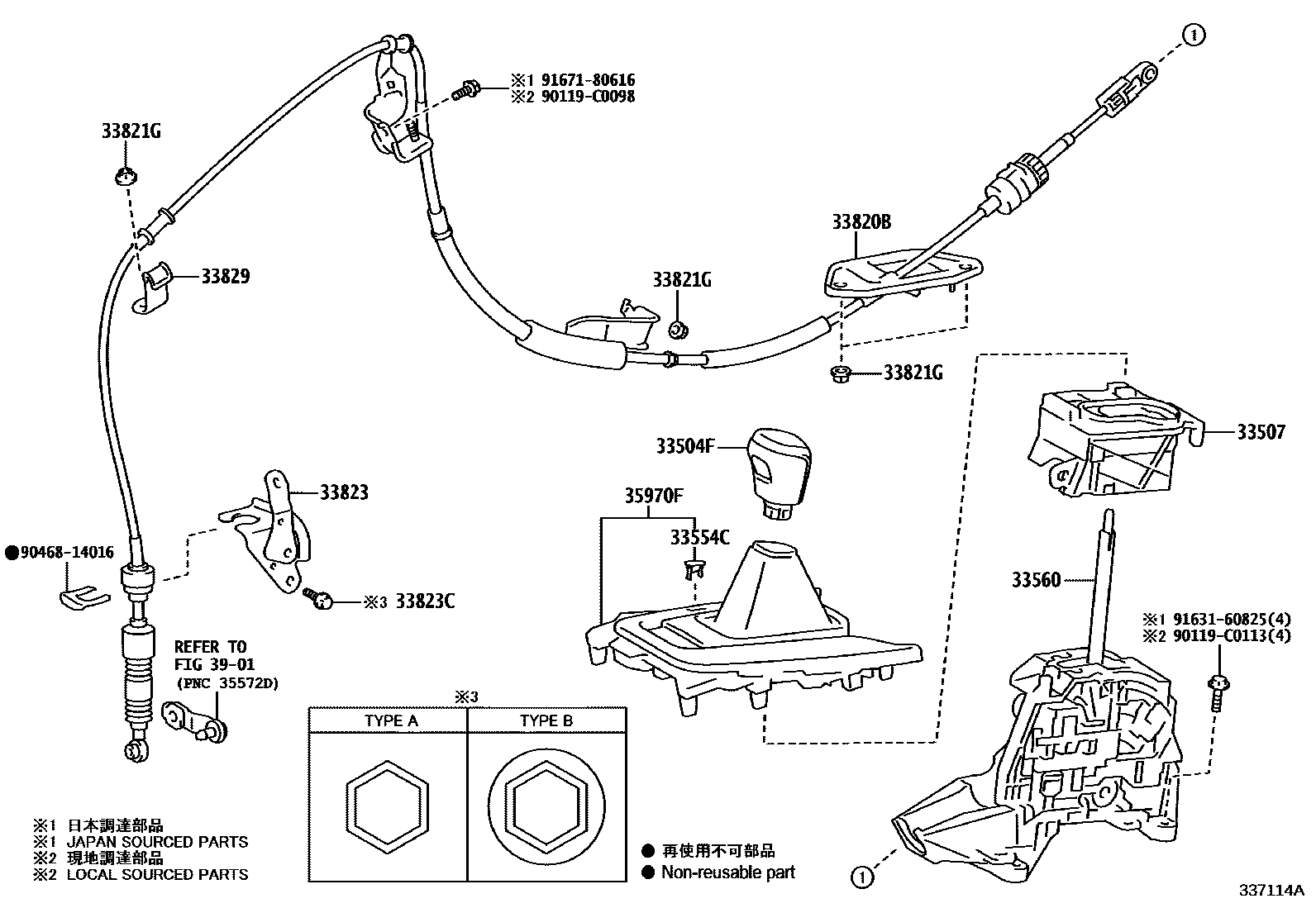

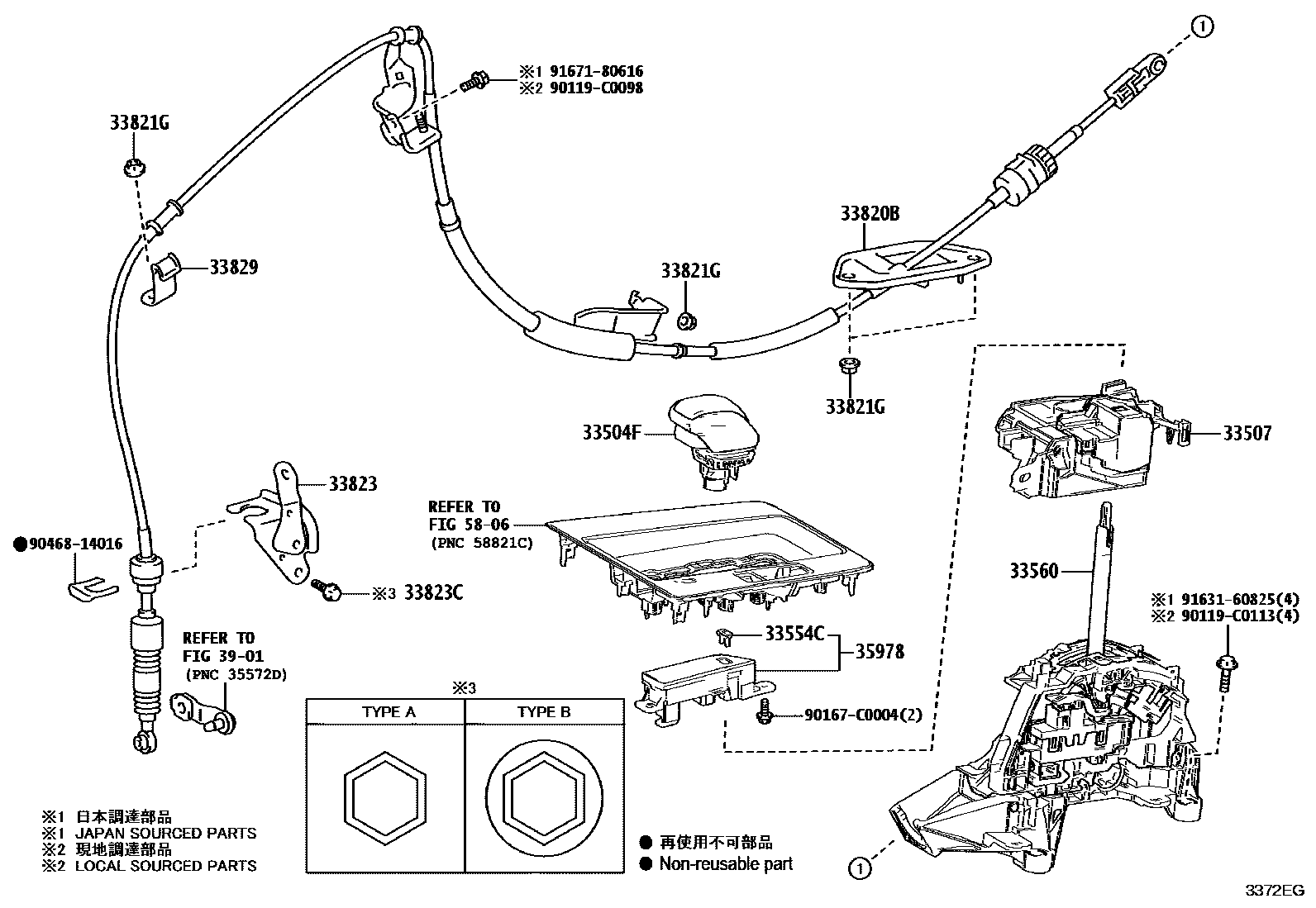

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504F | Shift lever handle sub-assembly | 33504-0A010 |
| 33507 | Shift lever housing bracket sub-assembly | 33507-0A010 · 33507-0A030 · 33507-0A050 · 33507-0A060 |
| 33554C | Shift lock release button cover | 33554-0A010 · 33554-0E150 |
| 33560 | Shift lock control unit assembly | 33560-02750 · 33560-02760 · 33560-0A010 · 33560-0A020 · 33560-0A070 |
| 33820B | Transmission control cable assembly | 33820-0A110 · 33820-0A160 |
| 33821G | Nut (for transmission control cable) | 90178-C0011 · 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-0A050 · 33823-F4040 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-C0132 · 90119-C0212 · 91671-80820 |
| 33829 | Transmission control cable bracket | 33829-0A020 |
| 35978 | Shift lever position indicator light | 35978-0A070 · 35978-0A080 |
