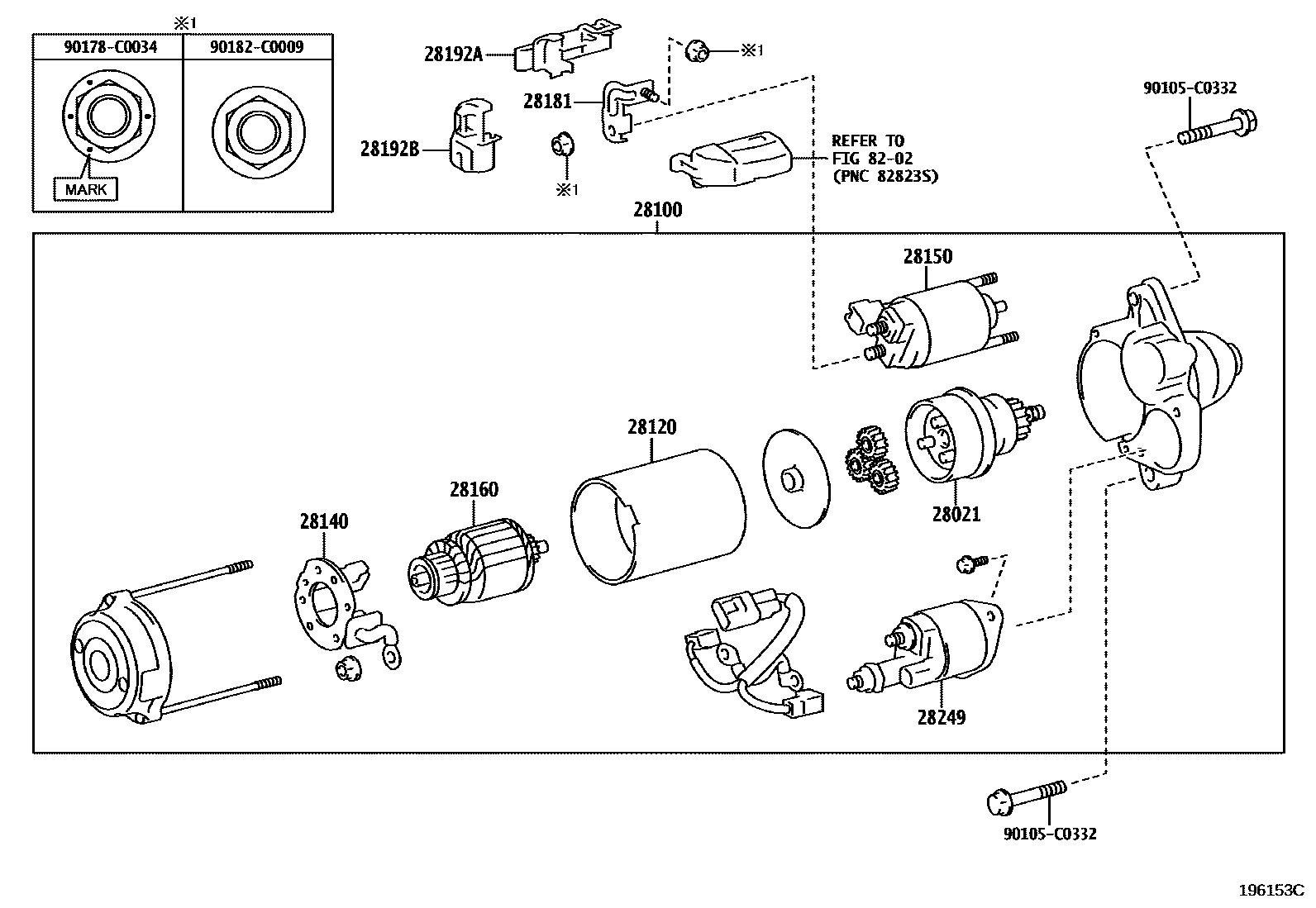

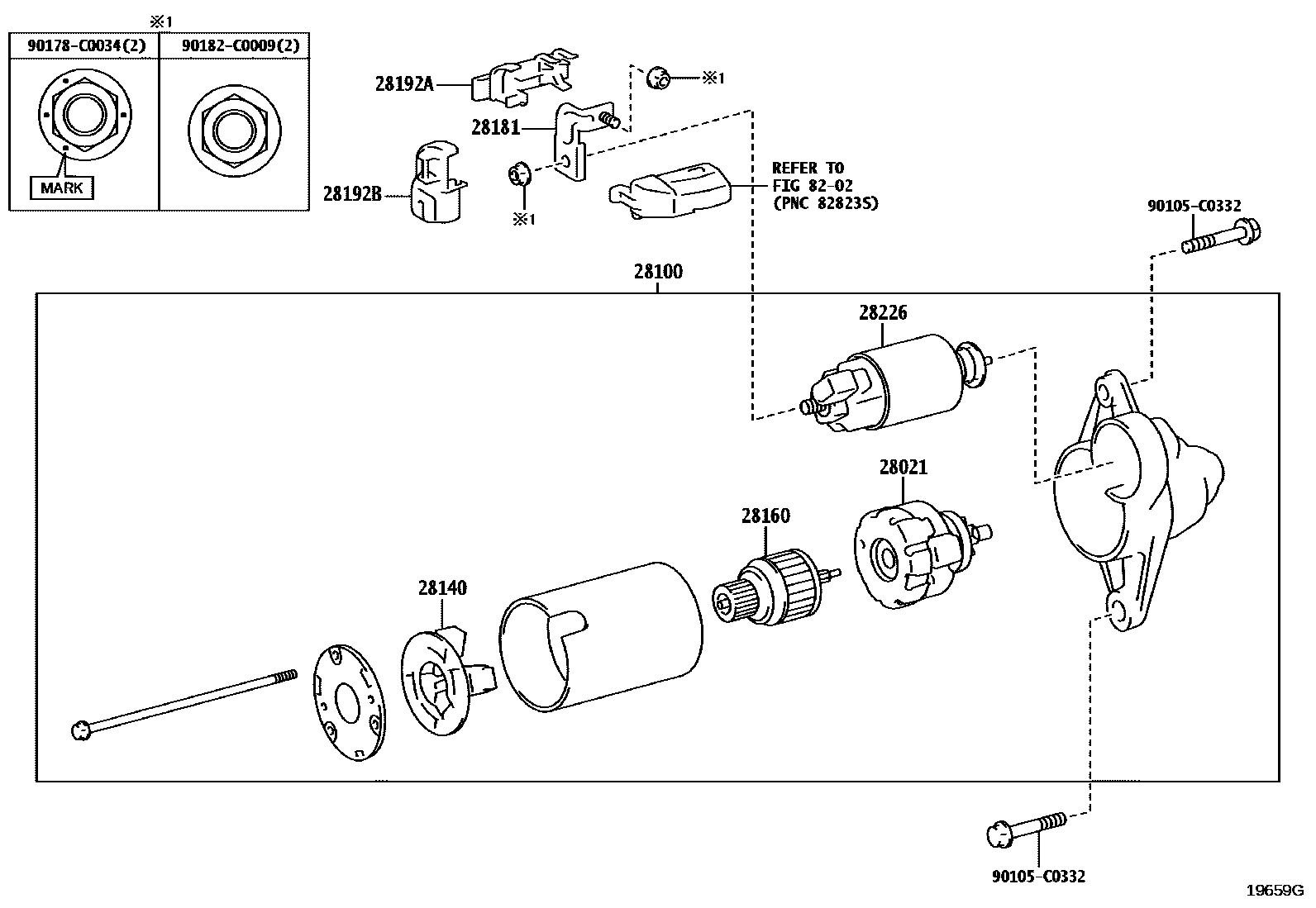

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-F0020 · 28021-F2100 |
| 28100 | Starter assembly | 28100-F0090 · 28100-F2100 |
| 28120 | Starter yoke assembly | 28120-F0020 |
| 28140 | Starter brush holder assembly | 28140-0T330 · 28140-0V040 |
| 28150 | Starter electromagnetic switch assembly | 28150-0Y331 |
| 28160 | Starter armature assembly | 28160-0S050 · 28160-0T330 |
| 28181 | starter terminal | 28181-24010 · 28181-24030 |
| 28192A | No. 1 starter cover | 28192-F2010 · 28192-F2150 |
| 28192B | No. 2 starter cover | 28192-F2140 · 28192-F2160 |
| 28226 | battery terminal starter assembly | 28226-F2100 |
| 28249 | Starter starting current deceleration relay | 28249-37100 |
