Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 2 PNC and OE references.

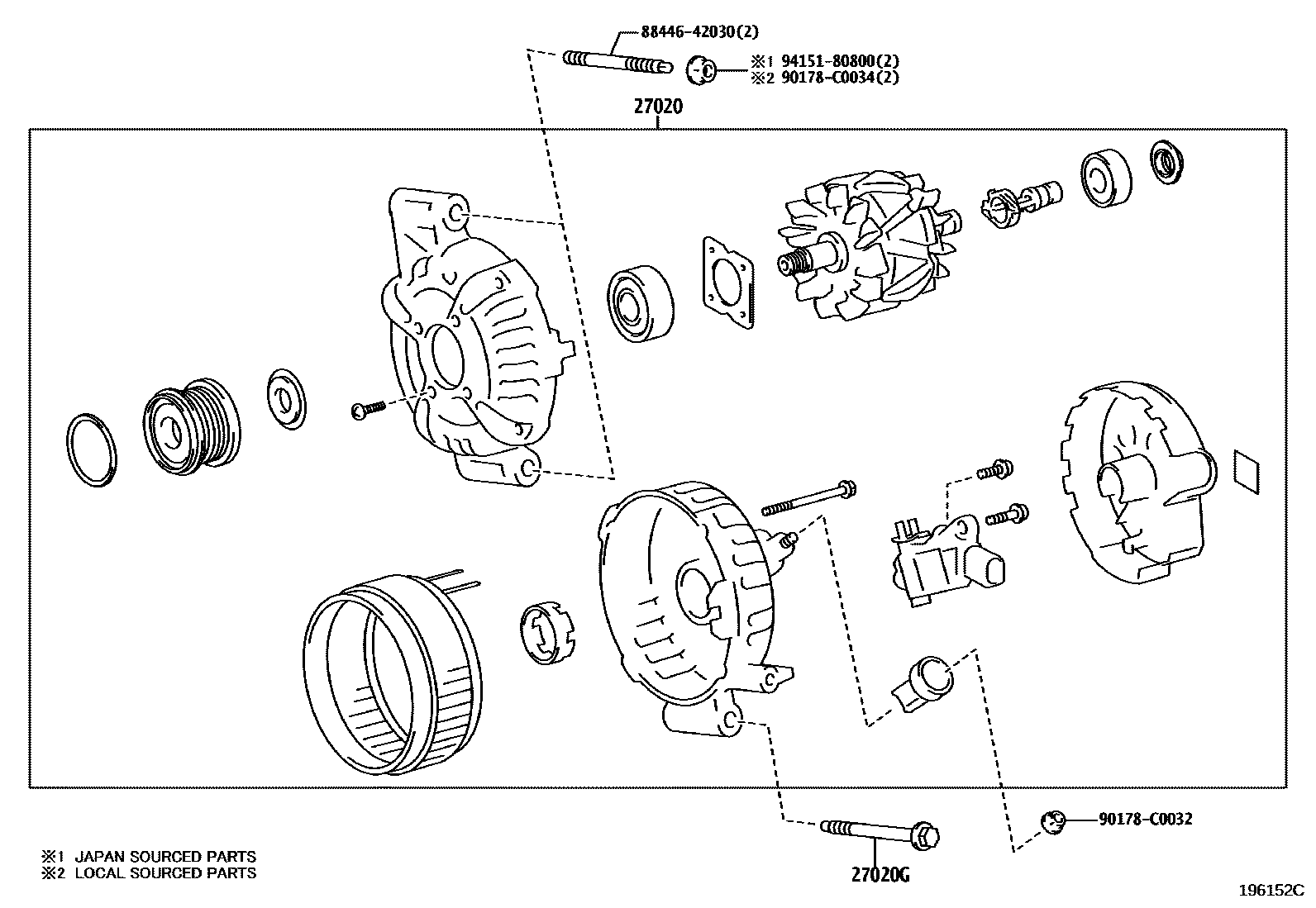

Toyota COROLLA Alternator EPC diagram — 196152C
Alternator — 196152C (202201 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-F2030 · 27060-F2250
27020GBolt No. 2 (for generator)90119-08C78
