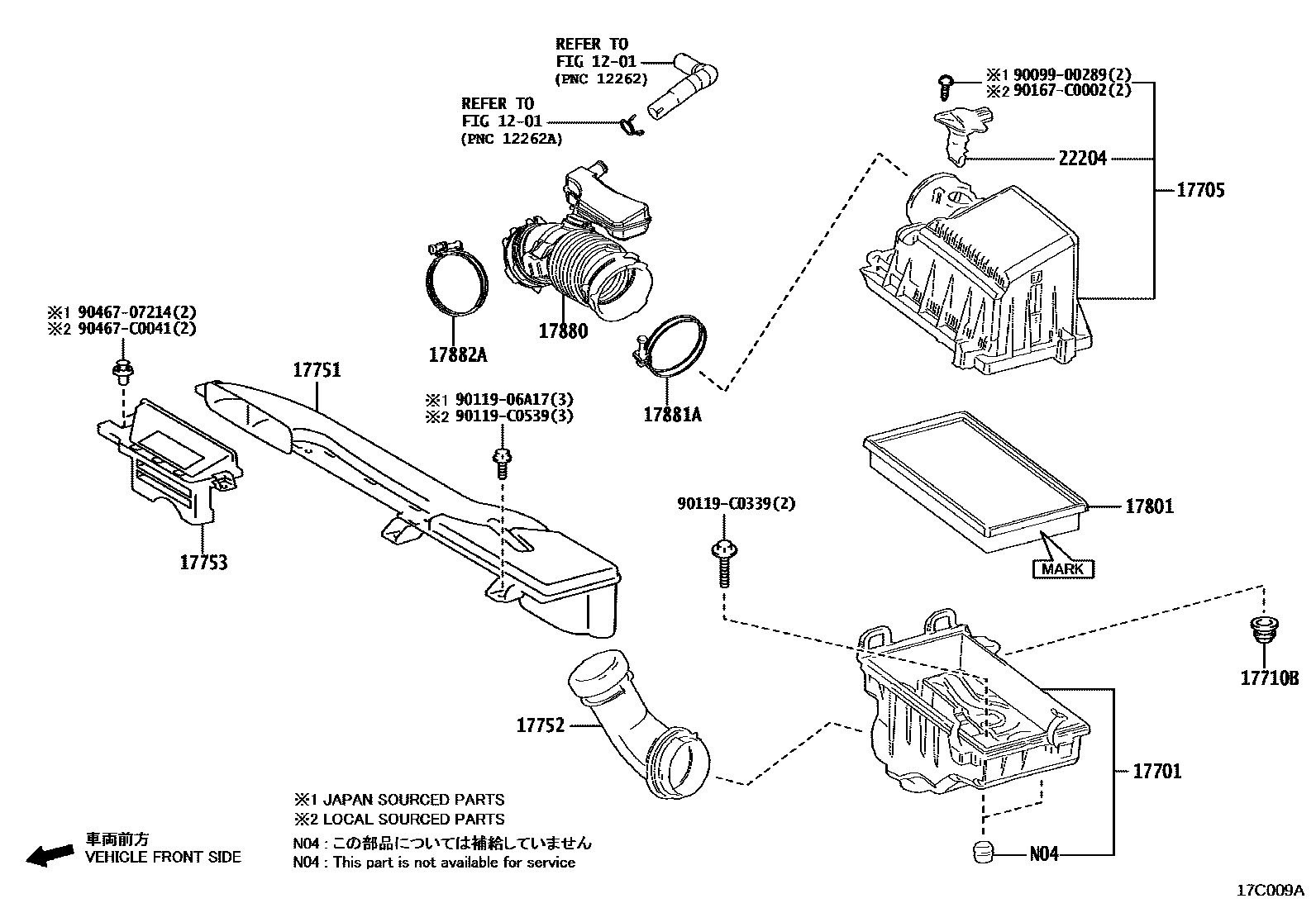

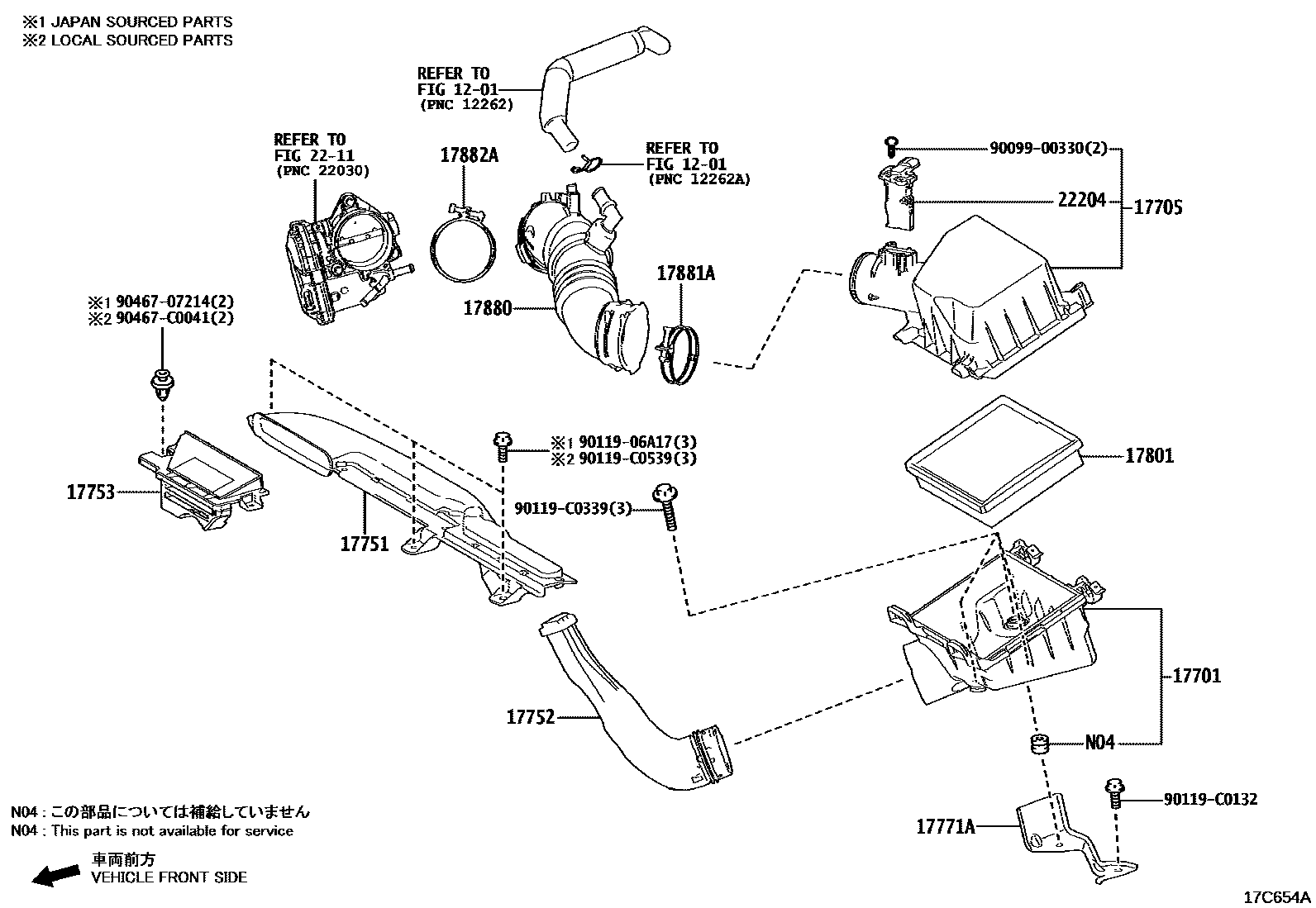

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17701 | Air filter housing sub-assembly | 17701-F2021 · 17701-F2090 |
| 17705 | Air filter cover sub-assembly | 17705-F2020 · 17705-F2130 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-F2090 · 17751-F2150 |
| 17752 | No. 2 air filter air inlet | 17752-F2030 · 17752-F2120 |
| 17753 | No. 3 air filter air inlet | 17753-F2070 |
| 17771A | air filter bracket | 17771-F2070 |
| 17801 | Air filter element sub-assembly | 17801-24040 · 17801-77050 · 17801-F0040 · 17801-F2010 · 17801-F2020 |
| 17880 | Air cleaner hose assembly | 17880-F2020 · 17880-F2090 · 17880-F2120 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10730 · 96111-10850 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10800 |
| 22204 | Intake air flow meter assembly | 22204-24010 · 22204-75040 |
