Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 8 PNC and OE references.

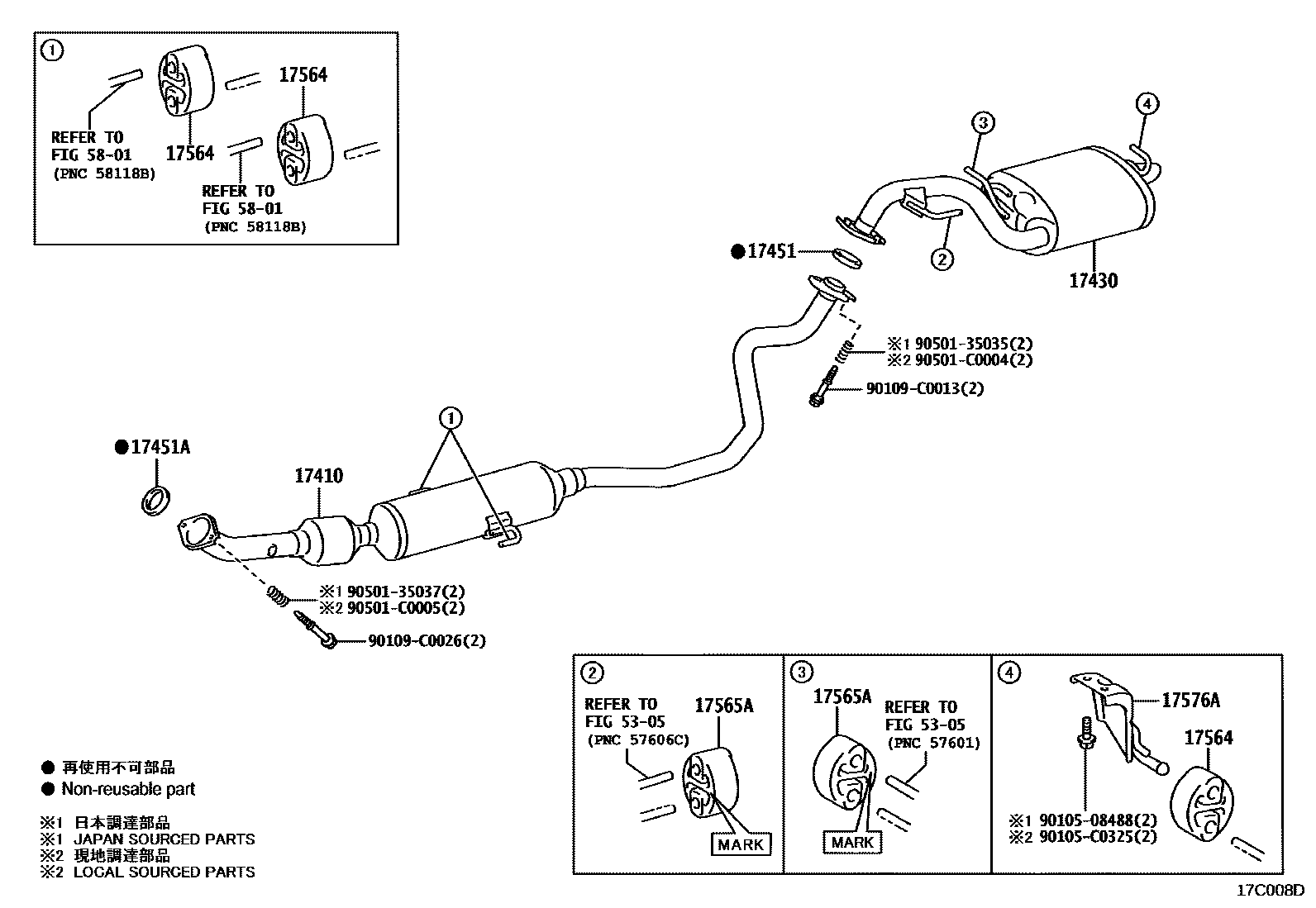

Toyota COROLLA Exhaust Pipe EPC diagram — 17C008D — Exhaust Pipe — 17C008D (202201 – 202303)

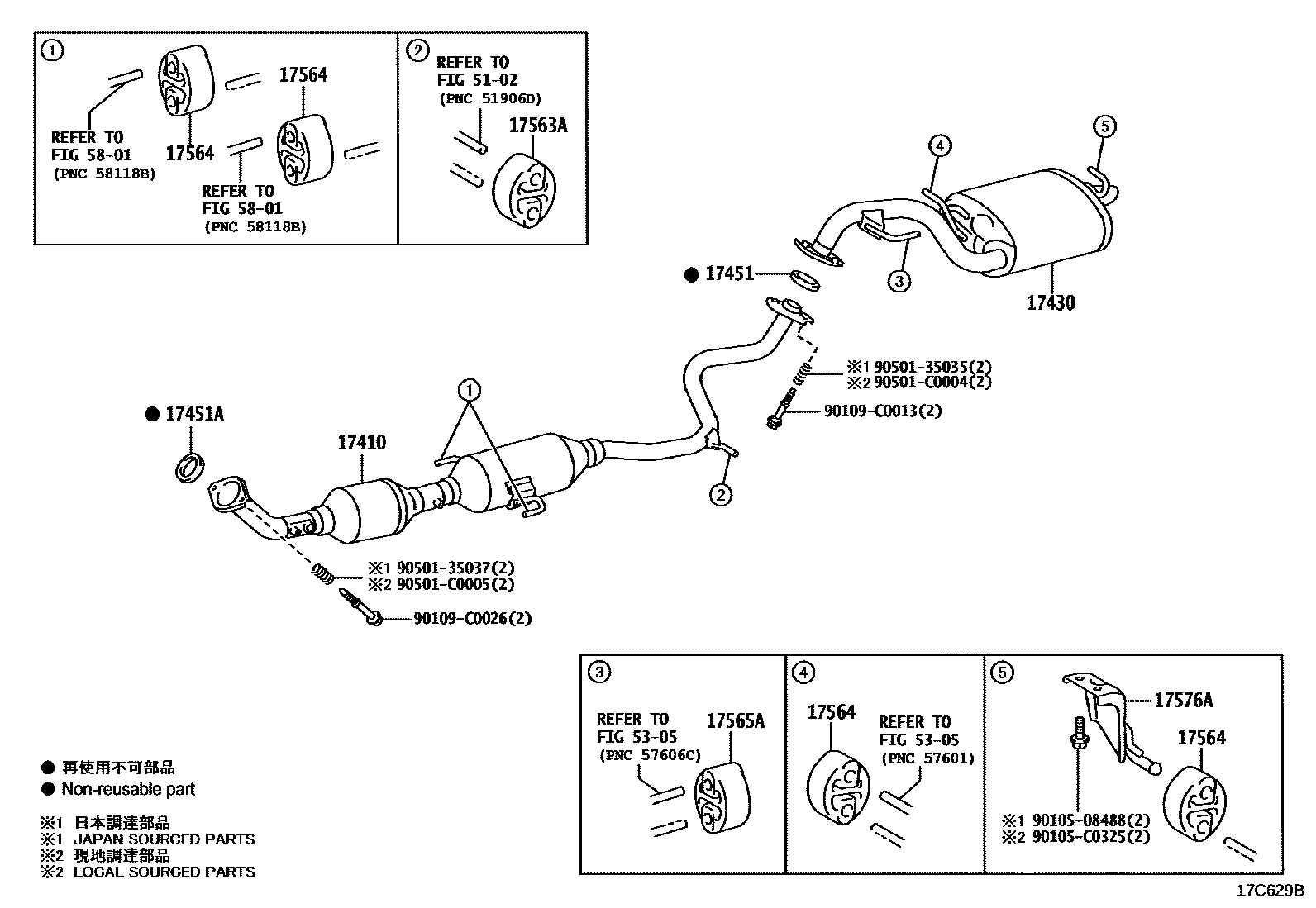

Toyota COROLLA Exhaust Pipe EPC diagram — 17C629B — Exhaust Pipe — 17C629B (202304 – 999999)

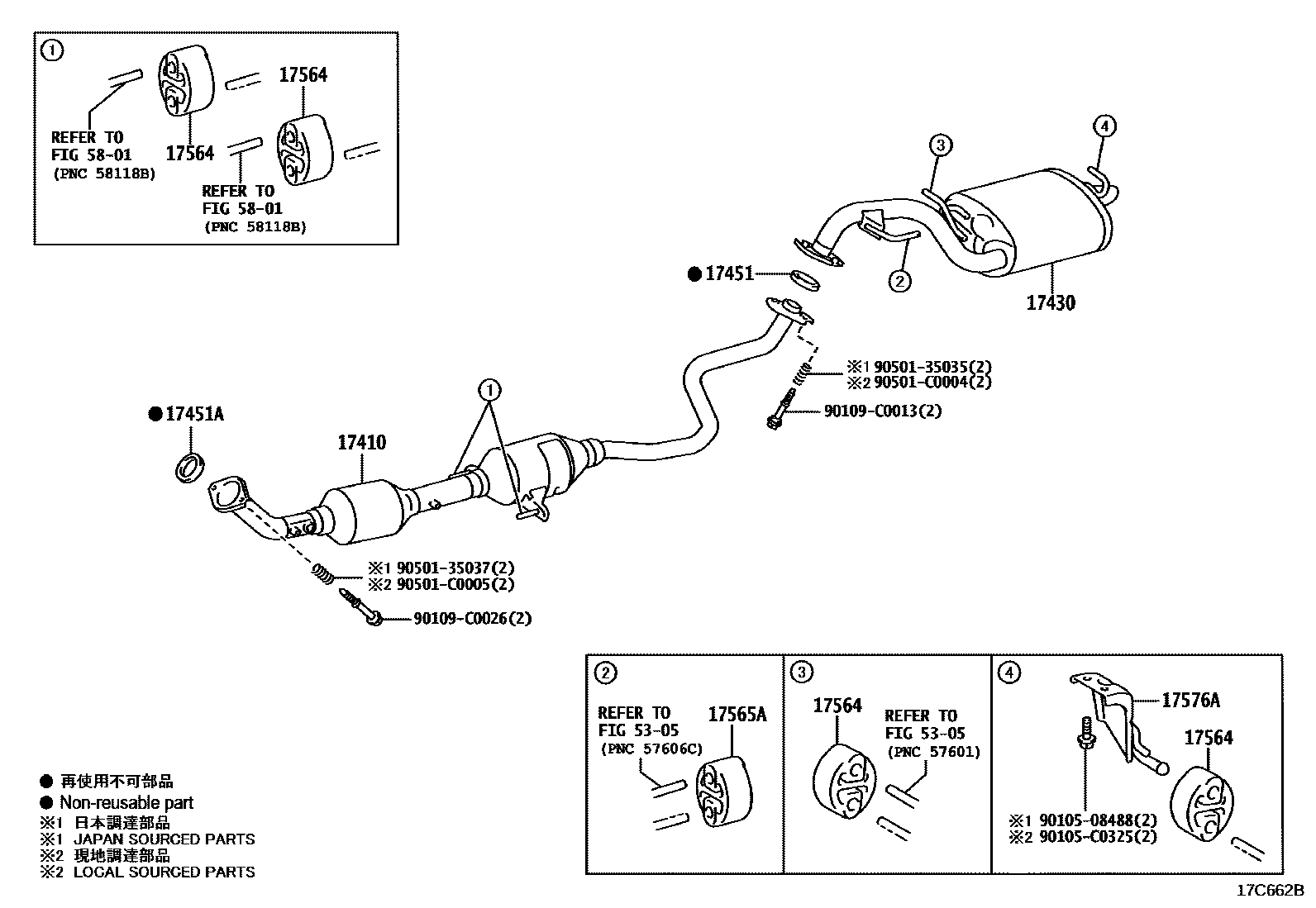

Toyota COROLLA Exhaust Pipe EPC diagram — 17C662B — Exhaust Pipe — 17C662B (202307 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-F2321 · 17410-F2540 · 17410-F2550
17430	Exhaust tailpipe assembly	17430-F2200 · 17430-F2350
17451	Exhaust pipe gasket	17451-0T031 · 17451-0T080
17451A	No. 2 exhaust pipe gasket	17451-0T010 · 17451-0T050
17563A	No. 3 exhaust pipe lifting lug	17565-0D070
17564	No. 4 exhaust pipe lifting lug	17565-0T011
17565A	No. 4 exhaust pipe lifting lug	17565-0D080 · 17565-F0040
17576A	No. 6 exhaust pipe bracket	17576-F2050
