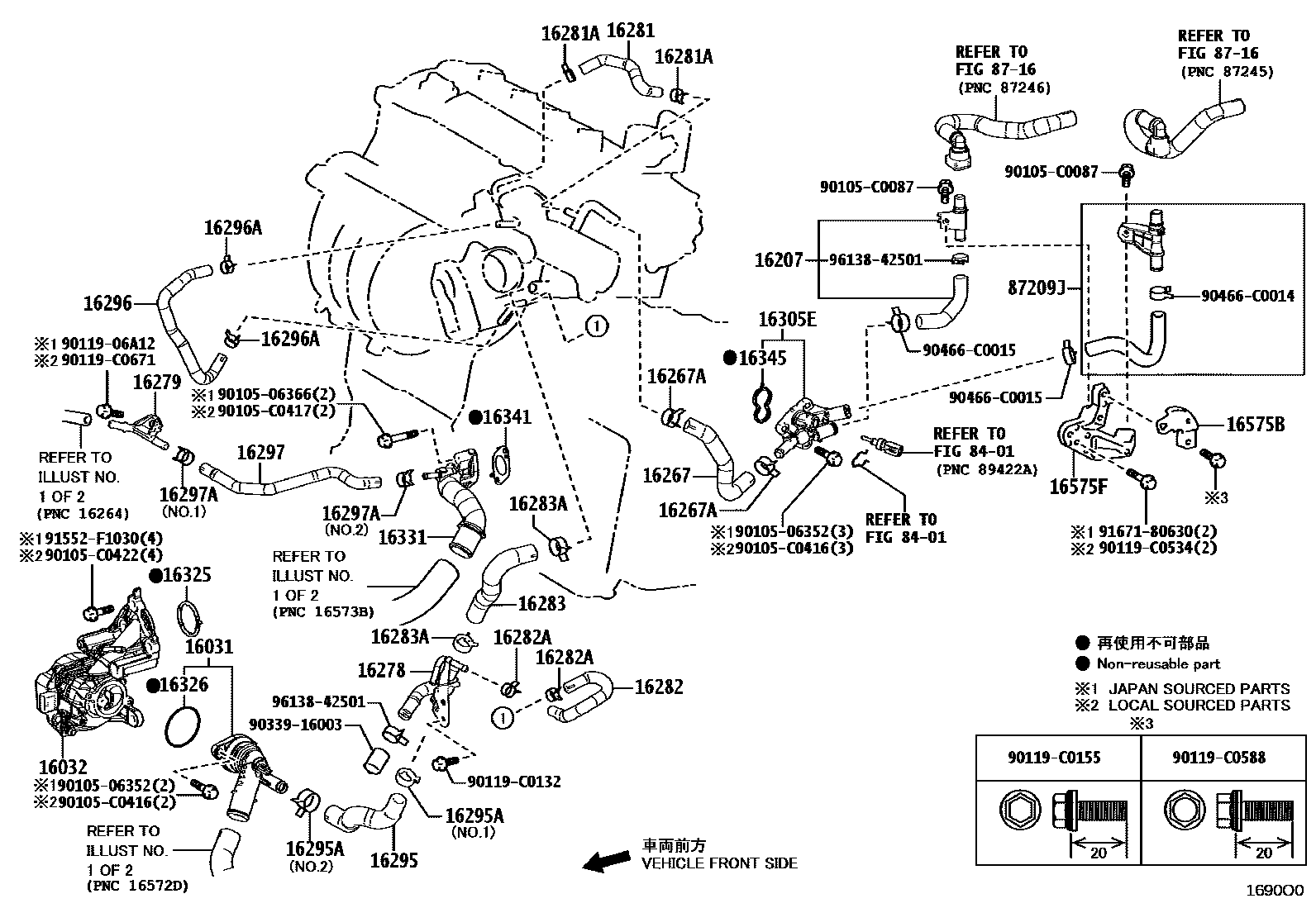

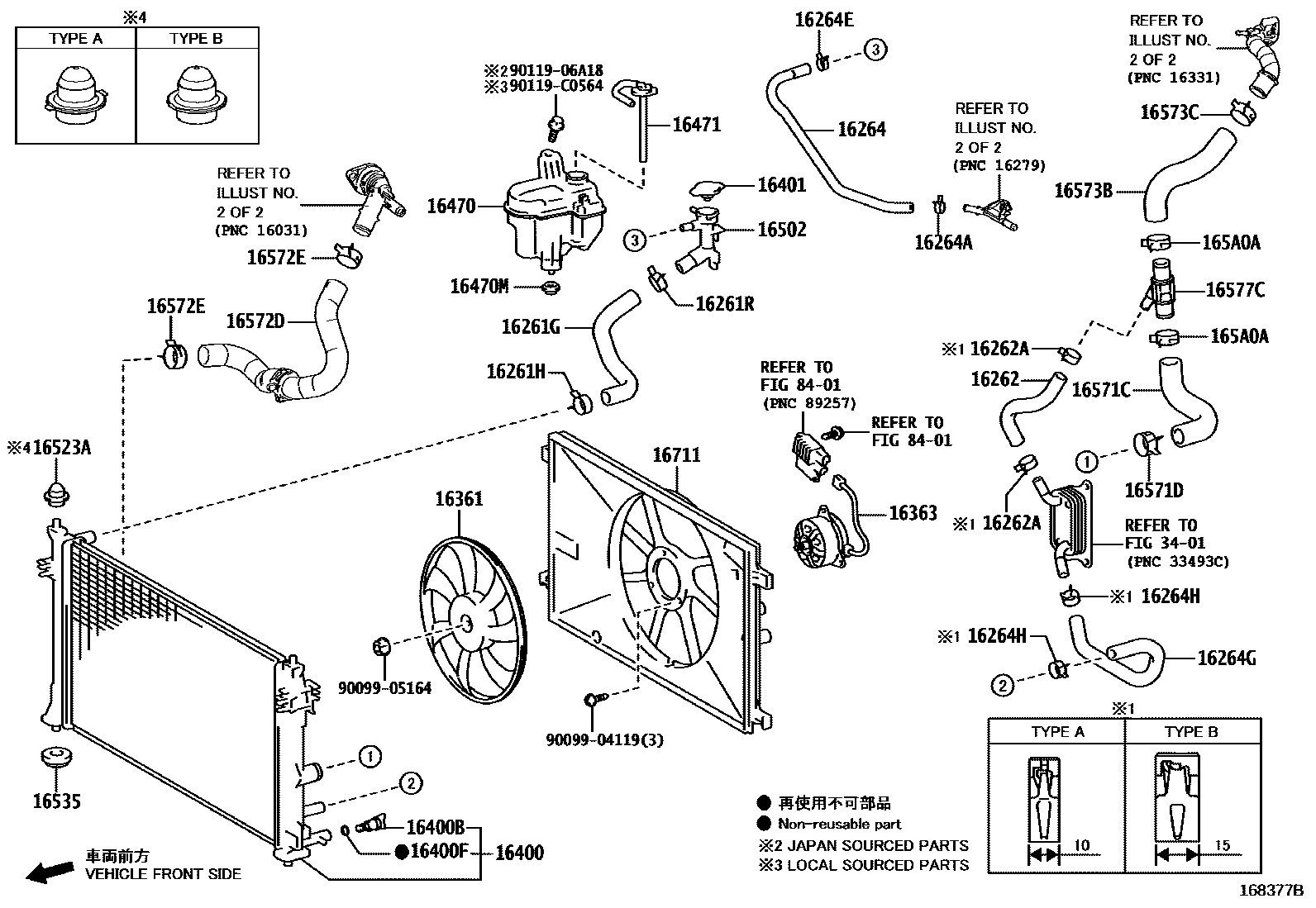

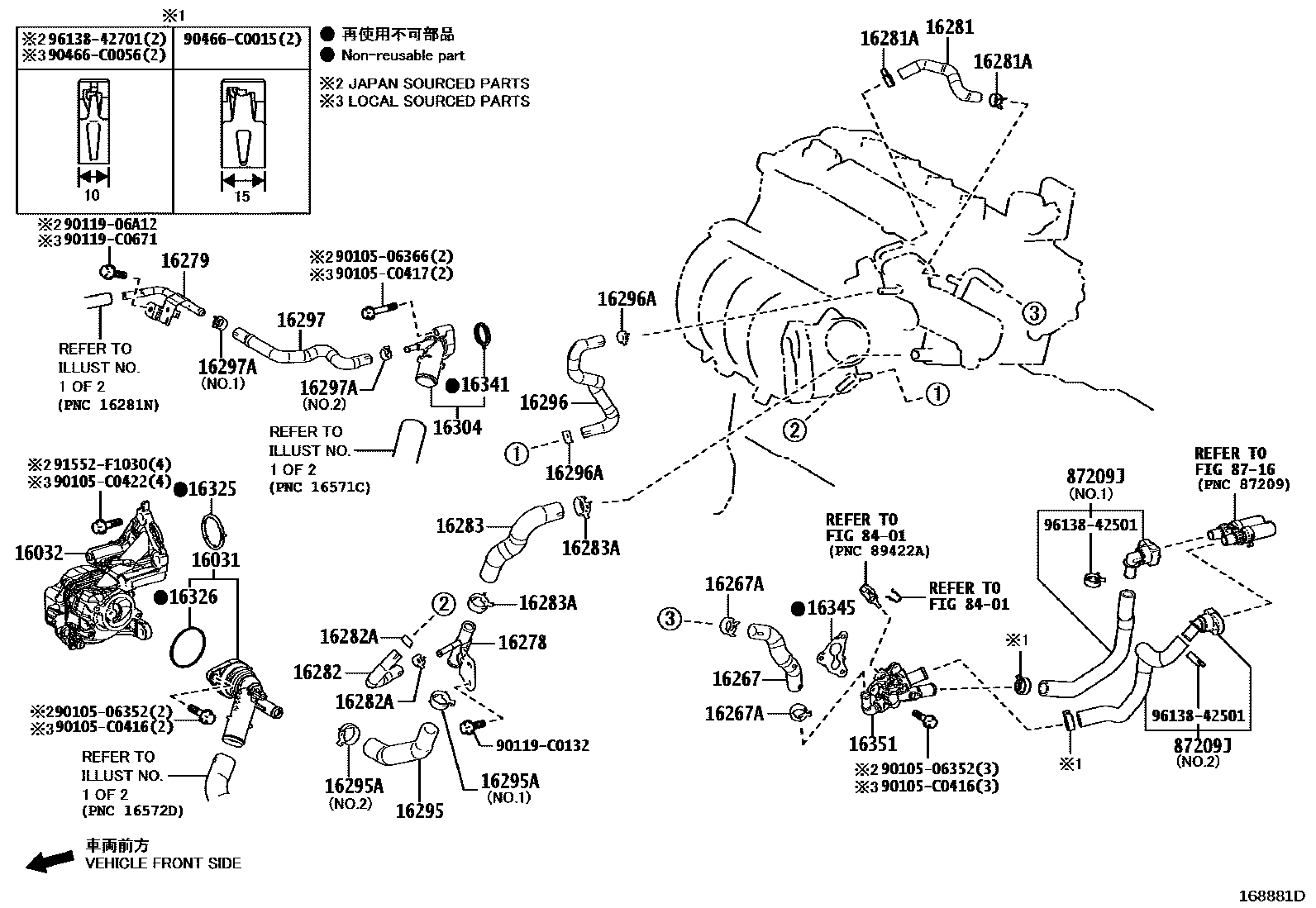

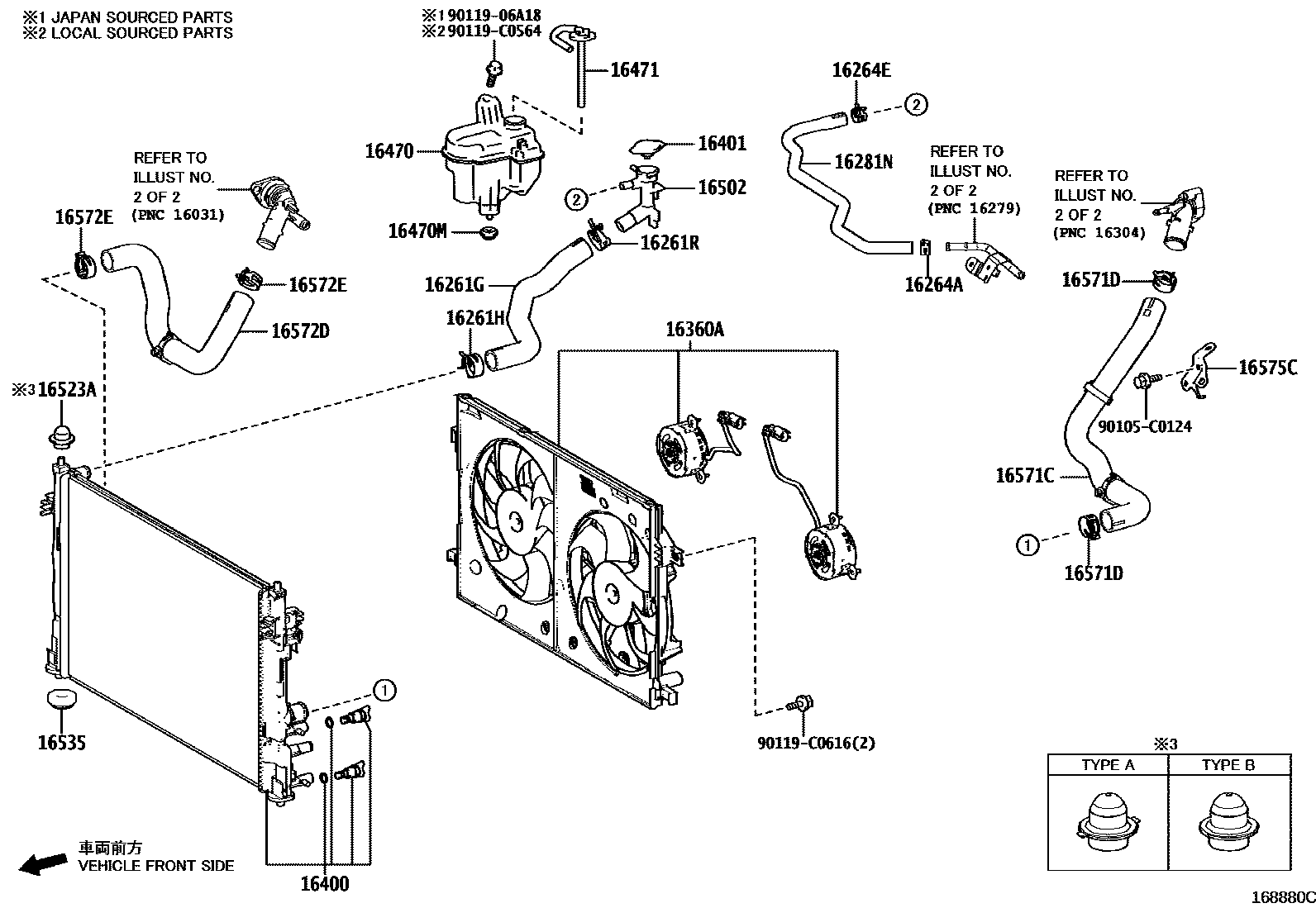

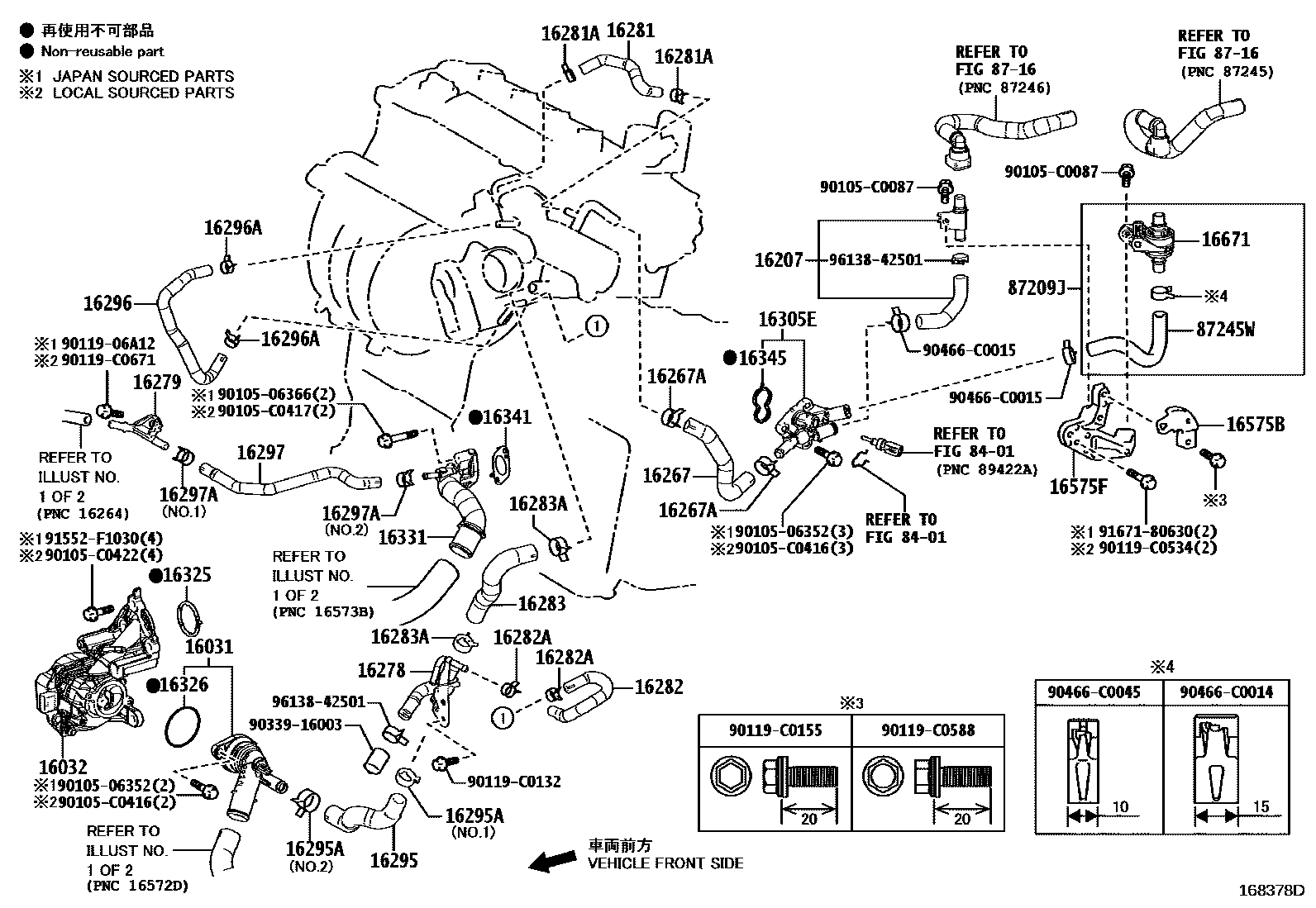

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-24040 · 16031-F2050 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-24020 · 16032-F2060 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-F2030 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-F2230 · 16261-F2290 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-28001 |
| 16261R | Clip or clip (for water bypass hose) | 90467-28007 |
| 16262 | water inlet hose | 16262-F2070 |
| 16262A | Clamp (for water inlet hose) | 90466-C0014 · 90466-C0045 · 96138-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-F2200 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0024 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0039 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16264-F2210 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90466-C0014 · 90466-C0045 · 96138-42501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-25020 · 16267-F0080 · 16267-F2190 · 16267-F2230 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0055 · 96138-42101 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-24021 · 16278-F2050 · 16278-F2100 |
| 16279 | No. 3 water bypass pipe | 16279-24020 · 16279-F2050 · 16279-F2090 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-F2130 · 16281-F2240 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0054 · 96138-41501 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-F2200 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-24030 · 16282-F2070 · 16282-F2130 · 16282-F2180 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-C0054 · 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-24020 · 16283-F2050 · 16283-F2110 · 16283-F2130 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-C0045 · 96138-42501 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-24020 · 16295-F2050 · 16295-F2080 · 16295-F2100 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-C0045 · 90466-C0056 · 96138-42501 · 96138-42701 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-24040 · 16296-F2110 · 16296-F2160 · 16296-F2180 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-C0054 · 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-24020 · 16297-F2050 · 16297-F2090 · 16297-F2110 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90466-C0003 · 90466-C0054 · 90467-15022 · 96138-41501 |
| 16304 | Water outlet sub-assembly | 16304-24010 · 16304-F2020 |
| 16305E | Water bypass outlet sub-assembly | 16305-F2030 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-F2030 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-47020 · 16326-F2020 |
| 16331 | Water outlet | 16331-F2040 |
| 16341 | GASKET, WATER OUTLET | 16341-24020 · 16341-F2020 |
| 16345 | Outlet pipe gasket | 16345-24010 · 16345-24020 · 16345-F2030 · 16345-F2040 |
| 16351 | water bypass outlet | 16351-24020 · 16351-F2060 |
| 16360A | Fan assembly with motor | 16360-F2330 |
| 16361 | Fan | 16361-F2200 |
| 16363 | cooling fan motor | 16363-F2020 |
| 16400 | Radiator assembly | 16400-F2090 · 16400-F2091 · 16400-F2160 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-0P460 |
| 16401 | Radiator cover sub-assembly | 16401-36030 · 16401-F0010 |
| 16470 | Radiator reservoir assembly | 16470-F2020 |
| 16470M | gasket | 90480-18010 · 90480-C0007 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-F2010 |
| 16502 | Water injection port sub-assembly | 16502-F2020 |
| 16523A | Radiator bracket cushion | 16523-37010 · 16523-F2010 |
| 16535 | Radiator lower support | 16535-0H040 · 90480-40021 · 90480-T0007 |
| 16571C | Radiator hose No. 1 | 16571-F2130 · 16571-F2210 |
| 16571D | No. 1 radiator hose clip | 90466-C0009 · 90466-C0053 |
| 16572D | Radiator hose No. 2 | 16572-F2130 · 16572-F2180 |
| 16572E | No. 2 radiator hose clip | 90466-C0009 |
| 16573B | Radiator hose No. 3 | 16573-F2080 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-C0053 |
| 16575B | No. 2 water hose clamp bracket | 16575-F2070 |
| 16575C | No. 1 water hose clamp bracket | 16575-F2350 |
| 16575F | No. 3 water hose clamp bracket | 16575-F2060 |
| 16577C | radiator pipe | 16577-F2100 |
| 165A0A | Hose clip | 90466-C0053 |
| 16671 | water valve | 16671-25070 |
| 16711 | fan cover | 16711-F2160 |
| 87209J | Water hose sub-assembly | 87209-0A030 · 87209-0A080 · 87209-0A090 · 87209-0A170 |
| 87245W | water hose | 87245-0A070 |
