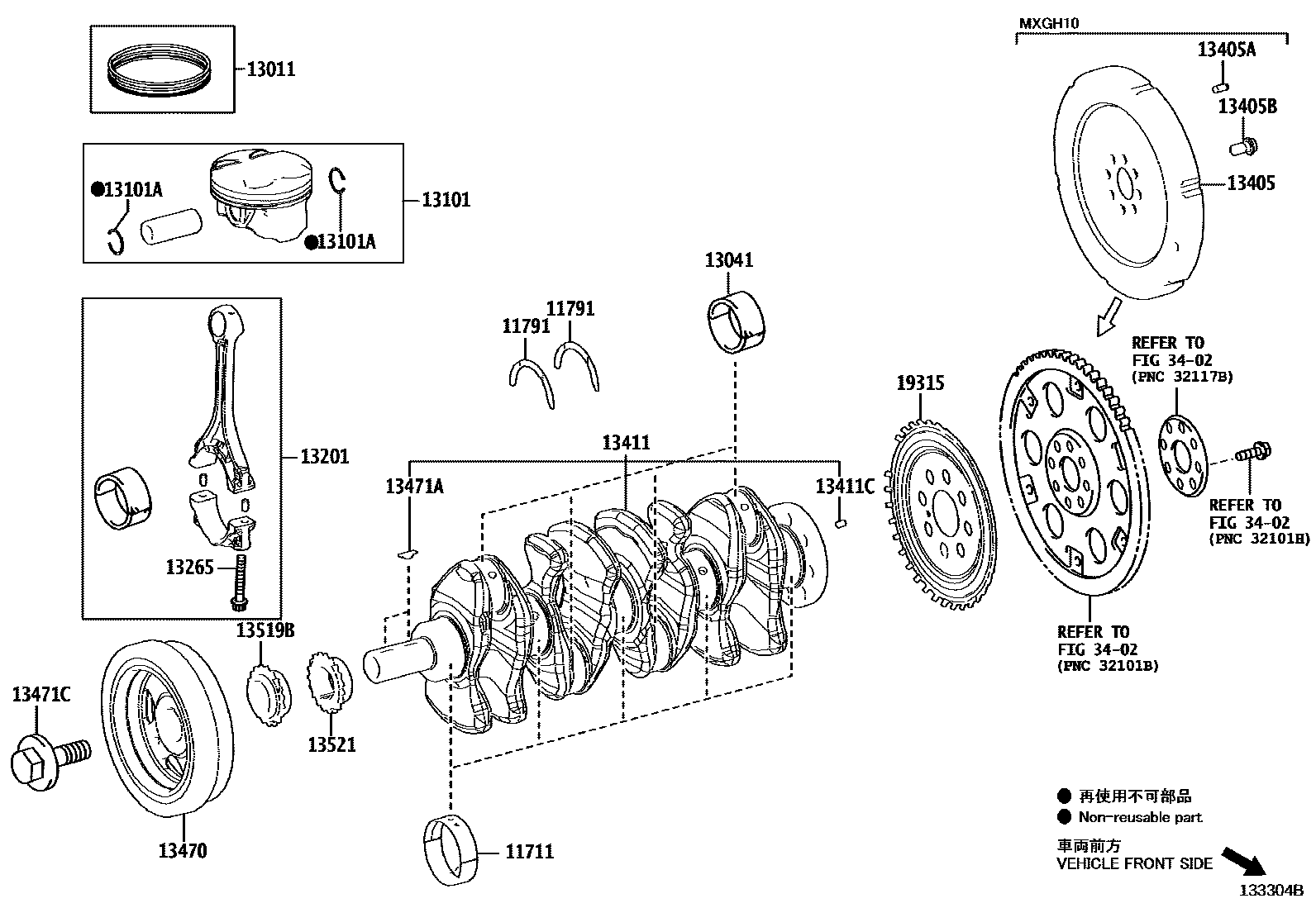

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-F2030 |
| 13011 | Piston ring assembly | 13011-F2030 |
| 13101 | Piston sub-assembly with pin | 13101-24040 · 13101-F2110 |
| 13101A | Bore snap ring (for piston pin) | 90520-19019 |
| 13265 | Connecting rod bolts | 13265-F2010 |
| 13405 | Flywheel sub-assembly | 13451-24081 · 13451-F2050 |
| 13405A | Direct sales (for flywheel) | 90250-08120 · 90250-C0011 |
| 13405B | Flywheel fixing bolt | 90105-12404 |
| 13411 | crankshaft | 13401-F2070 |
| 13411C | Direct sales (for crankshaft) | 90250-06035 |
| 13470 | Crankshaft wheel assembly | 13470-24020 · 13470-F2010 · 13470-F2040 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-04001 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-C0429 |
| 13519B | Oil pump sprocket | 13519-F2040 |
| 13521 | Crankshaft timing gear or sprocket | 13521-F2040 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-F2020 |
