Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 4 PNC and OE references.

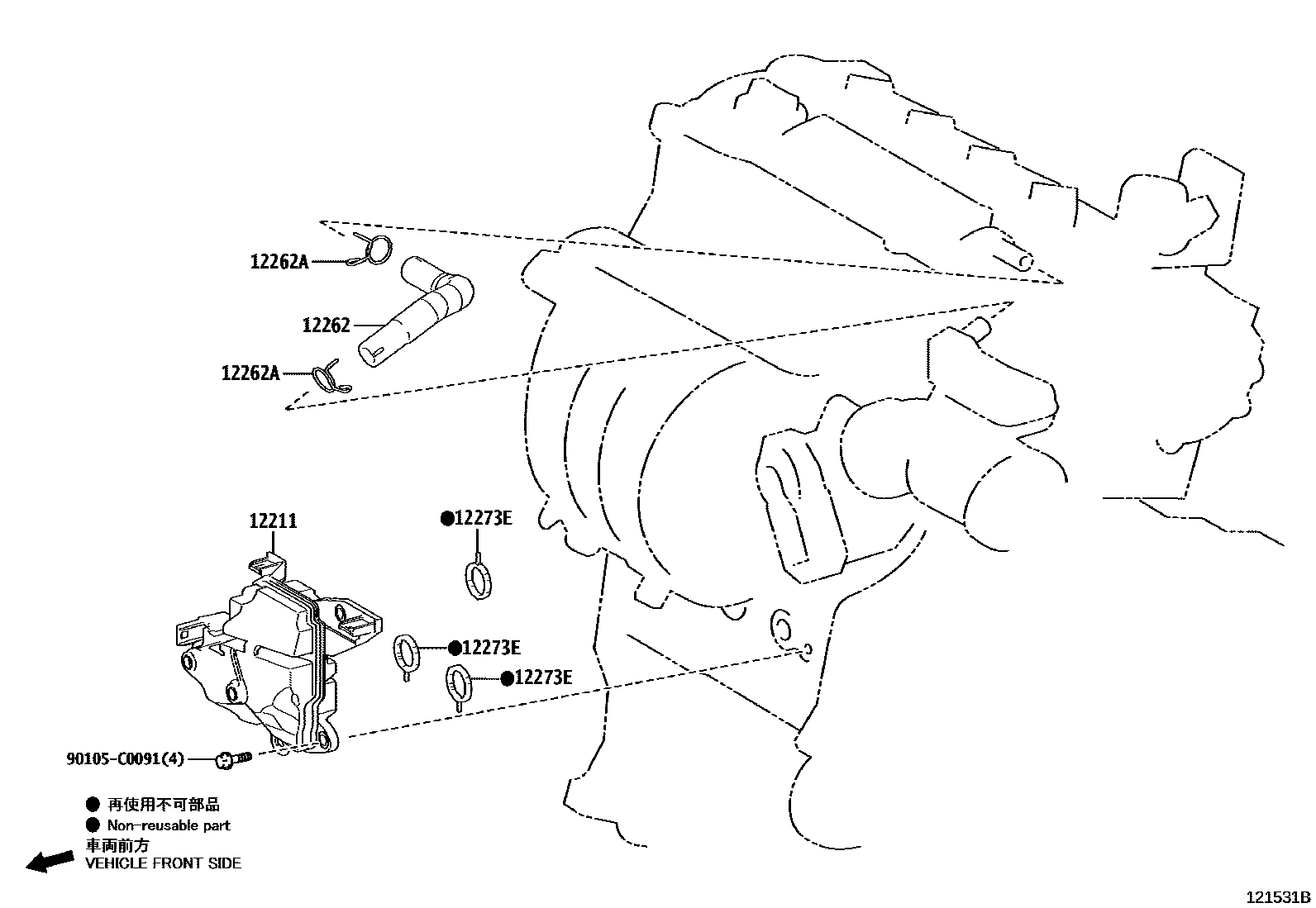

Toyota COROLLA Ventilation Hose EPC diagram — 121531B
Ventilation Hose — 121531B (202201 – 999999)

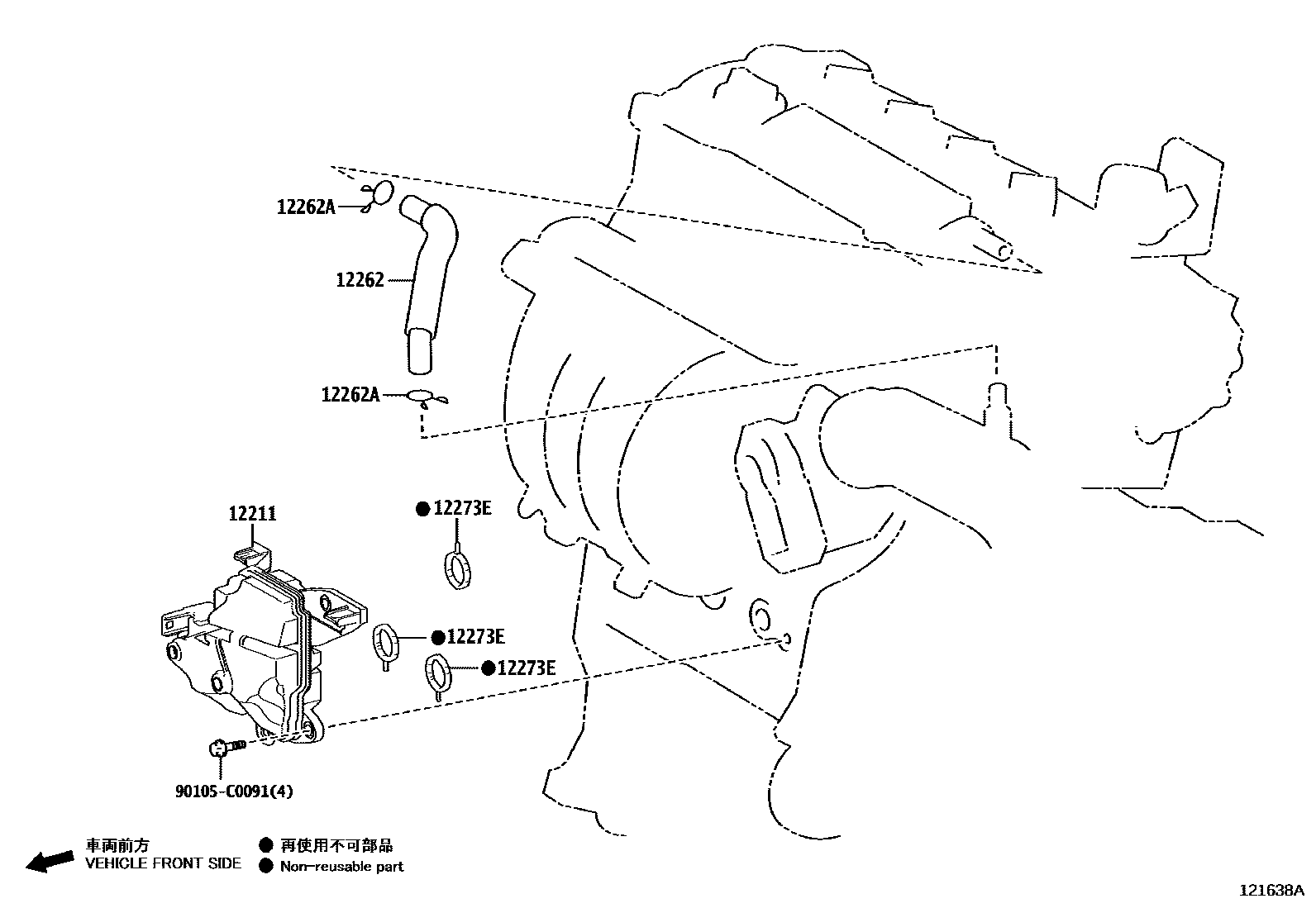

Toyota COROLLA Ventilation Hose EPC diagram — 121638A
Ventilation Hose — 121638A (202307 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-F2040 · 12211-F2060
12262Ventilation hose No. 212262-24020 · 12262-24040
12262AClamp (for vent hose No. 2)90467-21004
12273EPads (for ventilation boxes)12273-F2020
