Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 7 PNC and OE references.

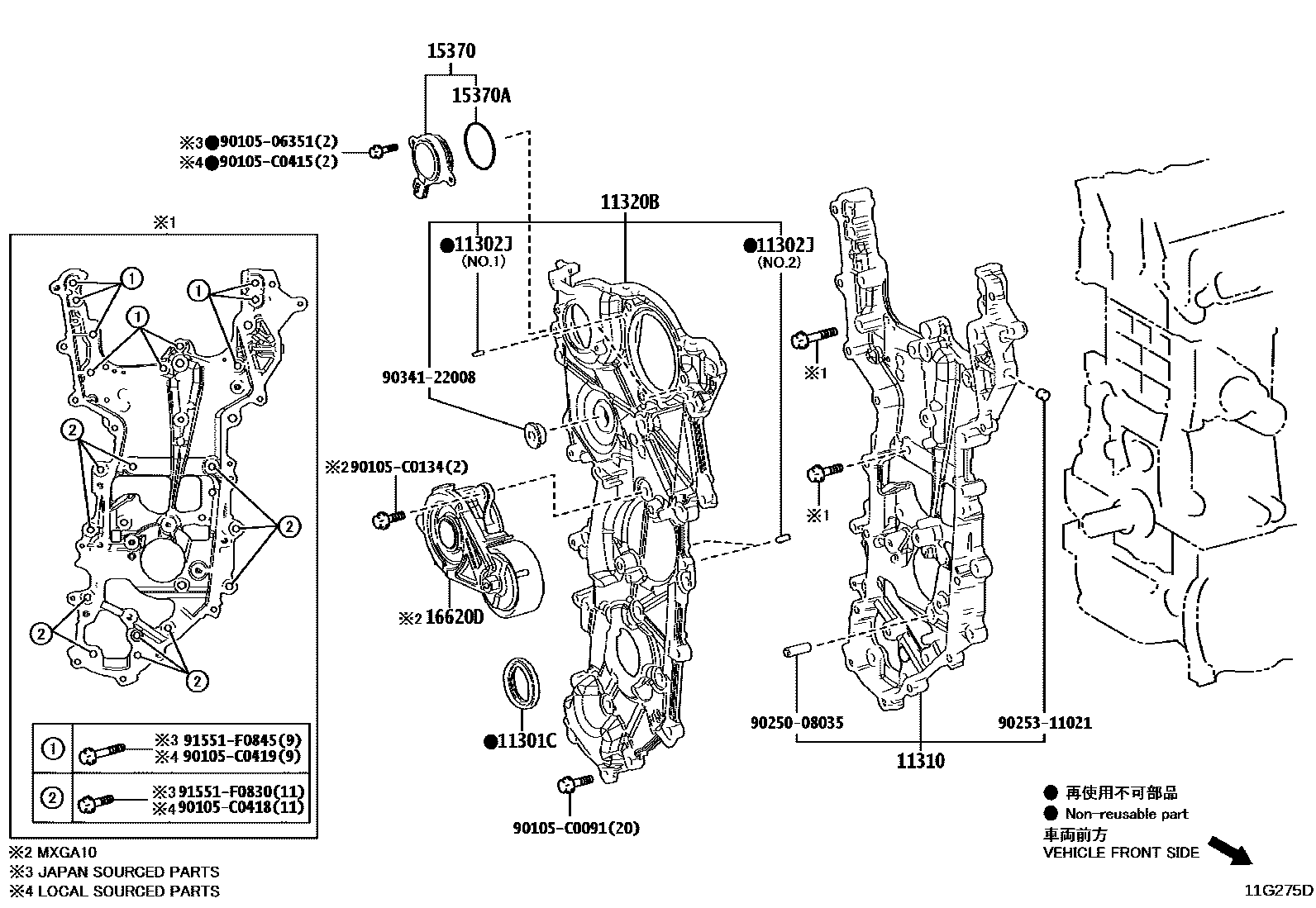

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11G275D
Timing Gear Cover & Rear End Plate — 11G275D (202201 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-C0054
11302JDirect sales (for timing chain cover)90250-06003 · 90250-C0009
11310Timing chain cover assembly11310-F2060 · 11310-F2061
11320BNo. 2 timing chain cover assembly11320-F2060
15370Camshaft timing oil control solenoid valve assembly15370-25020
15370AO-ring (for camshaft timing oil control solenoid valve)90301-44006
16620DPoly V-belt tensioner assembly16620-F2040 · 16620-F2070
