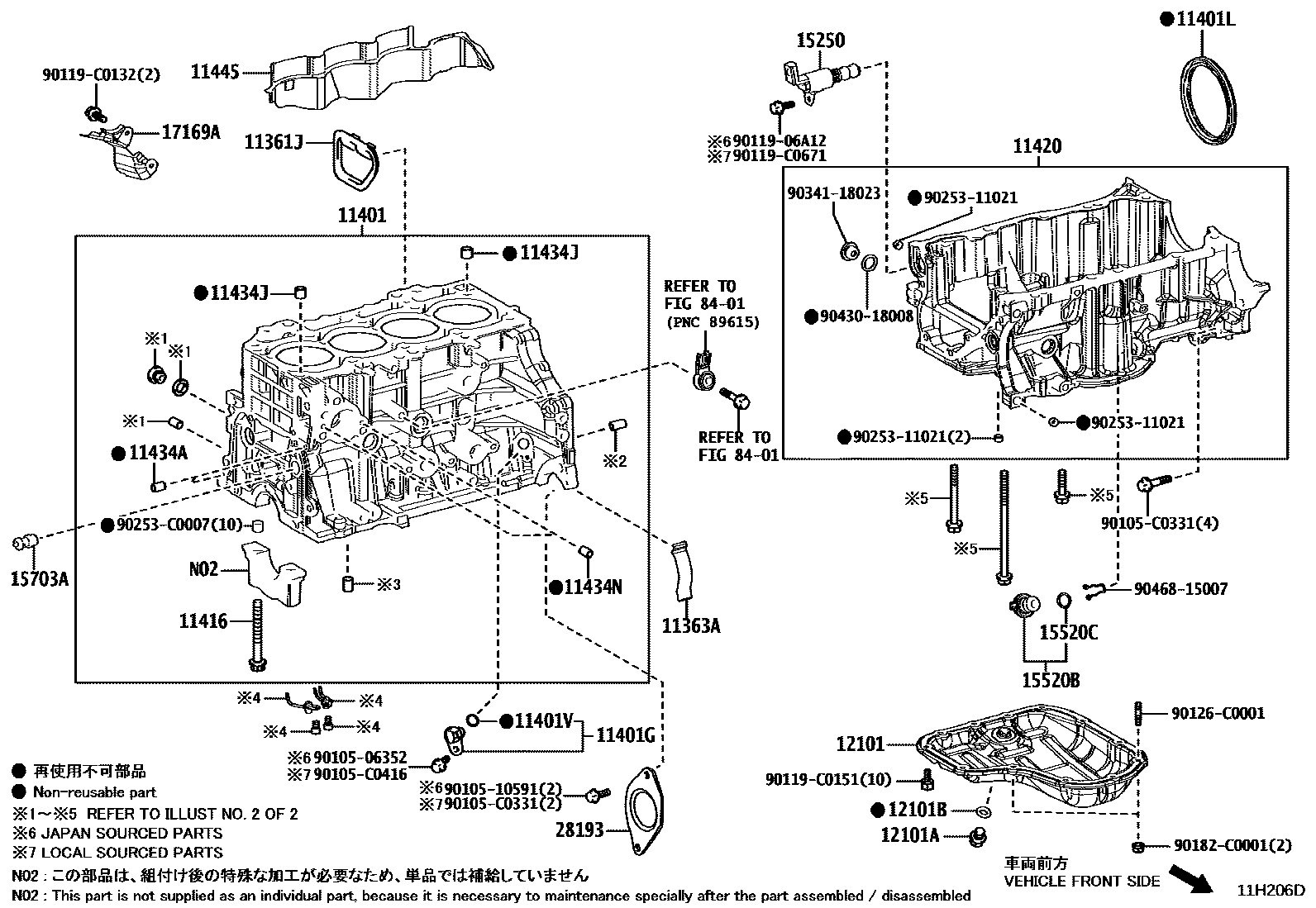

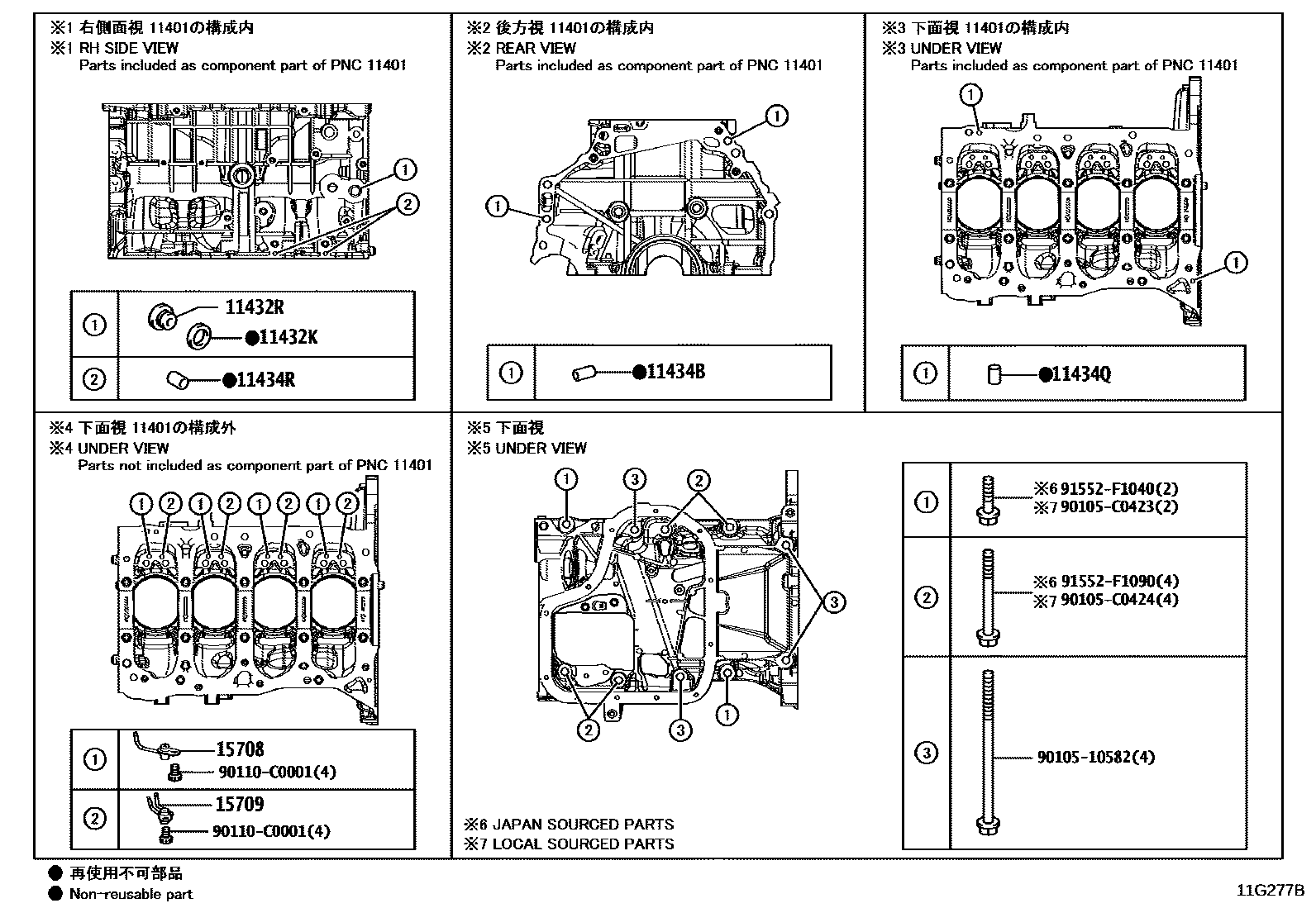

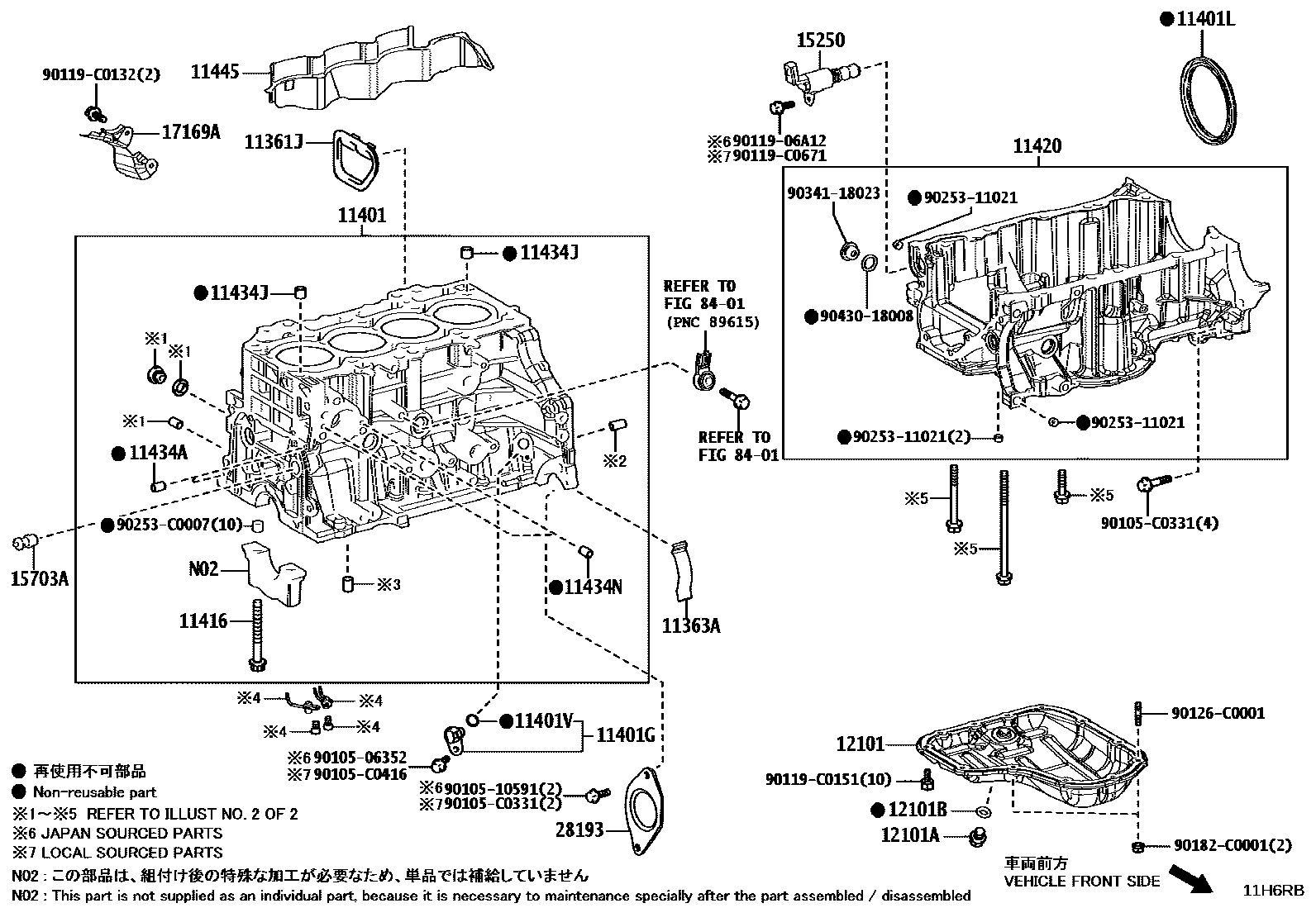

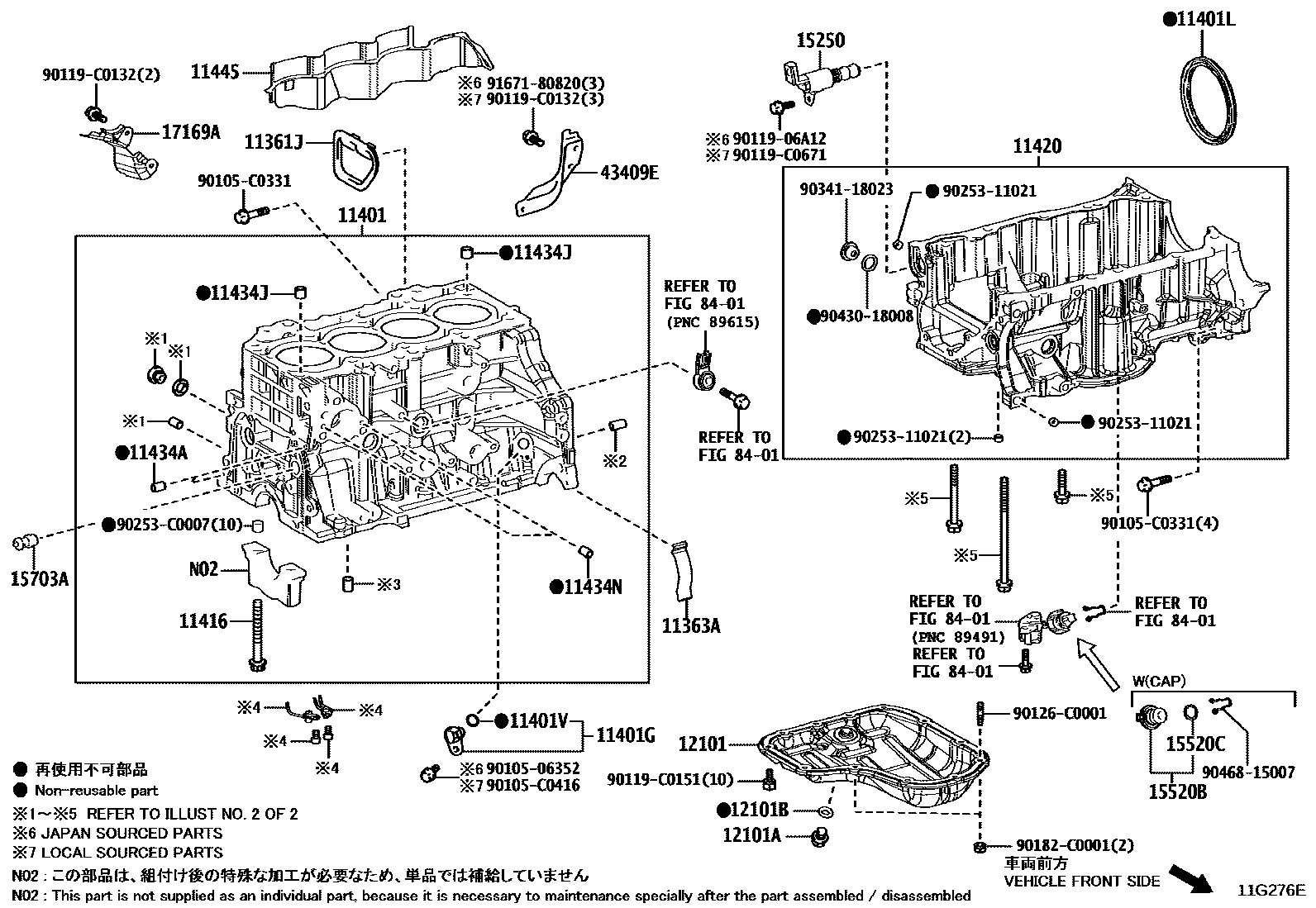

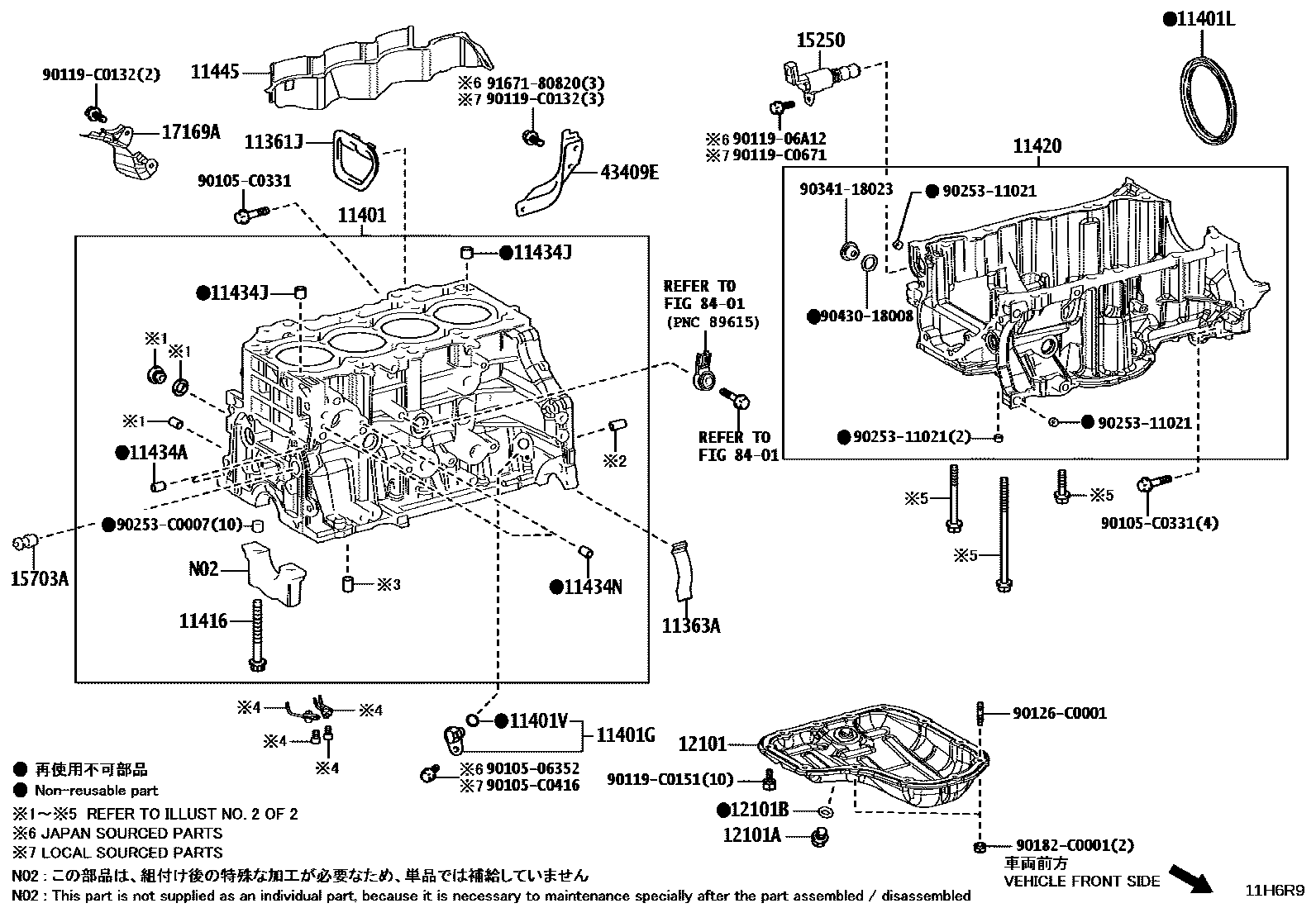

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-25010 · 11361-F2030 |
| 11363A | Flywheel housing side cover | 11363-33010 · 11363-F2030 |
| 11401 | Cylinder block sub-assembly | 11410-F9220 · 11410-F9230 |
| 11401G | crankshaft position sensor | 90919-05094 · 90919-05095 · 90919-C5005 · 90919-C5006 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-C0055 |
| 11401V | Crankshaft position sensor O-ring | 90301-11039 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02197 |
| 11420 | Reinforce crankcase assembly | 11420-F2030 · 11420-F2110 · 11420-F2111 |
| 11432K | Headed straight thread plug liner | 90430-18008 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-18023 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06003 · 90250-C0010 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-C0012 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 · 90253-C0006 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 · 90250-C0010 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 · 90250-C0010 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 · 90250-C0010 |
| 11445 | Cylinder block water jacket spacer | 11445-F2040 · 11445-F2060 |
| 12101 | Oil pan sub-assembly | 12102-F2040 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-C0013 |
| 12101B | Gasket (for oil pan drain plug) | 90430-C0005 |
| 15250 | Oil pressure control valve assembly | 15250-25010 · 15250-F2010 |
| 15520B | Crankcase cover assembly | 15520-25010 |
| 15520C | O-ring (for crankcase cover) | 96743-24016 |
| 15703A | Oil nozzle valve sub-assembly | 15703-25011 · 15703-F2010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-F2010 |
| 15709 | No. 2 oil nozzle sub-assembly | 15709-F2010 |
| 17169A | Exhaust manifold No. 3 heat shield | 17169-24010 · 17169-F2040 |
| 28193 | Starter hole vibration isolation pad | 28193-F0050 |
| 43409E | Drive shaft heat insulation pad sub-assembly | 43498-F4040 |
