Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

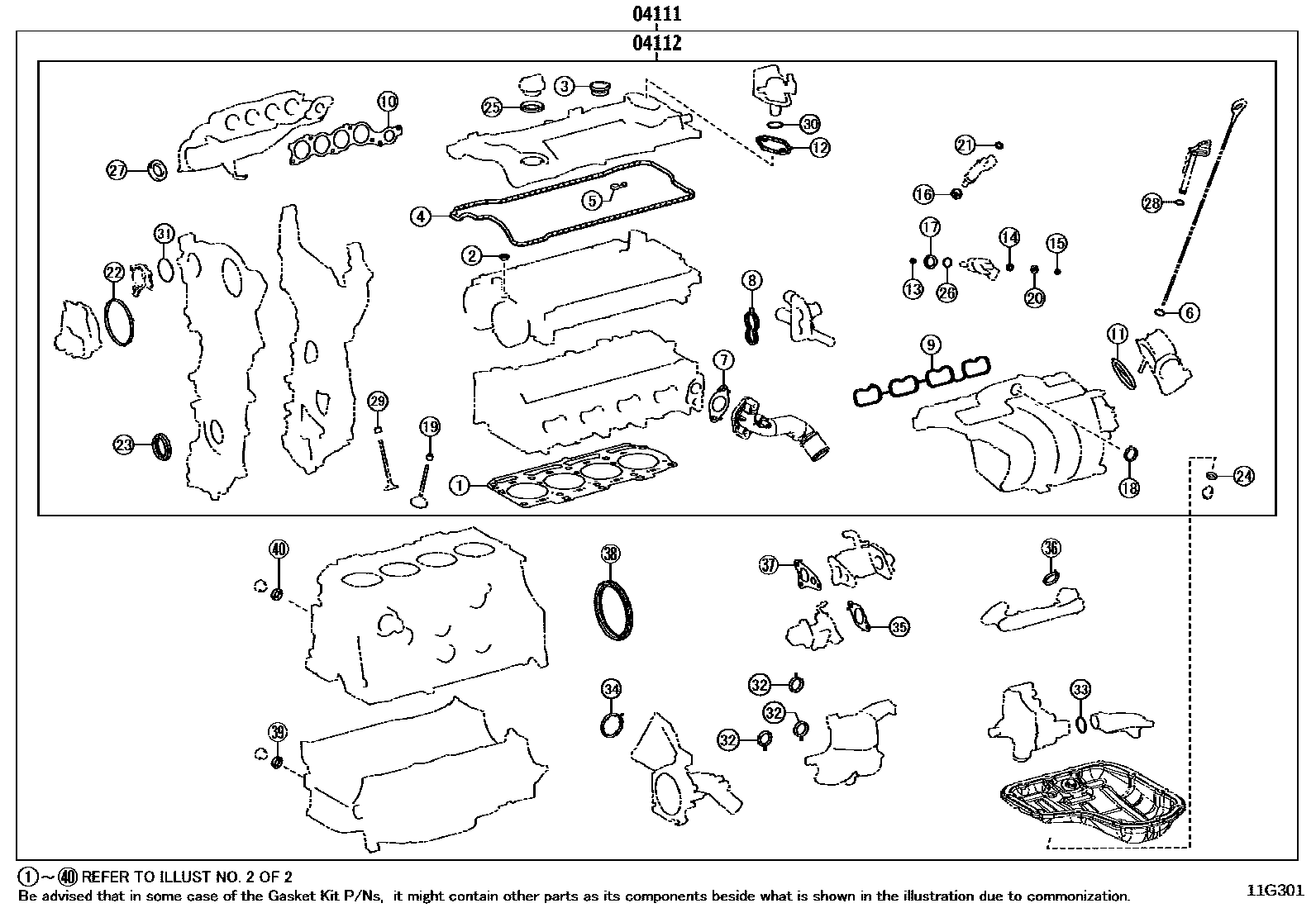

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G301
Engine Overhaul Gasket Kit — 11G301 (202201 – 999999)

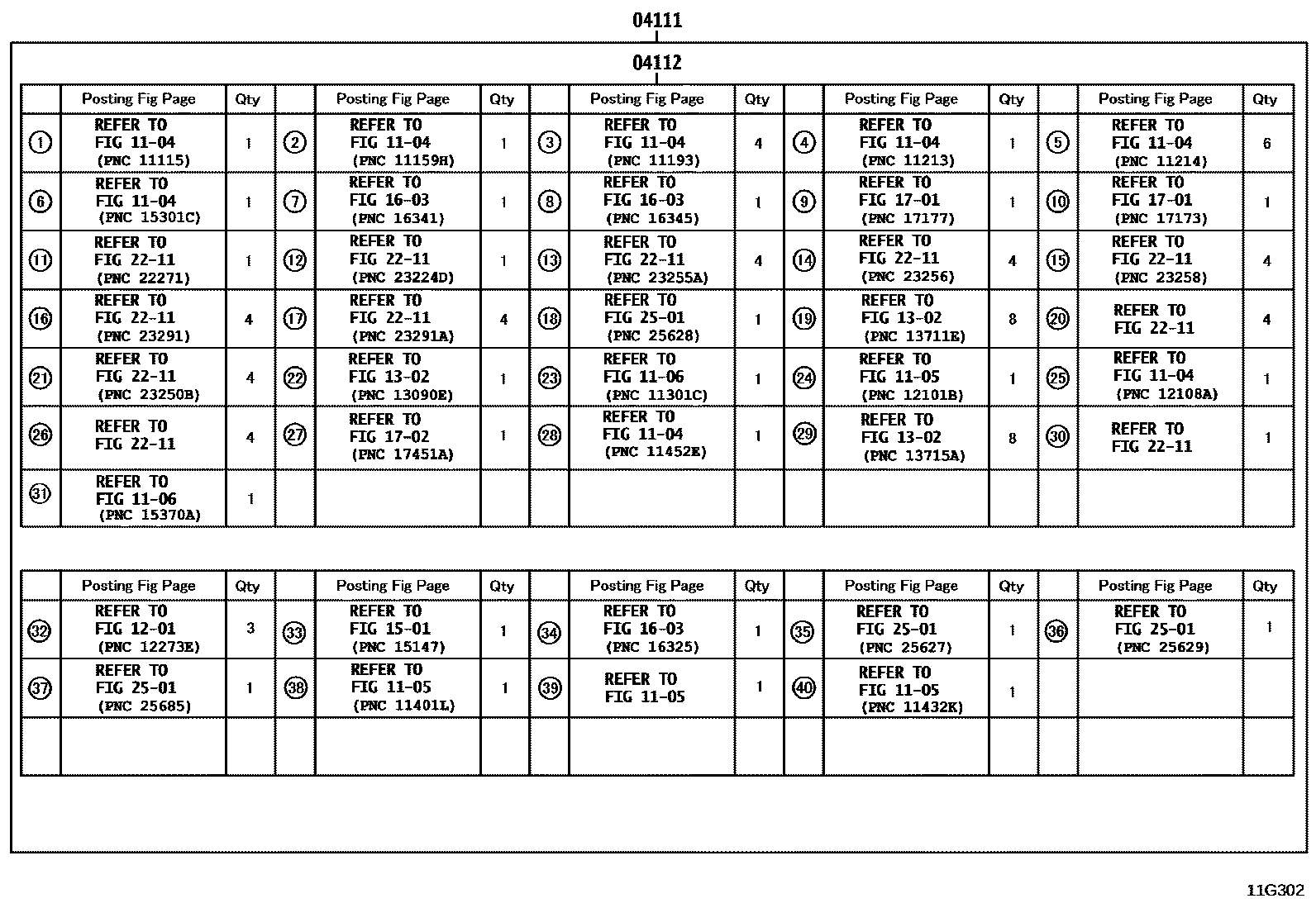

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G302
Engine Overhaul Gasket Kit — 11G302 (202201 – 999999)

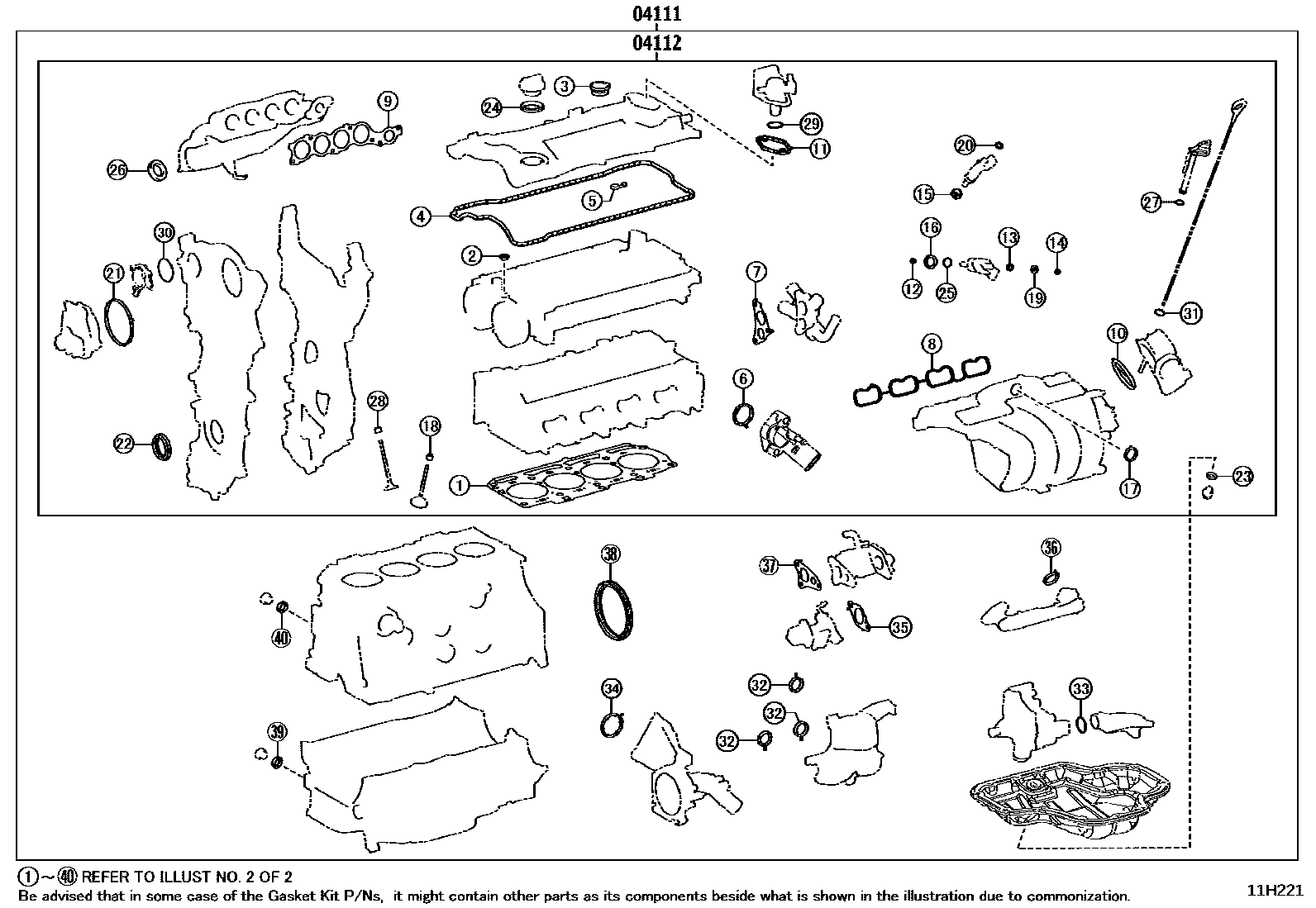

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H221
Engine Overhaul Gasket Kit — 11H221 (202307 – 999999)

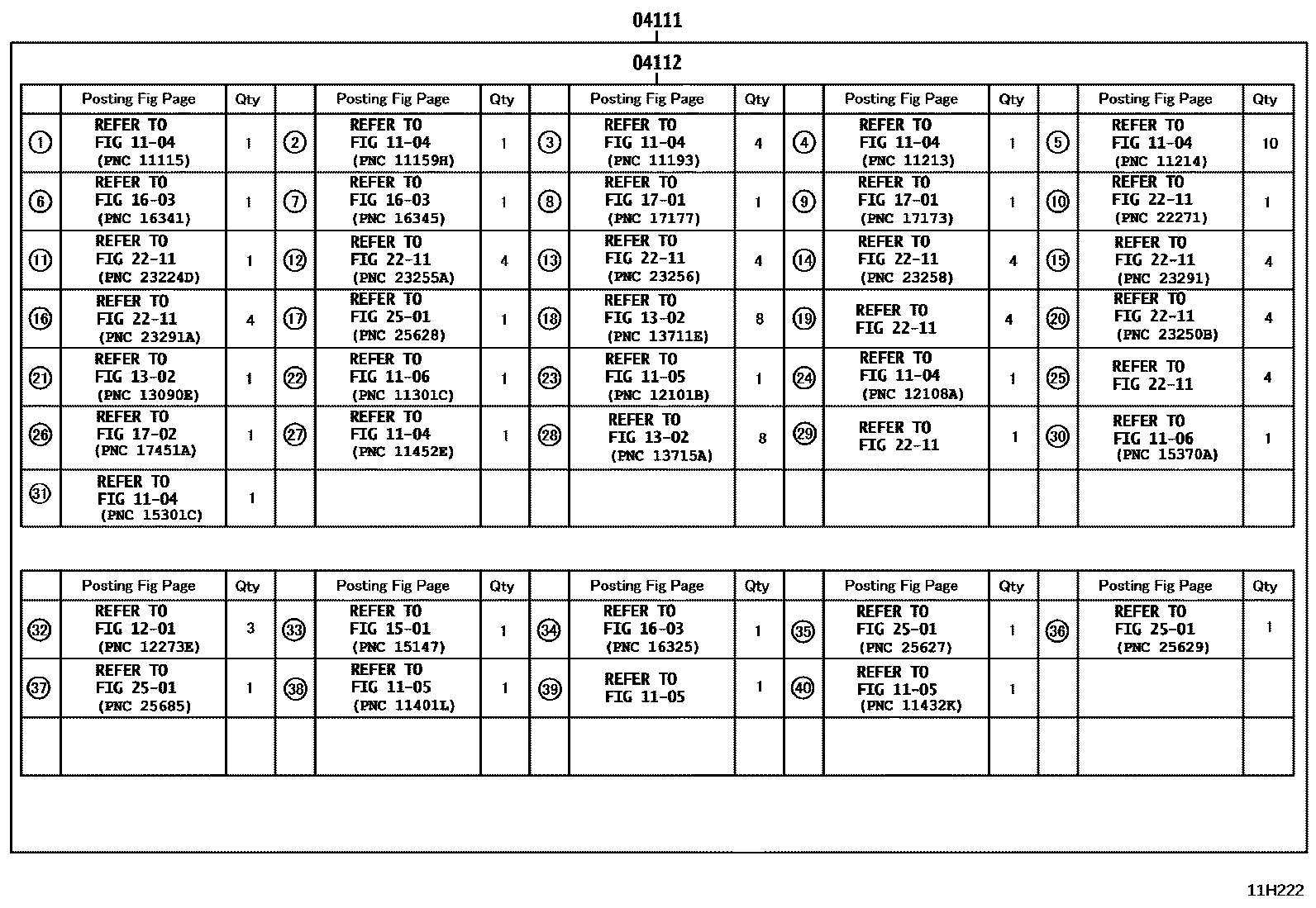

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H222
Engine Overhaul Gasket Kit — 11H222 (202307 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-F2110 · 04111-F2111 · 04111-F2131 · 04111-F2250
04112Engine valve grinding pad assembly04112-F2100 · 04112-F2101 · 04112-F2121 · 04112-F2230
