Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 2 images and 8 PNC and OE references.

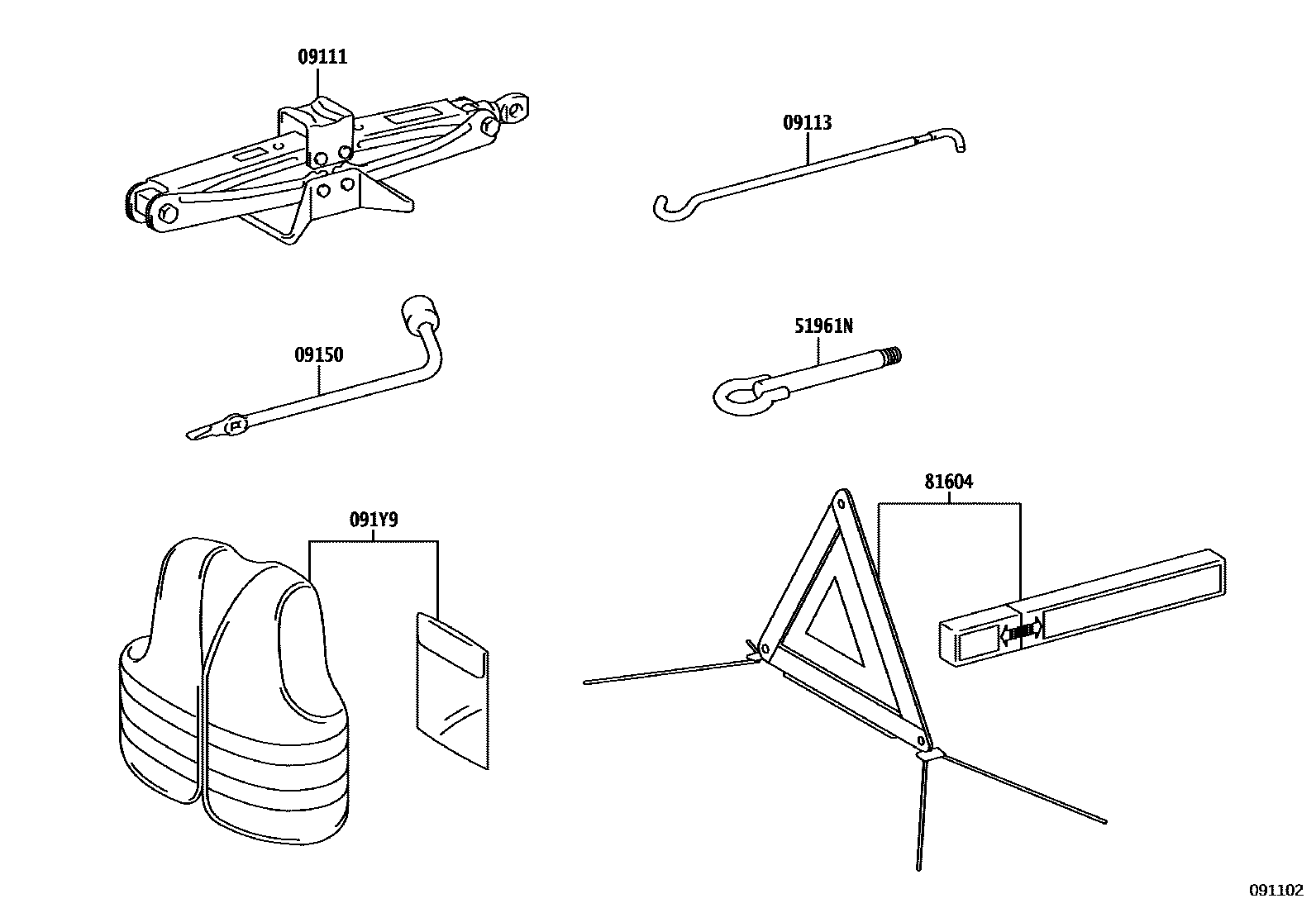

Toyota COROLLA Standard Tools EPC diagram — 091102
Standard Tools — 091102 (202201 – 999999)

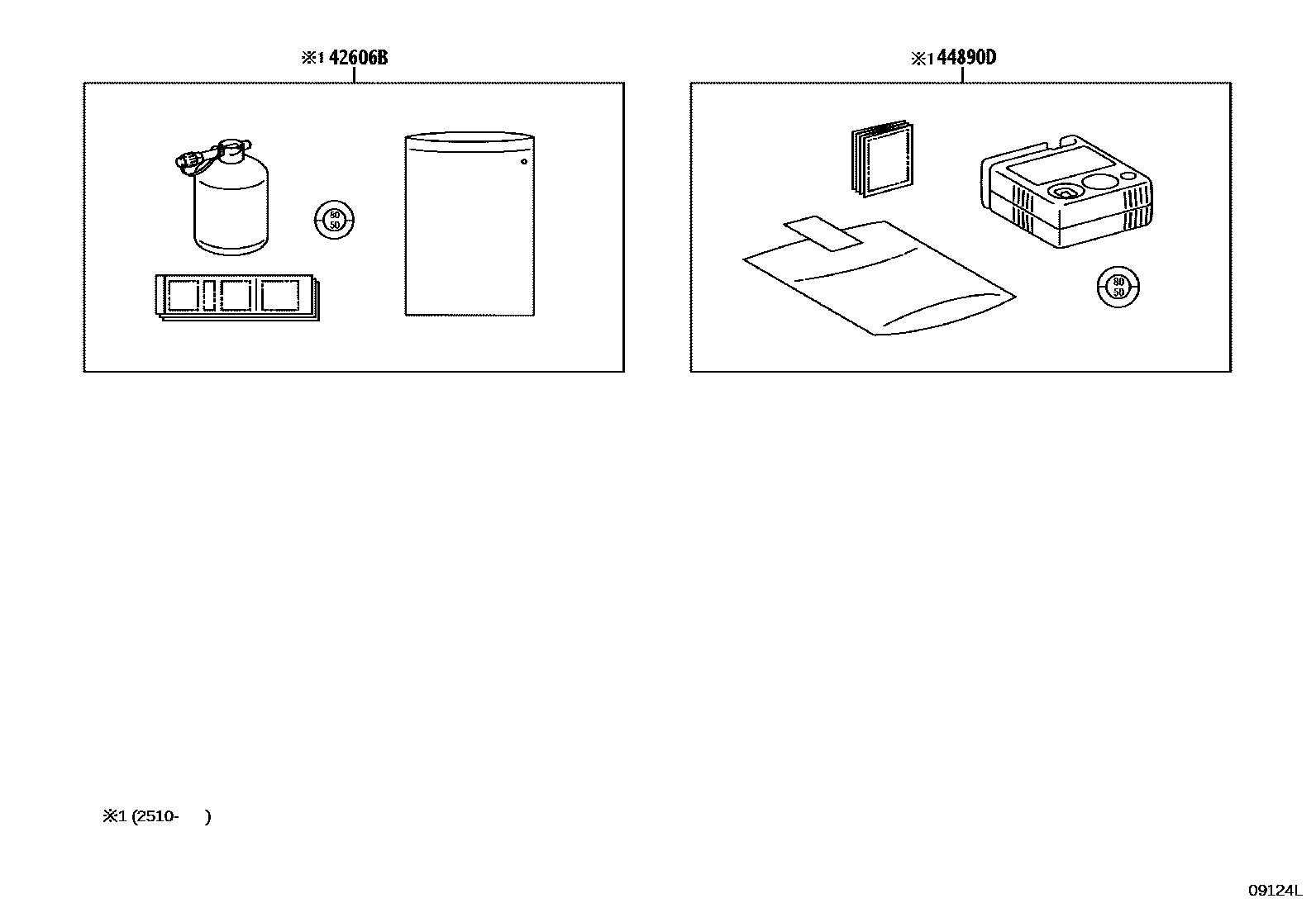

Toyota COROLLA Standard Tools EPC diagram — 09124L
Standard Tools — 09124L (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
09111Jack sub-assembly09111-0A060
09113Jack Handle09113-0R030
09150Wheel Nut Wrench Case09150-0R020
091Y9Sheath with reflector091Y9-02020
42606BTubeless tire repair components42606-03020
44890DAir Compressor Assembly44890-03020
51961Ntransport hook51960-0A050
81604Triangular reflector assembly81604-02030
