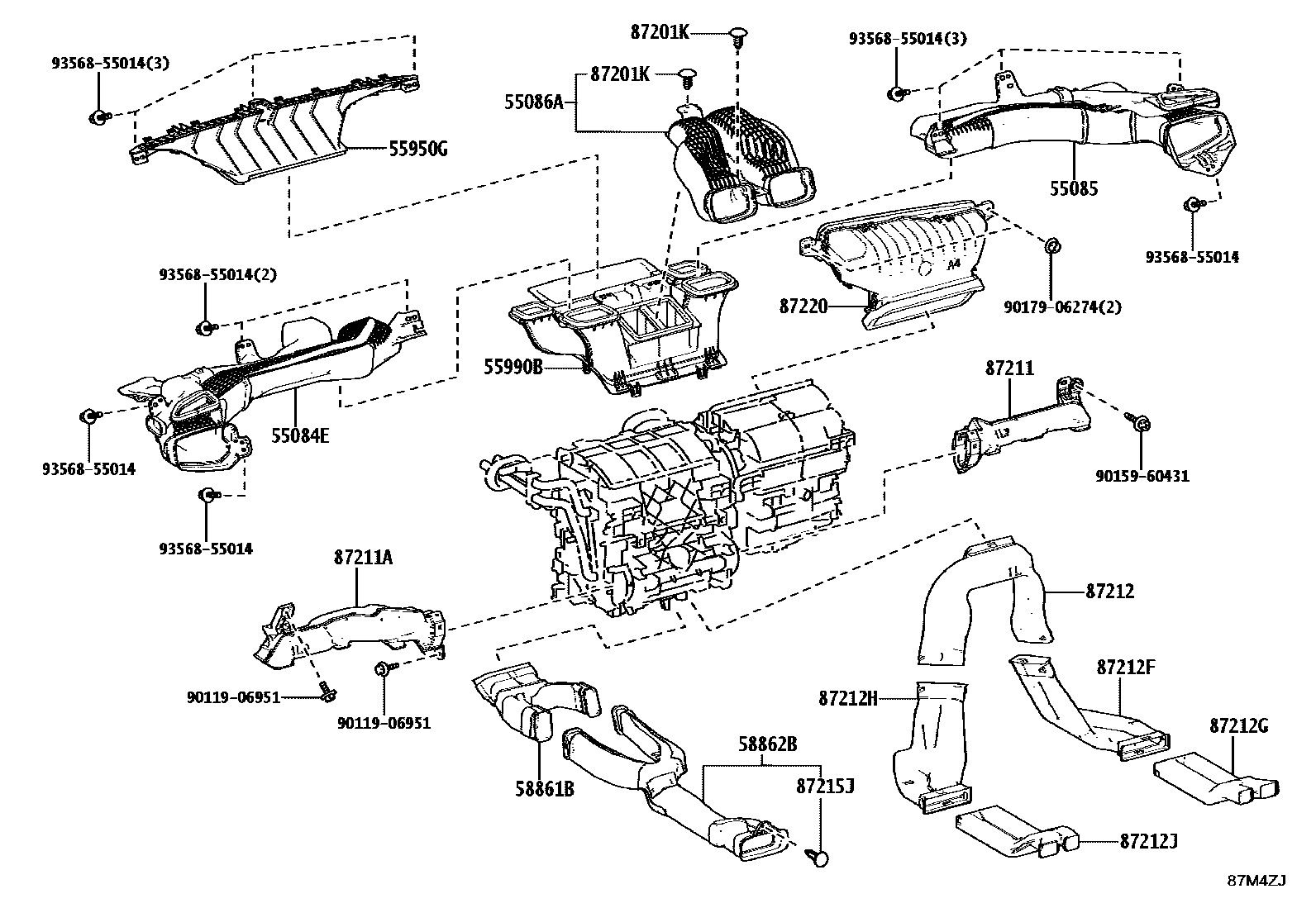

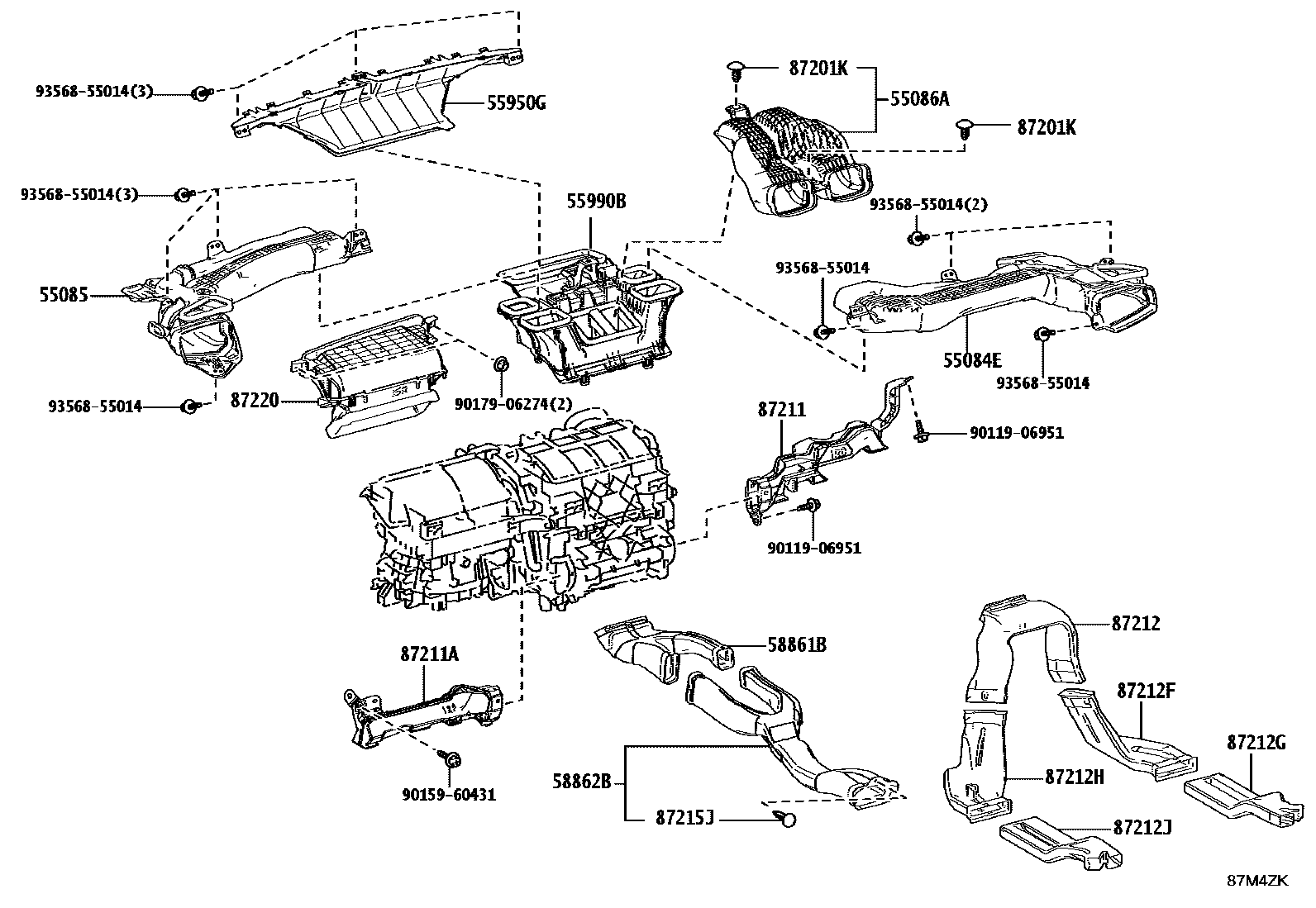

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-16050 · 55084-16070 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-16060 · 55085-16070 · 55085-16080 · 55085-16090 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-12290 · 55086-12300 |

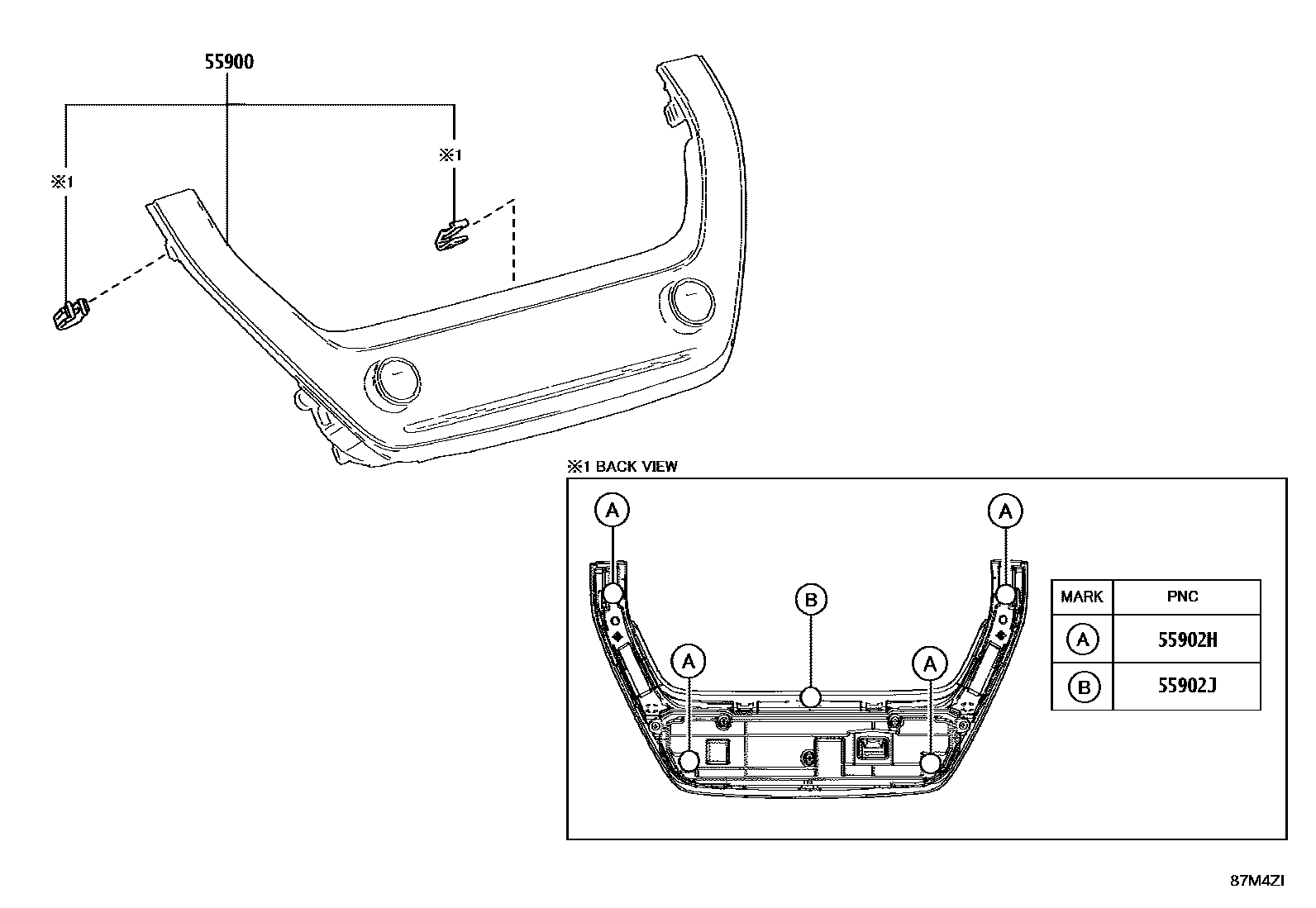

| 55902H | Clip (for air conditioning panel) | 90467-05171 |
| 55902J | Clip No. 2 (for air conditioning panel) | 90468-08048 |
| 55950G | Defroster nozzle assembly | 55950-16080 · 55950-16090 |
| 55990B | Lower defroster nozzle assembly | 55990-16010 · 55990-16020 |
| 58861B | Air duct No. 1 for armrest box | 58861-16030 · 58861-16040 |
| 58862B | Air duct No. 2 for armrest box | 58862-16030 · 58862-16040 |
| 87211 | No. 1 air duct | 87211-12460 · 87211-16030 |
| 87211A | Duct No. 2 | 87211-12450 · 87211-12530 |
| 87212 | No. 1 rear air duct | 87215-12060 |
| 87212F | No. 2 rear air duct | 87212-47040 |
| 87212G | No. 3 rear air duct | 87216-10010 |
| 87212H | No. 4 rear air duct | 87213-47050 |
| 87212J | No. 5 rear air duct | 87217-10060 |
| 87220 | Air duct assembly | 87220-16070 · 87220-16080 |

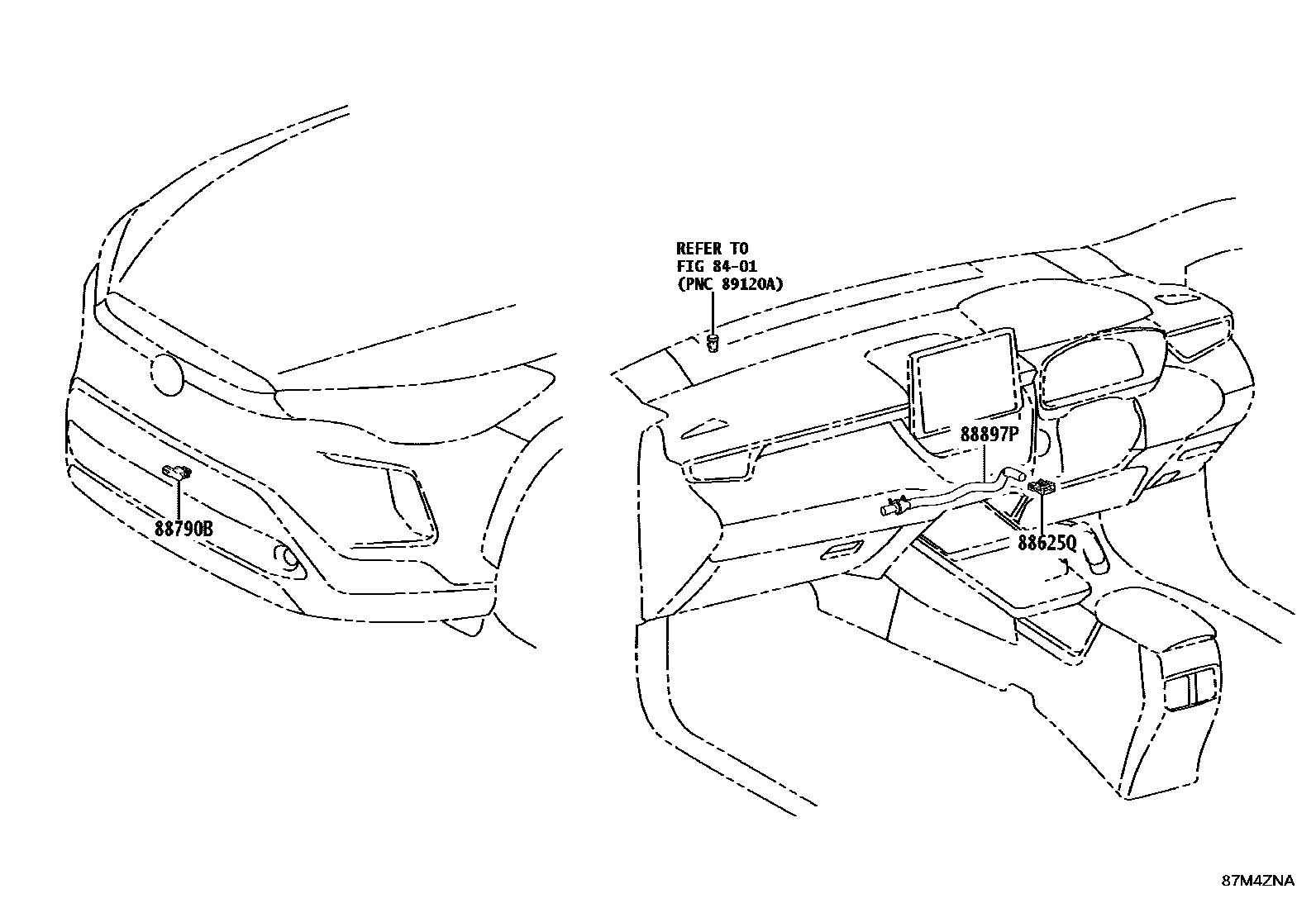

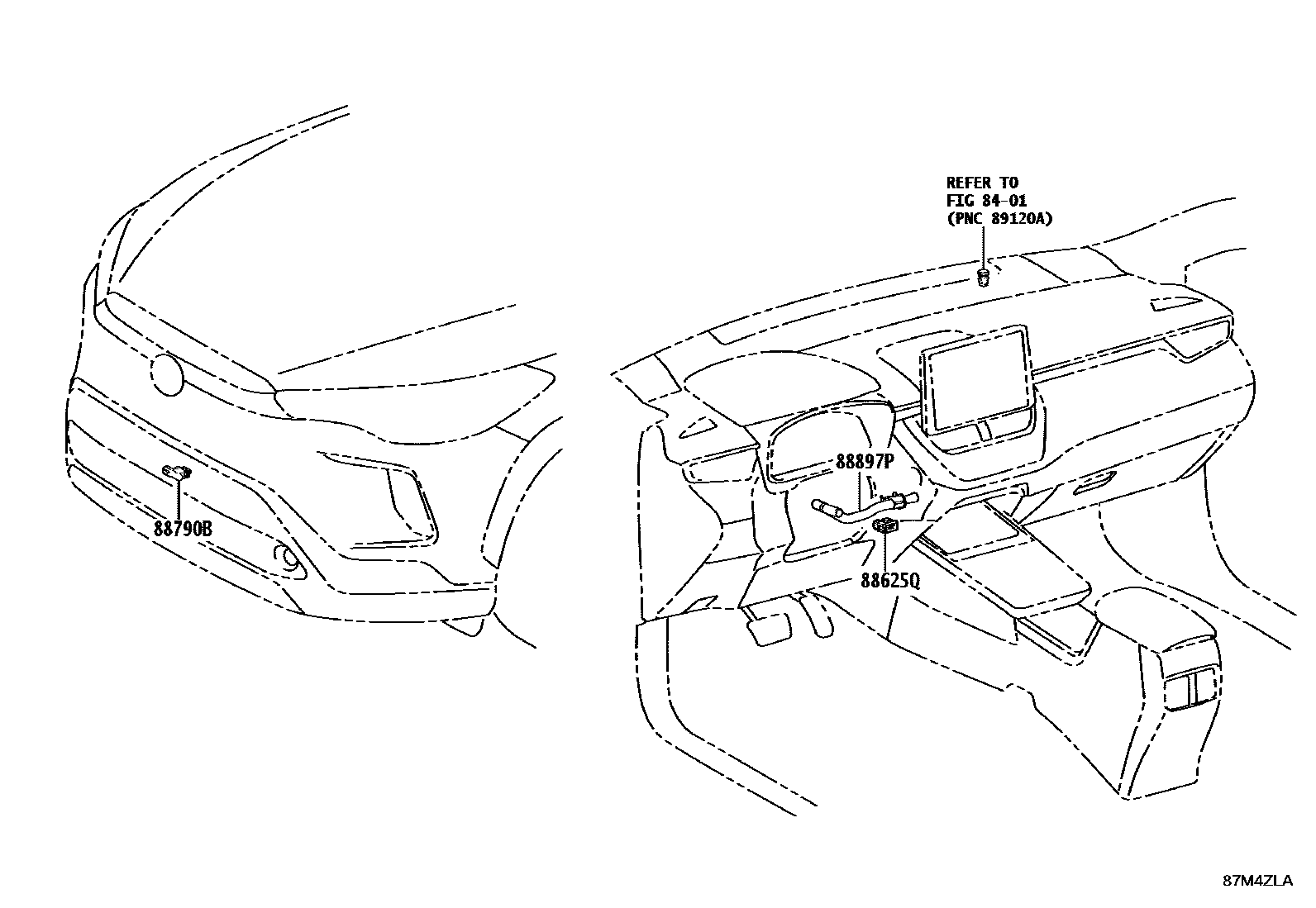

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-16010 · 88505-V1010 |
