Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 12 PNC and OE references.

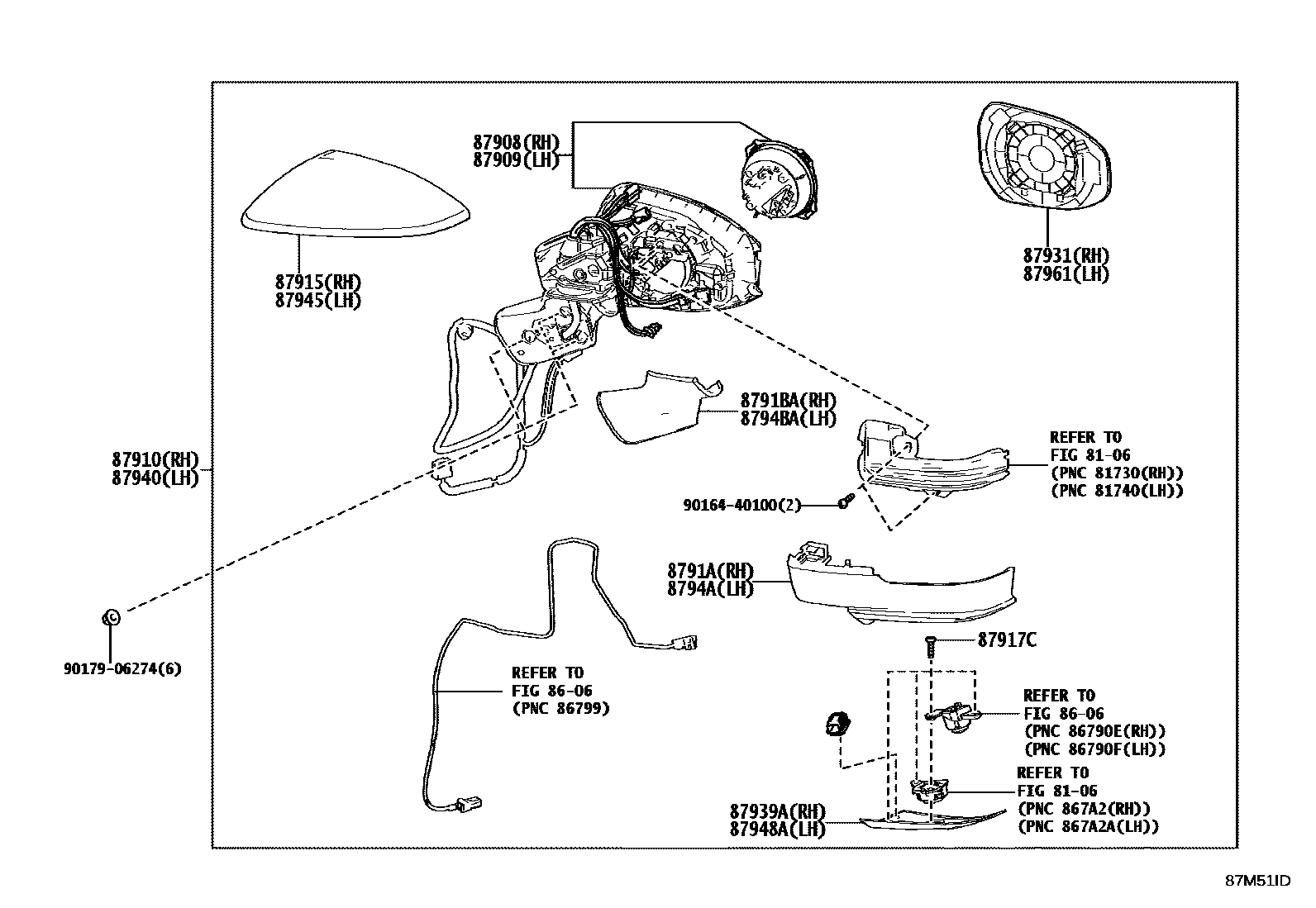

Toyota COROLLA 后视镜 EPC diagram — 87M51ID
后视镜 — 87M51ID (202505 – 999999)

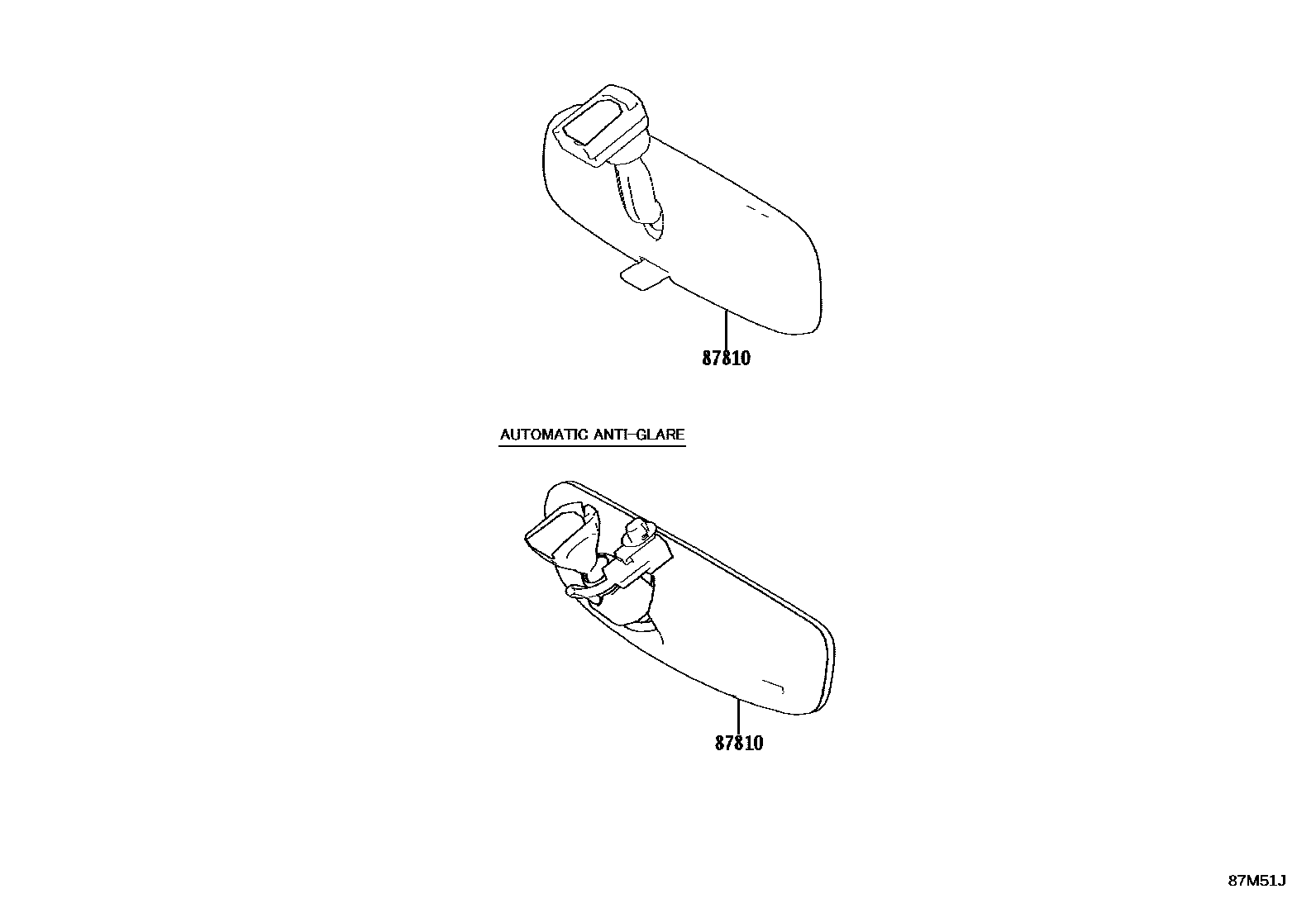

Toyota COROLLA 后视镜 EPC diagram — 87M51J
后视镜 — 87M51J (202505 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-16070 · 87810-28140
87908Right exterior rearview mirror actuator assembly87908-16A40 · 87908-16C00 · 87908-16C20 · 87908-16C30 · 87908-16C40 · 87908-16C60 · 87908-16C90 · 87908-16D10
87909Left exterior rearview mirror actuator assembly87909-16C30 · 87909-16C40 · 87909-16C50 · 87909-16C60 · 87909-16C70 · 87909-16C80 · 87909-16D00 · 87909-16D10 · 87909-16D20
87917CExterior rearview mirror screws87917-30K00
8791ARight exterior rearview mirror cover No. 28791A-16C20
8791BANo. 3 right exterior mirror cover8791B-16C20 · 8791B-16C30
87931Right exterior rearview mirror87931-16C00 · 87931-16C20
87939ARight exterior rearview mirror hole cover87939-16A40 · 87939-16A60 · 87939-16C20
87948ALeft exterior rearview mirror hole cover87948-16C30 · 87948-16C70 · 87948-16C80
8794ANo. 2 left exterior rearview mirror cap8794A-16C30
8794BANo. 3 left exterior rearview mirror cap8794B-16C30 · 8794B-16C40
87961Left exterior rearview mirror87961-16C10 · 87961-16C30
