Toyota COROLLA 车载电话和呼救装置 — Figure 8615

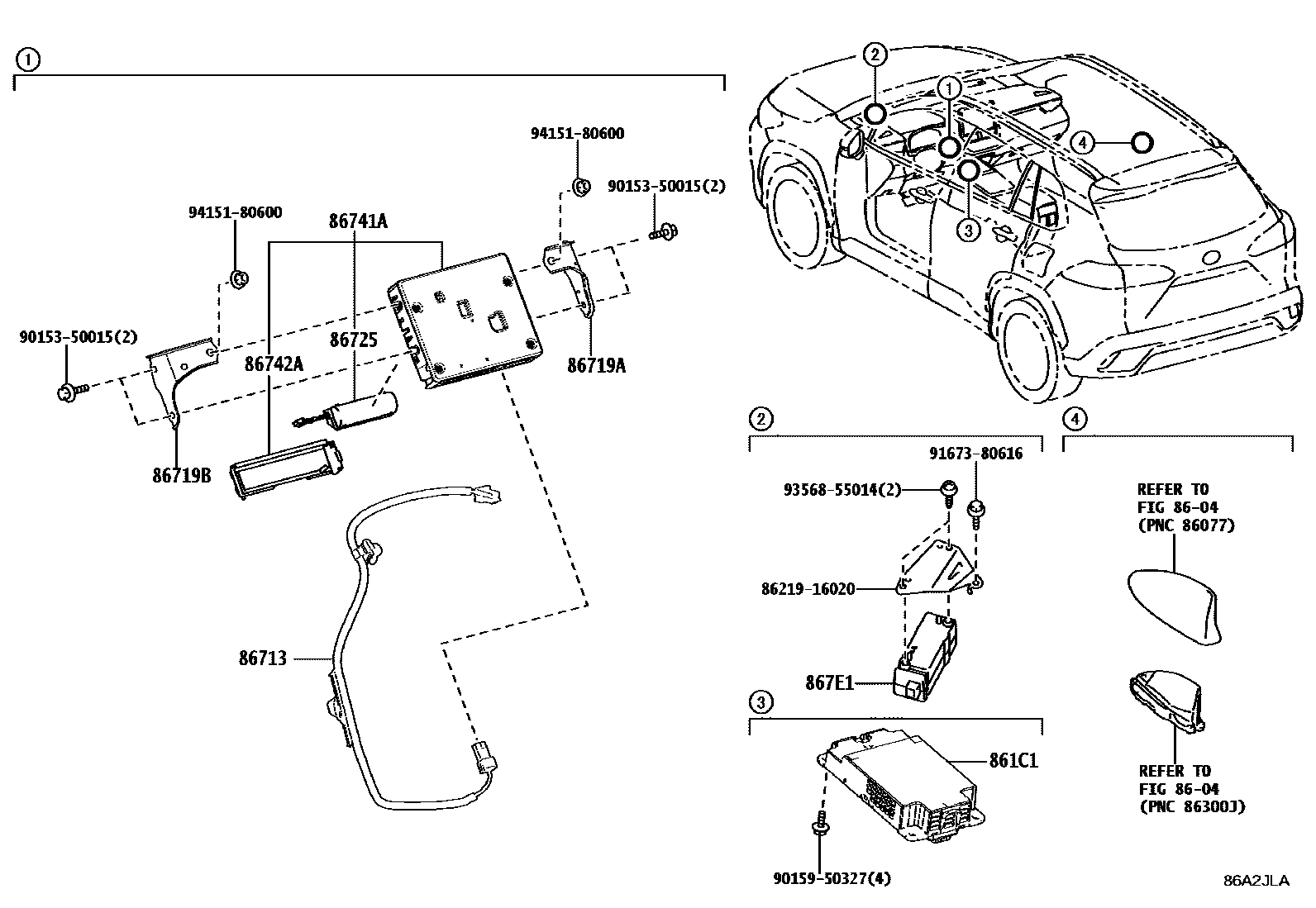

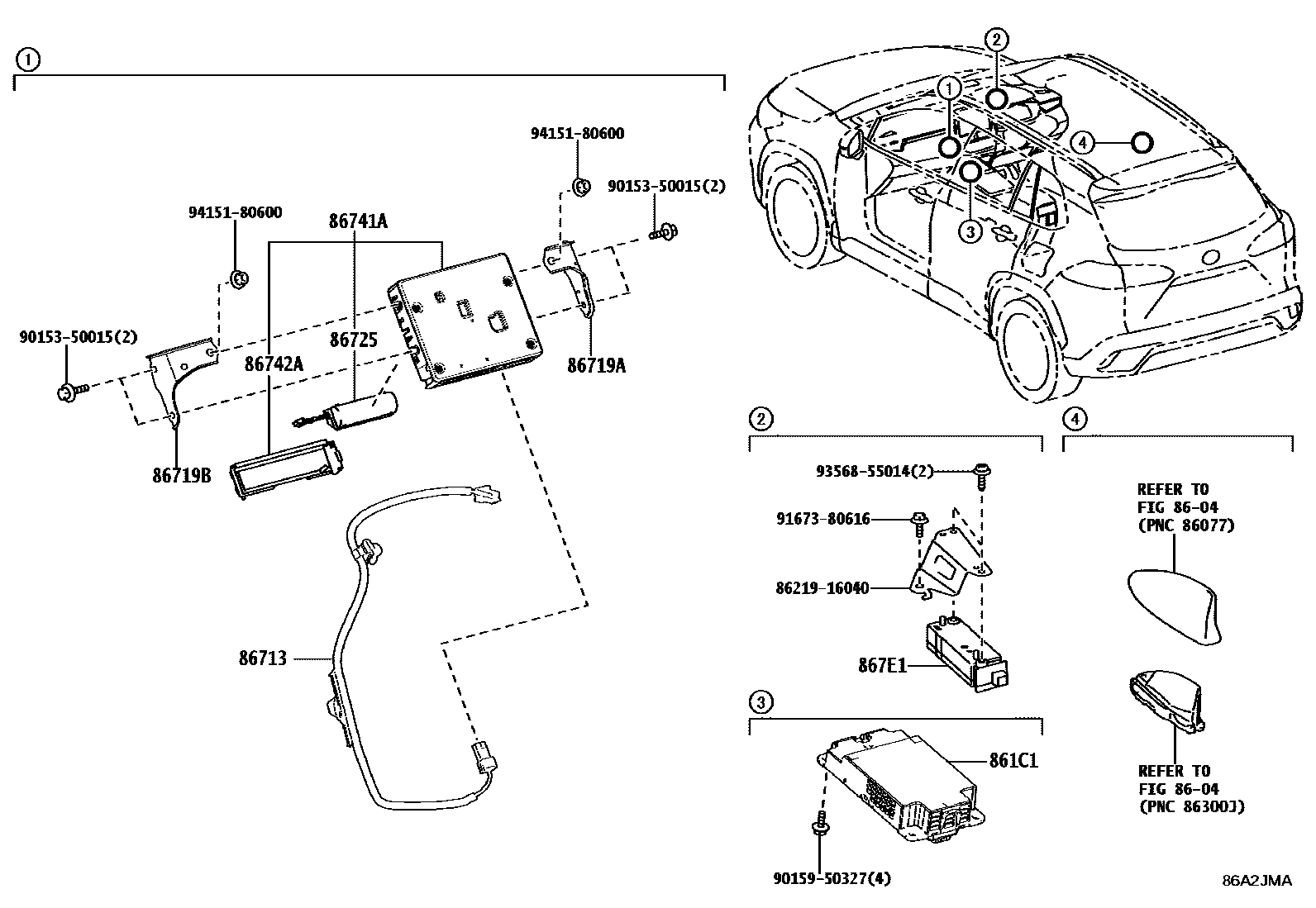

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C1 | Mobile Wireless Charger Stand | 861C1-16020 |
| 86713 | Telephone ECU wiring harness | 86713-16020 · 86713-16030 |
| 86719A | Phone holder No. 1 | 86719-12010 |
| 86719B | Phone holder No. 2 | 86719-12020 |
| 86725 | mobile phone battery | 86725-78011 |
| 86741A | Telecommunications transceiver | 86740-16030 · 86740-47261 · 86741-78152 |
| 86742A | transceiver cover | 86742-0D020 |
| 867E1 | Electronic information communication box | 867E1-33020 |
