Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 4 PNC and OE references.

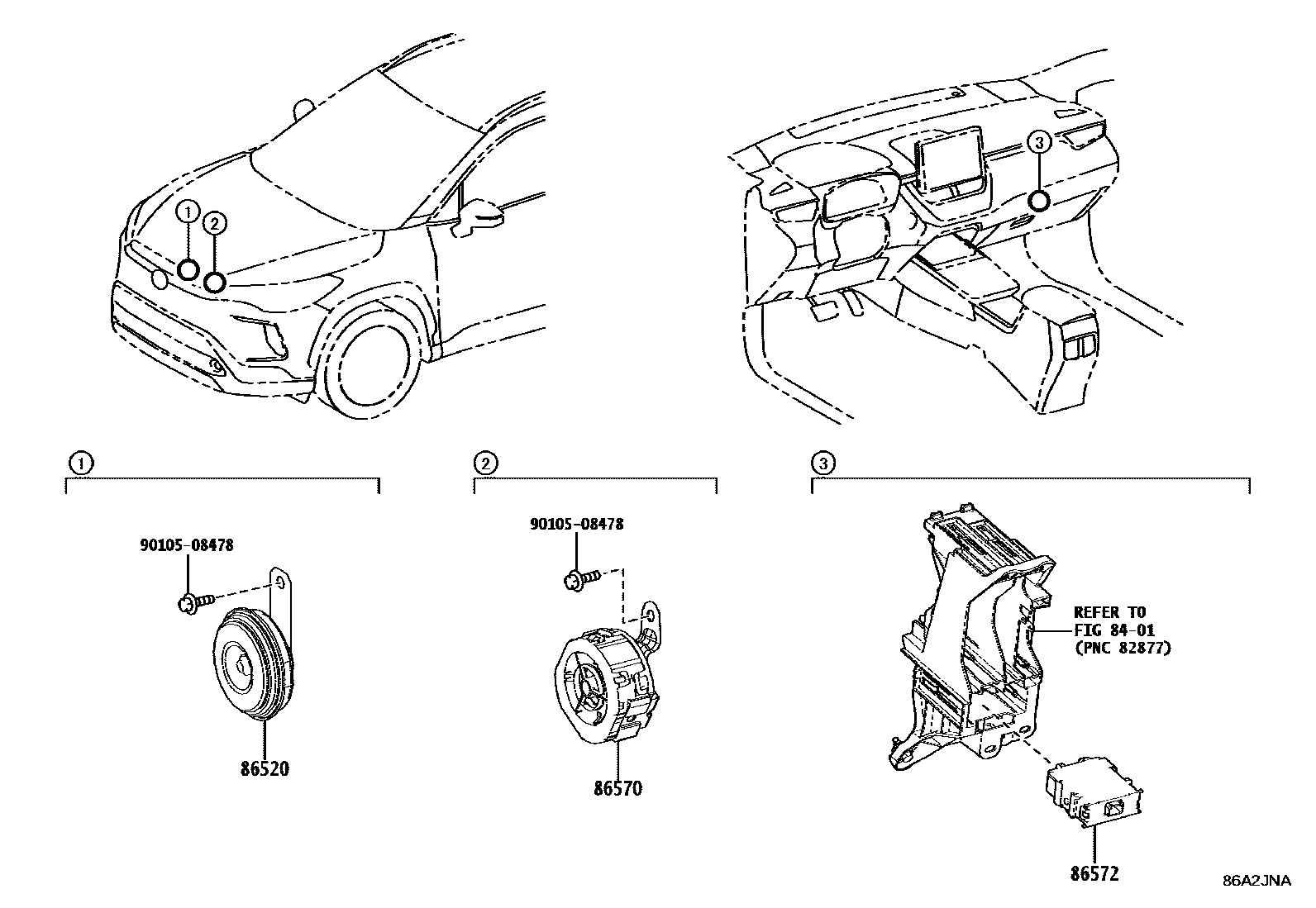

Toyota COROLLA 喇叭 EPC diagram — 86A2JNA
喇叭 — 86A2JNA (202505 – 999999)

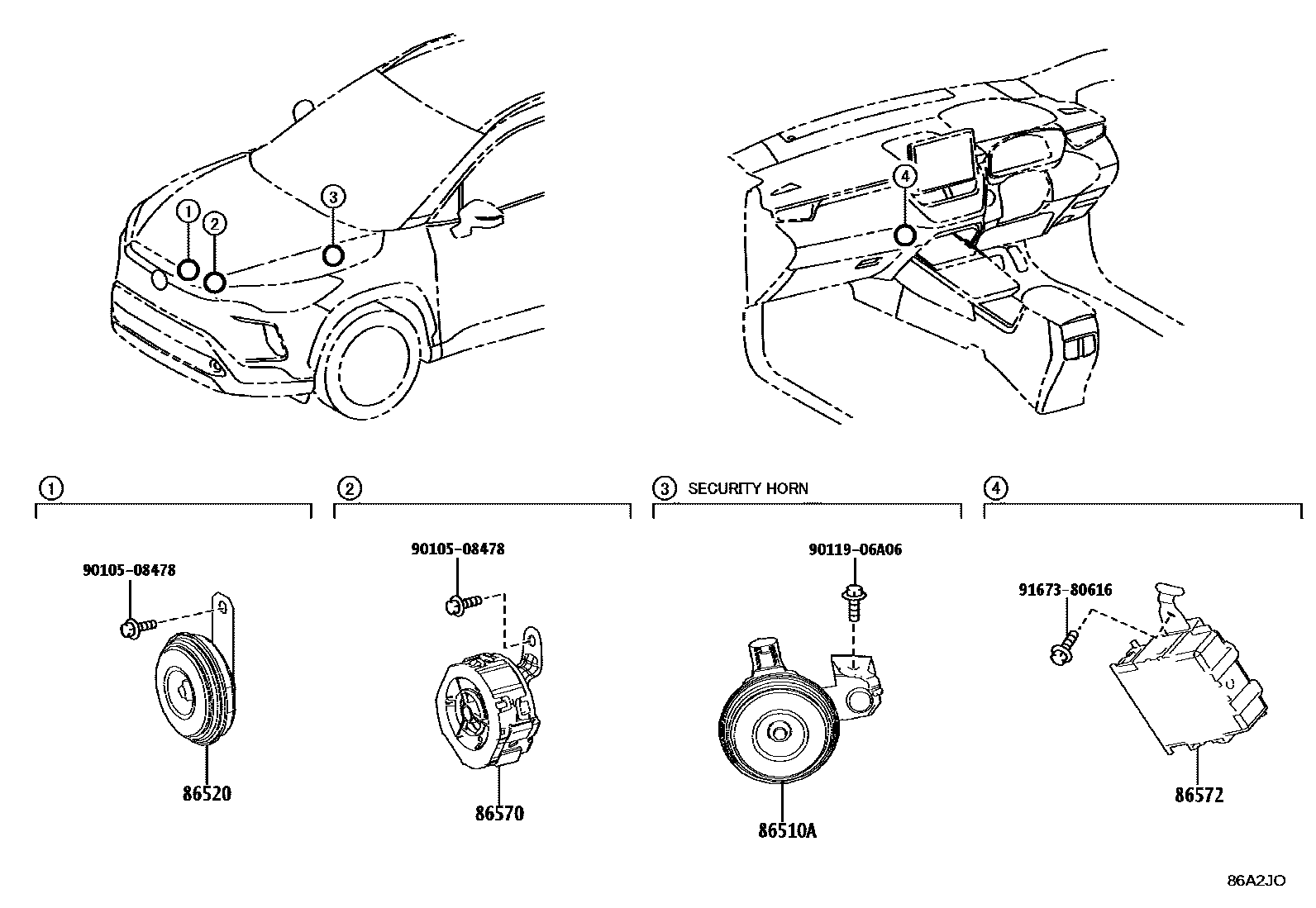

Toyota COROLLA 喇叭 EPC diagram — 86A2JO
喇叭 — 86A2JO (202505 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510AAlarm horn assembly86560-10020
86520Subwoofer assembly86520-52250
86570Vehicle intrusion speaker assembly86570-12030
86572vehicle hacking speaker controller865H2-16050 · 865H2-16060
