Toyota COROLLA 倒车影像和摄像头 — Figure 8606

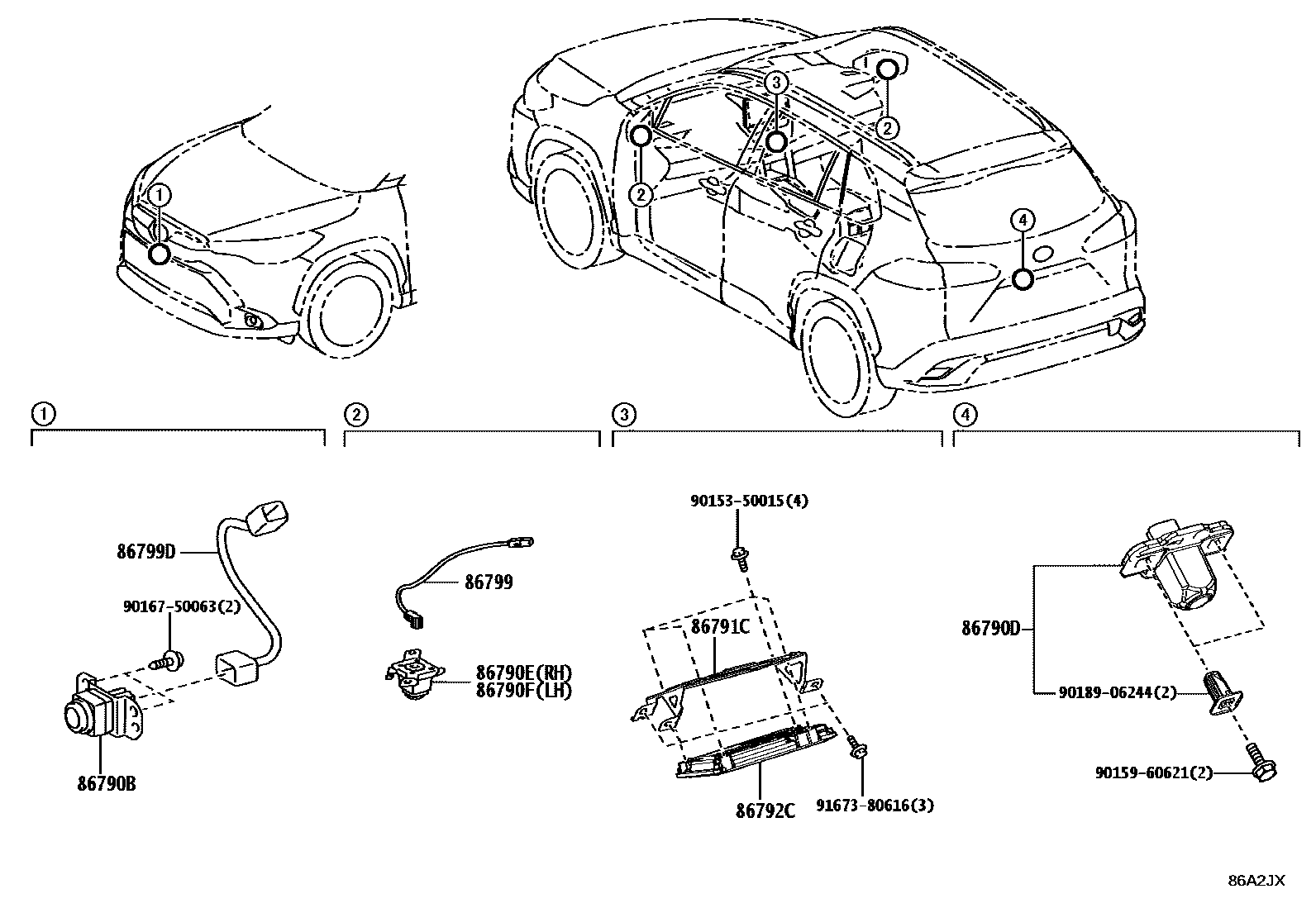

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-16130 · 86790-16161 |
| 86790D | Rear reversing image camera assembly | 86790-16061 · 86790-16070 · 867B0-16040 |
| 86790E | Right image camera assembly | 86790-52870 · 86790-52890 |
| 86790F | Left image camera assembly | 86790-52880 · 86790-52A00 |
| 86791C | Parking assist ECU No. 1 bracket | 86791-16010 |
| 86792C | Parking assist ECU | 86792-16080 · 86792-16260 · 86792-16270 · 86792-16290 · 86792-16300 |
| 86799 | Reversing image camera wiring harness | 86799-16070 |
| 86799D | CABLE, CAMERA TELEVISION, AVANT | 86799-16040 · 86799-16050 |
