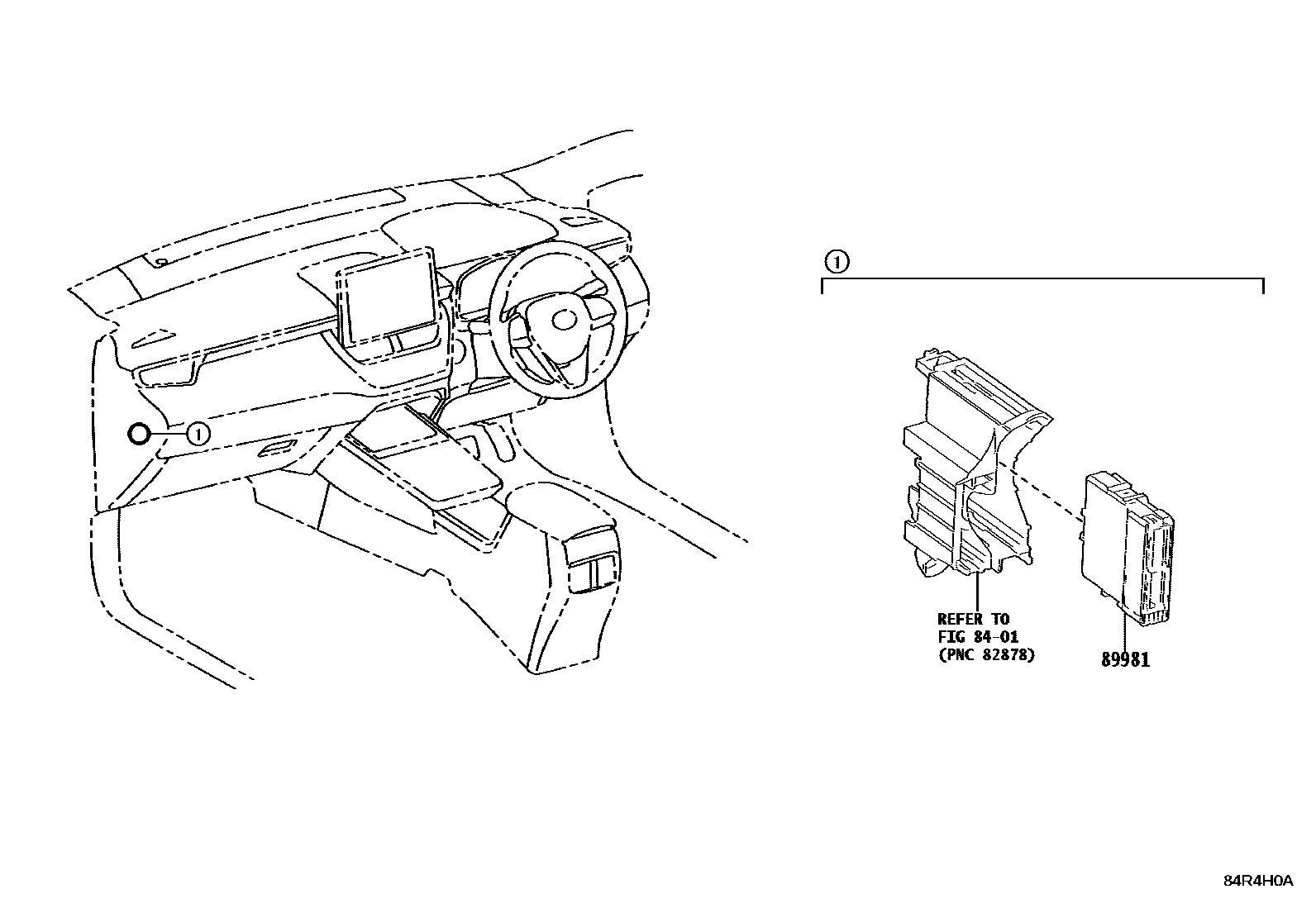

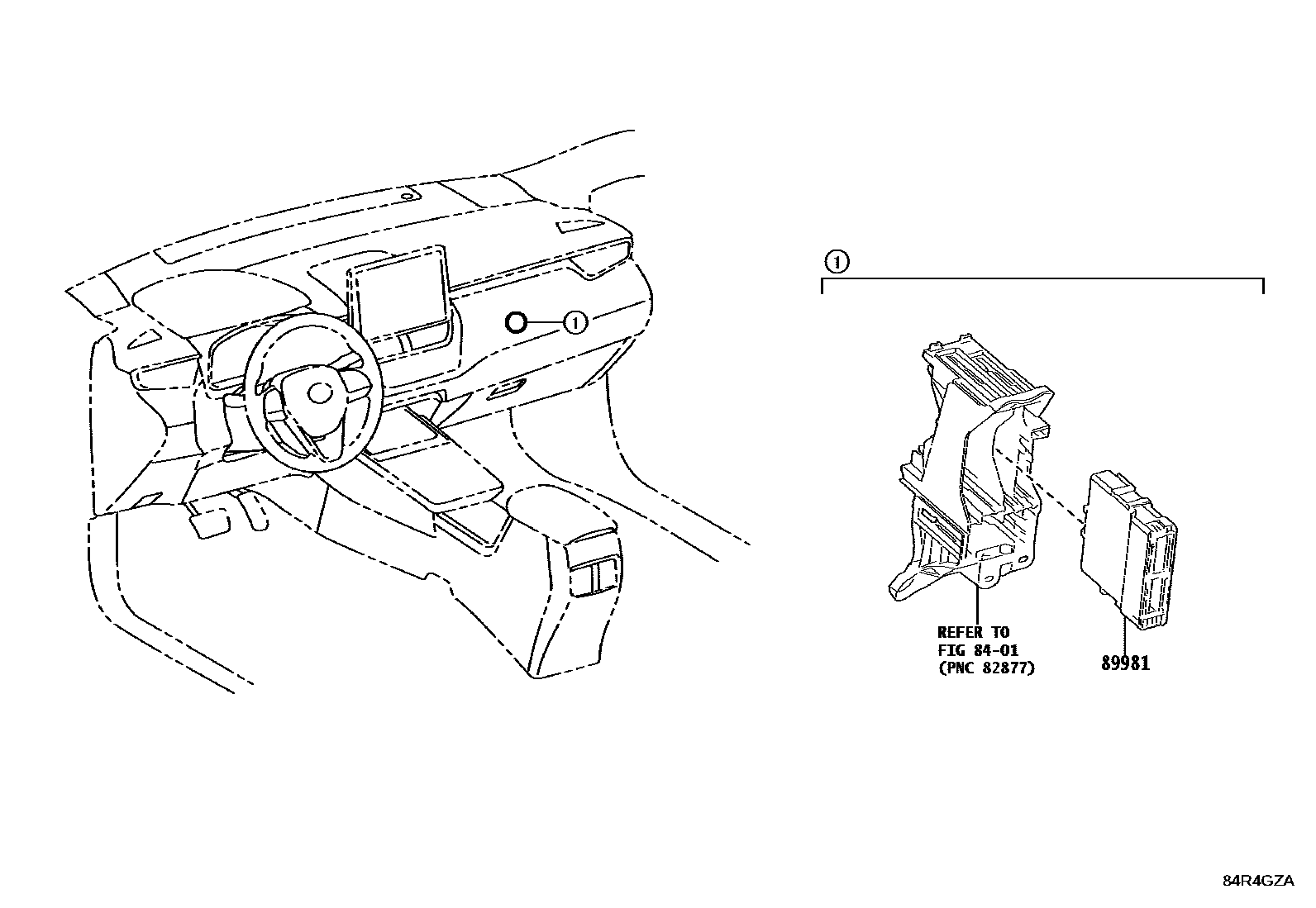

Toyota COROLLA HEV 控制ECU — Figure 8433
Toyota COROLLA EPC diagram 8433, HEV 控制ECU, with 2 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89981 | Hybrid vehicle control ECU | 89981-16220 · 89981-16230 · 89981-16240 |
