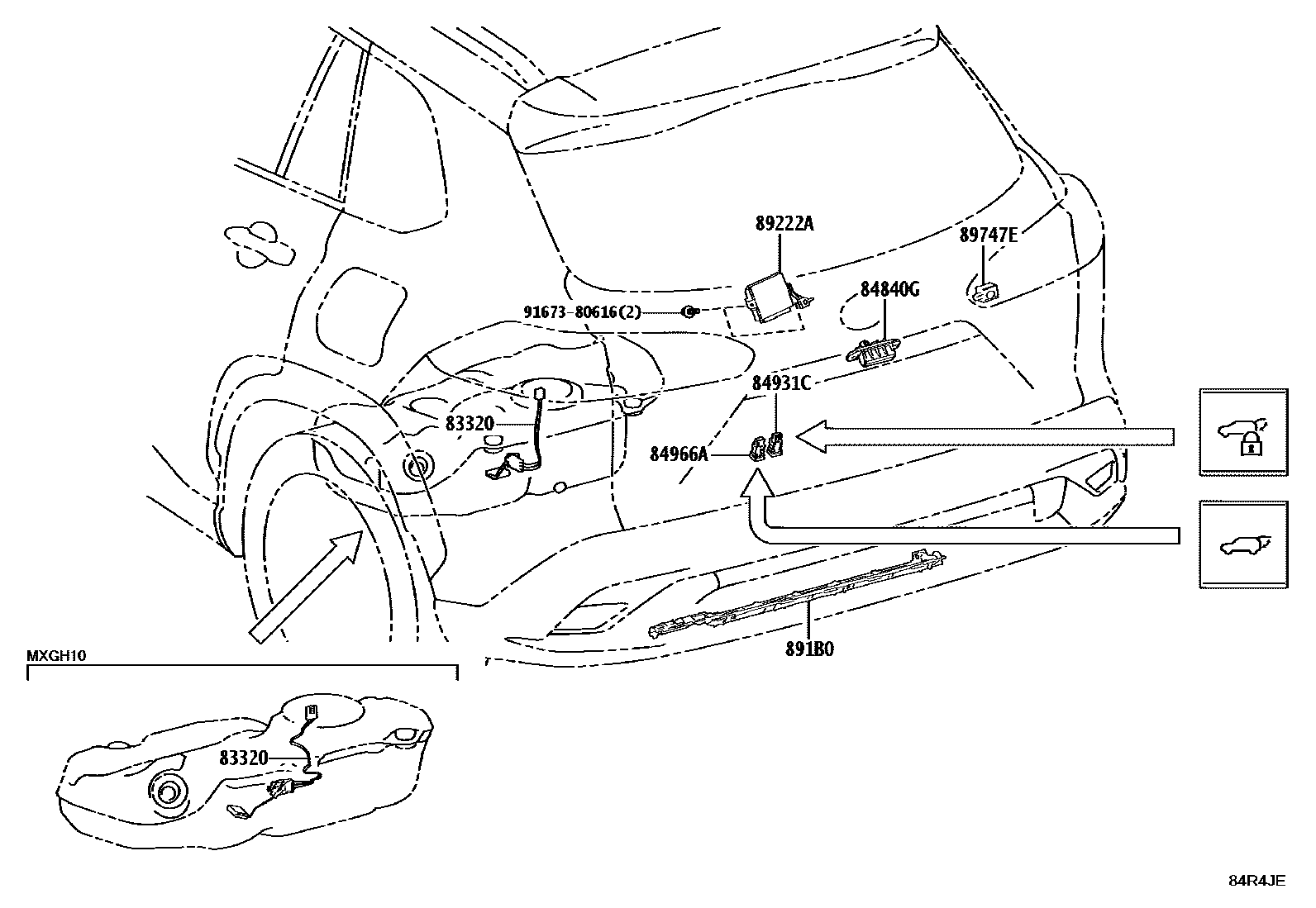

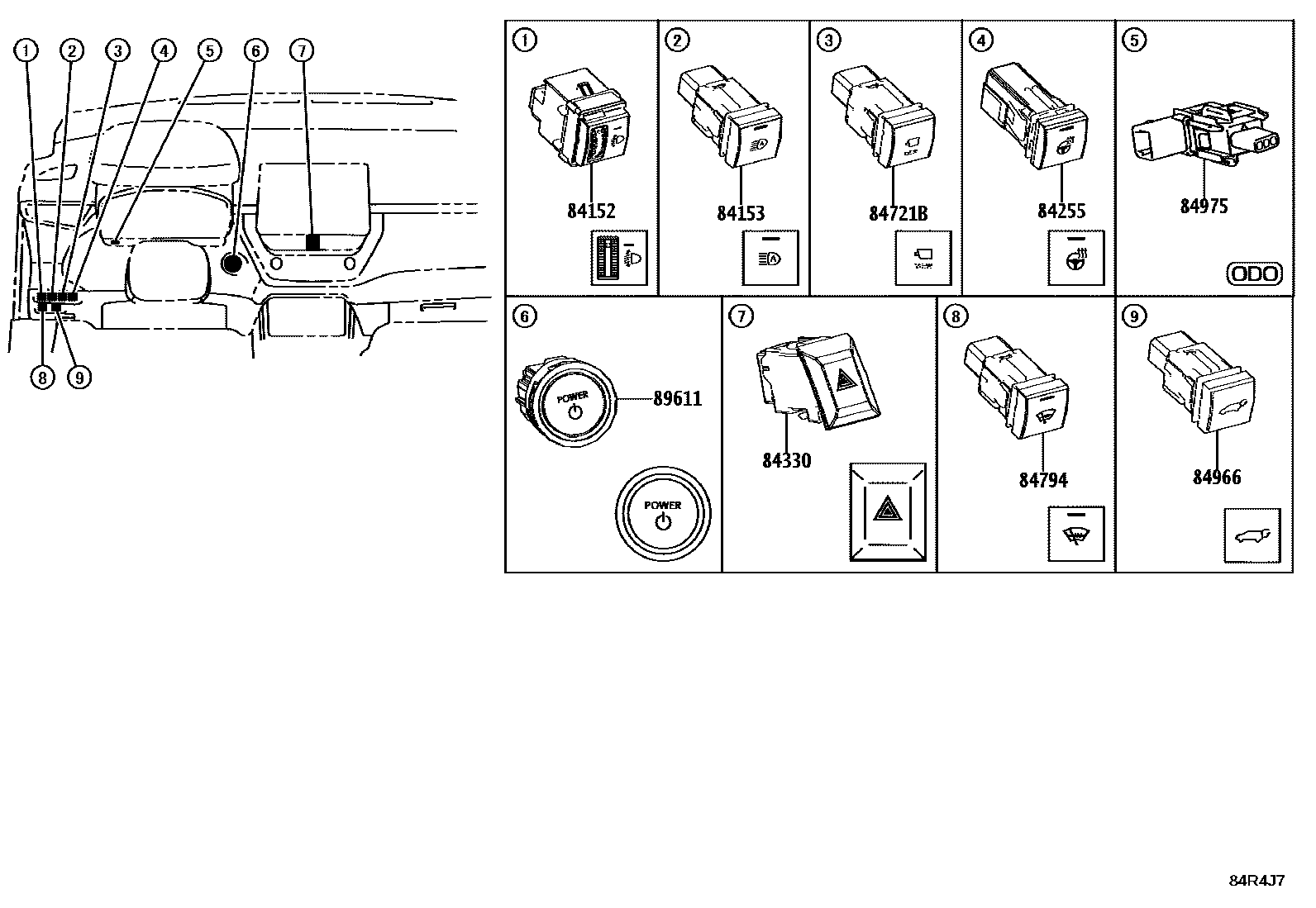

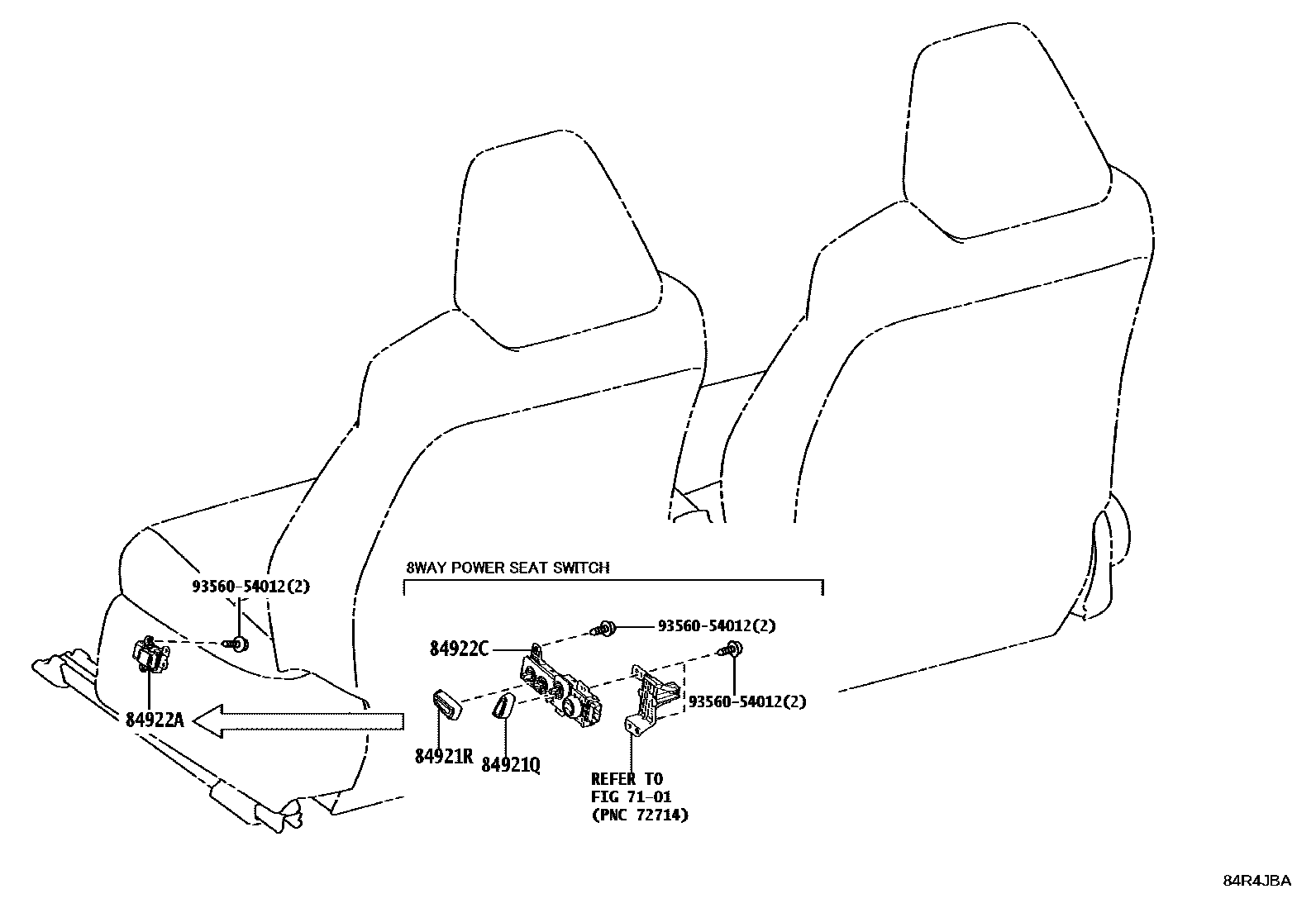

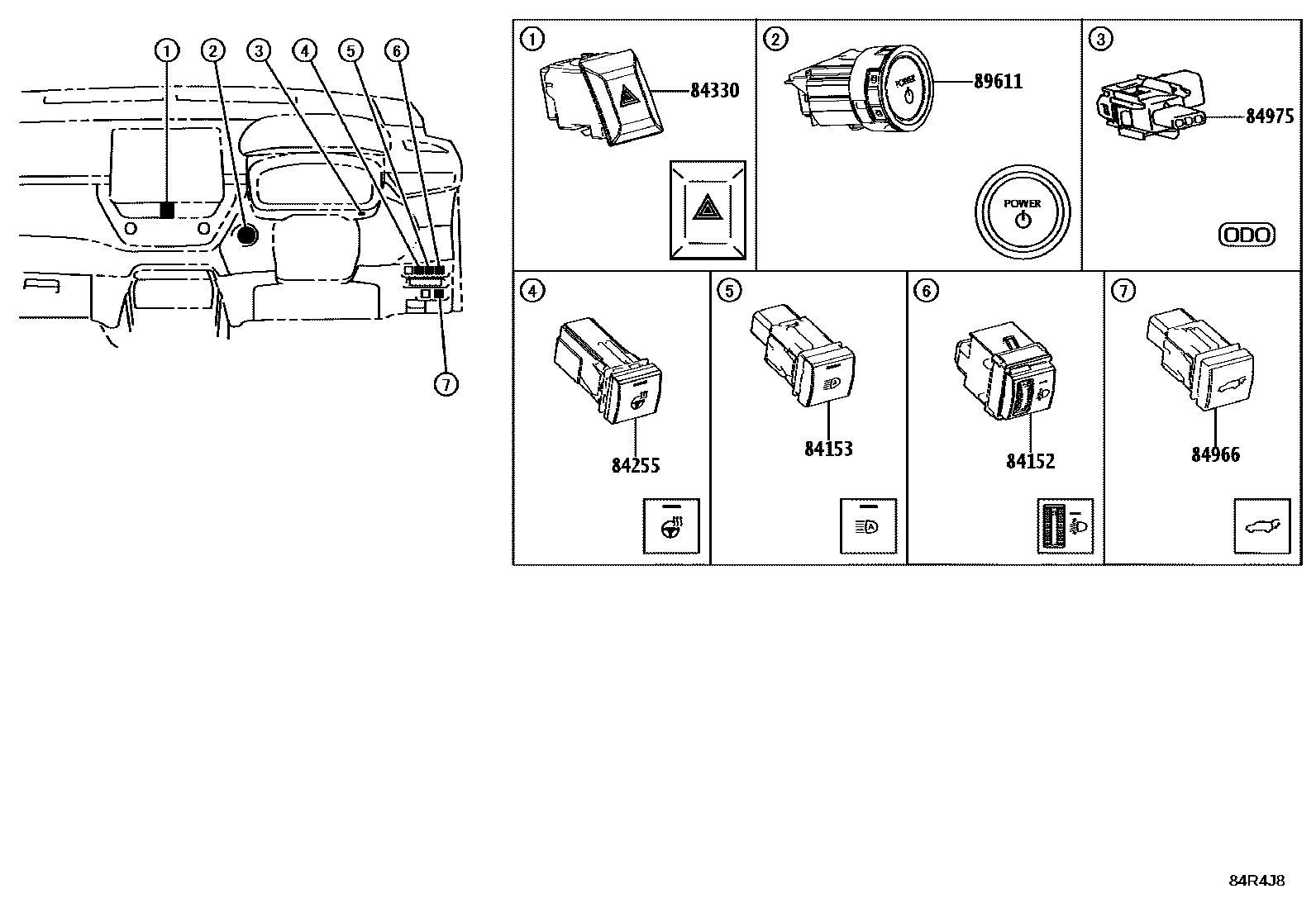

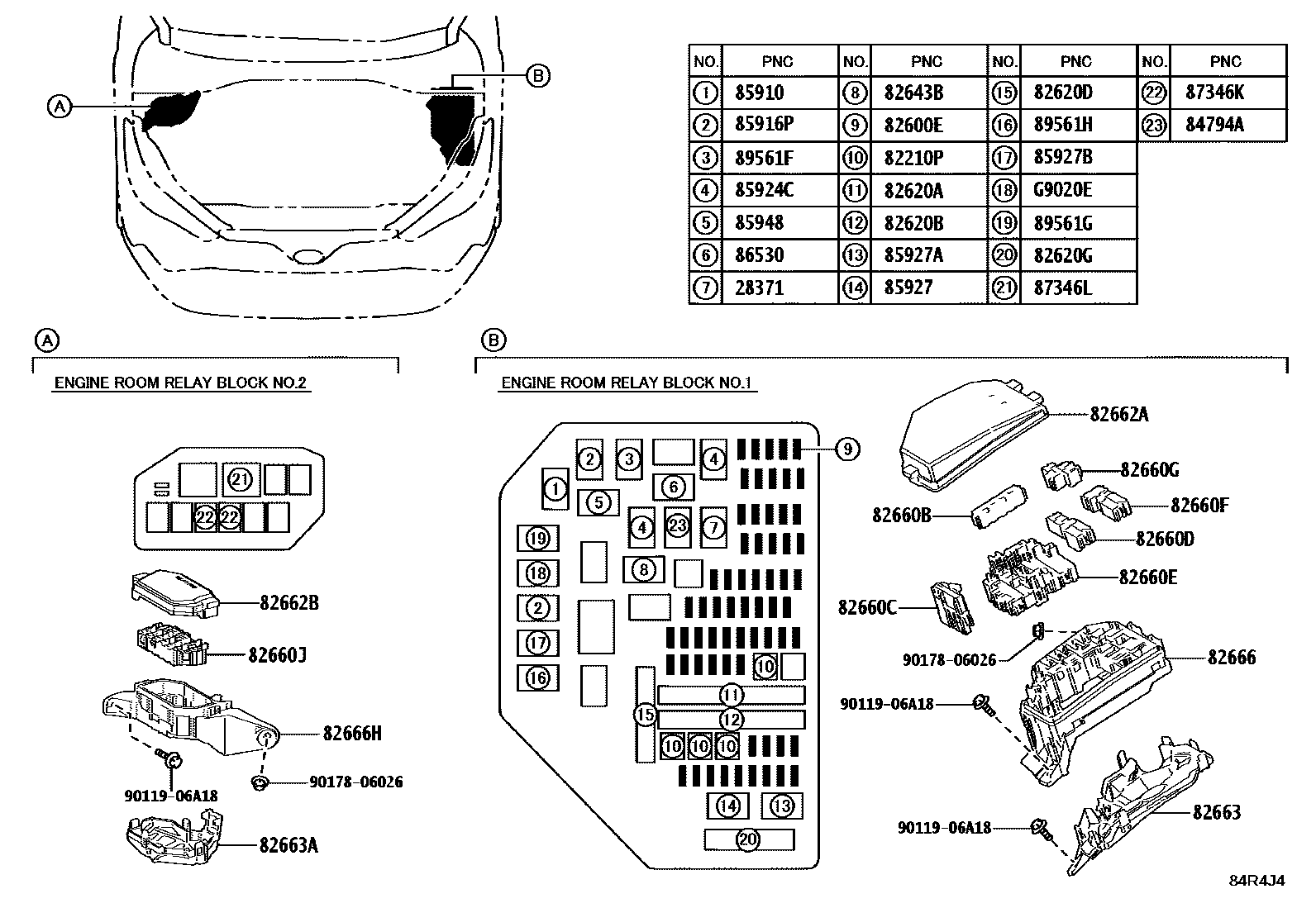

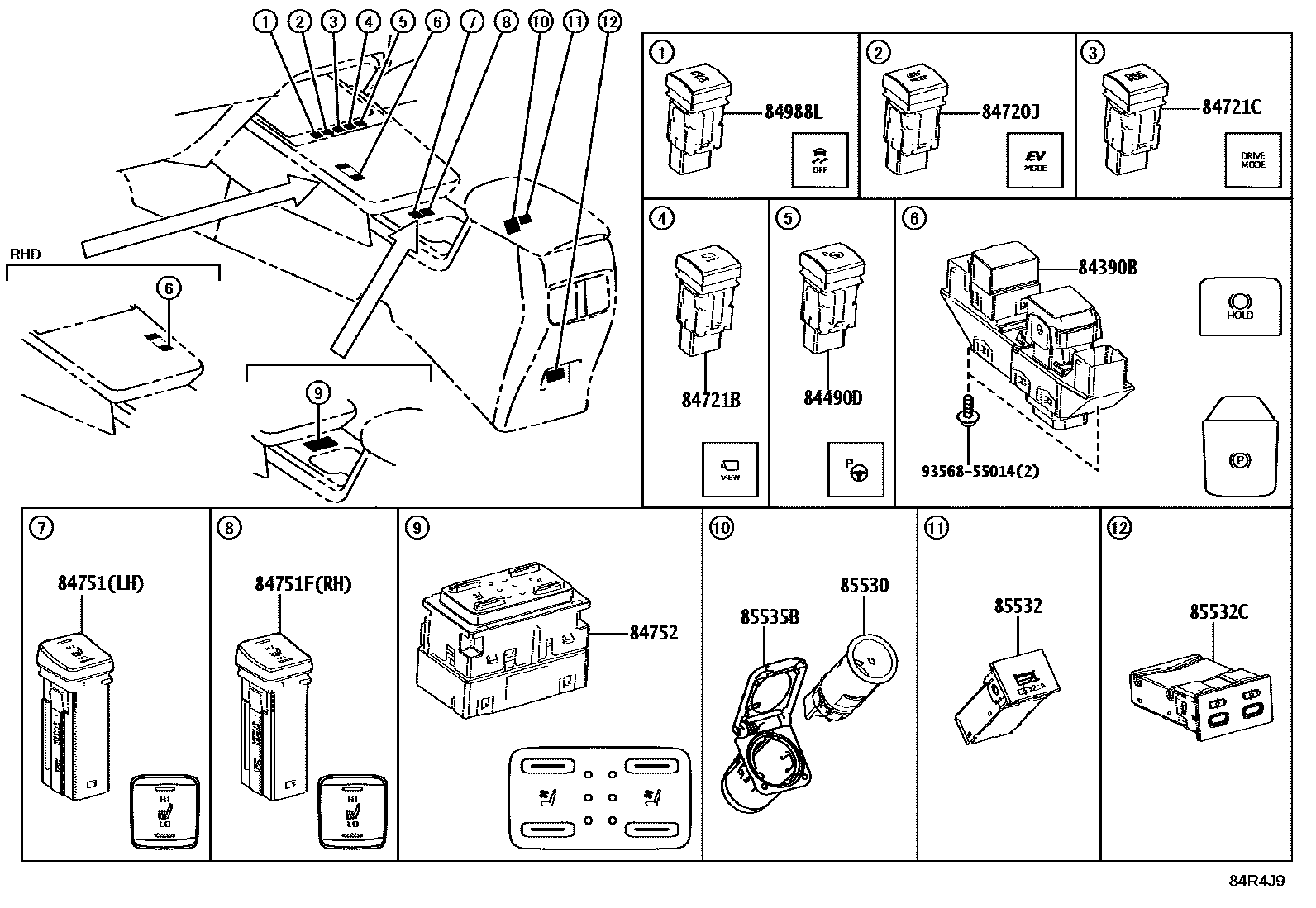

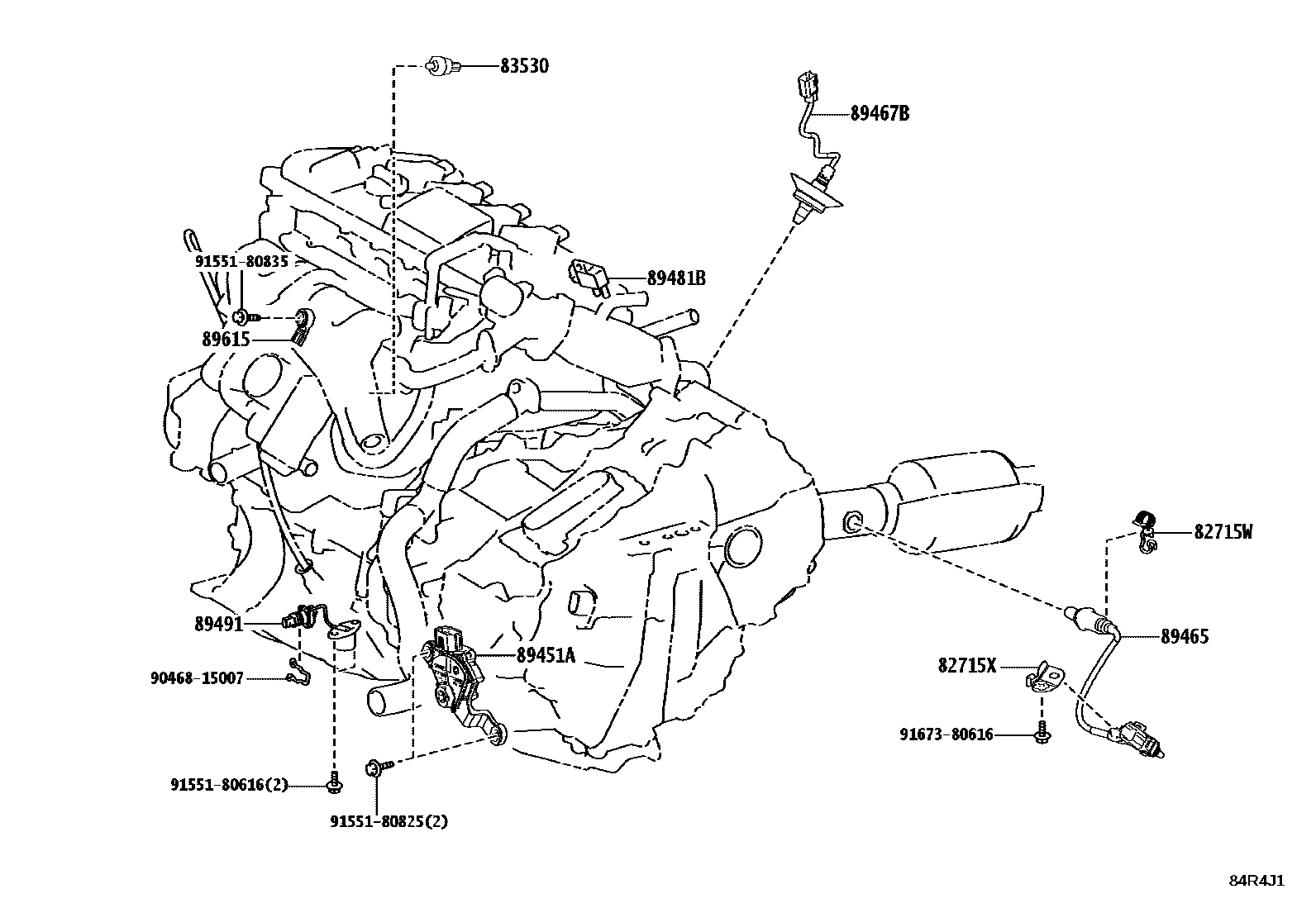

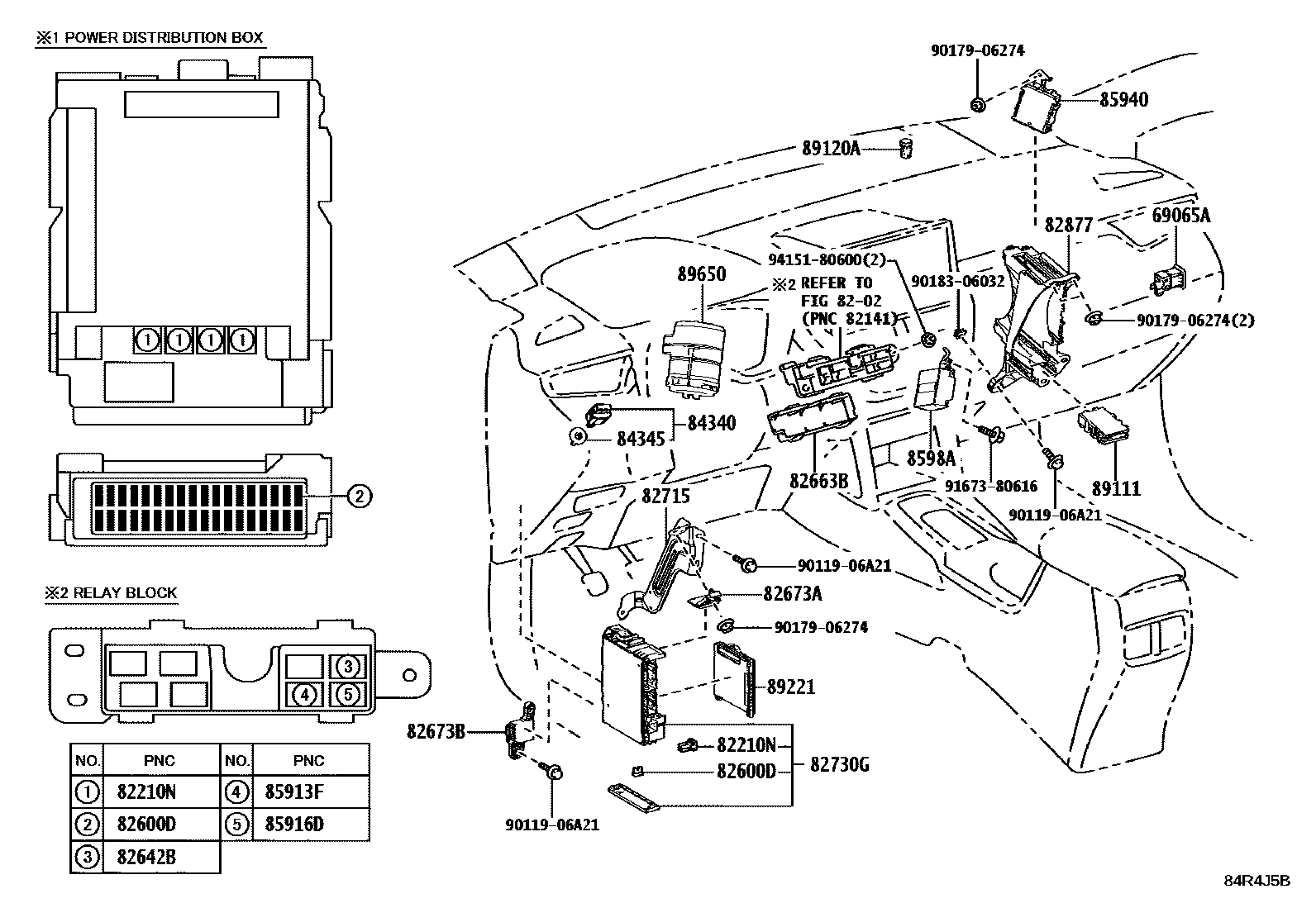

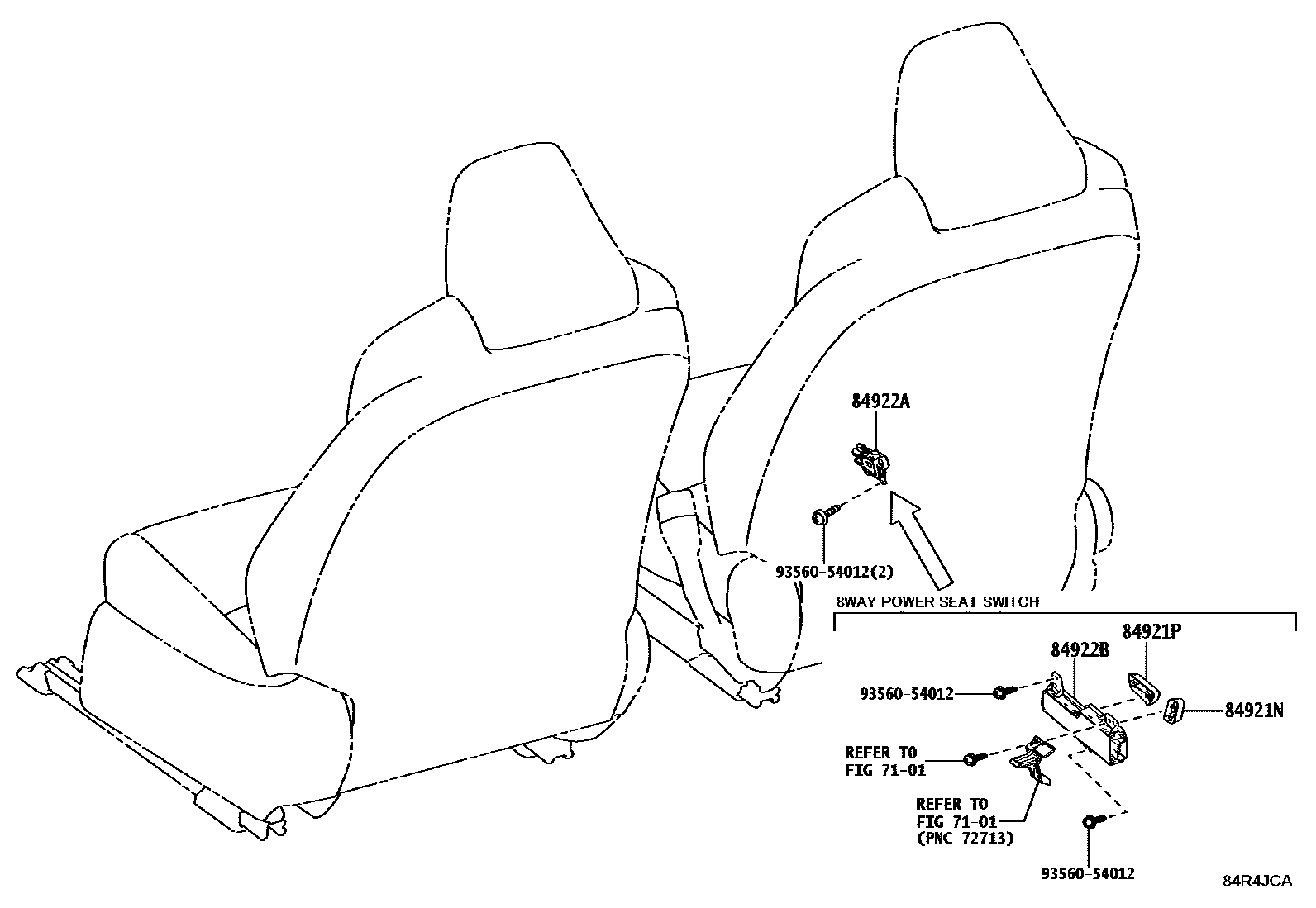

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 16 images and 125 PNC and OE references.
PNC and OE references

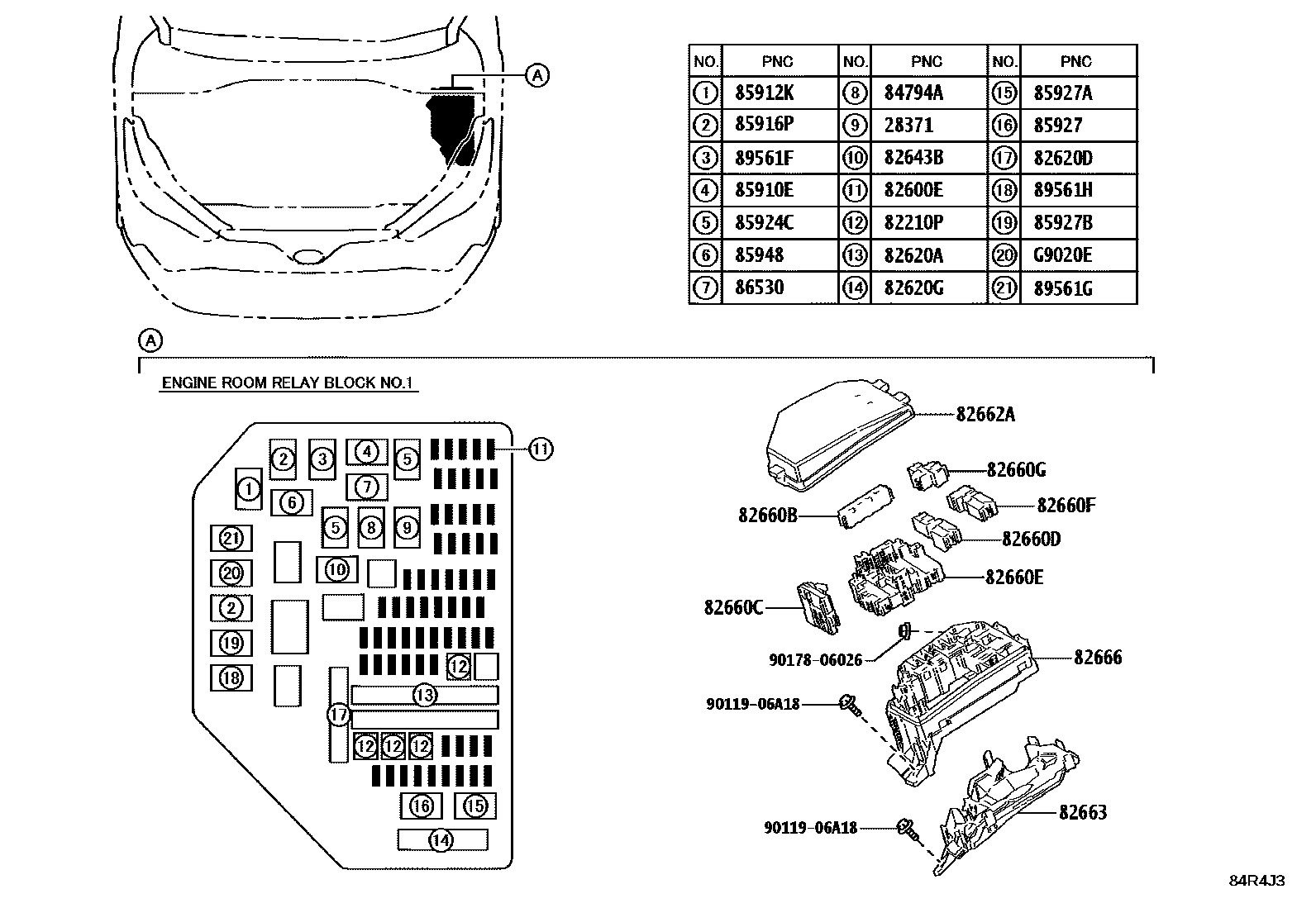

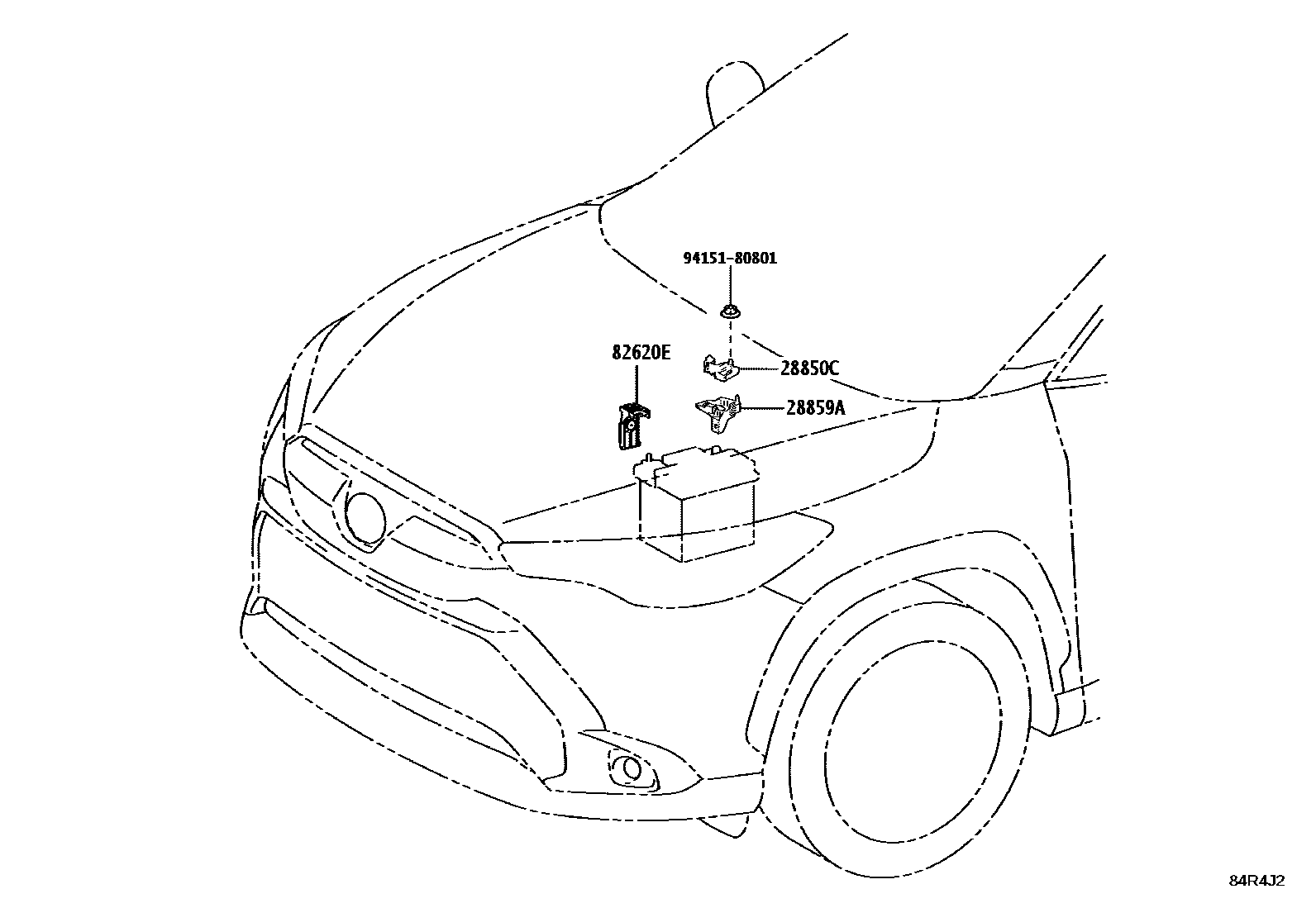

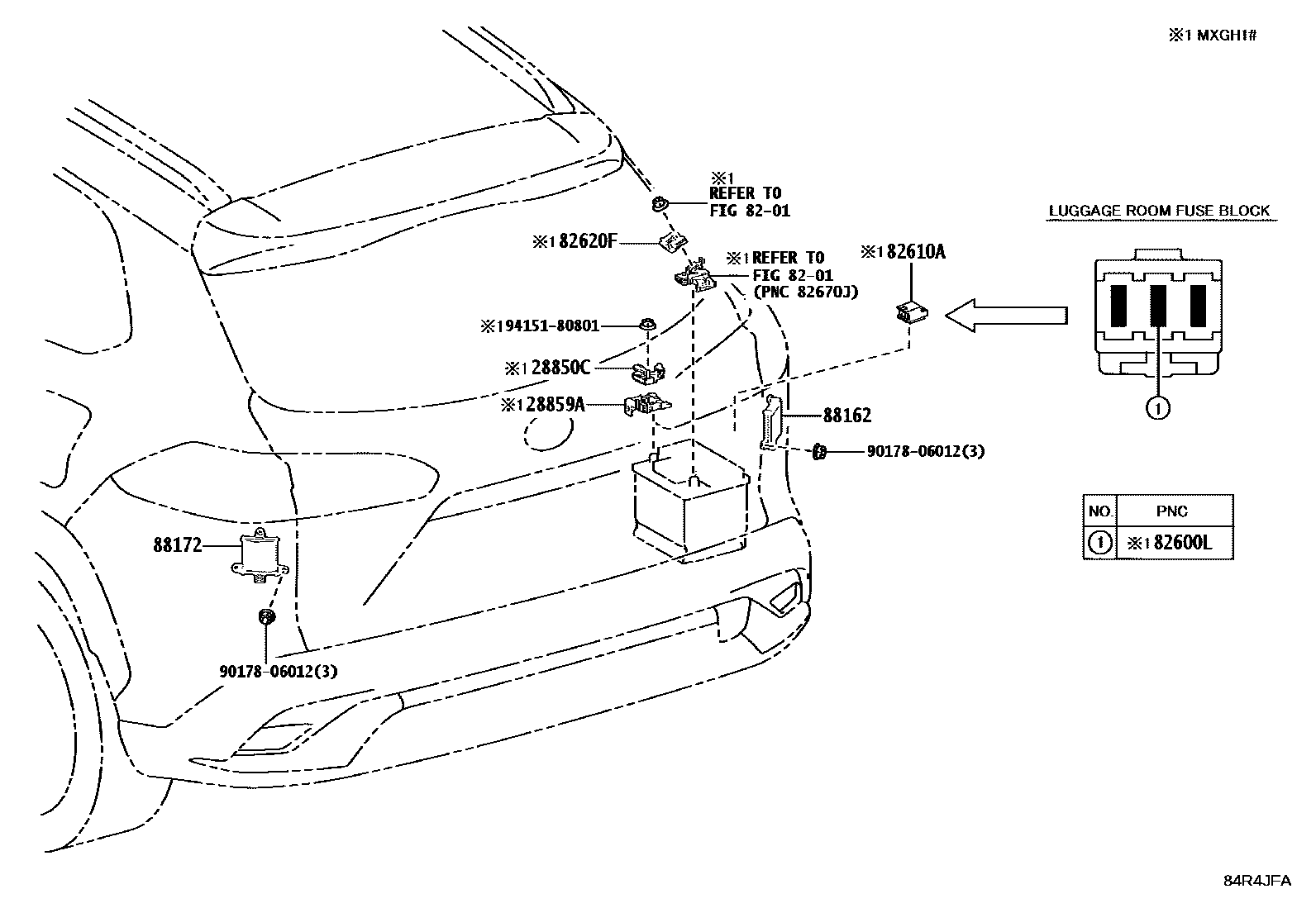

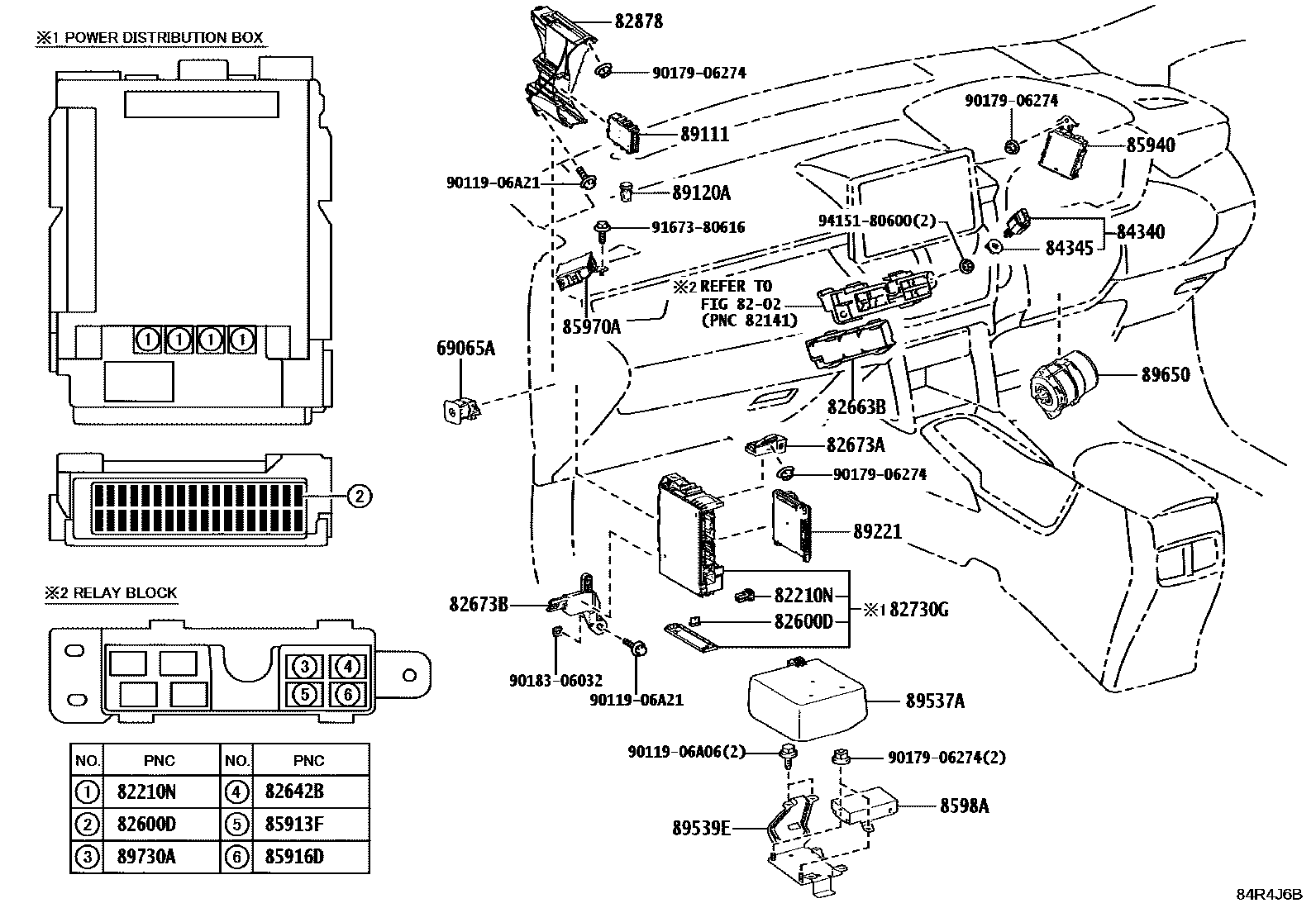

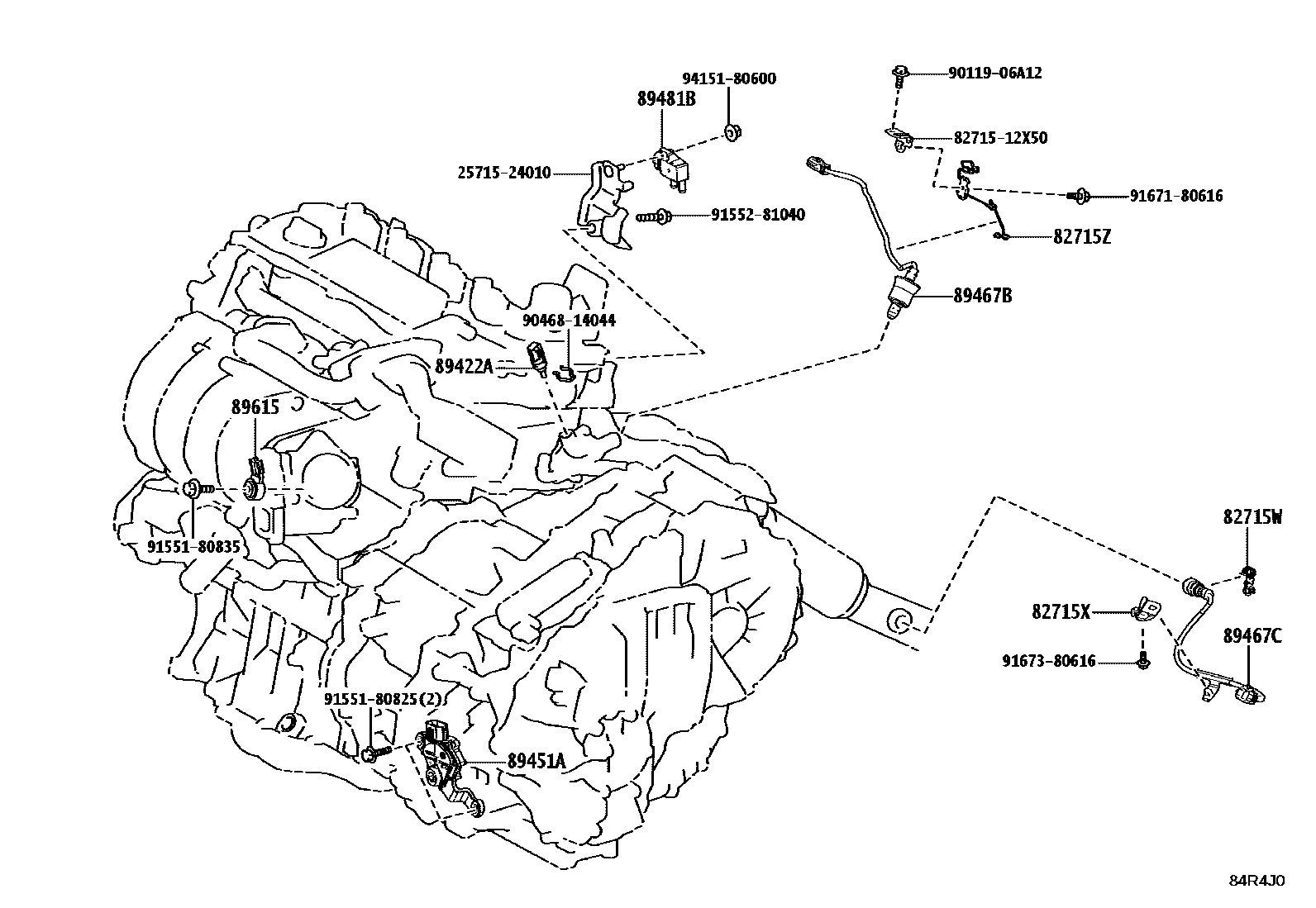

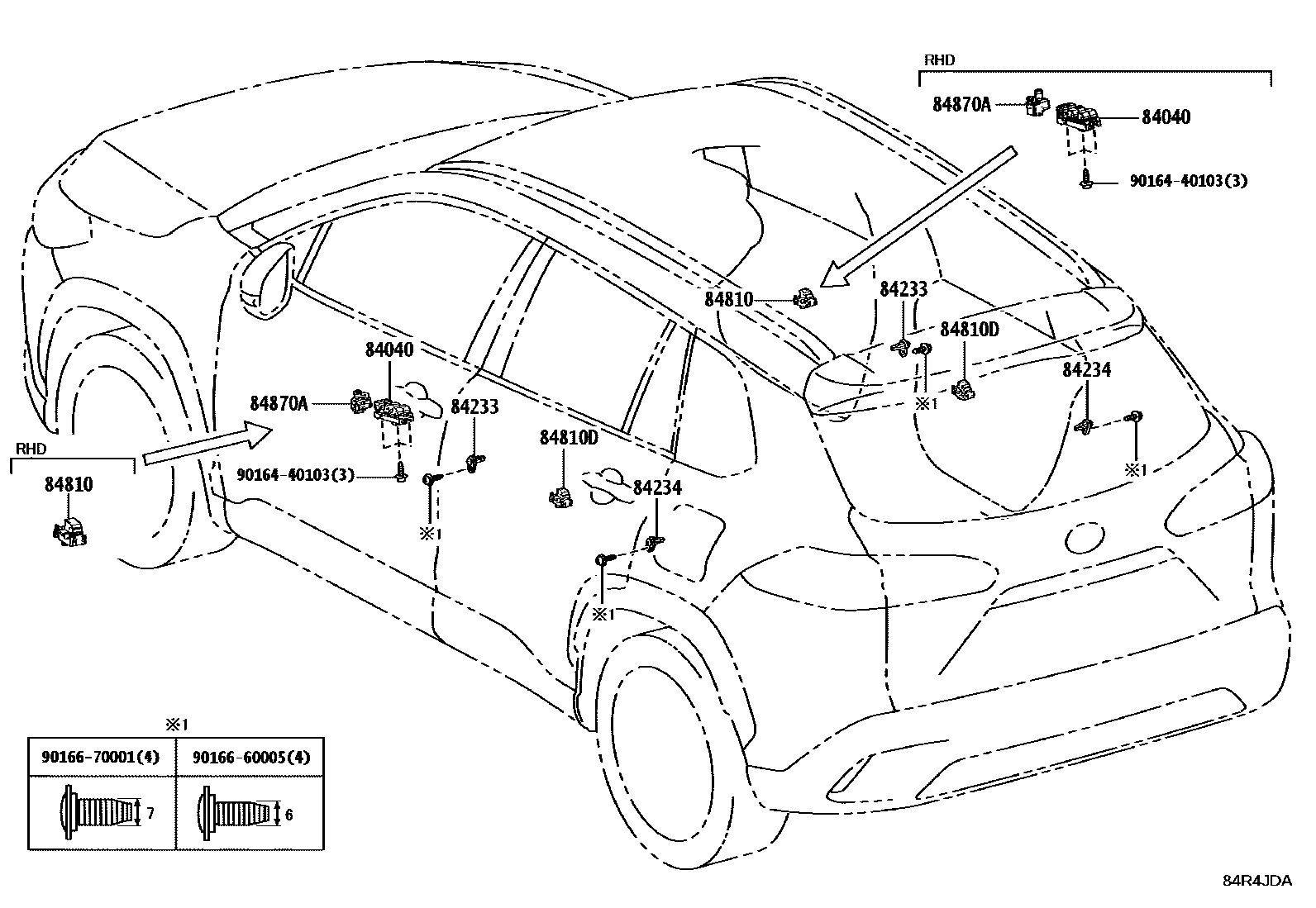

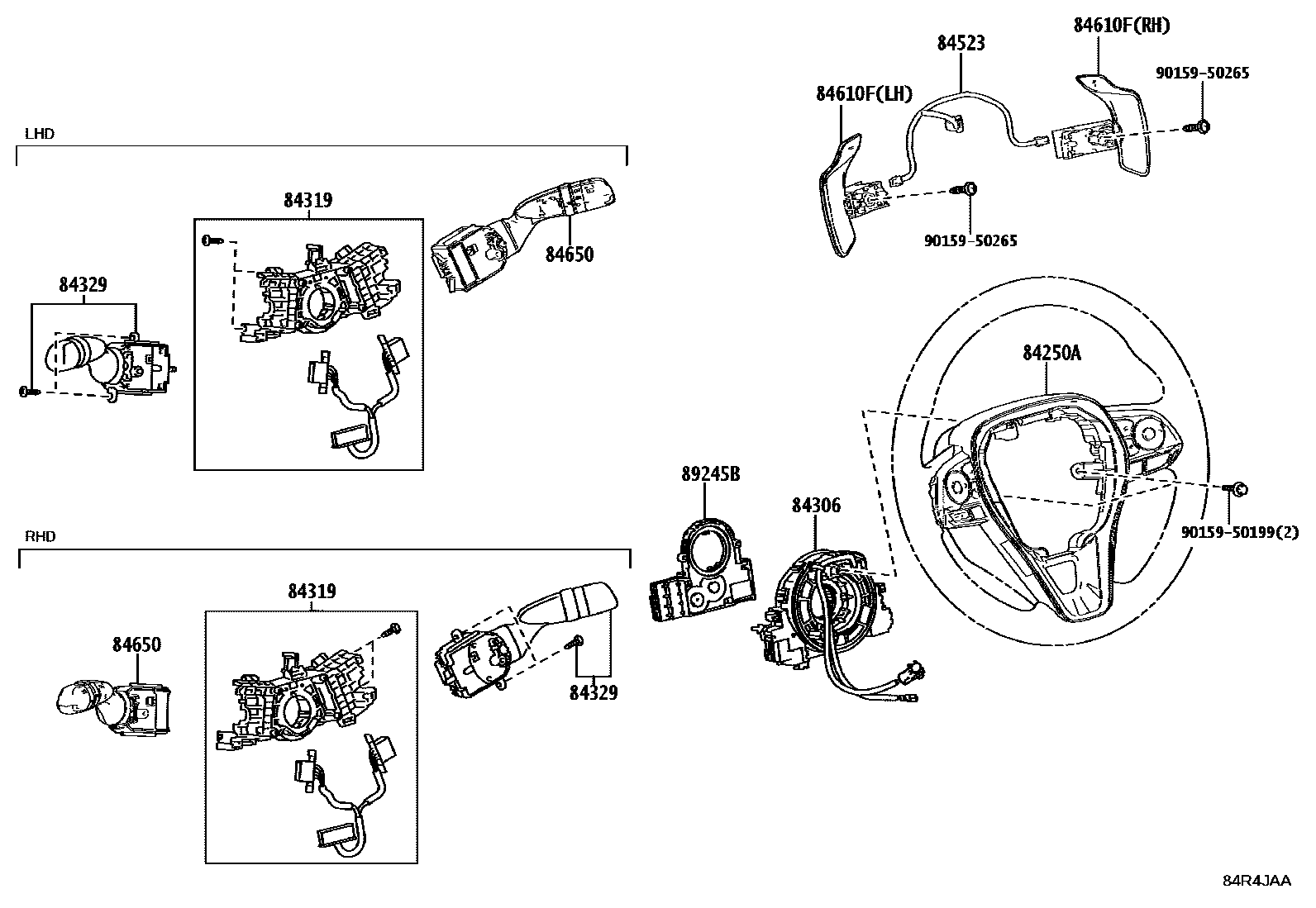

| PNC | Part name | OE numbers |
|---|---|---|
| 28371 | No. 1 ignition relay | 90987-02027 |
| 28850C | Battery status sensor assembly | 28850-K0010 |
| 28859A | Battery current sensor mount | 28859-24040 · 28859-37080 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-12460 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | luggage fuse | 90982-09019 · 90982-09021 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-16020 |
| 82620A | Fuse box assembly | 82620-16100 |
| 82620B | Fuse box assembly | 82620-12330 |
| 82620D | Fuse box assembly | 82620-16140 |
| 82620E | Fuse box assembly | 82620-16150 |
| 82620F | Fuse box assembly | 82620-16160 |
| 82620G | Fuse box assembly | 82620-16120 |
| 82642B | No. 1 daytime running light relay | 90987-02027 |
| 82643B | DIM relay | 90987-02027 |
| 82660B | Relay assembly | 82660-0D050 |
| 82660C | Relay assembly | 82660-16480 |
| 82660D | Relay assembly | 82660-16490 |
| 82660E | Relay assembly | 82660-16470 |
| 82660F | Relay assembly | 82660-16500 |
| 82660G | Relay assembly | 82660-16510 |
| 82660J | Relay assembly | 82660-12410 |
| 82662A | No. 1 relay box upper cover | 82662-16400 · 82662-16410 |
| 82662B | No. 2 relay box upper cover | 82662-47350 |
| 82663 | Relay box lower cover | 82663-16020 |
| 82663A | No. 2 relay box lower cover | 82663-47090 |
| 82663B | No. 3 relay box lower cover | 82663-12150 |
| 82666 | Connector holder | 82666-16050 |
| 82666H | Connector holder No. 2 | 82666-47620 |
| 82673A | Junction box bracket | 82673-16030 · 82673-16050 |
| 82673B | Junction box bracket | 82673-16040 · 82673-16060 |
| 82715 | Wire harness clamp bracket | 82715-12X60 |
| 82715W | Wire harness clamp bracket | 82729-20040 |
| 82715X | No. 2 wire harness clip bracket | 82715-47690 |
| 82715Z | Wire harness clamp bracket | 82715-12V90 |
| 82730G | Distribution box assembly | 82730-16181 · 82730-16190 |
| 82877 | Right ECU integrated box | 82877-16010 |
| 82878 | Left ECU integrated box | 82878-16010 |
| 83320 | Fuel gauge sensor assembly | 83320-16310 · 83320-76010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12060 |
| 84040 | Multi-channel network main switch assembly | 84040-16020 · 84040-16030 |
| 84152 | Headlight beam height adjustment switch | 84152-42070 |
| 84153 | Automatic high beam switch | 84153-16010 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-12700 · 84250-12730 · 84250-16020 |
| 84255 | Steering heater switch | 84255-16010 · 84255-16020 |
| 84306 | Spiral cable sub-assembly | 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-11010 · 84319-33030 |
| 84329 | turn signal switch | 84329-12170 · 84329-12180 · 84329-33090 · 84329-33100 · 84329-33130 |
| 84330 | Hazard warning signal switch assembly | 84332-12600 |
| 84340 | brake light switch assembly | 84340-19095 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-16050 |
| 84490D | IPA main switch assembly | 84490-47030 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84610F | Transmission shift switch assembly | 84610-33011 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-12B50 · 84652-26750 · 84652-42200 · 84652-42210 |
| 84720J | Mode selection switch assembly | 84720-16040 |
| 84721B | Panoramic display switch | 84721-60030 |
| 84721C | Mode selector switch | 84721-16020 |
| 84751 | Seat heater switch | 84751-16020 |
| 84751F | Seat heater switch | 84751-16030 |
| 84752 | Relax seat switch | 84752-16010 |
| 84794 | Front wiper de-icer switch | 84794-53020 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-12100 |
| 84810D | Rear electric window lift switch assembly | 84810-12100 |
| 84840G | Back door opener switch assembly | 84840-52040 · 84840-58010 |
| 84870A | Exterior rearview mirror switch assembly | 84872-16010 · 84872-16020 |
| 84931C | Back door control switch | 84930-16040 |
| 84966 | Automatic back door control switch | 84966-16020 · 84966-16030 |
| 84966A | No. 1 automatic back door control switch | 84966-16020 |
| 84975 | trip odometer switch | 84975-16010 · 84975-16020 |
| 84988L | VSC off switch | 84988-62020 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85532 | USB charging socket | 85532-60060 |
| 85532C | USB charging socket No. 2 | 85532-60040 |
| 85535B | No. 1 power outlet cover | 85535-12080 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85910E | Injector relay | 90987-02027 |
| 85912K | VVT relay | 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02027 |
| 85924C | IGCT relay | 90987-02027 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 |
| 85948 | windshield wiper relay | 90987-02027 |
| 85970A | Double lock door control relay assembly | 85970-48040 |
| 8598A | door control battery | 8598A-16010 · 8598A-V3010 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87346K | PTC heater relay | 90987-02027 |
| 87346L | PTC heater relay | 90987-02025 |
| 88162 | Blind spot monitor right sensor | 88162-16051 |
| 88172 | Blind spot monitor left sensor | 88162-16051 |
| 89111 | Network gateway ECU | 89111-12170 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 891B0 | Kick control sensor assembly | 891B0-16030 |
| 89221 | Multi-channel network body ECU | 89220-16310 · 89220-16320 · 89220-16330 · 89220-16340 · 89220-16350 · 89220-16360 · 89220-16370 · 89220-16380 · 89220-16390 · 89220-16400 · 89220-16410 · 89220-16420 · 89220-16430 · 89220-16440 · 89220-16450 |
| 89222A | Multi-channel network door ECU | 89222-16090 |
| 89245B | steering sensor | 8924B-V1010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89451A | shift lever position sensor | 89451-28020 |
| 89465 | oxygen sensor | 89465-16150 |
| 89467B | air fuel ratio sensor | 89467-12340 · 89467-47040 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-16010 · 89467-16020 |
| 89481B | Differential pressure sensor | 89481-71010 |
| 89491 | Engine oil level sensor | 89491-28091 |
| 89537A | ECU cover | F1712-16020 |
| 89539E | ECU bracket | 53215-16110 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 |
| 89561H | Electronic fuel injection No. 3 main relay | 90987-02033 |
| 89611 | One-button start switch | 89611-30160 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-16680 · 89650-16711 · 89650-16721 · 89650-16740 · 89650-16750 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| G9020E | Hybrid water pump relay | 90987-02027 |
