Toyota COROLLA 线束和卡夹 — Figure 8202

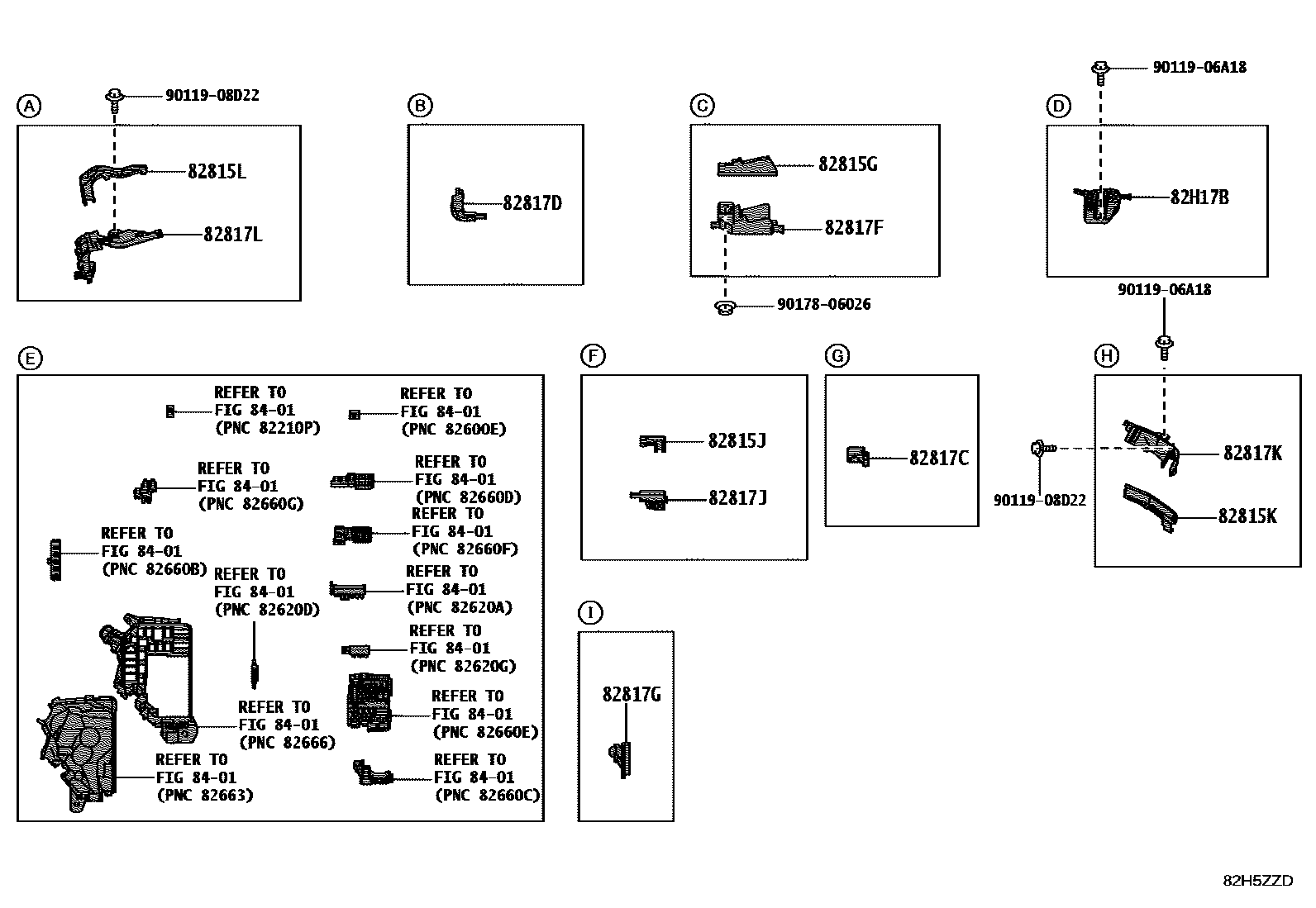

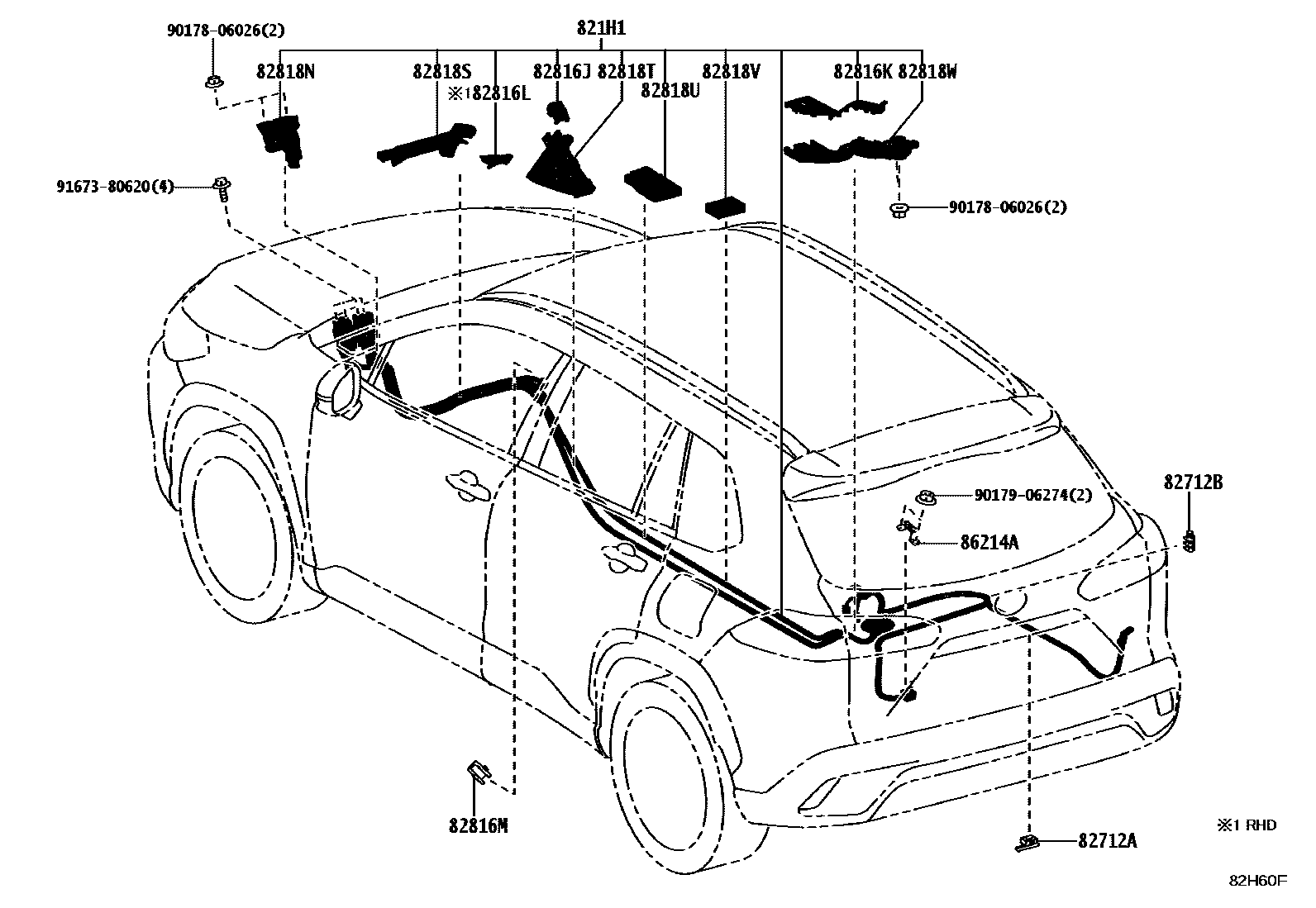

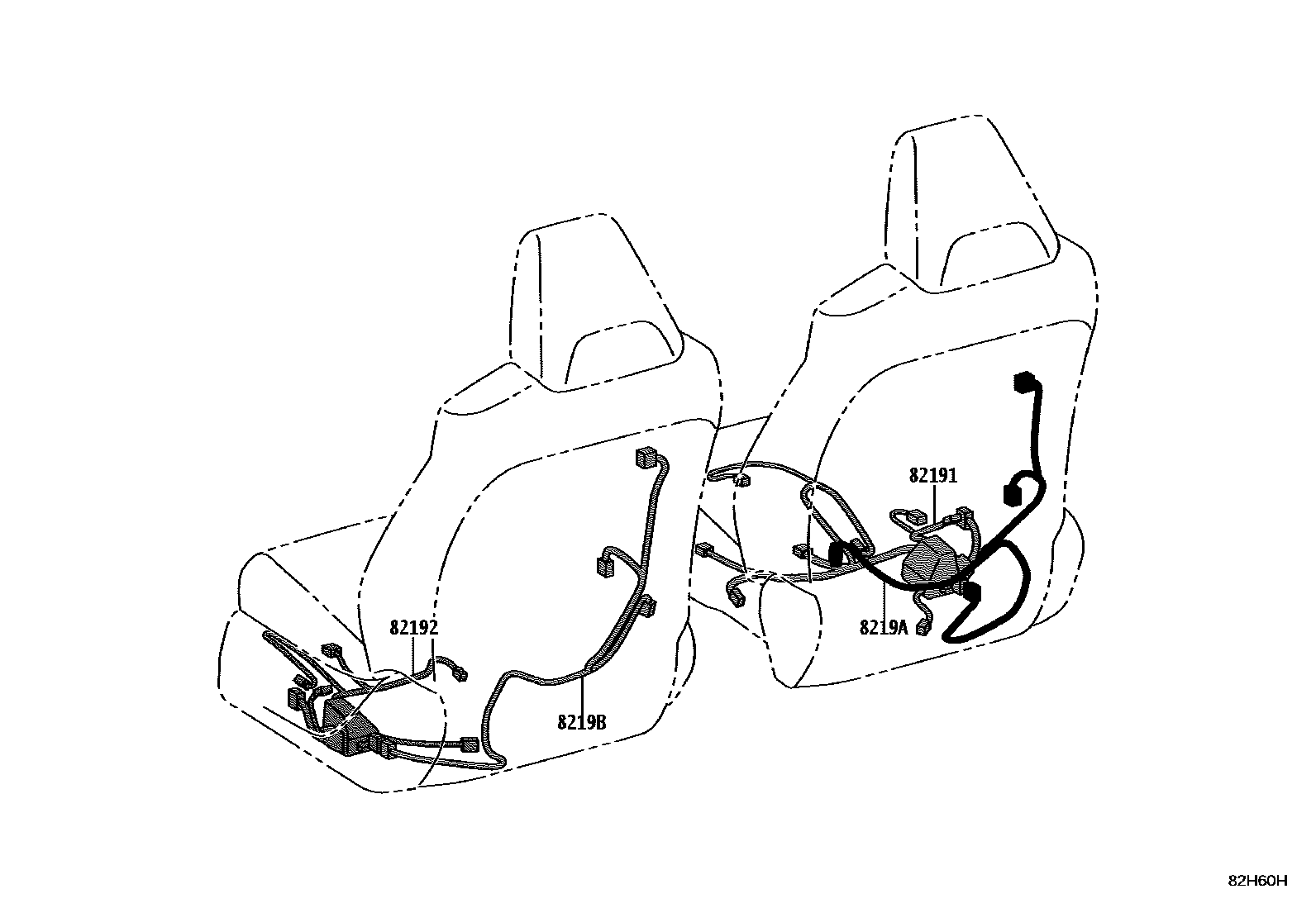

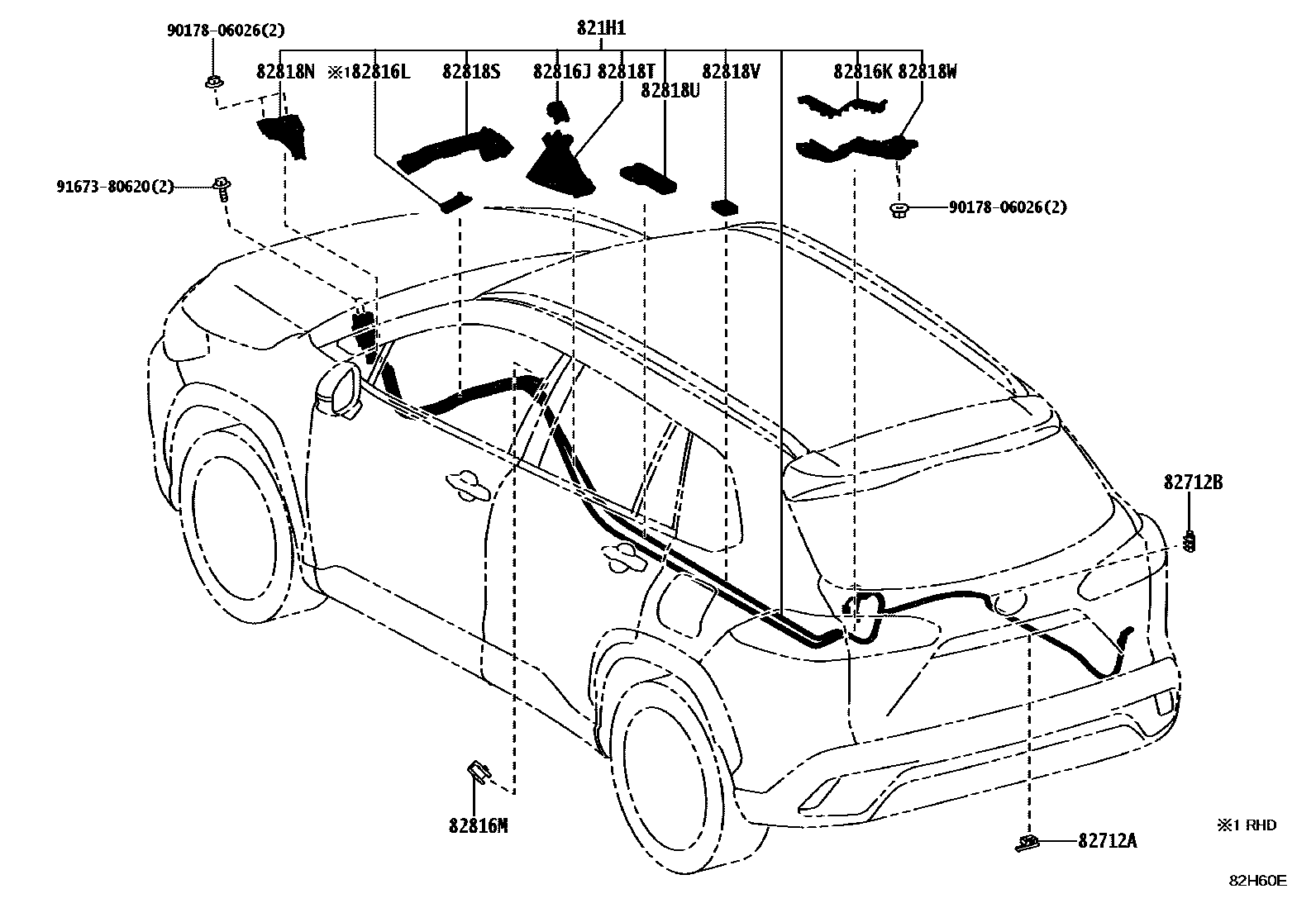

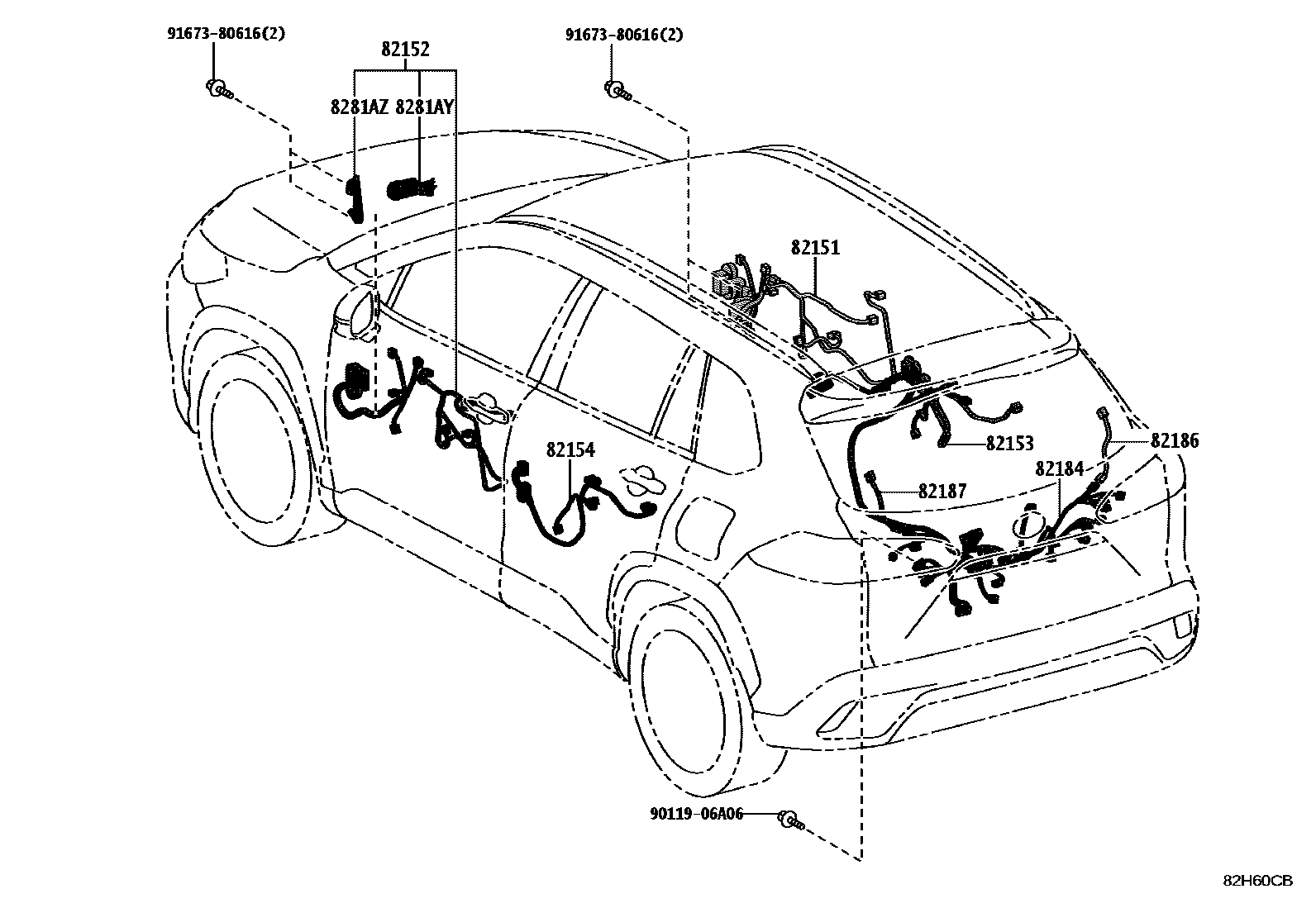

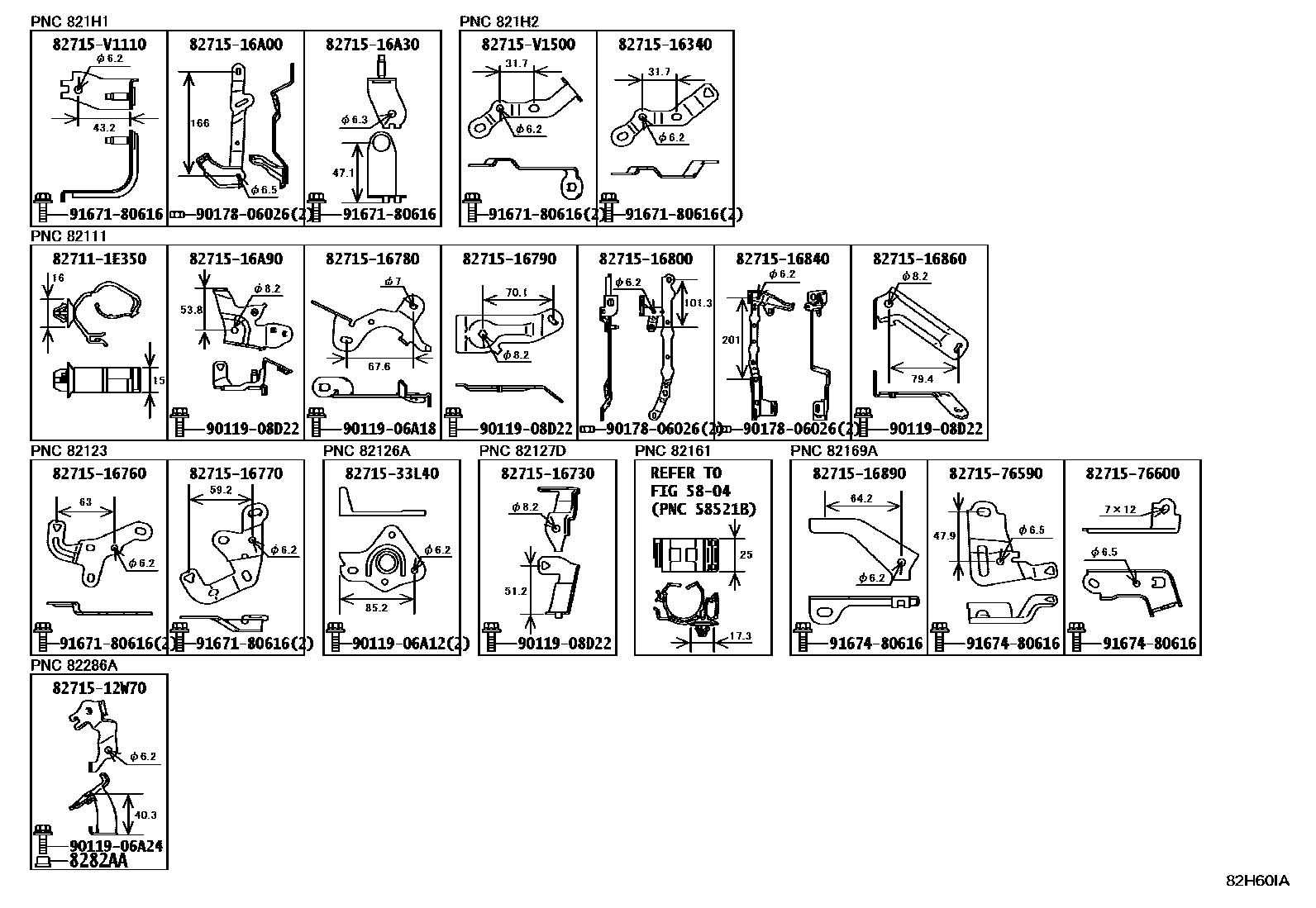

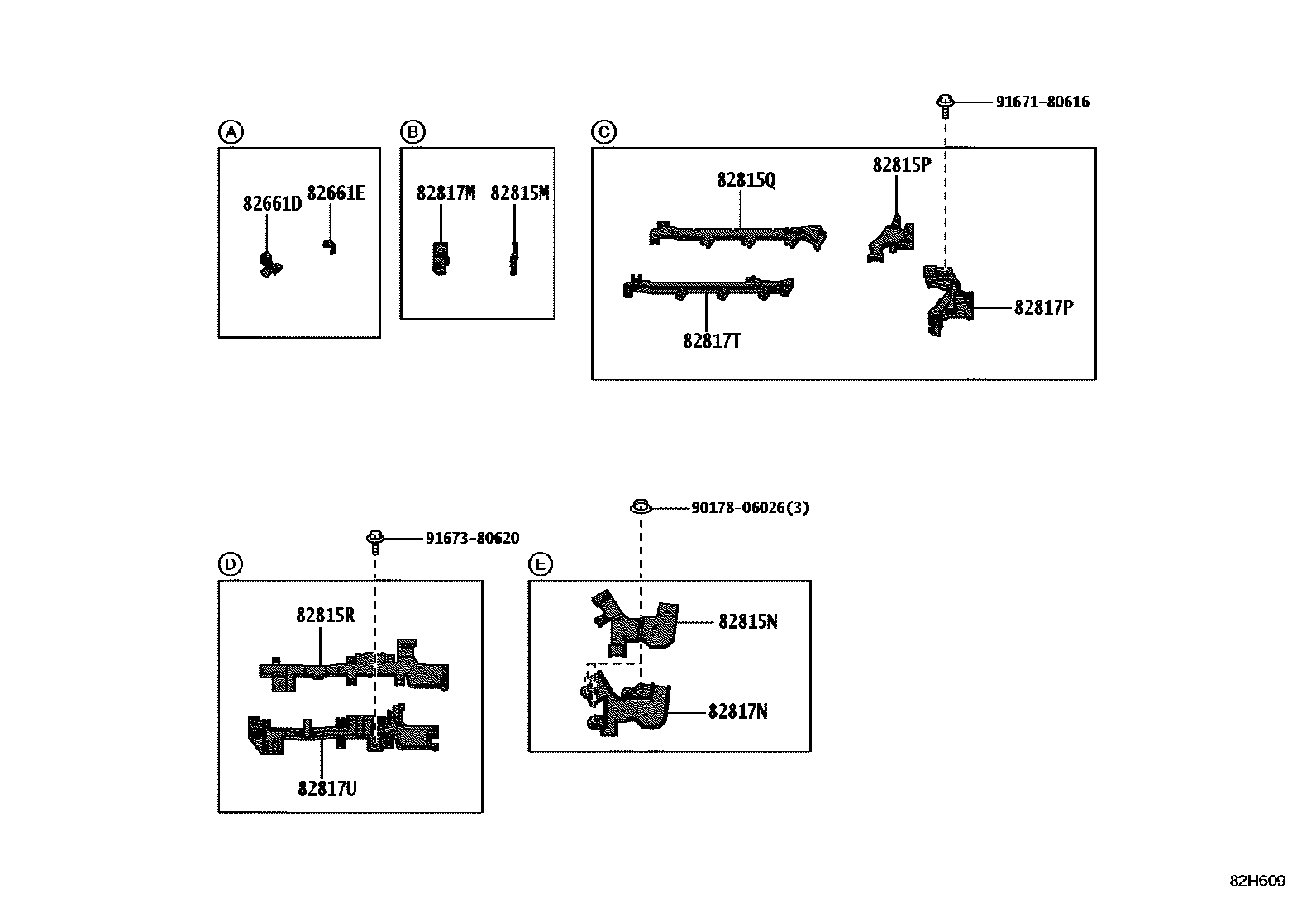

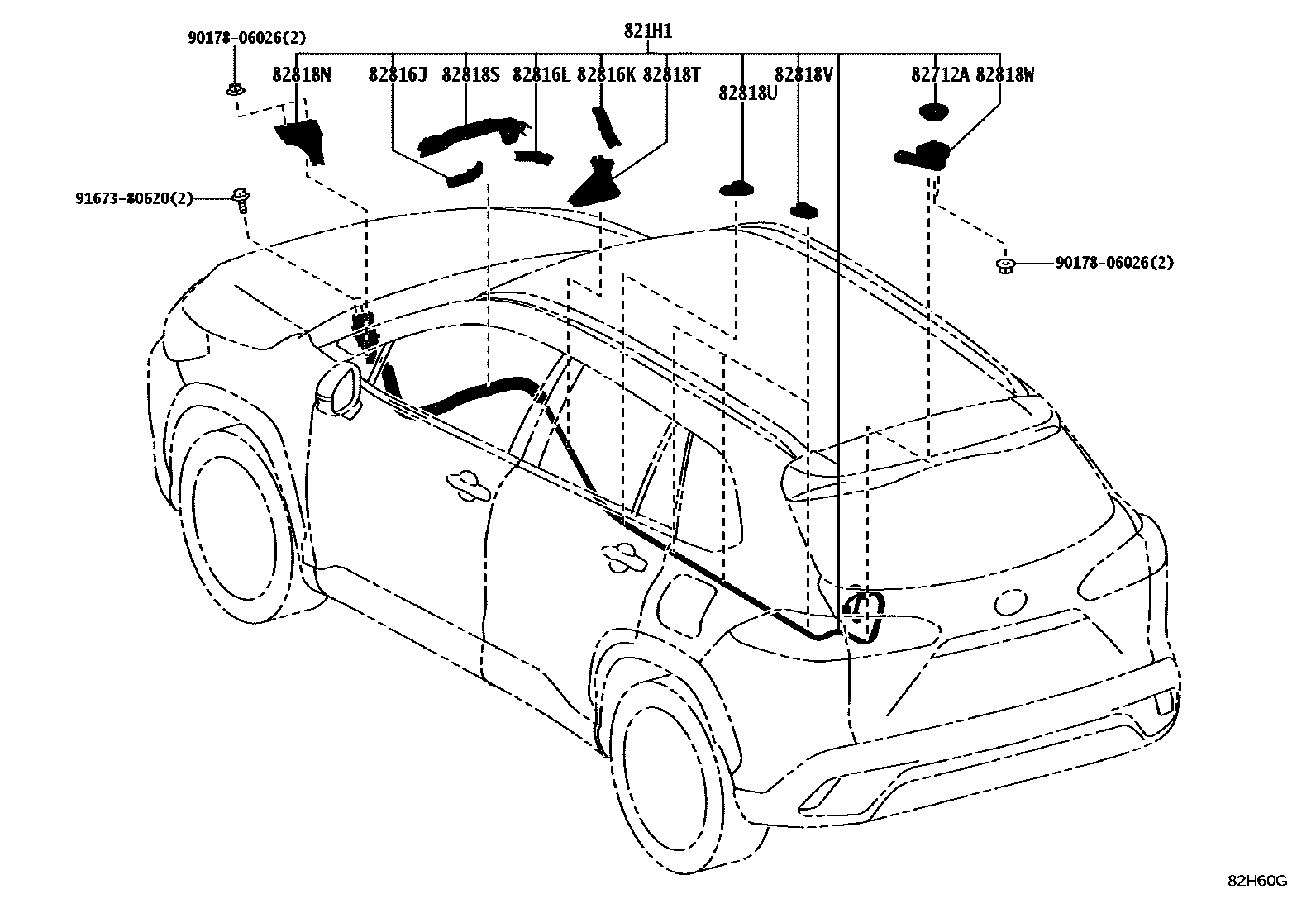

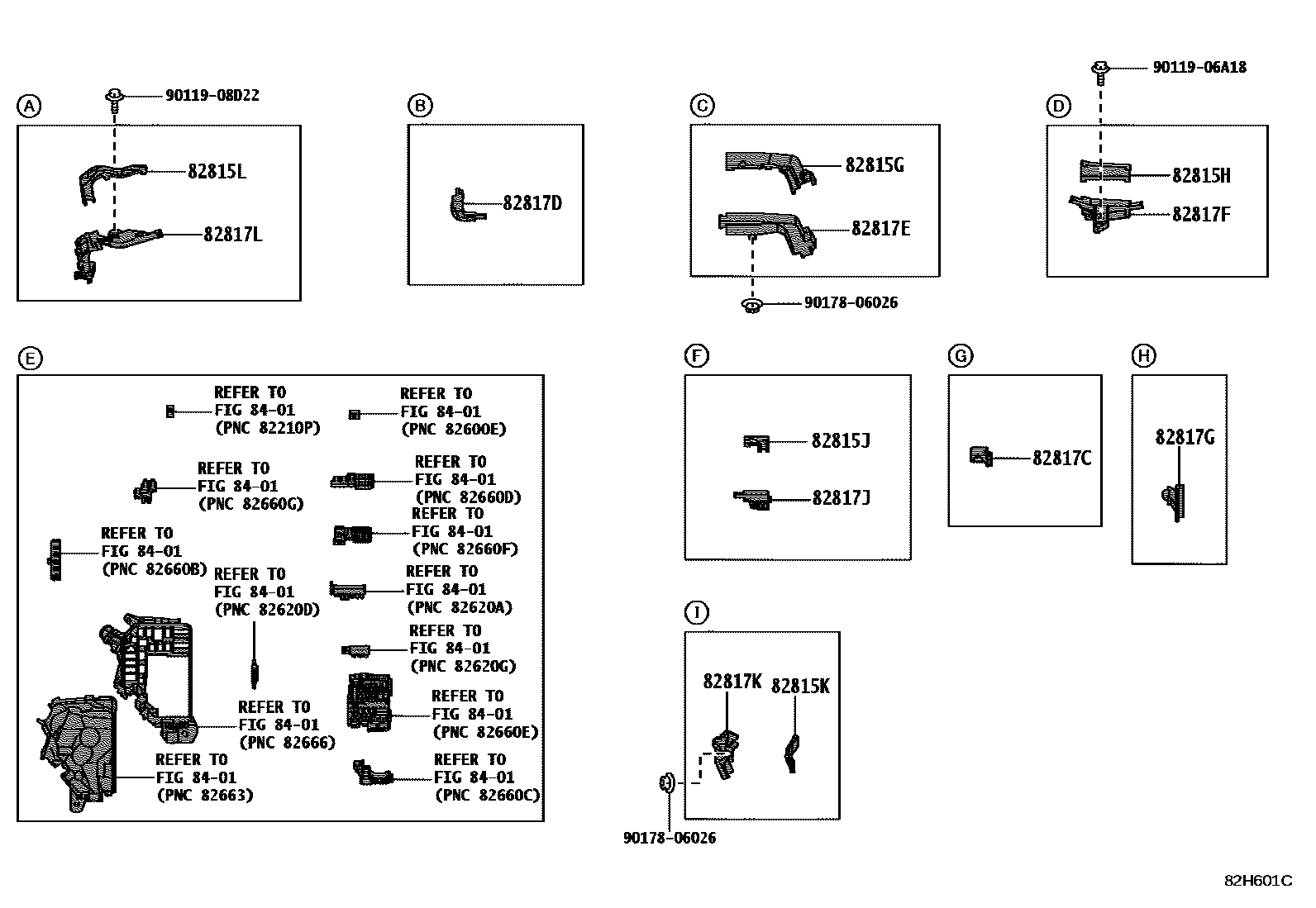

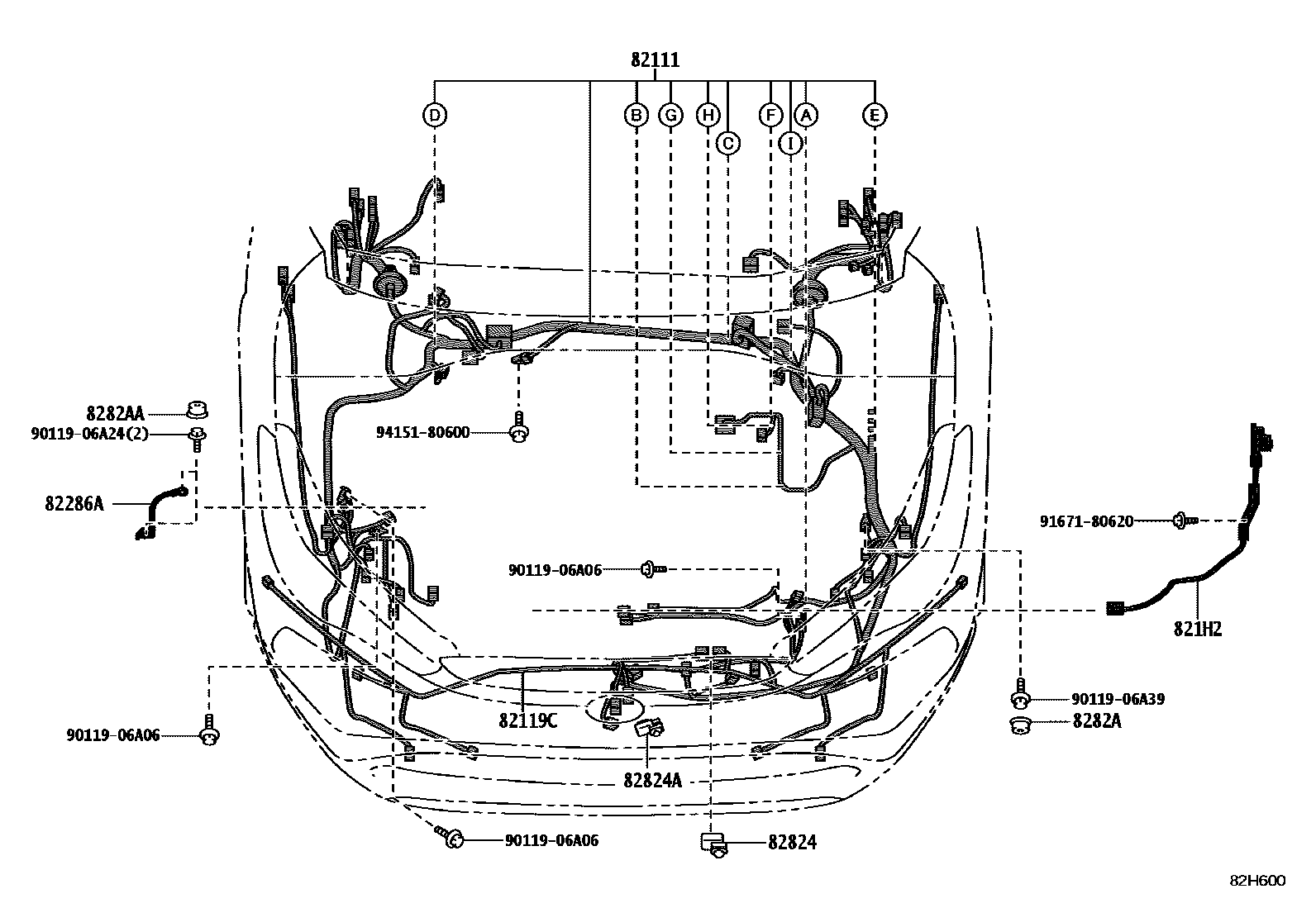

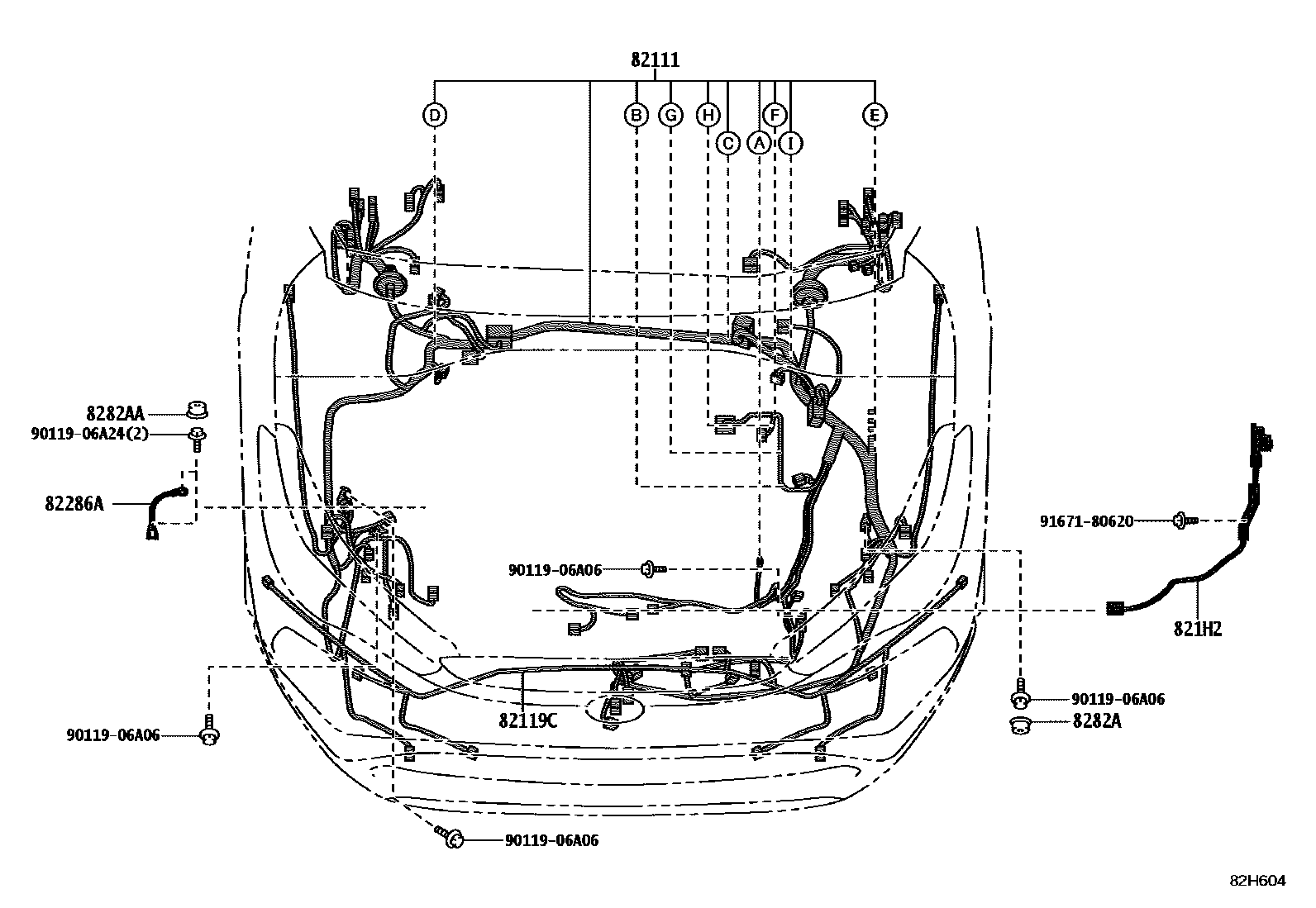

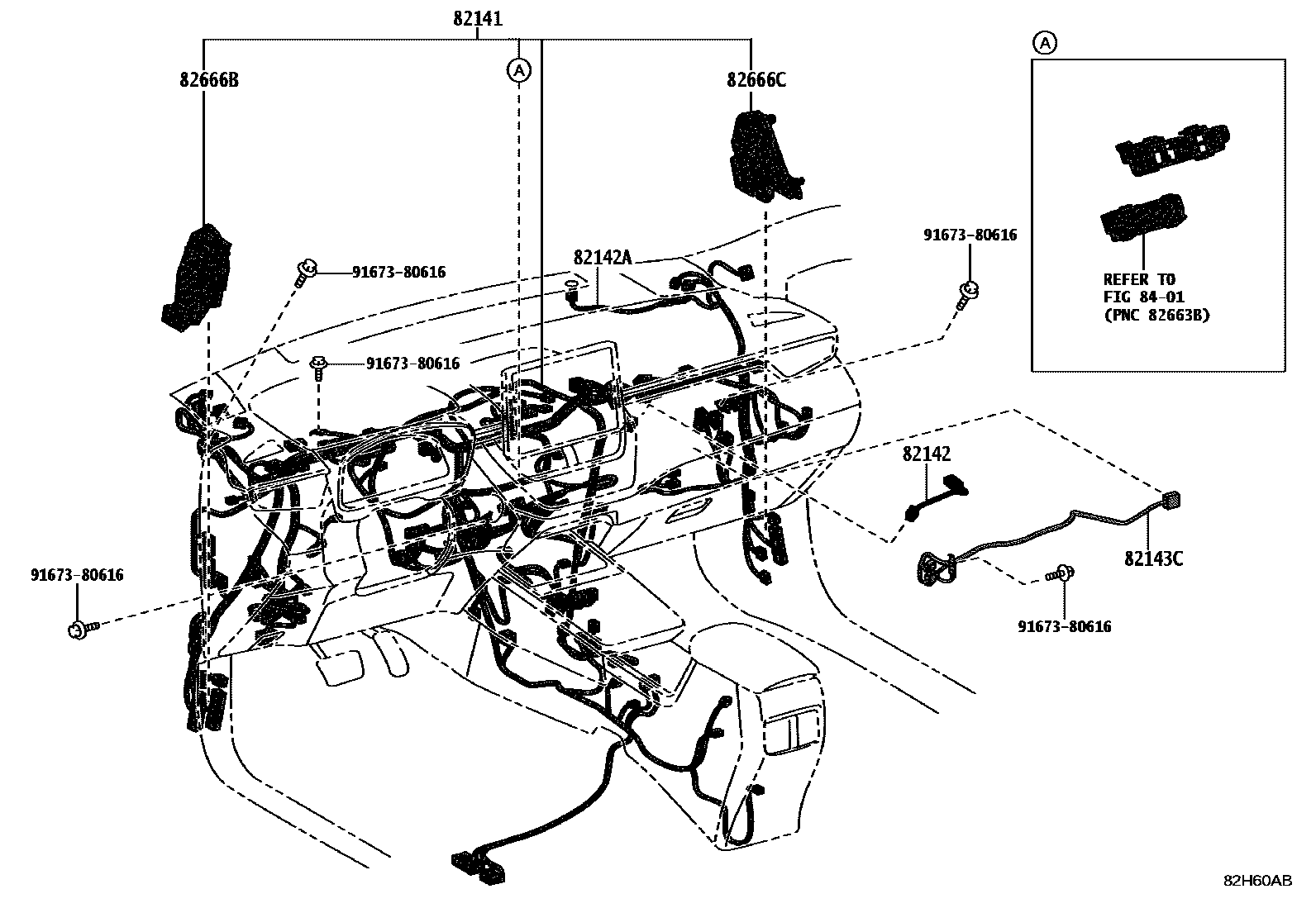

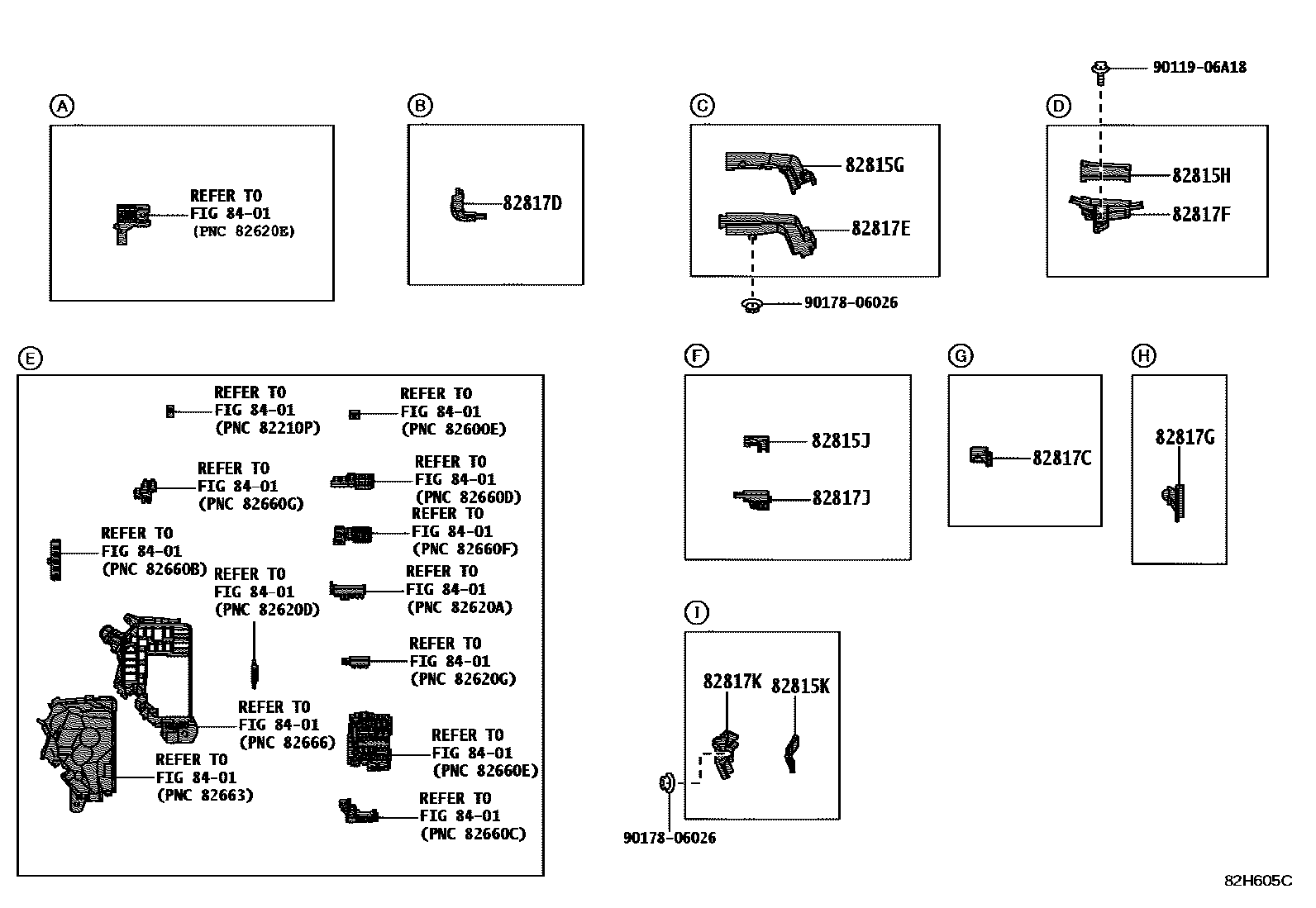

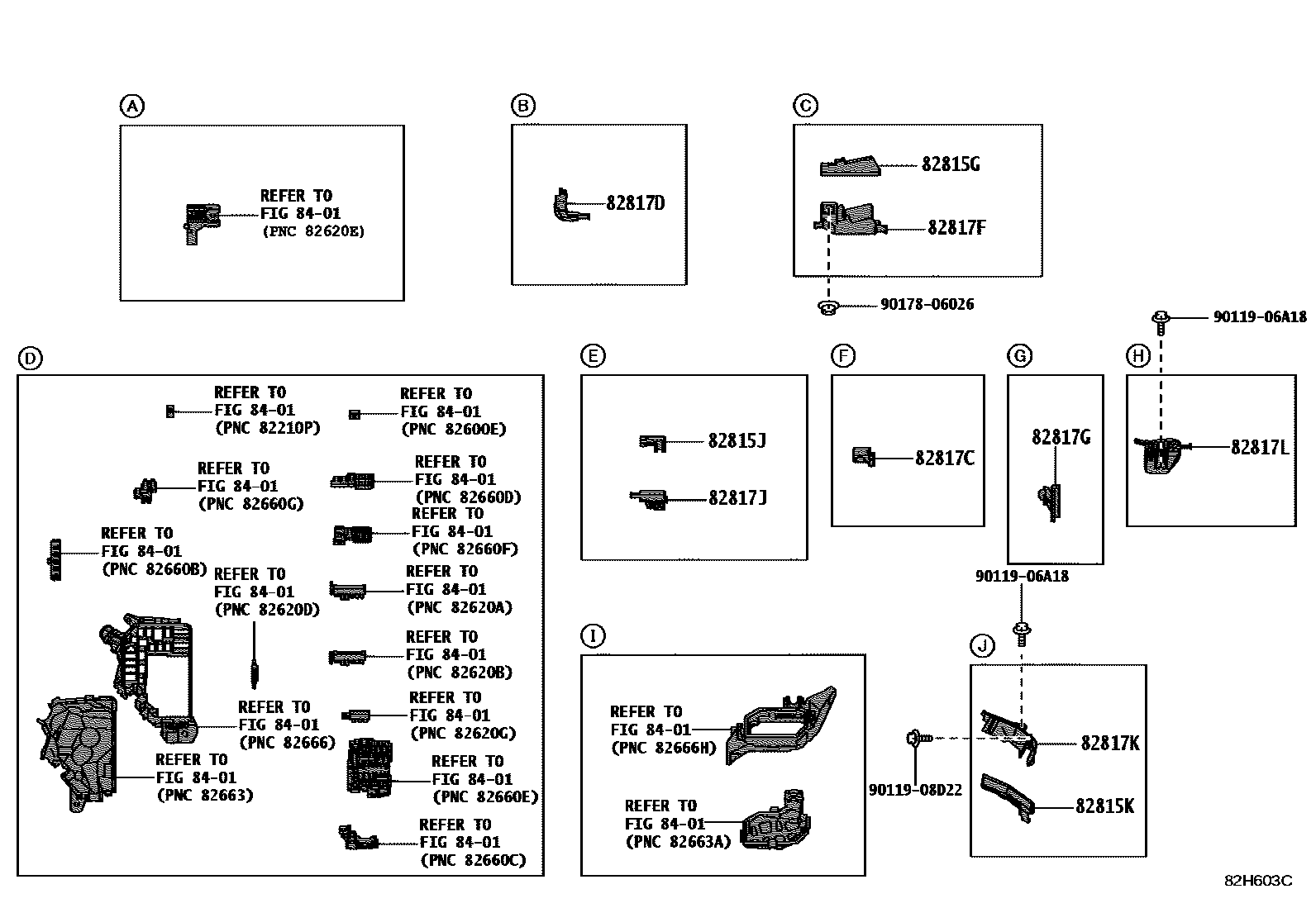

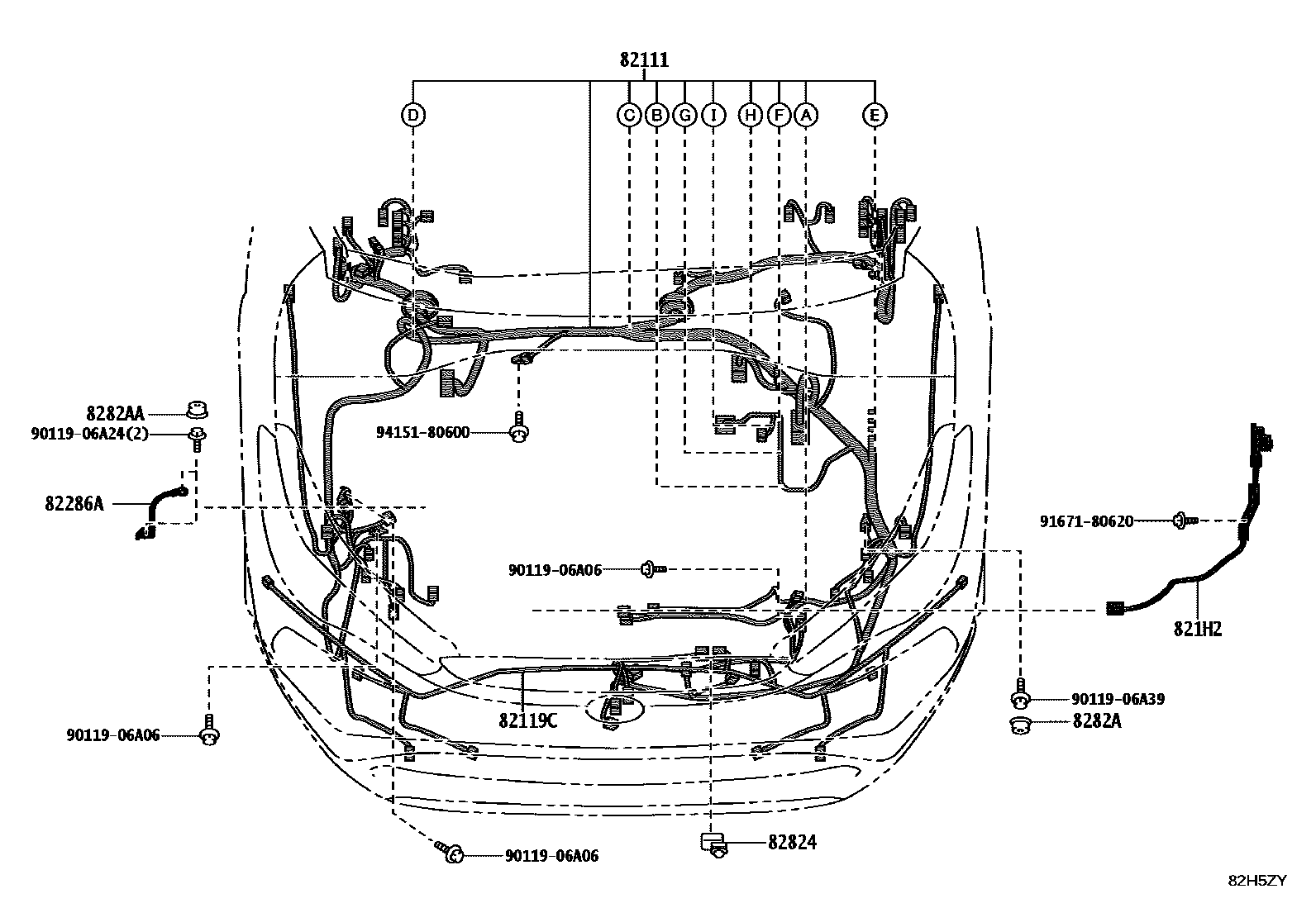

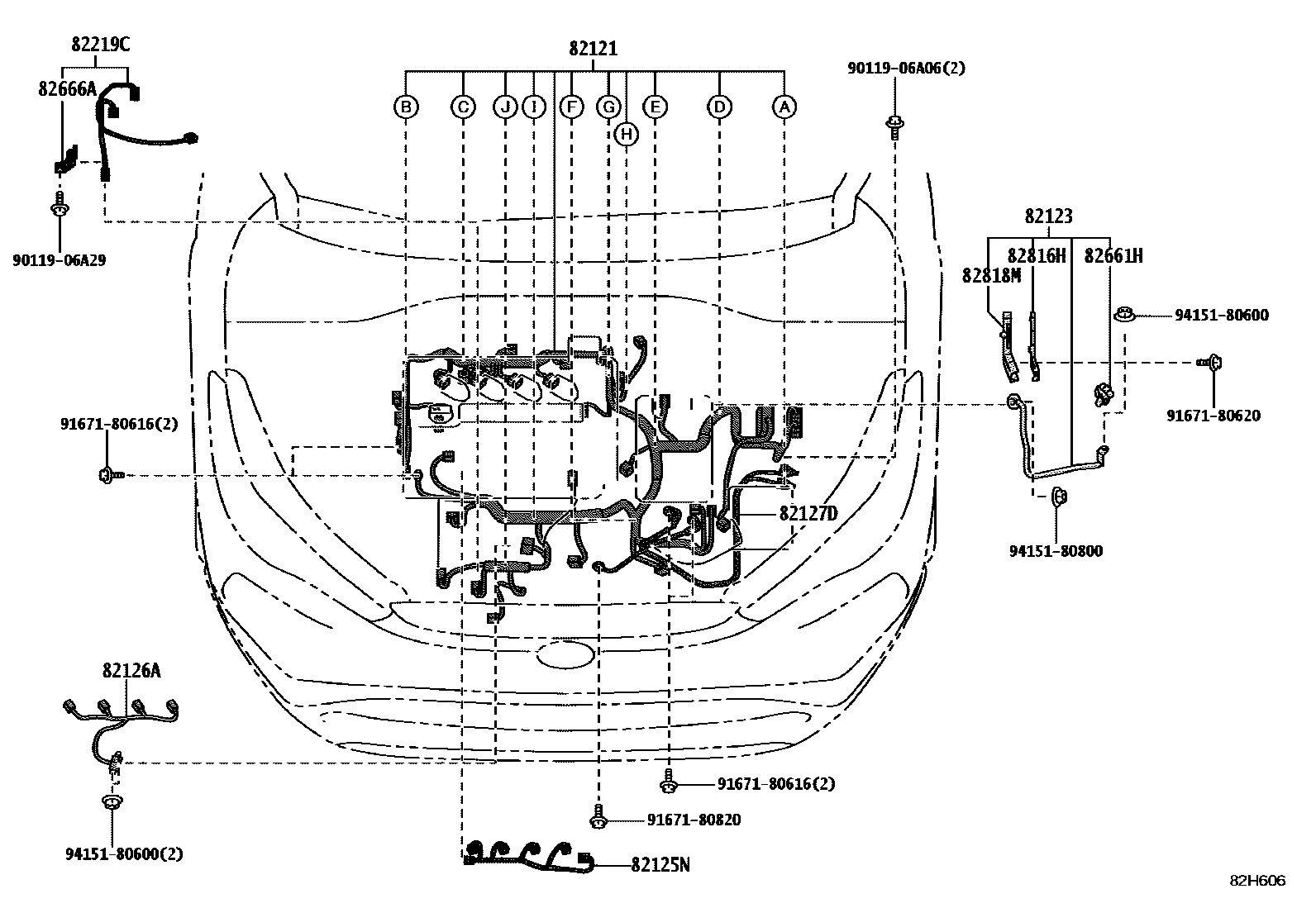

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 22 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

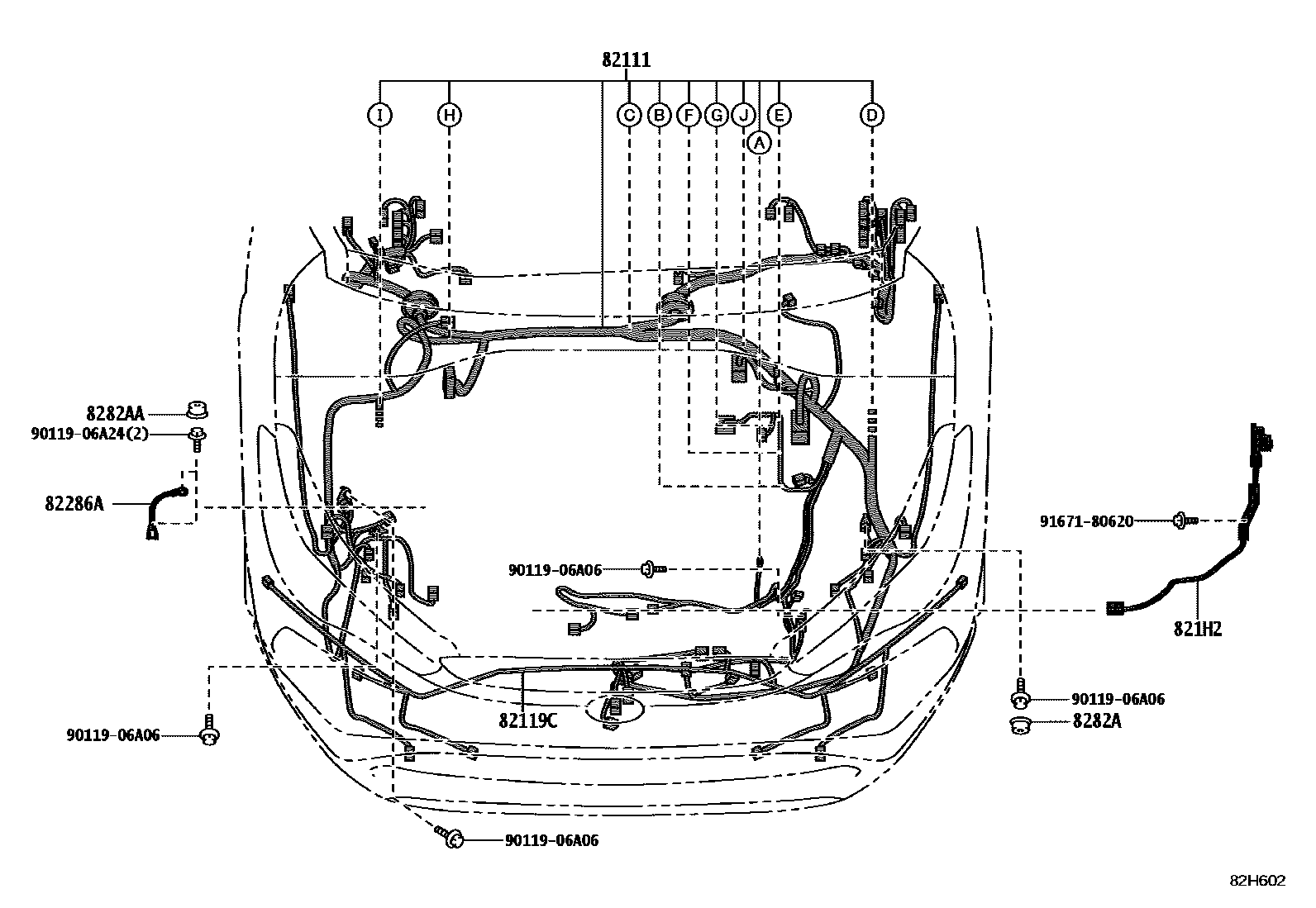

| 82111 | Engine room main wiring harness | 82111-16Q40 · 82111-16Q50 · 82111-16Q70 · 82111-16Q80 · 82111-16Q90 · 82111-16R00 · 82111-16R30 · 82111-16R40 · 82111-16R50 · 82111-16R60 · 82111-16R70 · 82111-16R80 · 82111-16R90 · 82111-16S00 · 82111-16S10 · 82111-16S20 · 82111-16S40 · 82111-16S50 · 82111-16S60 · 82111-16S70 · 82111-16S80 · 82111-16T00 · 82111-16T10 · 82111-16T20 · 82111-16T30 · 82111-16T40 |
| 82119C | Engine room wiring harness No. 5 | 82119-16110 · 82119-16120 · 82119-16130 · 82119-16140 · 82119-16150 · 82119-16200 |

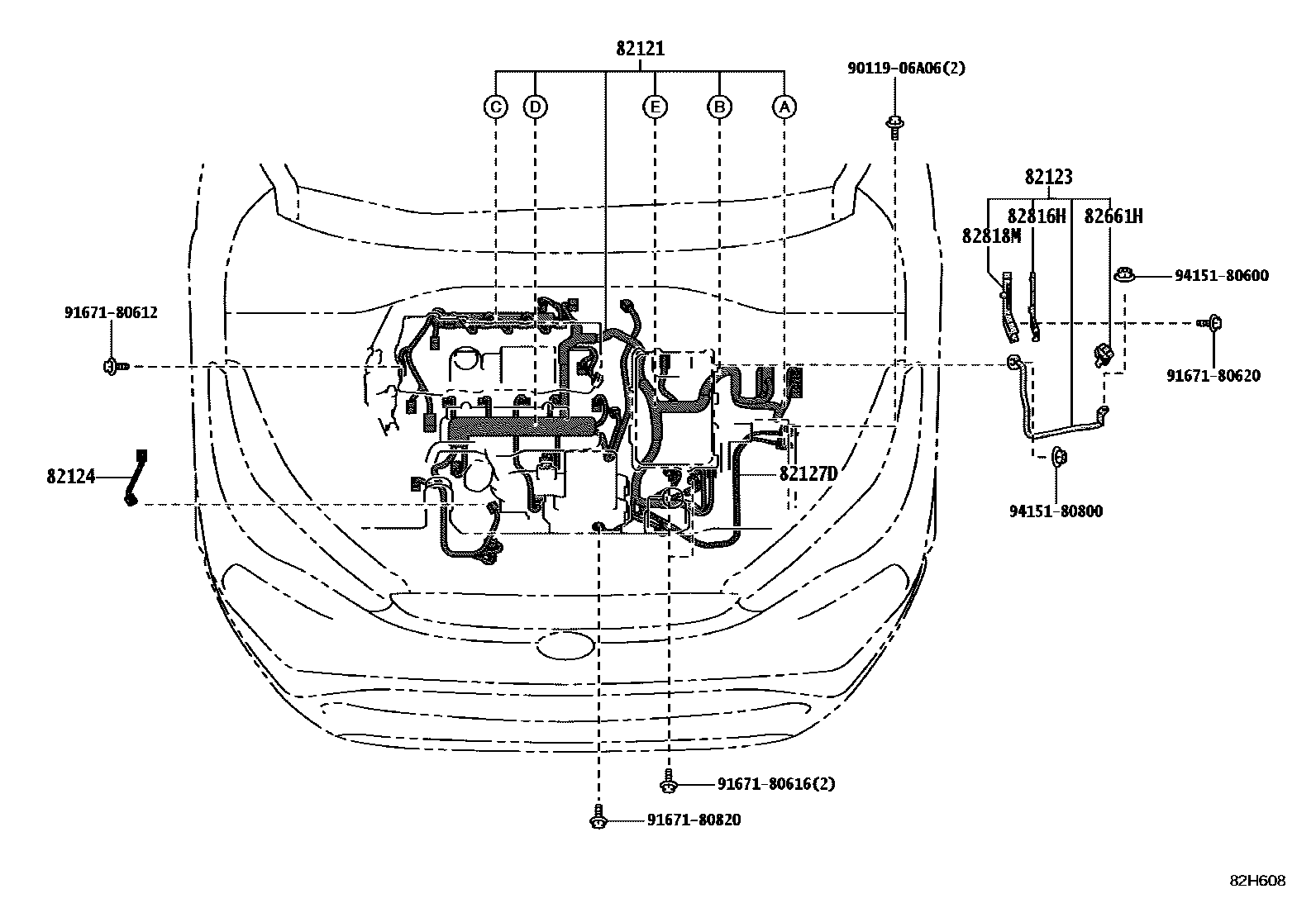

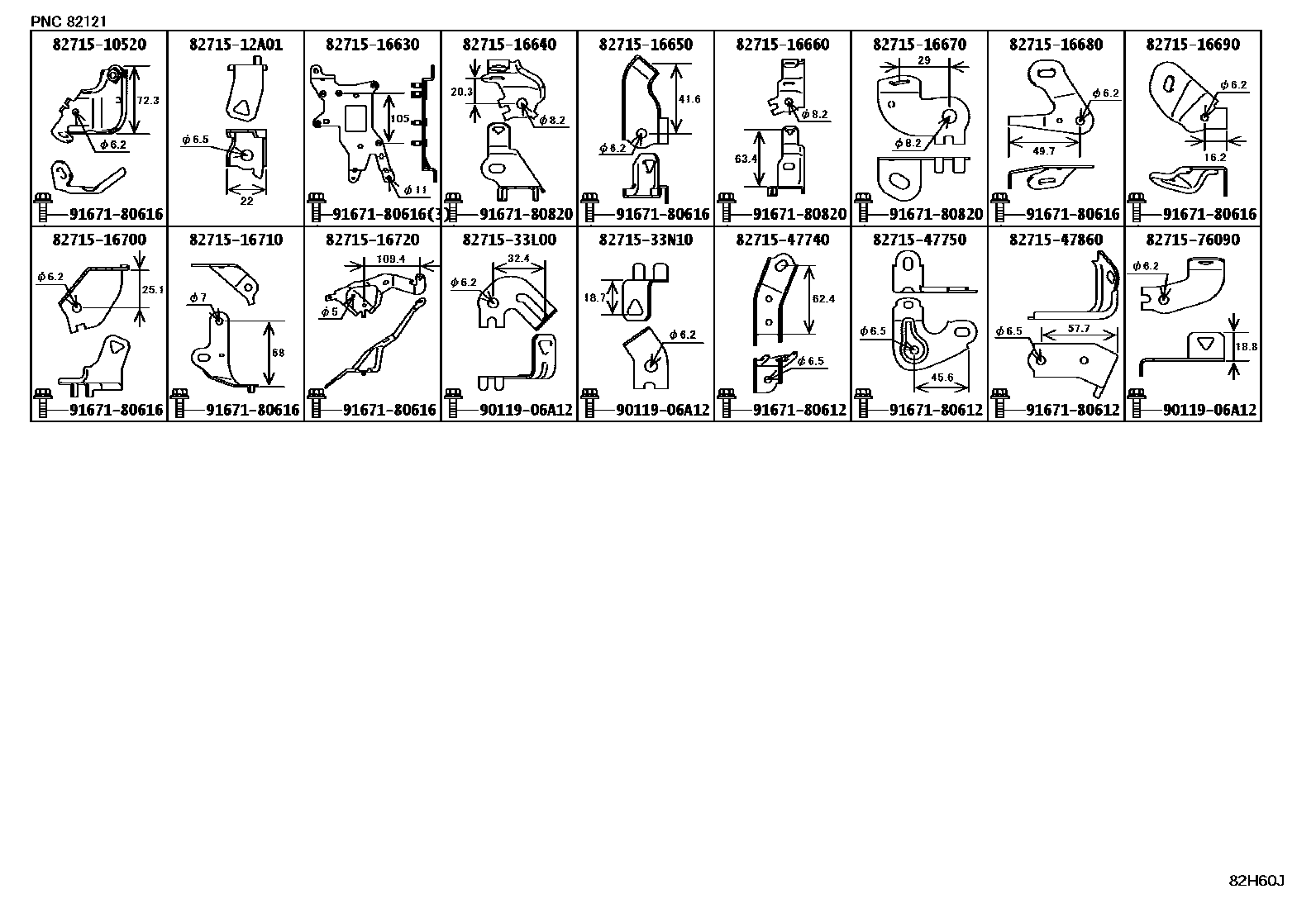

| 82121 | Engine wiring harness | 82121-16A00 · 82121-16A10 · 82121-1G510 · 82121-1G600 · 82121-1G610 |
| 82123 | Engine No. 3 wiring harness | 82123-16210 · 82123-16220 |
| 82124 | Engine No. 4 wiring harness | 82124-12160 |
| 82125N | Engine No. 5 wiring harness | 82125-12660 |
| 82126A | No. 6 engine wiring harness | 82126-12010 |
| 82127D | Engine No. 7 wiring harness | 82127-16010 · 82127-16020 |

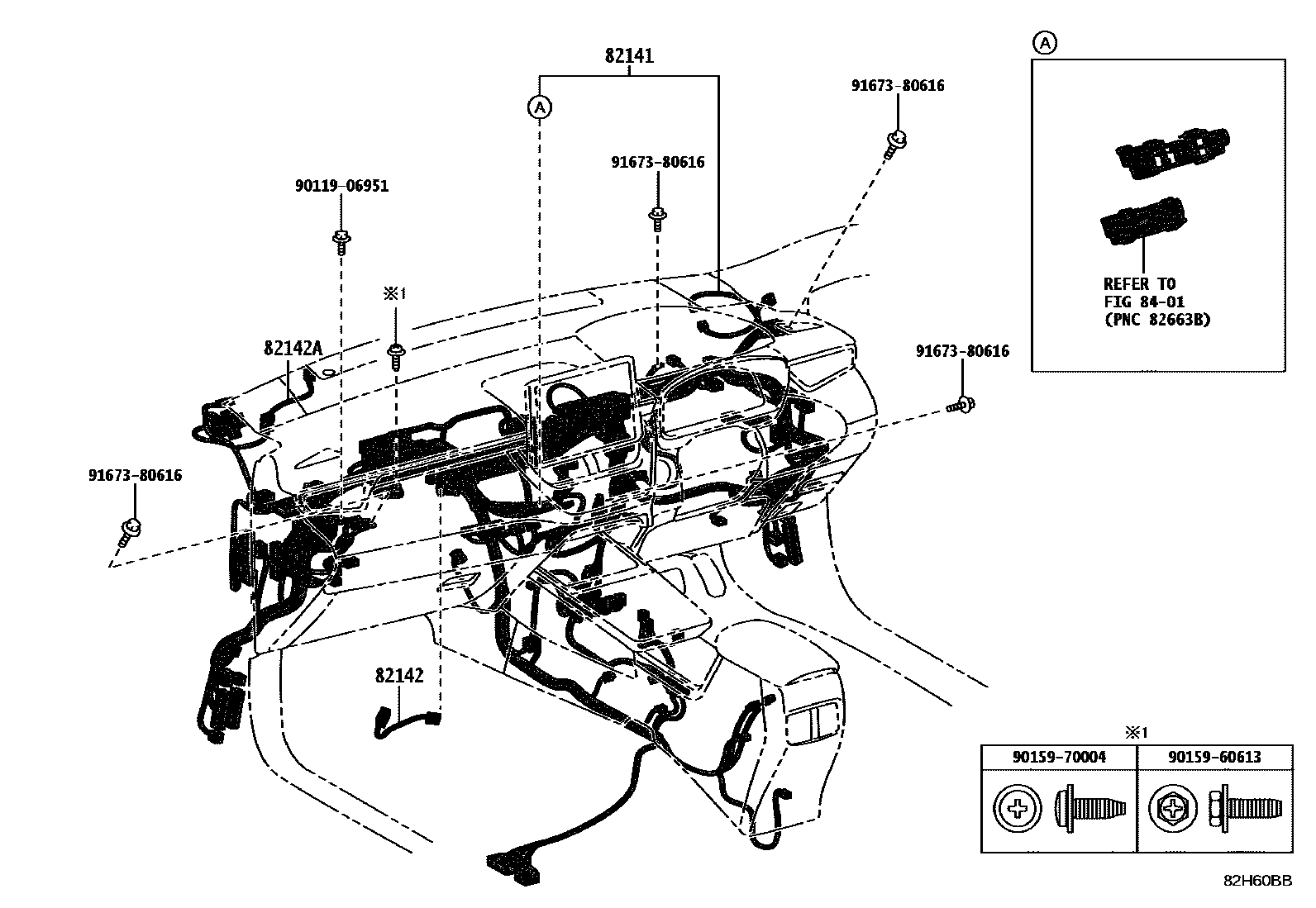

| 82141 | Dashboard wiring harness | 82141-16Q70 · 82141-16Q80 · 82141-16Q90 · 82141-16R00 · 82141-16R10 · 82141-16R30 · 82141-16R40 · 82141-16R50 · 82141-16R60 · 82141-16R90 · 82141-16S00 · 82141-16S30 · 82141-16S50 · 82141-16S60 · 82141-16S80 · 82141-16T00 · 82141-16T10 · 82141-16T20 · 82141-16T30 · 82141-16T50 · 82141-16T70 · 82141-16T90 · 82141-16U10 · 82141-16U20 · 82141-16U30 · 82141-16U40 · 82141-16U50 · 82141-16U60 · 82141-16U70 · 82141-16U80 · 82141-16U90 · 82141-16V00 · 82141-16V10 · 82141-16V20 · 82141-16V30 · 82141-16V70 · 82141-16V80 · 82141-16W00 · 82141-16W30 · 82141-16W50 · 82141-16W60 · 82141-16W70 · 82141-16W80 · 82141-16W90 |
| 82142 | Instrument panel wiring harness No. 2 | 82140-12B80 |
| 82142A | Instrument panel wiring harness No. 2 | 82142-16020 |
| 82143C | Instrument panel wiring harness No. 3 | 82143-12250 |
| 82151 | Right front door wiring harness | 82151-16D90 · 82151-16J00 · 82151-16K10 · 82151-16K20 · 82151-16K40 · 82151-16K60 · 82151-16K70 · 82151-16L00 · 82151-16L60 · 82151-16L70 · 82151-16M10 · 82151-16M40 · 82151-16M50 · 82151-16M60 · 82151-16M80 · 82151-16N00 · 82151-16N10 · 82151-16N20 · 82151-16N30 · 82151-16N40 · 82151-16N50 · 82151-16N60 · 82151-16N70 · 82151-16N80 · 82151-16N90 · 82151-16P00 · 82151-16P10 · 82151-16P30 · 82151-16P40 |
| 82152 | Left front door wiring harness | 82152-16F90 · 82152-16G00 · 82152-16J10 · 82152-16J20 · 82152-16J40 · 82152-16J60 · 82152-16J70 · 82152-16K00 · 82152-16K60 · 82152-16K70 · 82152-16L10 · 82152-16L40 · 82152-16L50 · 82152-16L60 · 82152-16L80 · 82152-16M00 · 82152-16M10 · 82152-16M20 · 82152-16M30 · 82152-16M40 · 82152-16M50 · 82152-16M60 · 82152-16M70 · 82152-16M80 · 82152-16M90 · 82152-16N00 · 82152-16N10 · 82152-16N30 · 82152-16N40 |
| 82153 | Rear door wiring harness No. 1 | 82153-16130 · 82153-16150 · 82153-16160 · 82153-16170 |
| 82154 | Rear door wiring harness No. 2 | 82154-16130 · 82154-16150 · 82154-16160 · 82154-16170 |
| 82161 | floor wiring harness | 82161-16M20 · 82161-16M30 · 82161-16M40 · 82161-16M50 · 82161-16M60 · 82161-16M70 · 82161-16M80 · 82161-16M90 · 82161-16N00 · 82161-16N10 · 82161-16N20 · 82161-16N30 · 82161-16Q50 · 82161-16Q60 · 82161-16Q70 · 82161-16Q80 · 82161-16Q90 · 82161-16R00 · 82161-16R10 · 82161-16R20 · 82161-16R30 · 82161-16R40 · 82161-16R70 · 82161-16R80 · 82161-16S10 · 82161-16S30 · 82161-16S50 · 82161-16S60 · 82161-16S80 · 82161-16S90 · 82161-16T00 · 82161-16T60 · 82161-16T70 · 82161-16T80 · 82161-16T90 · 82161-16U00 · 82161-16U10 |
| 82164D | No. 5 floor wiring harness | 82165-16010 |
| 82169A | No. 6 floor wiring harness | 82169-16010 |
| 8216B | No. 8 floor wiring harness | 8216B-16450 · 8216B-16470 · 8216B-16490 · 8216B-16500 · 8216B-16510 · 8216B-16520 · 8216B-16590 · 8216B-16610 · 8216B-16620 · 8216B-16630 |
| 8216C | No. 9 floor wiring harness | 8216C-16030 · 8216C-16040 · 8216C-16050 · 8216C-16060 |

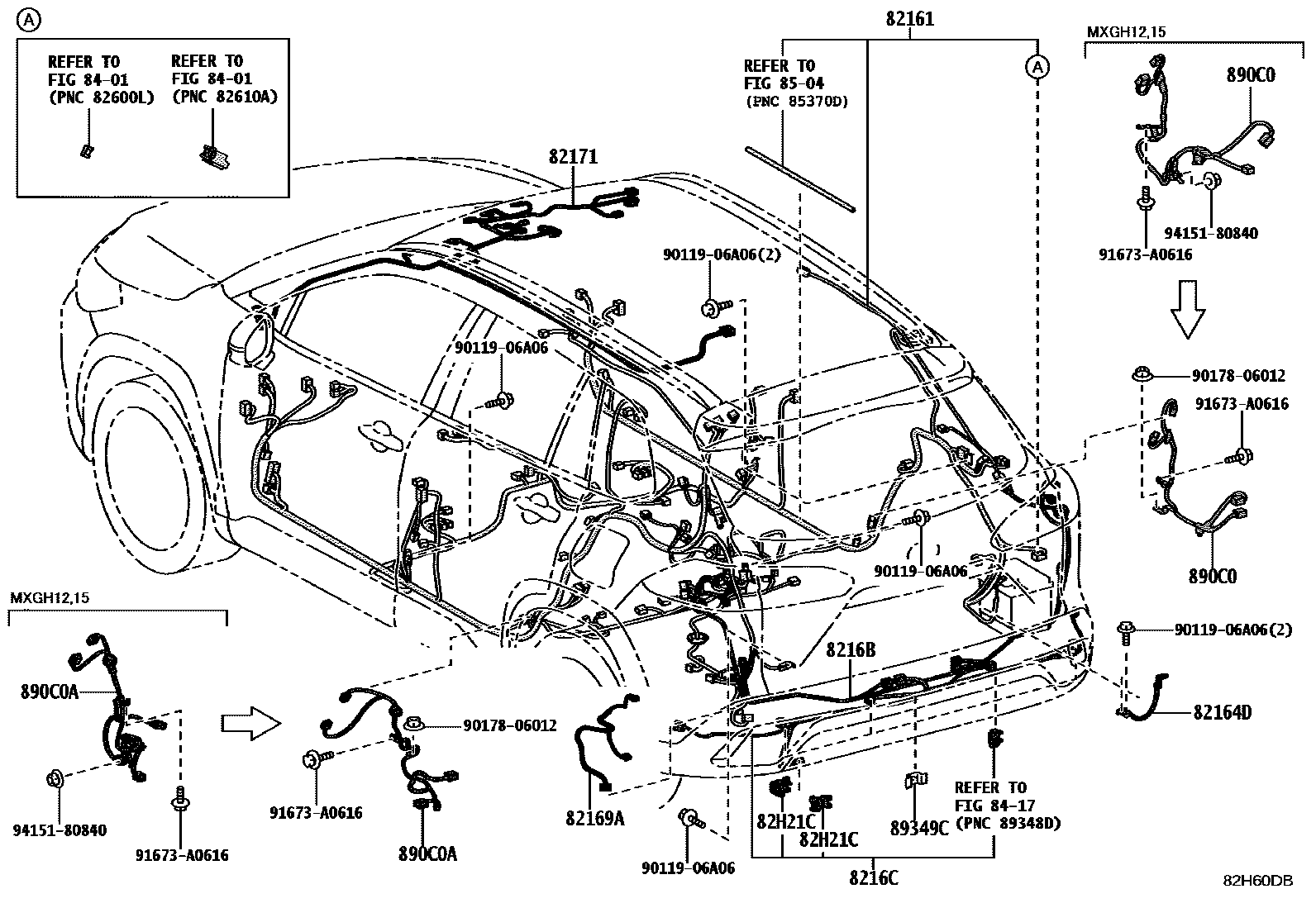

| 82171 | Roof No. 1 wiring harness | 82171-16B30 · 82171-16B31 · 82171-16B40 · 82171-16B41 · 82171-16B50 · 82171-16B60 · 82171-16B70 · 82171-16B71 · 82171-16B80 · 82171-16B81 · 82171-16B90 · 82171-16C00 · 82171-16C10 · 82171-16C20 |
| 82184 | Rear door No. 1 wiring harness | 82184-16460 · 82184-16490 · 82184-16A40 · 82184-16B70 · 82184-16B80 · 82184-16C00 · 82184-16C10 · 82184-16C20 · 82184-16C30 · 82184-16C40 · 82184-16C50 · 82184-16C60 · 82184-16C70 · 82184-16C80 |
| 82186 | Rear window wiring harness No. 1 | 82186-16050 |
| 82187 | Rear window wiring harness No. 2 | 82187-16110 |
| 82191 | Front right seat wiring harness | 82191-12120 · 82191-16010 · 82191-47020 · 82191-47120 |
| 82192 | Front left seat wiring harness | 82192-12030 · 82192-47090 · 82192-47100 · 82192-47200 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-12020 · 8219A-42080 · 8219A-42130 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-12020 · 8219B-42100 · 8219B-42140 |
| 821H1 | Underfloor wiring harness | 821H1-12190 · 821H1-16060 · 821H1-16070 · 821H1-16080 · 821H1-16090 · 821H1-16100 · 821H1-16110 |
| 821H2 | HV air conditioner wiring harness | 821H2-16020 · 821H2-16030 · 821H2-V1010 |
| 82219C | sensor harness | 82219-76020 |
| 82286A | Line 2 | 82286-12010 · 82286-47010 |
| 82661D | No. 1 relay box side cover | 82661-76020 |
| 82661E | No. 2 relay box side cover | 82661-76030 |
| 82661H | Relay box cover | 82661-16250 |
| 82666A | Connector holder No. 2 | 82666-12490 |
| 82666B | No. 3 connector holder | 82666-12670 |
| 82666C | No. 4 connector holder | 82666-12680 |
| 82712A | Wire harness bracket | 82712-16040 · 82712-47150 |
| 82712B | Wire harness bracket | 82712-16050 |

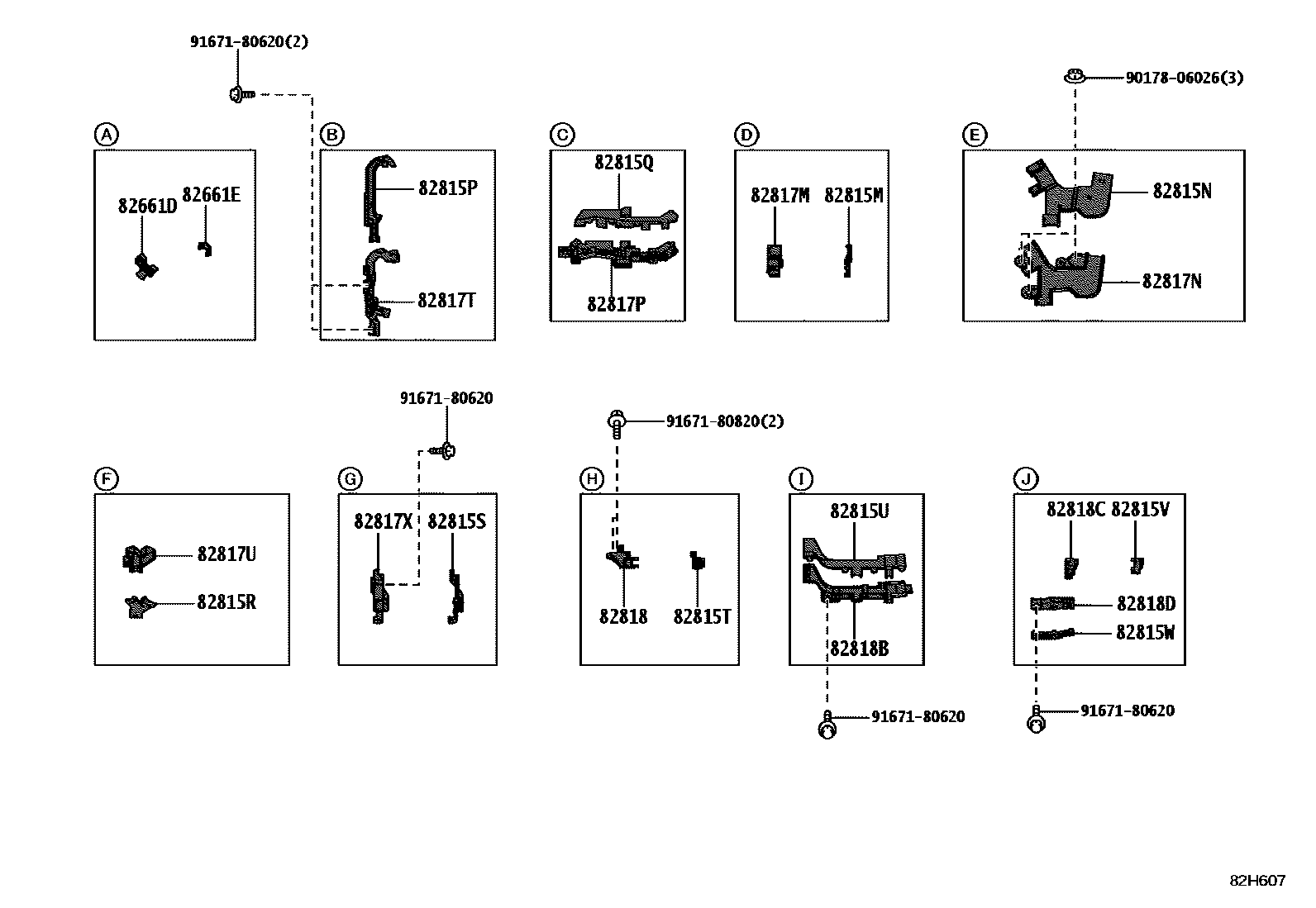

| 82815G | No. 5 wire harness protector cover | 82815-16200 · 82815-16220 |
| 82815H | No. 6 wire harness protector cover | 82815-16230 |
| 82815J | No. 7 wire harness protector cover | 82815-16300 |
| 82815K | No. 8 wire harness protector cover | 82815-16310 · 82815-16320 |
| 82815L | No. 9 wire harness protector cover | 82815-47K80 |
| 82815M | No. 10 wire harness protector cover | 82815-16090 |
| 82815N | No. 11 wire harness protector cover | 82815-16100 |
| 82815P | No. 12 wire harness protector cover | 82815-12B00 · 82815-V1430 |
| 82815Q | No. 13 wire harness protector cover | 82815-12D60 · 82815-V1600 |
| 82815R | No. 14 wire harness protector cover | 82815-16110 · 82815-V1610 |
| 82815S | No. 15 wire harness protector cover | 82815-16120 |
| 82815T | No. 16 wire harness protector cover | 82815-16250 |
| 82815U | No. 17 wire harness protector cover | 82815-76720 |
| 82815V | No. 1 wire harness protector cover | 82815-76740 |
| 82815W | No. 2 wire harness protector cover | 82815-76750 |
| 82816H | No. 6 wire harness protector cover | 82815-V1340 · 82815-V1350 |
| 82816J | No. 7 wire harness protector cover | 82815-16050 · 82815-16060 · 82815-16140 |
| 82816K | No. 8 wire harness protector cover | 82815-16070 · 82815-16080 · 82815-16150 |
| 82816L | No. 9 wire harness protector cover | 82815-12690 · 82815-16270 · 82815-16280 · 82815-16290 |
| 82816M | No. 10 wire harness protector cover | 82815-16030 |
| 82817C | No. 4 wire harness protection device | 82817-16770 |
| 82817D | No. 5 wire harness protection device | 82817-16780 |
| 82817E | No. 6 wire harness protection device | 82817-16790 |
| 82817F | No. 7 wire harness protection device | 82817-16810 · 82817-16820 |
| 82817G | No. 8 wire harness protection device | 82817-16A10 |
| 82817J | No. 9 wire harness protection device | 82817-16A20 |
| 82817K | No. 10 wire harness protection device | 82817-16A30 · 82817-16A40 |
| 82817L | No. 11 wire harness protection device | 82817-16A50 · 82817-4E070 |
| 82817M | No. 12 wire harness protection device | 82817-16830 |
| 82817N | No. 13 wire harness protection device | 82817-16840 |
| 82817P | No. 14 wire harness protection device | 82817-12R60 · 82817-V1600 |
| 82817T | No. 15 wire harness protection device | 82817-12V00 · 82817-V1820 |
| 82817U | No. 16 wire harness protection device | 82817-16850 · 82817-V1840 |
| 82817X | No. 17 wire harness protection device | 82817-16860 |
| 82818 | No. 2 wire harness protection device | 82817-16870 |
| 82818B | No. 3 wire harness protection device | 82817-76520 |
| 82818C | No. 4 wire harness protection device | 82817-76540 |
| 82818D | No. 5 wire harness protection device | 82817-76550 |
| 82818M | No. 13 wire harness protection device | 82817-V1510 · 82817-V1520 |
| 82818N | No. 14 wire harness protection device | 82817-16540 · 82817-16550 · 82817-16700 |
| 82818S | No. 15 wire harness protection device | 82817-12P10 · 82817-16560 · 82817-16570 · 82817-16580 · 82817-16590 · 82817-16710 |
| 82818T | No. 16 wire harness protection device | 82817-16600 · 82817-16720 |
| 82818U | No. 17 wire harness protection device | 82817-16620 · 82817-16630 · 82817-16730 |
| 82818V | No. 18 wire harness protection device | 82817-16660 · 82817-16670 · 82817-16740 |
| 82818W | No. 19 wire harness protection device | 82817-16680 · 82817-16690 · 82817-16750 |
| 8281AY | No. 24 wire harness protection device | 82817-12X50 |
| 8281AZ | No. 25 wire harness protection device | 82817-12X40 |
| 82824 | Harness connector | 82824-16160 |
| 82824A | Harness connector | 82824-16130 |
| 8282A | No. 1 ground bolt cover | 8282A-52010 · 8282A-52020 |
| 8282AA | No. 2 ground bolt cover | 8282A-52010 |
| 82H17B | No. 1 wire harness protection device | 82817-16A50 |
| 82H21C | Connector cover | 82821-47600 |
| 86214A | Radio ground bracket | 86214-47020 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-16050 · 890C0-16070 · 890C0-16090 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-16060 · 890C0-16080 · 890C0-16100 |
| 89349C | No. 2 rear ultrasonic sensor clip | 89348-50050 |
