Toyota COROLLA 后组合灯 — Figure 8111

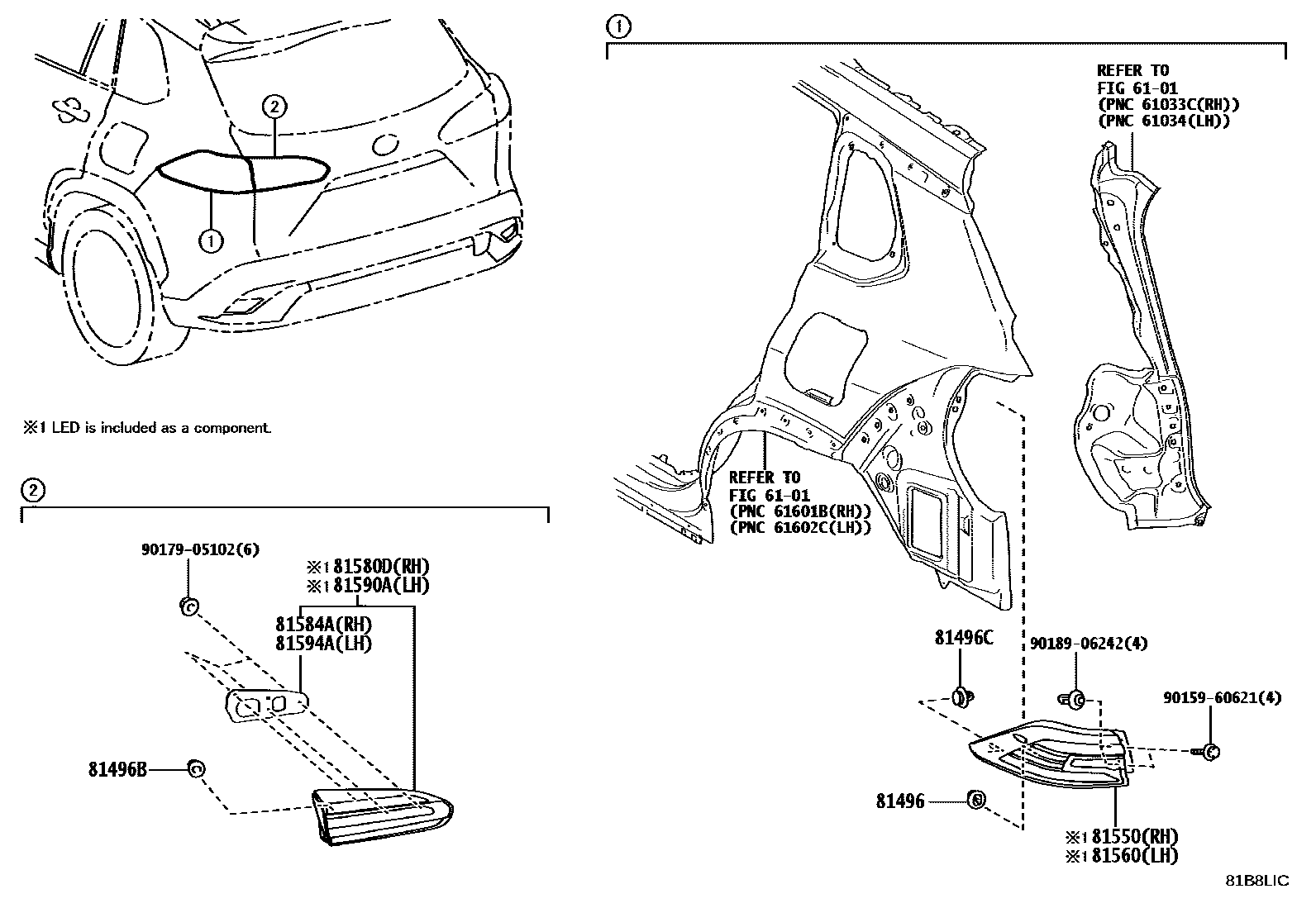

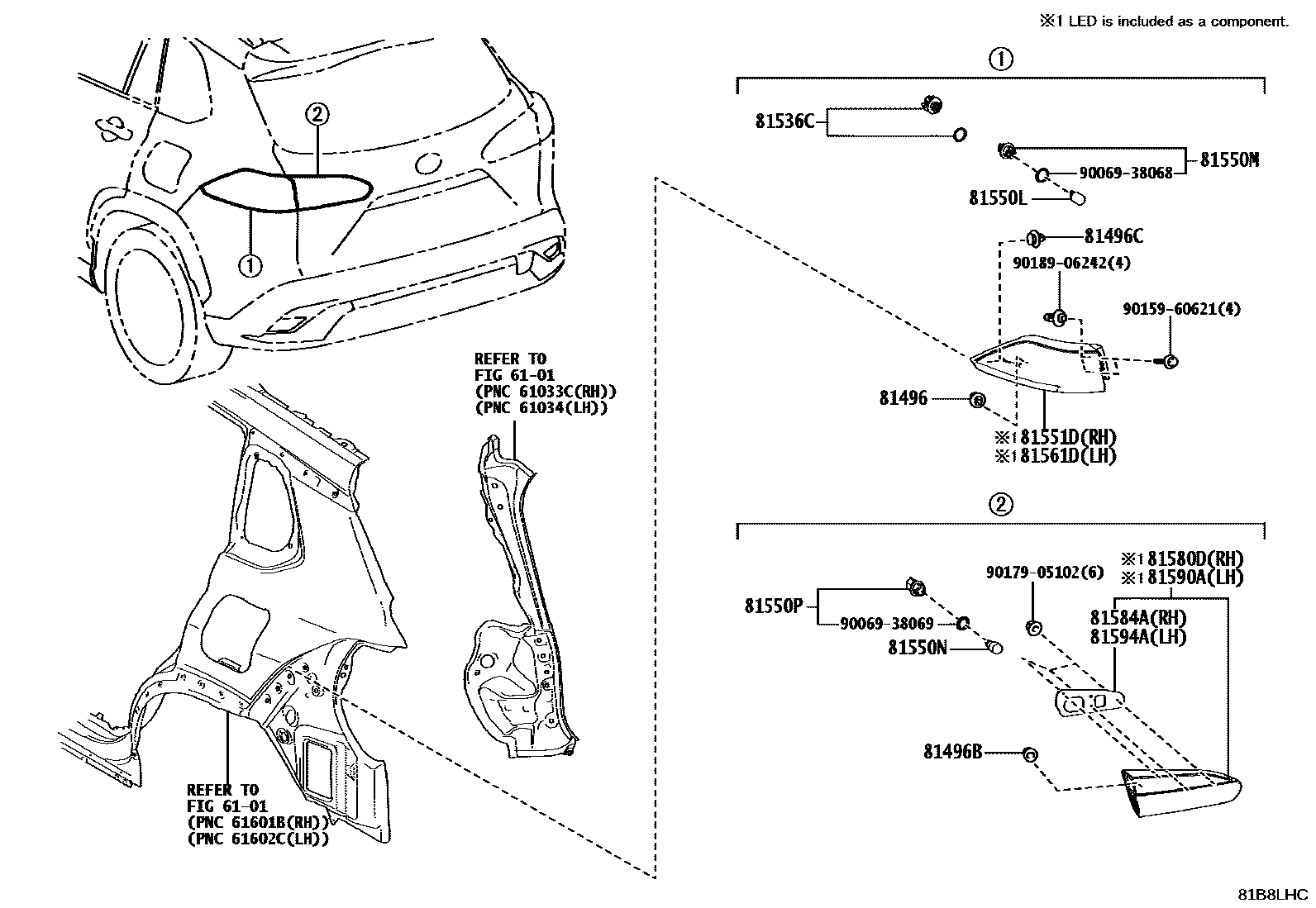

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496B | Rear light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81536C | LED tail lights and brake lights | 81536-16700 |
| 81550 | Right rear combination light assembly | 81550-16730 |
| 81550L | Rear turn signal light bulb | 90981-CB006 |
| 81550M | Rear turn signal lamp holder | 90069-81137 |
| 81550N | reversing light bulb | 90981-CB007 |
| 81550P | Reversing light lamp holder | 90069-81138 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-16690 |
| 81560 | Left rear combination light assembly | 81560-16730 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-16690 |
| 81580D | Right rear light assembly | 81580-16090 · 81580-16100 · 81580-16110 · 81581-16010 · 81581-16020 |
| 81584A | Right rear light gasket | 81582-16110 · 81584-16010 |
| 81590A | Left rear light assembly | 81590-16090 · 81590-16100 · 81591-16010 · 81591-16020 |
| 81594A | Left rear light gasket | 81592-16090 · 81594-16010 |
