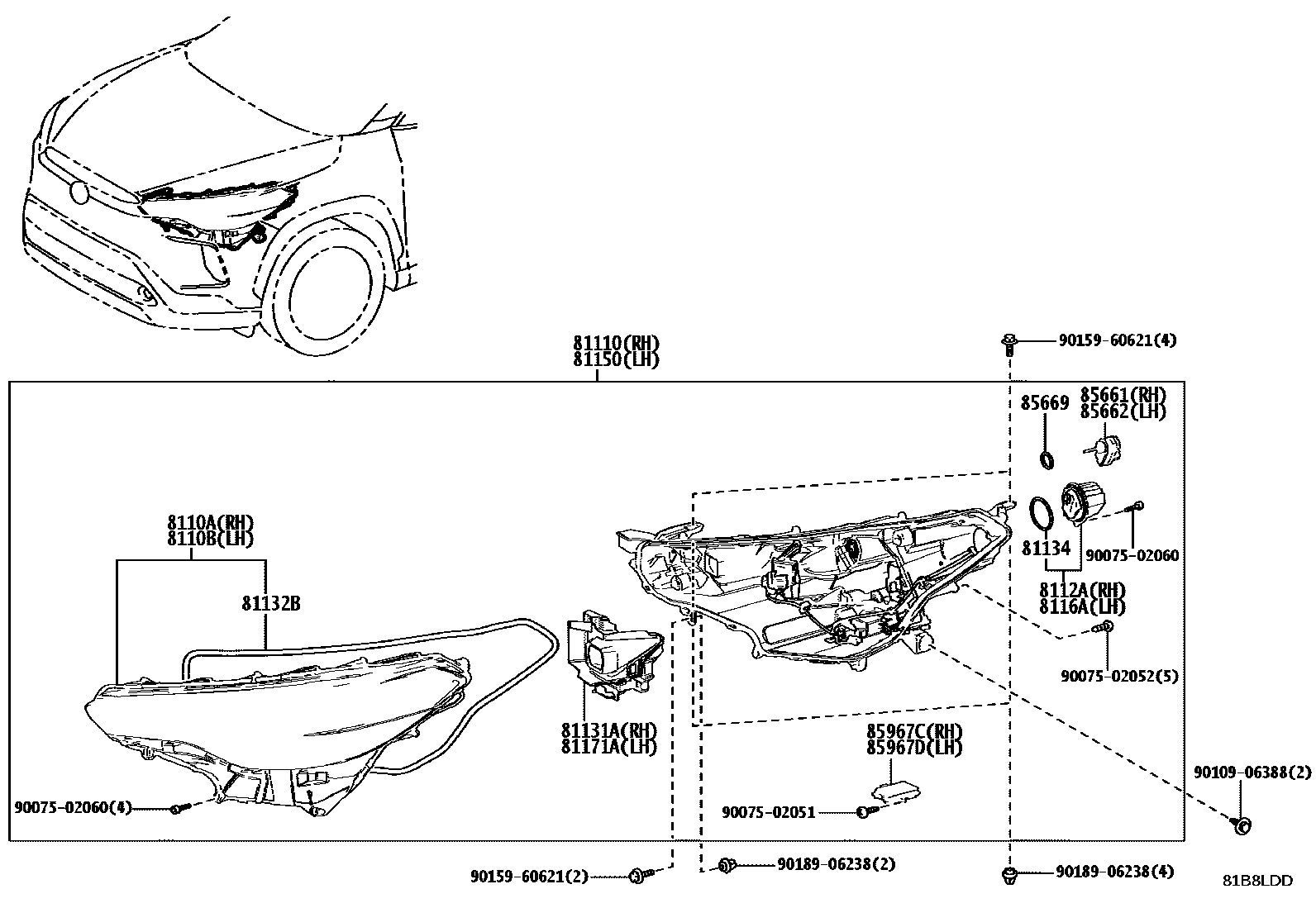

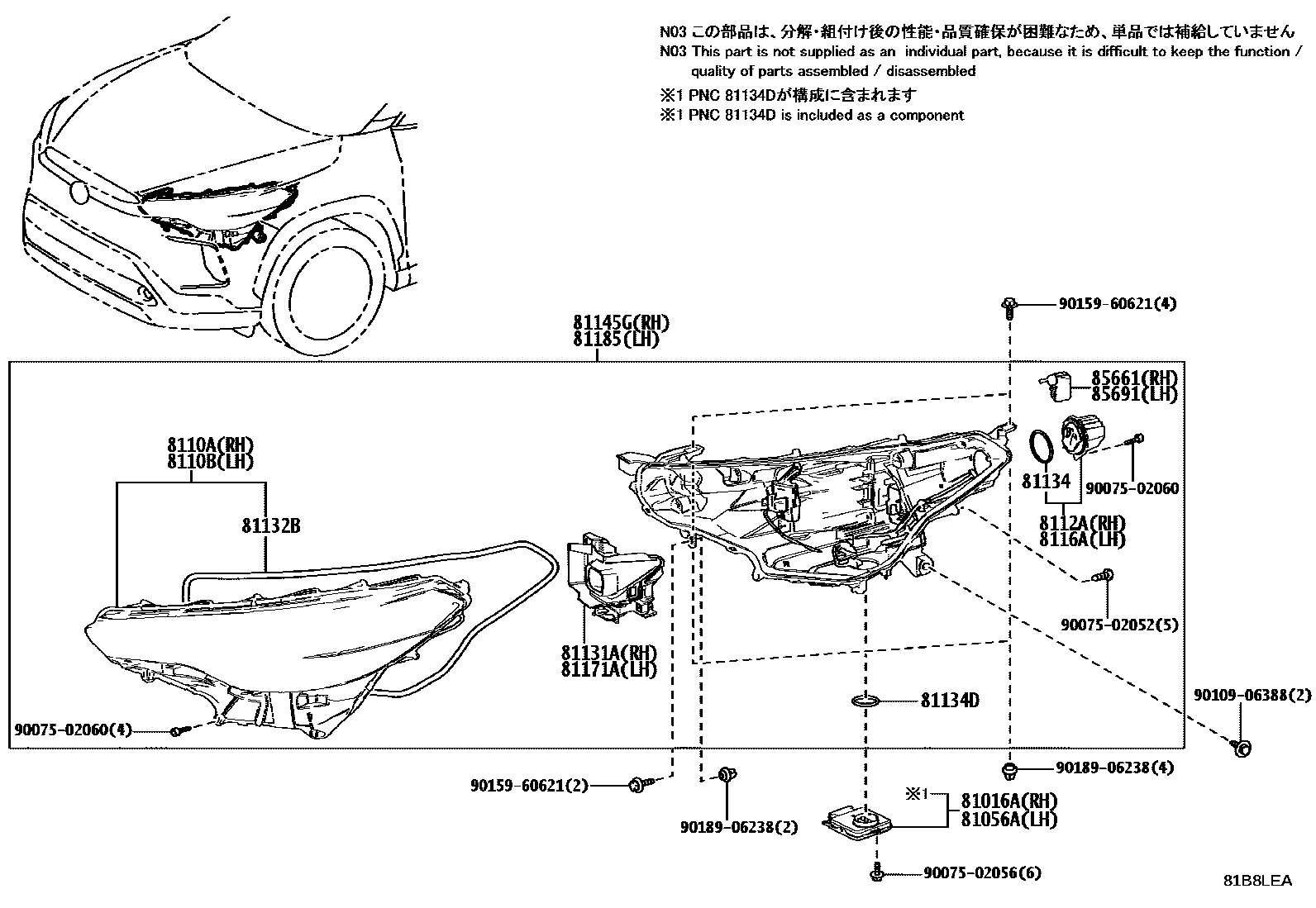

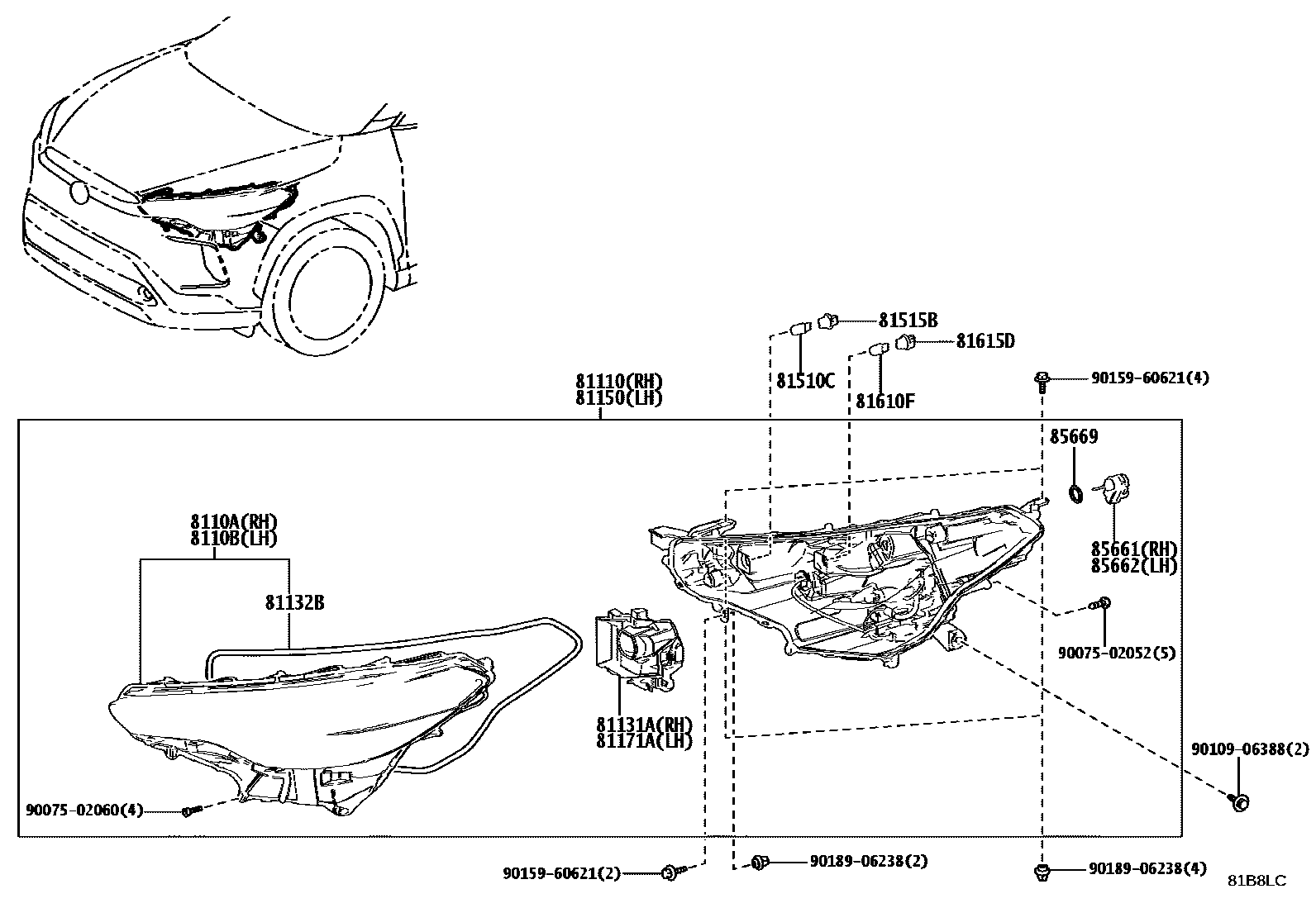

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | Right headlight ECU sub-assembly | 81016-16A30 |
| 81056A | Left headlight ECU sub-assembly | 81056-16A30 |
| 8110A | Right headlight cover sub-assembly | 8110A-16860 · 8110A-16890 |
| 8110B | Left headlight cover sub-assembly | 8110B-16860 · 8110B-16890 |
| 81110 | Right headlight assembly | 81105-16860 · 81105-16880 · 81110-16890 · 81110-16A00 |
| 8112A | Right No. 1 headlight width indicator LED assembly | 8112A-16890 |
| 81131A | Right headlight assembly | 81130-16860 · 81130-16880 · 81130-16890 · 81130-16A00 · 81130-16A20 · 81130-16A30 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81134 | headlight gasket | 90075-23003 |
| 81134D | No. 2 headlight gasket | 90075-23003 |
| 81145G | Padded right side headlight assembly? | 81145-16A20 · 81145-16A30 |
| 81150 | Left headlight assembly | 81106-16860 · 81106-16880 · 81150-16890 · 81150-16A00 |
| 8116A | Left No. 1 headlight width indicator LED assembly | 8116A-16890 |
| 81171A | Left headlight assembly | 81170-16860 · 81170-16880 · 81170-16890 · 81170-16A00 · 81170-16A20 · 81170-16A30 |
| 81185 | Padded left headlight assembly | 81185-16A20 · 81185-16A30 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-13088 |
| 81615D | Width light lamp holder | 90075-60086 |
| 85661 | Right headlight beam height adjustment motor | 85661-33020 · 85661-52030 |
| 85662 | Left headlight beam height adjustment motor | 85661-52030 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85691 | Left headlight beam height adjustment motor | 85691-33010 |
| 85967C | Right LED light control ECU | 8596A-16020 |
| 85967D | Left LED light control ECU | 8596A-16010 |
