Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

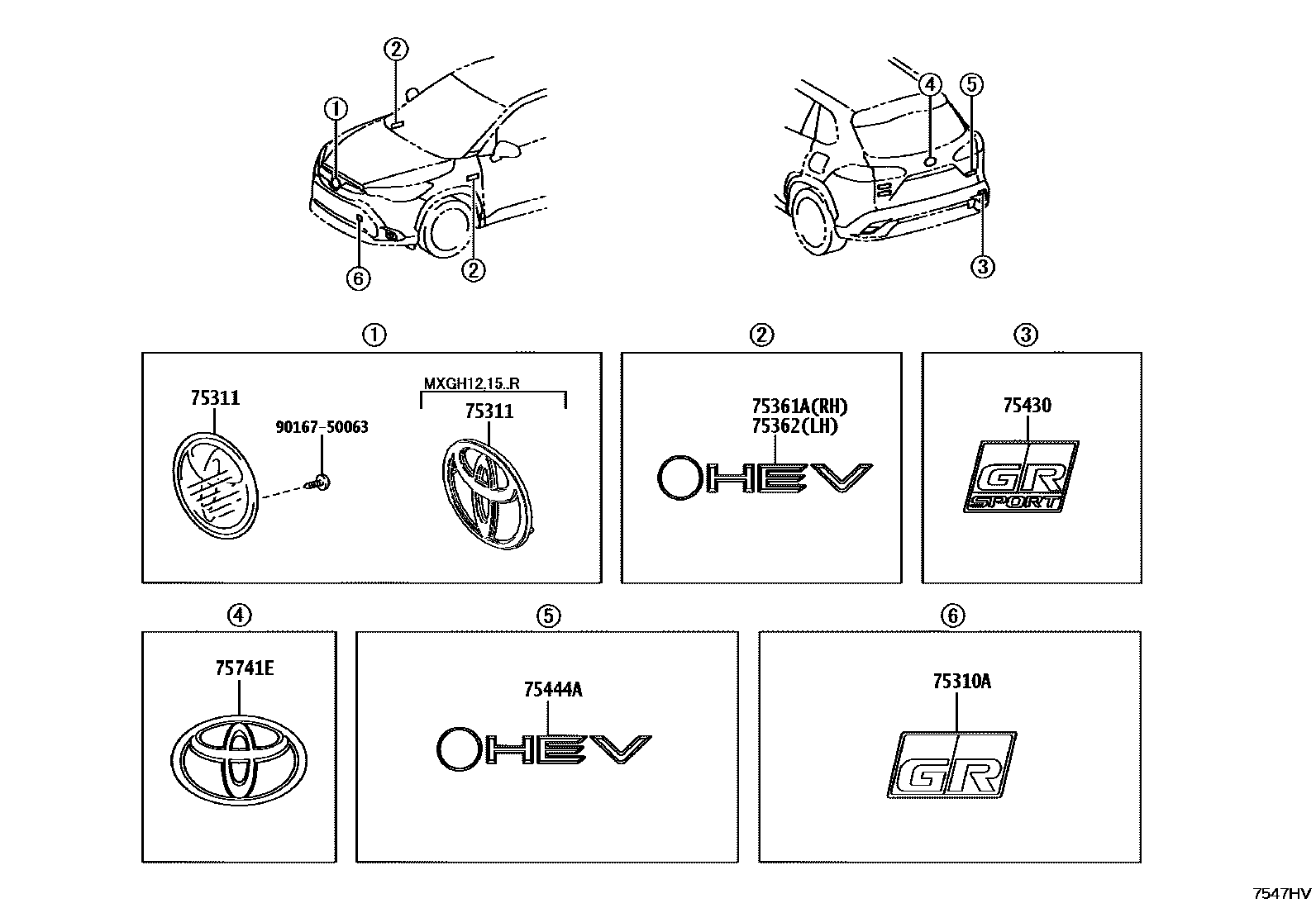

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 7547HV
丰田徽标和铭牌(车外和车内) — 7547HV (202505 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly75310-52090
75311Radiator grille (or front panel) plate90975-02160 · 90975-02253
75361AFront fender No. 1 nameplate75440-16010
75362Front fender No. 2 nameplate75440-16010
75430Rear door No. 1 sign assembly75430-52050
75444ANo. 4 nameplate on back door75440-16010
75741Elogo90975-02063 · 90975-02199
