Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 5 PNC and OE references.

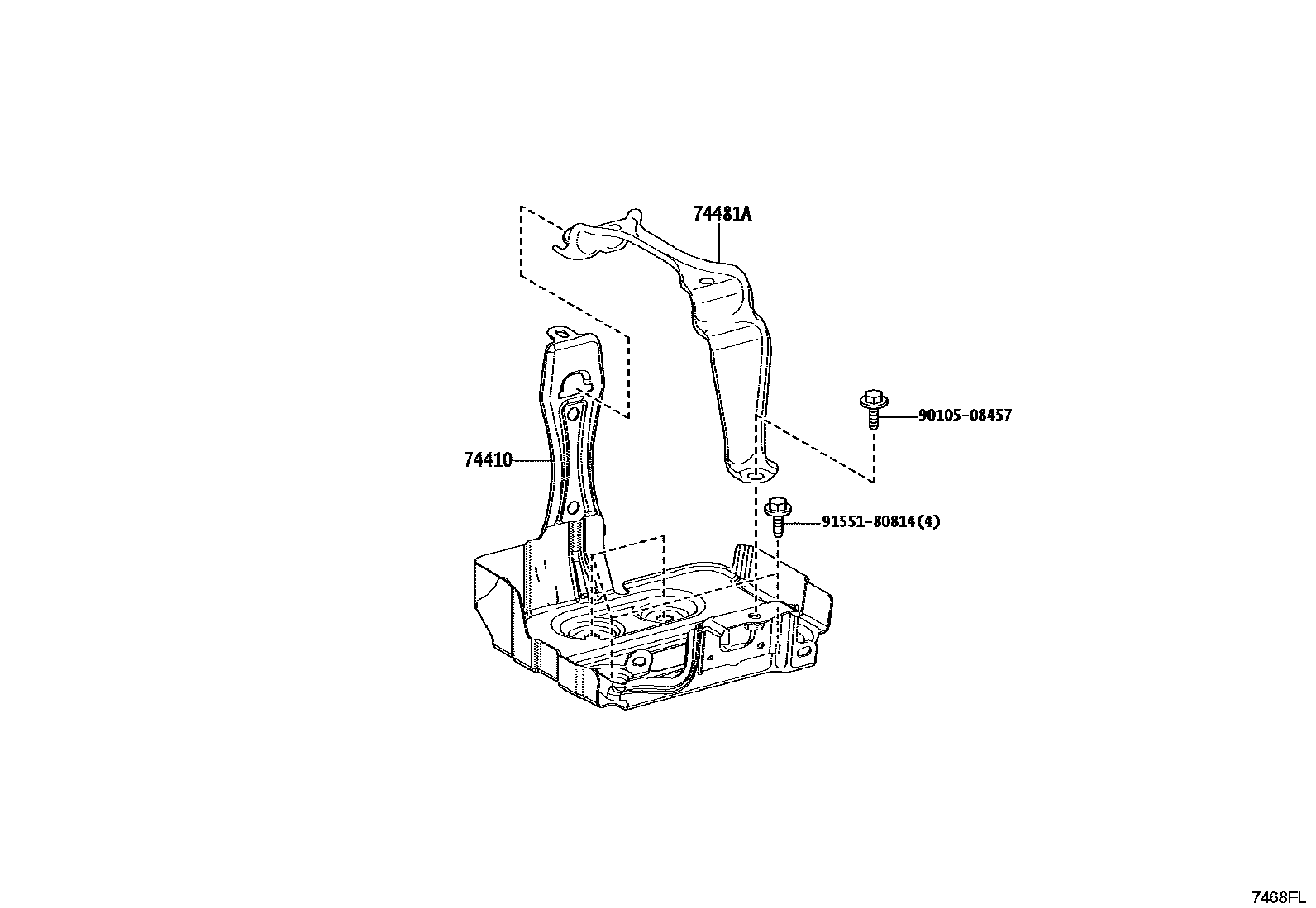

Toyota COROLLA battery holder EPC diagram — 7468FL
battery holder — 7468FL (202505 – 999999)

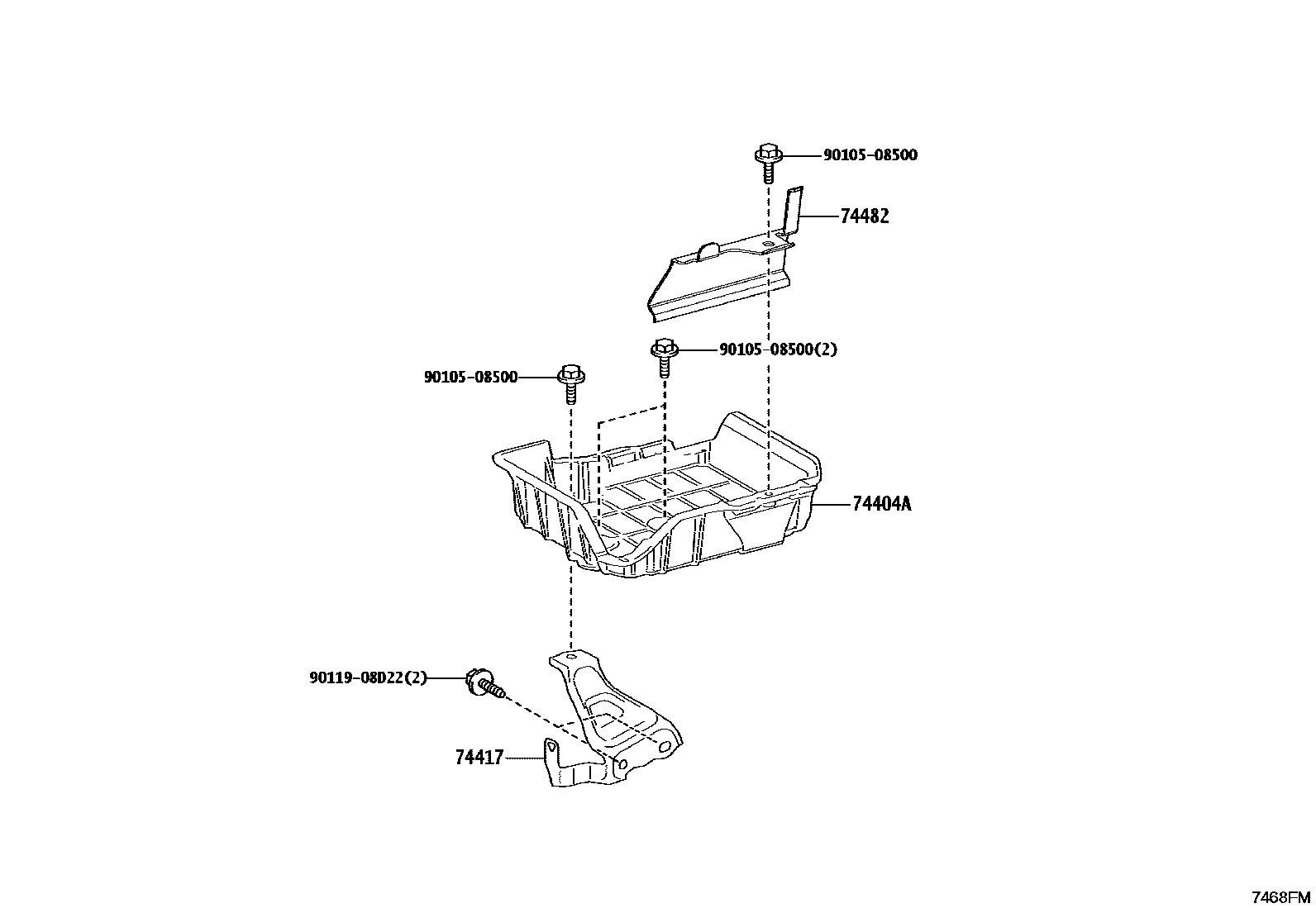

Toyota COROLLA battery holder EPC diagram — 7468FM
battery holder — 7468FM (202505 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-12610
74410Battery bracket assembly74410-16011
74417battery holder bracket74417-12060
74481ABattery clip74481-16091
74482No. 2 battery clip74482-47010
