Toyota COROLLA 扶手和遮阳板 — Figure 7401
Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 10 PNC and OE references.
PNC and OE references

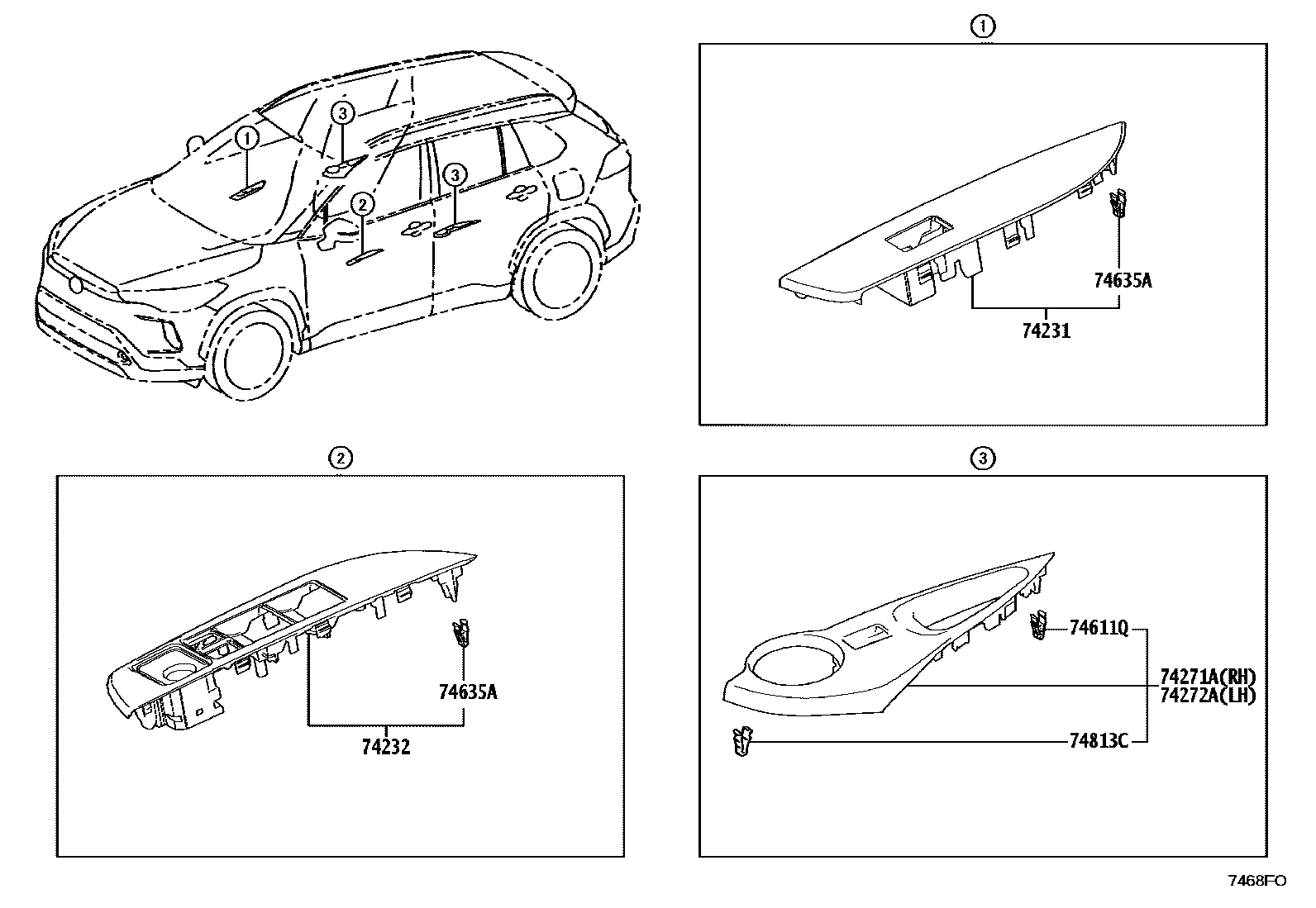

| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-16120 · 74231-16130 |
| 74232 | Left front armrest upper panel | 74232-16100 · 74232-16110 |
| 74271A | Right rear door armrest upper panel | 74271-16010 |
| 74272A | Left rear door armrest upper panel | 74272-16010 |
| 74611Q | clip | 90467-10203 |
| 74614C | Auxiliary handle locking plate | 74614-12020 |
| 74635A | clip | 90467-10203 |
| 74645A | Right door auxiliary handle cover | 74630-16010 |
| 74646 | Left door auxiliary handle cover | 74640-16010 |
| 74813C | clip | 90467-12080 |
