Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

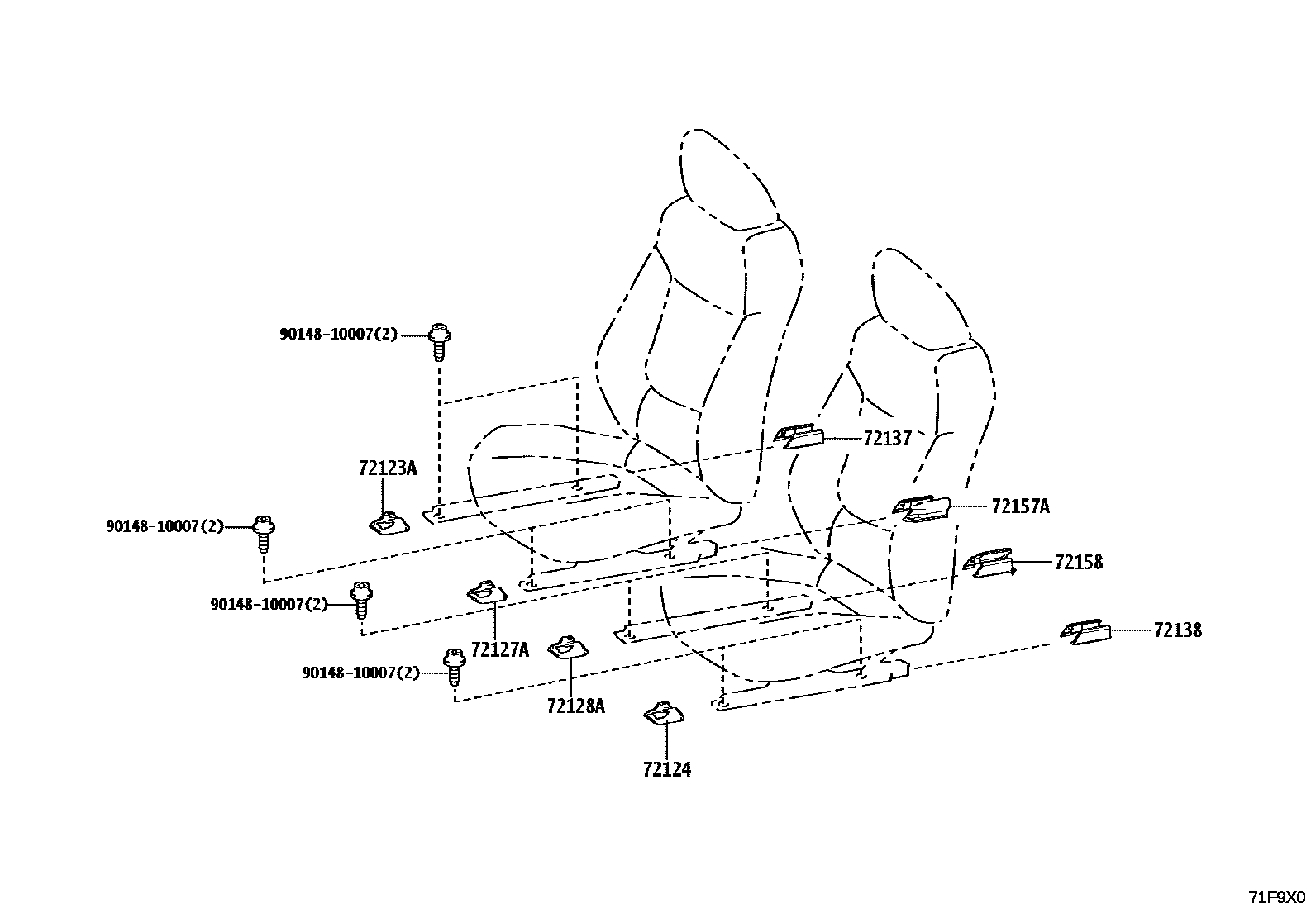

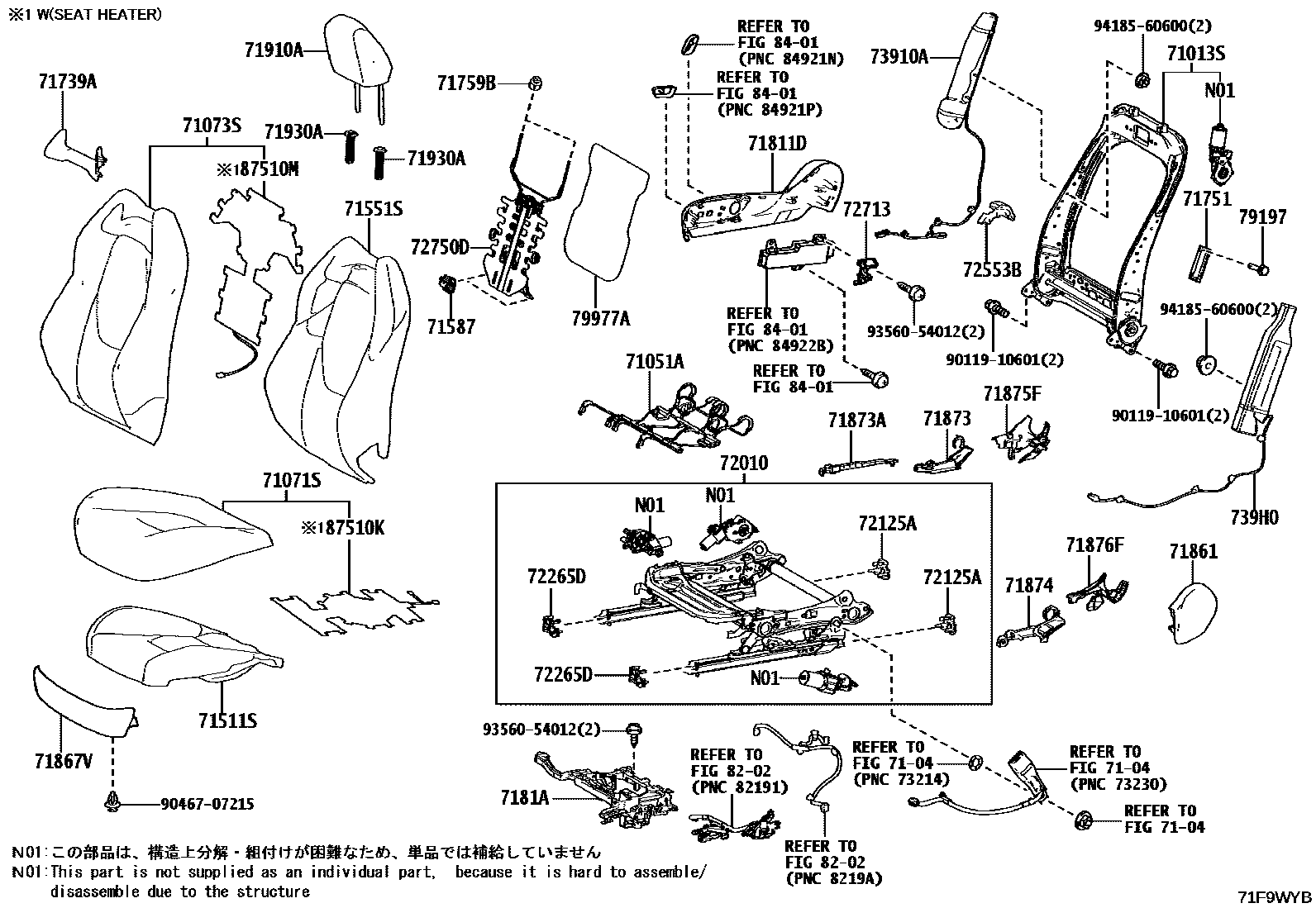

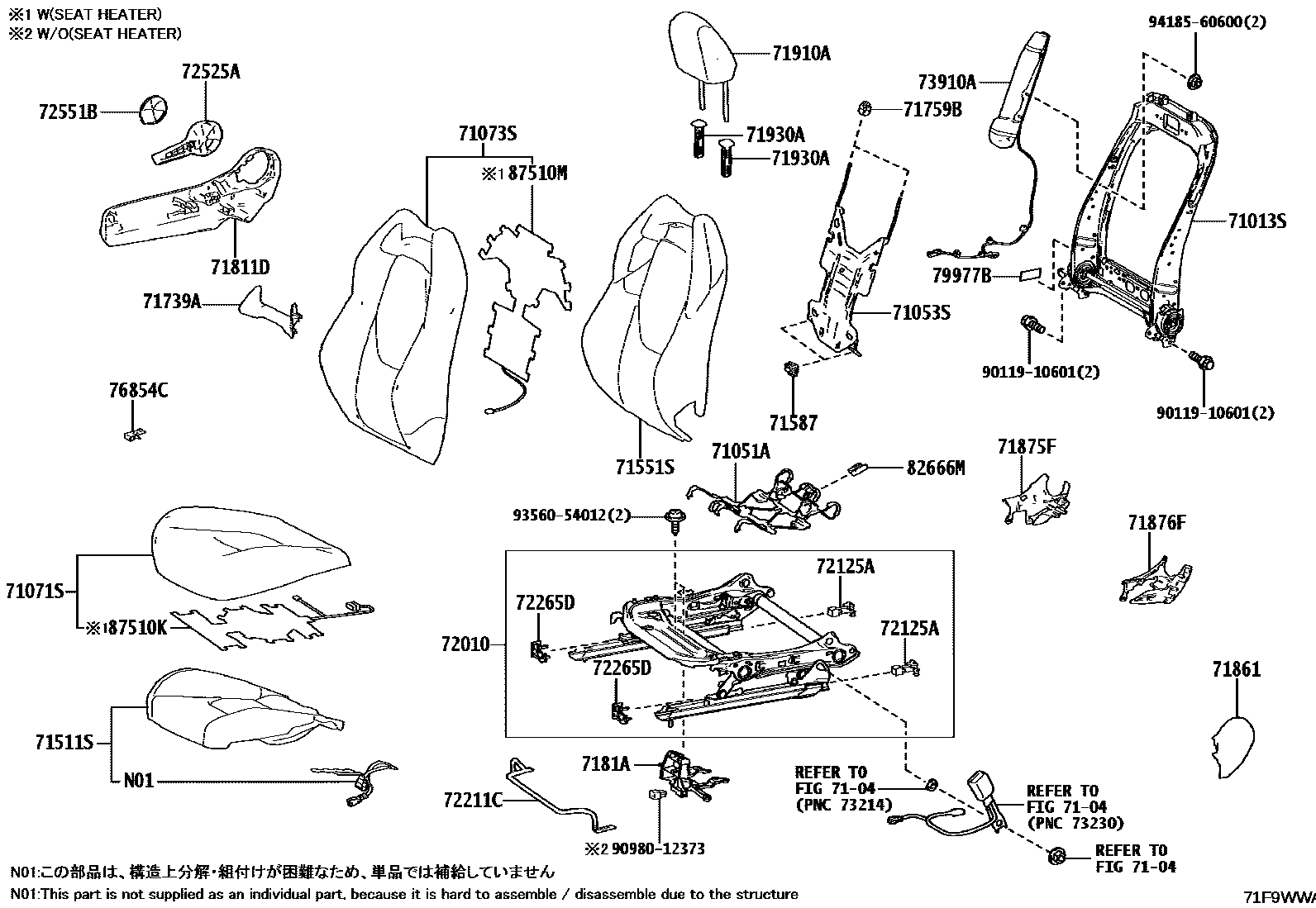

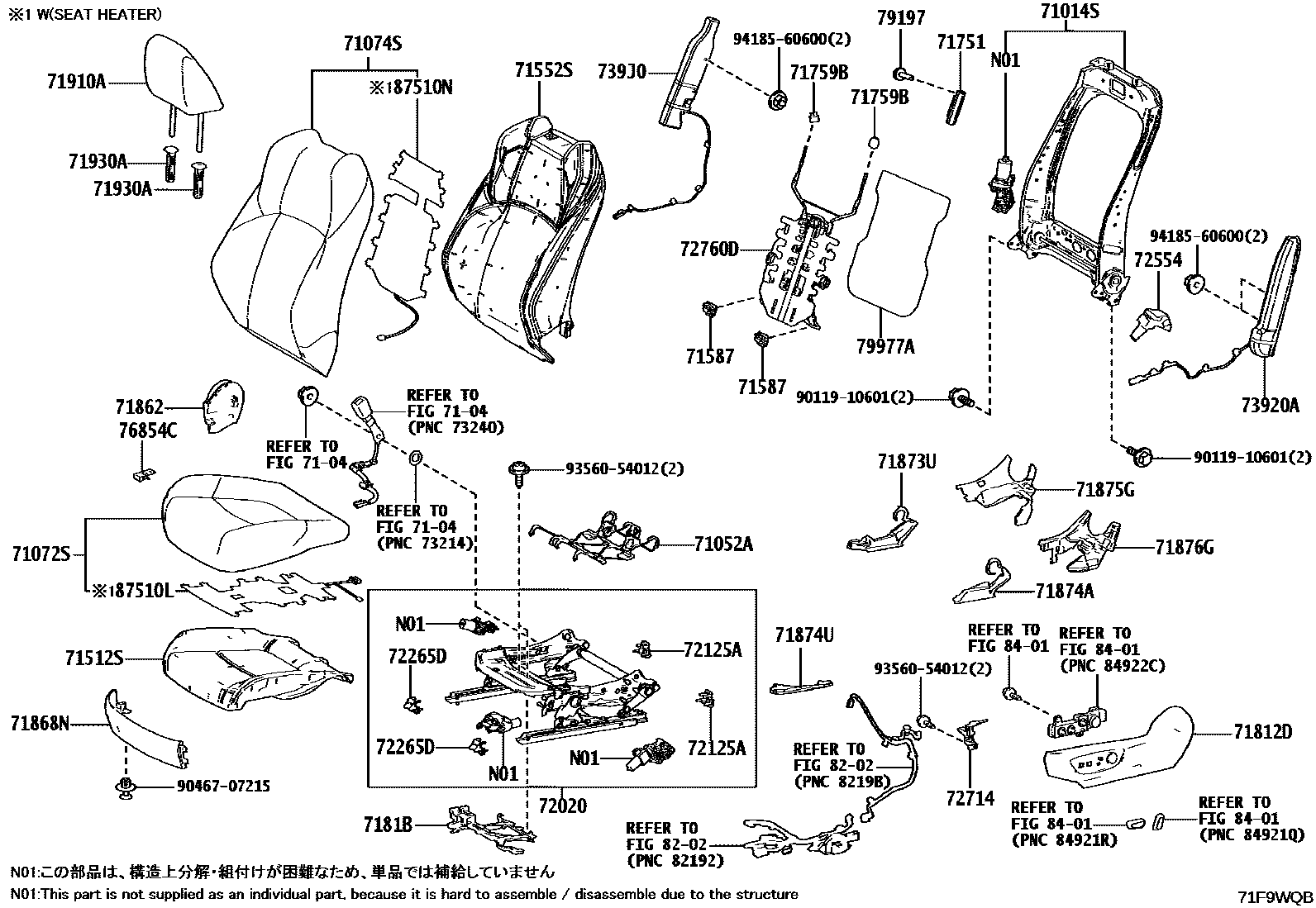

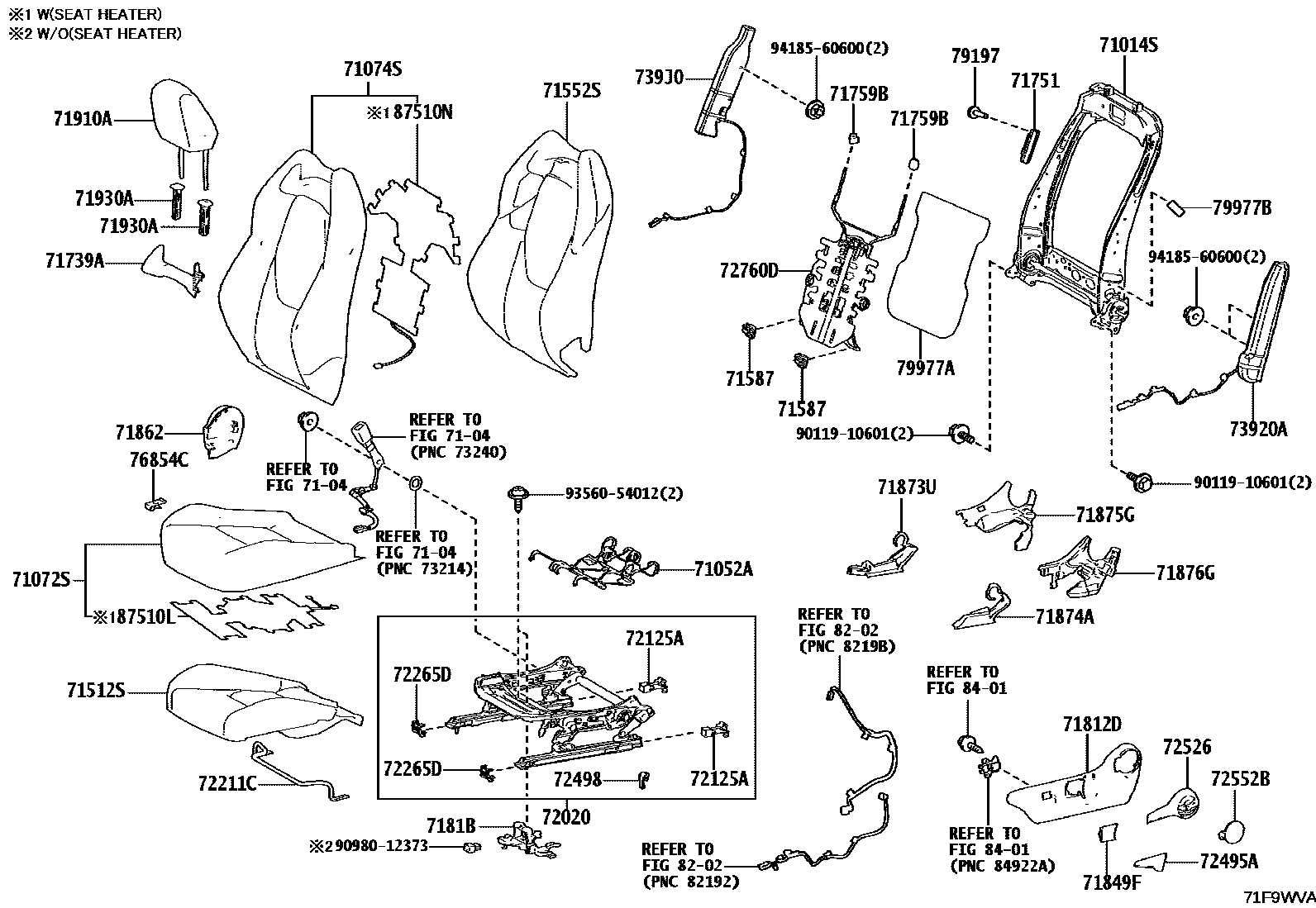

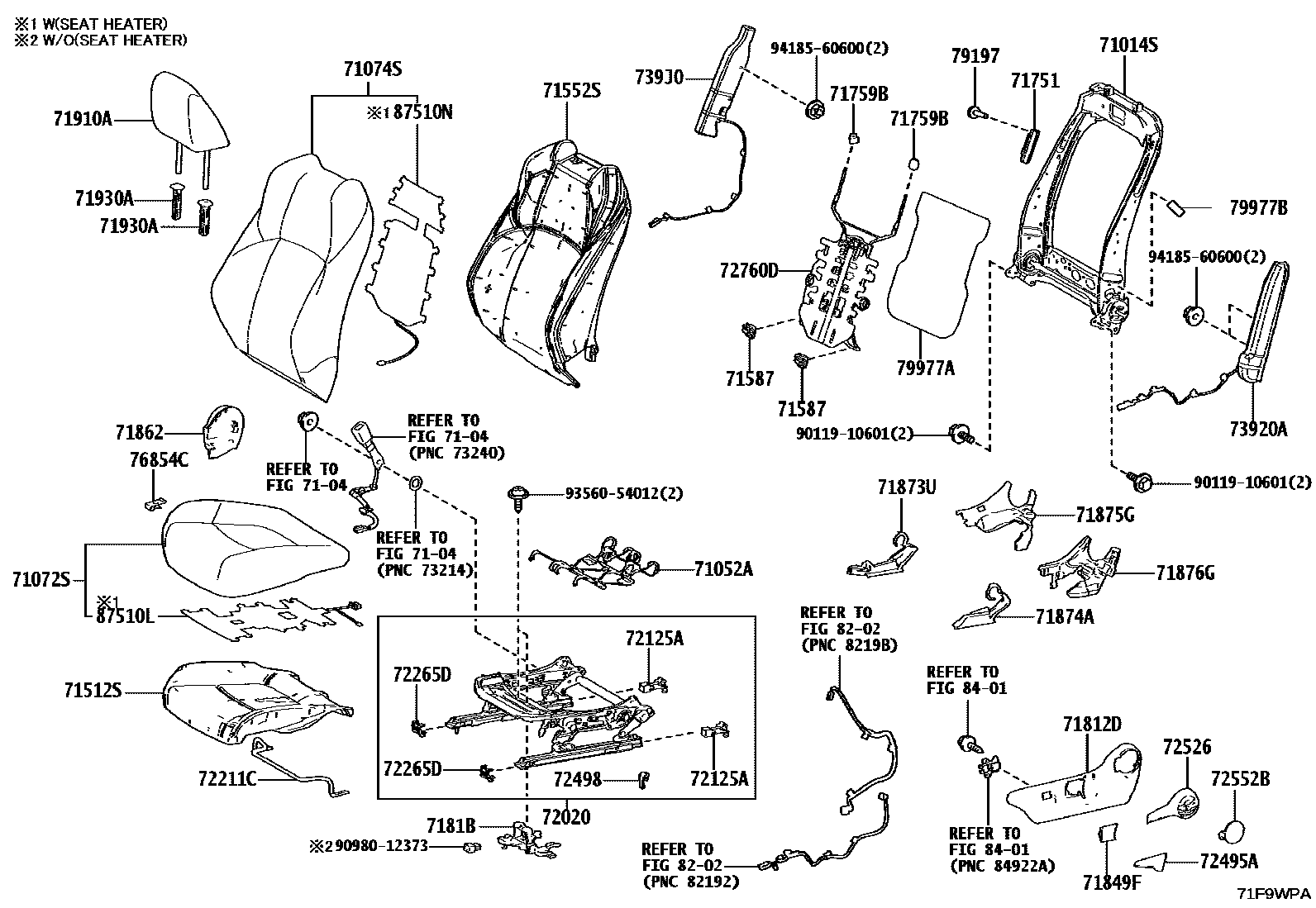

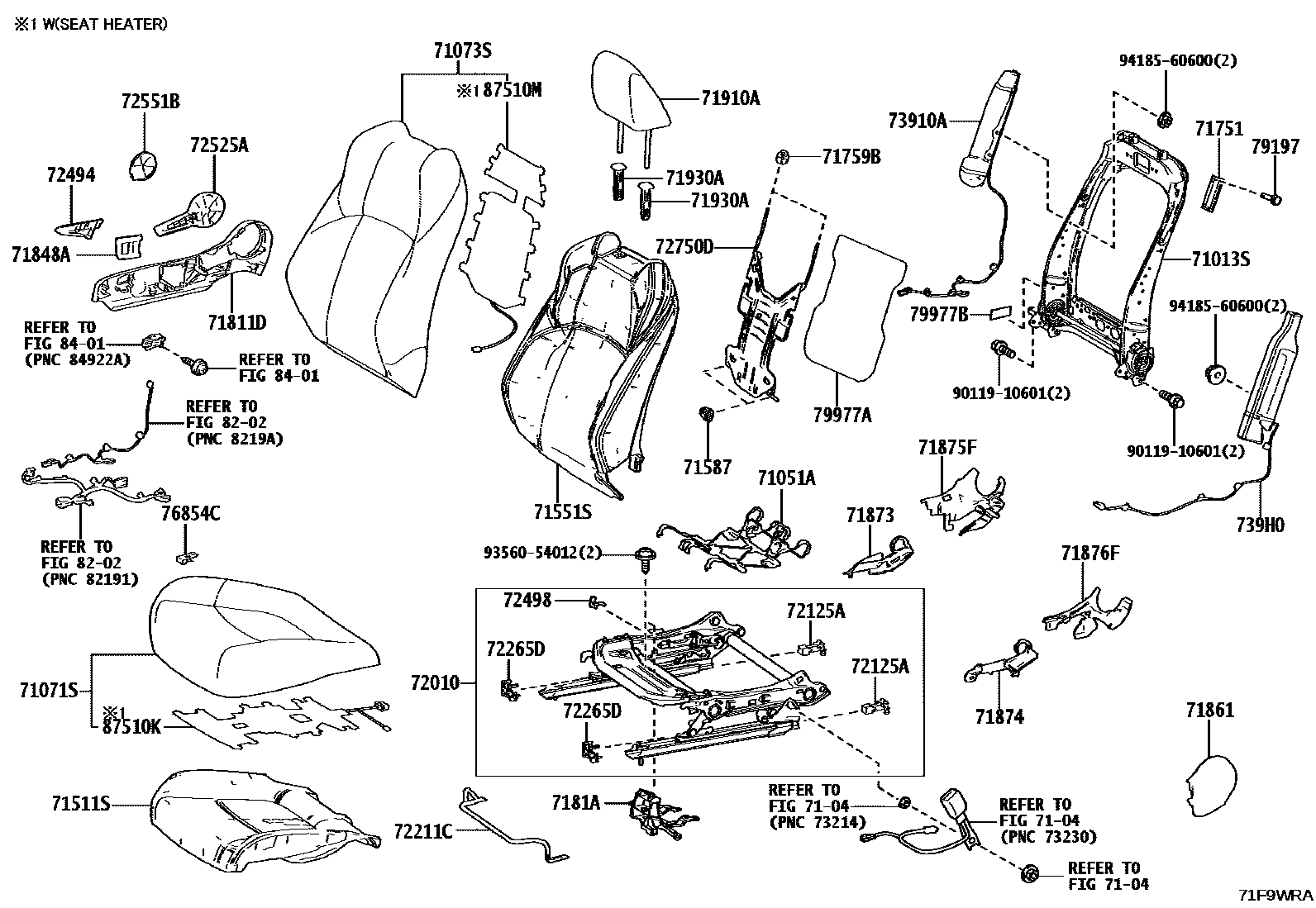

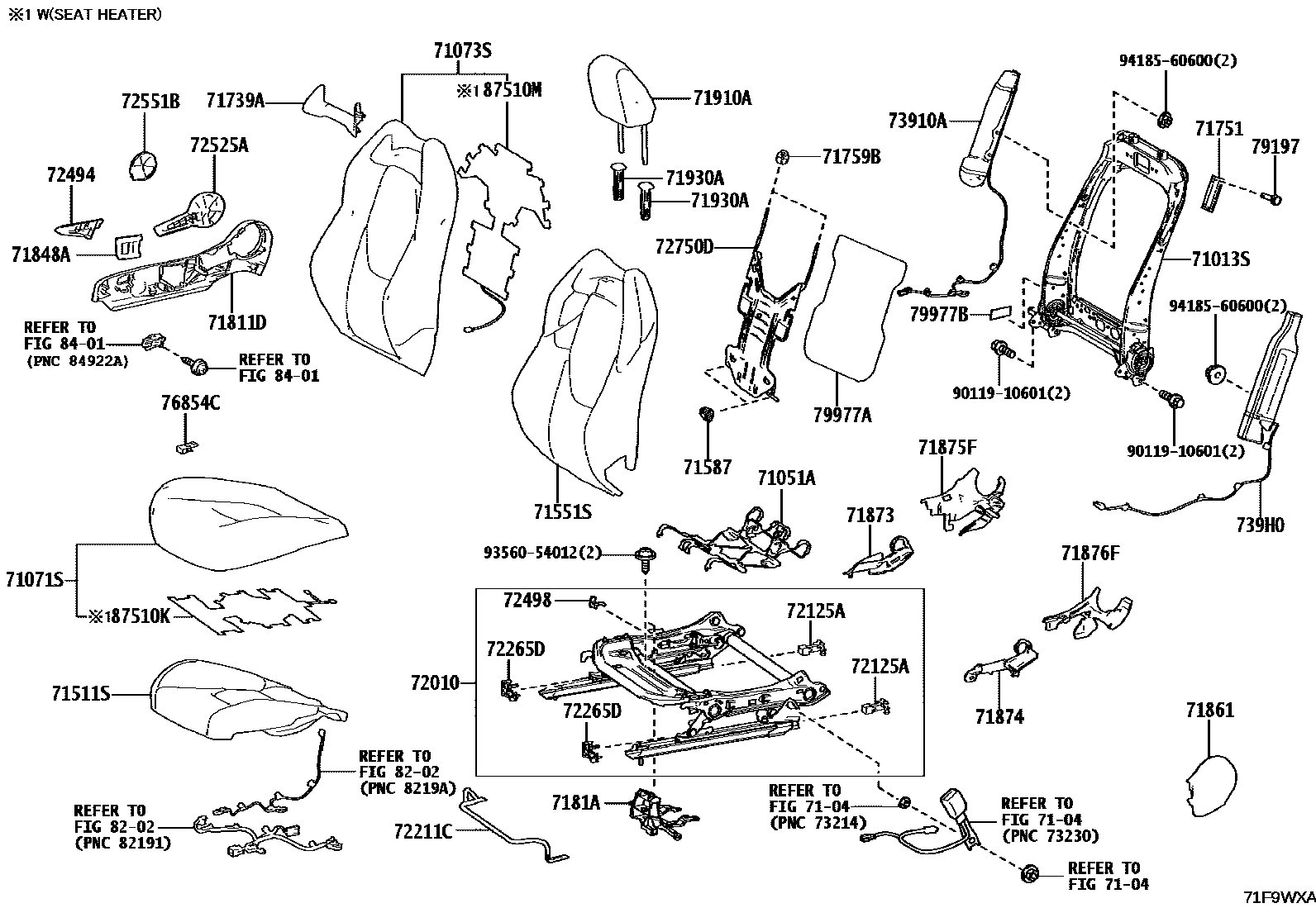

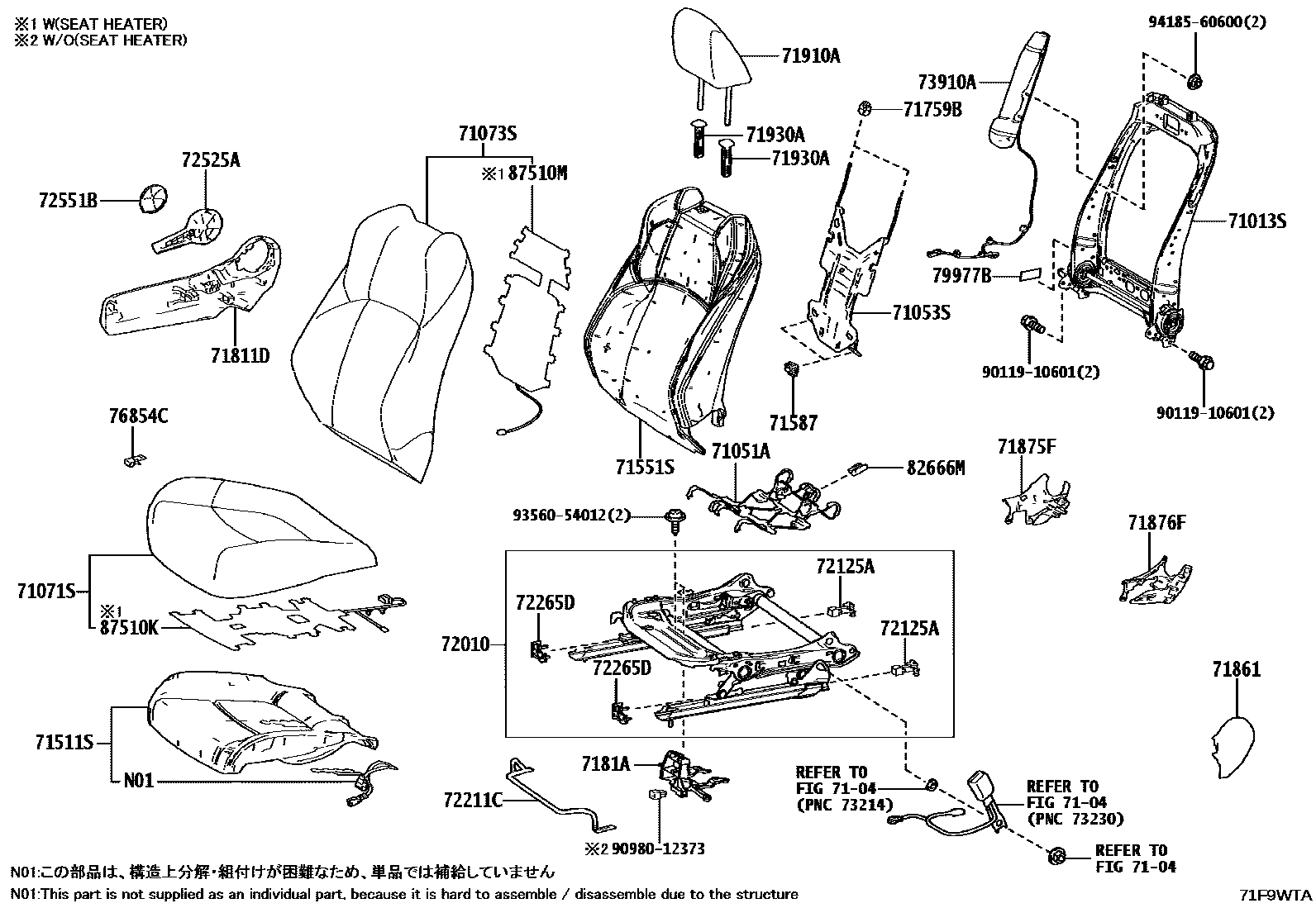

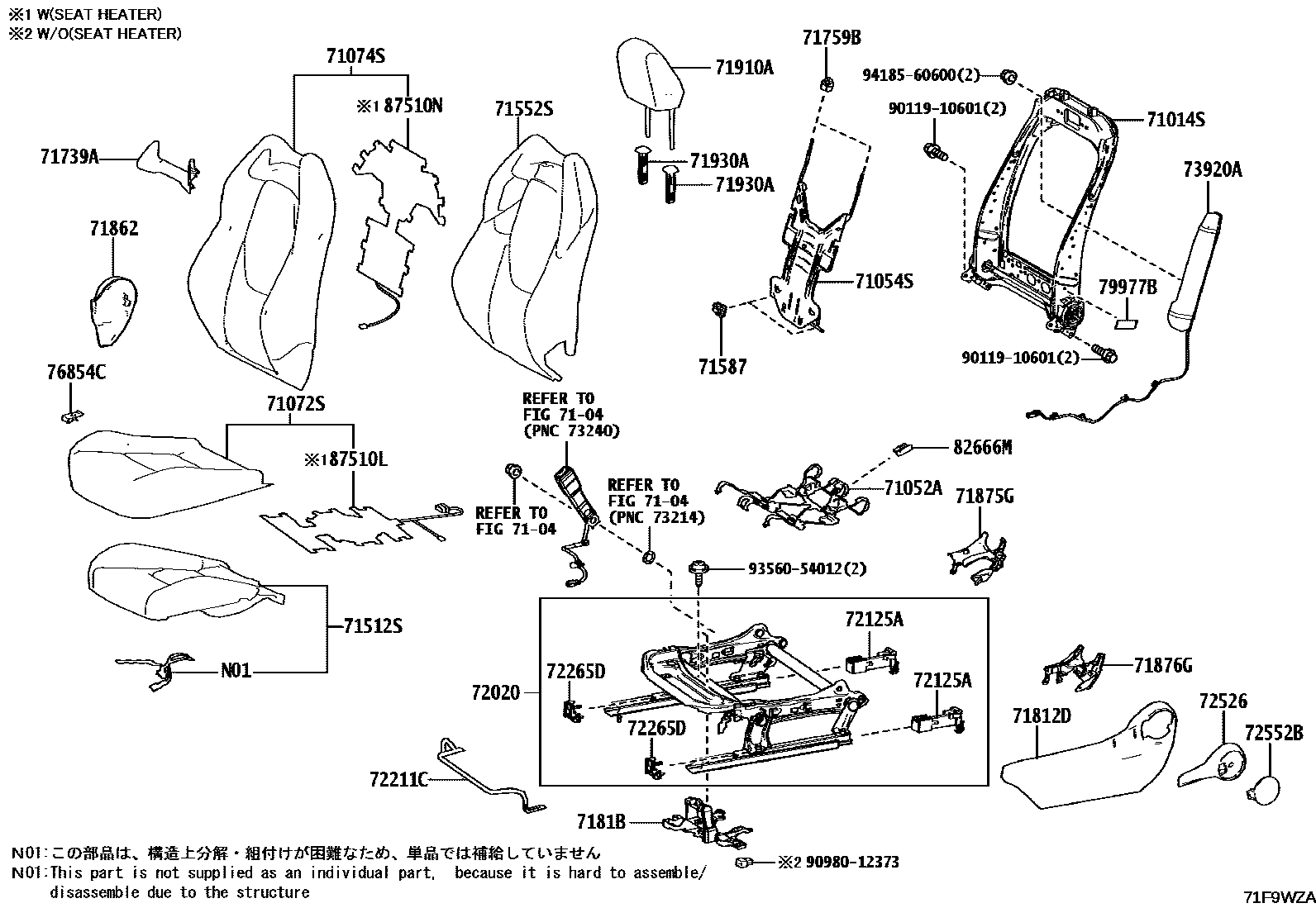

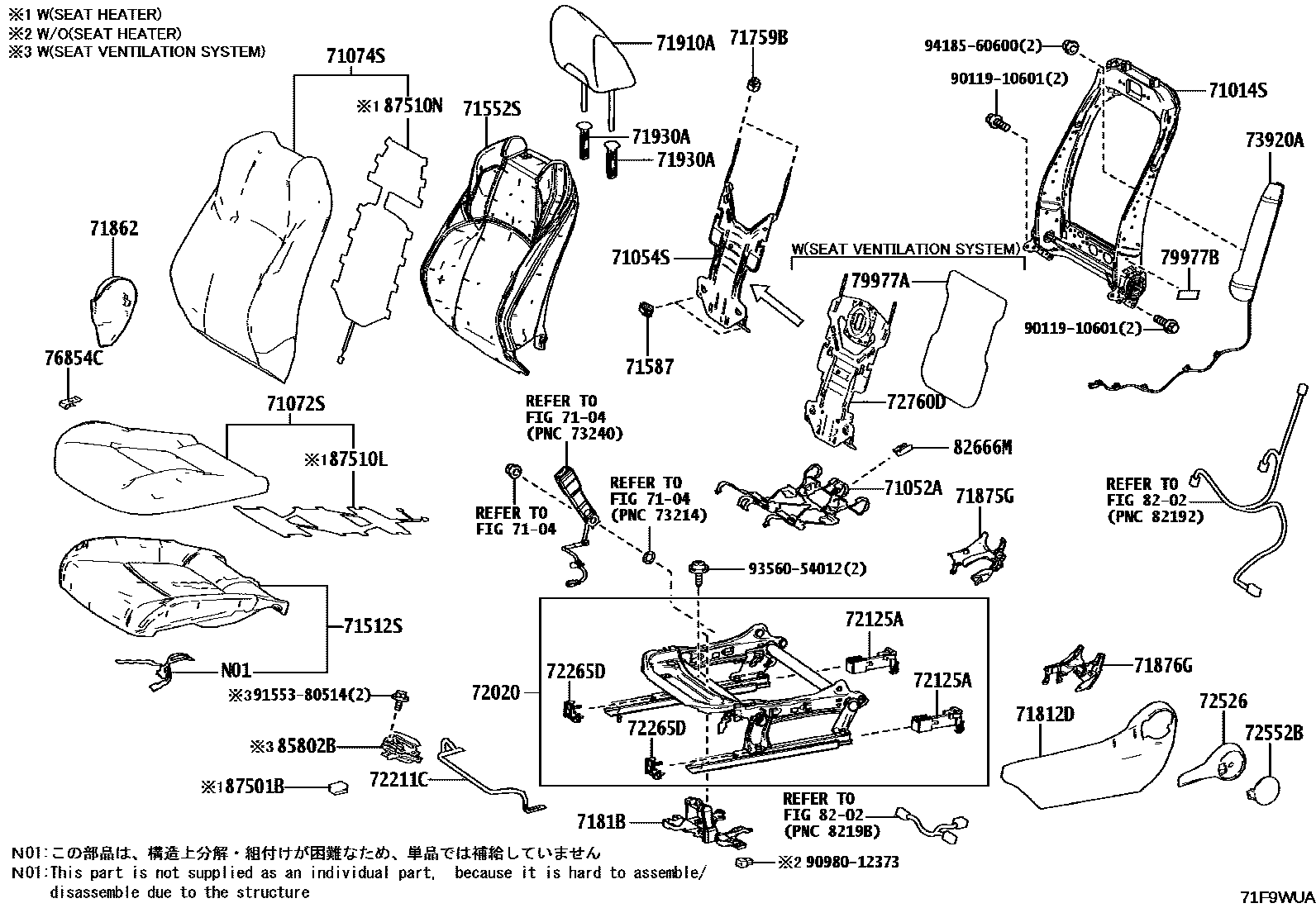

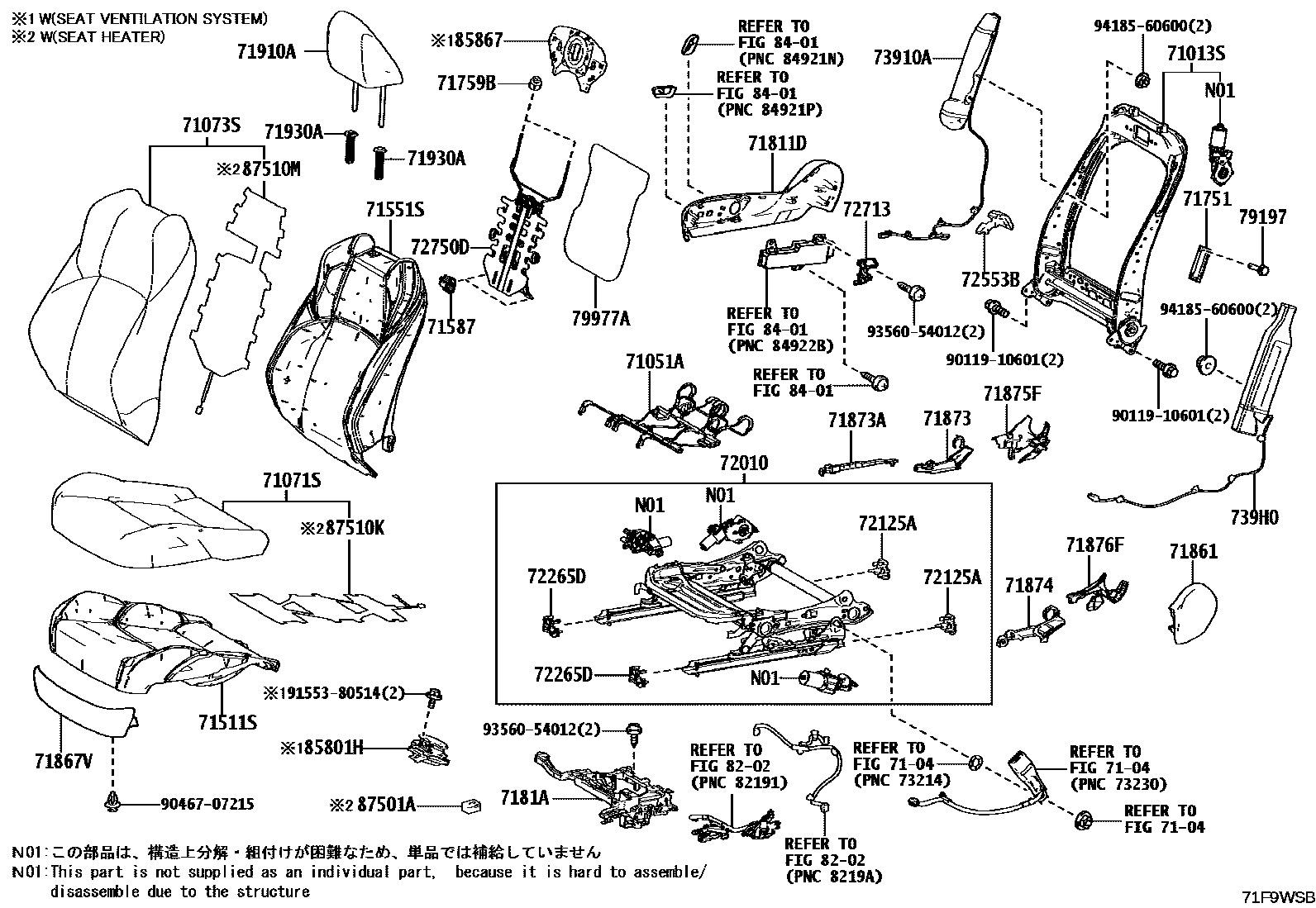

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 12 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-16150 · 71013-52510 |
| 71014S | Front left seat back frame sub-assembly | 71014-16070 · 71014-52340 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-16050 · 71501-16060 · 71511-16260 · 71511-16270 · 71511-16320 · 71511-16340 · 71511-16350 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-16040 · 71502-16050 · 71502-16060 · 71512-16100 · 71512-16110 · 71512-16140 |
| 71551S | Front right seat back cushion (for split seats) | 71551-16260 · 71551-16280 · 71551-16300 · 71551-16310 · 71551-16320 |
| 71552S | Front left seat back cushion (for split seats) | 71552-16050 · 71552-16070 · 71552-16080 · 71552-16100 · 71552-16110 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71739A | Front seat back frame | 71739-52030 |
| 71751 | Seat cover hanger | 71751-47050 |
| 71759B | Front seat back hook | 71759-50040 |
| 7181A | Front right seat cushion harness holder | 7181A-33010 · 7181A-47010 |
| 7181B | Front left seat cushion harness holder | 7181B-33010 · 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873A | Front seat cushion lower guard | 71873-47090 |
| 71873U | Front right seat cushion lower guard panel | 71874-47070 · 71874-47080 |
| 71874 | Front left seat cushion lower guard | 71873-47080 · 71873-K0010 |
| 71874A | Front left seat cushion lower guard | 71874-42080 · 71874-47070 |
| 71874U | Front left seat cushion lower guard | 71874-47090 |
| 72010 | Front right seat adjuster assembly | 72010-16300 · 72010-52C70 · 72010-52C80 |
| 72020 | Front left seat adjuster assembly | 72020-16280 · 72020-42400 · 72020-52C10 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-10100 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-10100 |
| 72125A | Rear seat upper slide rail cover | 72125-47010 · 72125-47020 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-10100 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-10100 |
| 72137 | Right seat outer slide rail cover | 72137-47060 |
| 72138 | Left seat outer slide rail cover | 72137-47060 |
| 72157A | Right seat inner slide rail bracket cover | 72157-10090 |
| 72158 | Left seat inner slide rail bracket cover | 72158-10040 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265D | Seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72498 | Height adjuster bracket cover | 72498-47010 · 72498-47020 |
| 72554 | Left seat backrest tilt cover protective cover | 72554-60020 |
| 72713 | Right seat adjuster protective clip bracket | 72713-47010 |
| 72714 | Left seat adjuster protective clip bracket | 72714-47010 |
| 72750D | Right lumbar support adjuster assembly | 72750-33140 · 72750-33150 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 · 72760-42030 |
| 73910A | Front right seat airbag assembly | 73910-16010 |
| 73920A | Front left seat airbag assembly | 73920-16010 |
| 739H0 | Front right seat center airbag assembly | 739H0-16011 · 739H0-16020 |
| 739J0 | Front left seat center airbag assembly | 739J0-16011 · 739J0-16020 |
| 76854C | Front seat cushion cover wire fixings | 76854-44010 |
| 79197 | Seat back cover hook | 79197-47010 |
| 79977A | Seat back felt pad | 79977-33030 |
| 79977B | Seat back frame felt pad | 79977-12090 |
| 82666M | Connector holder | 82666-47630 |
| 85801H | SOUS-ENS. SOUF., CLIMAT.COUSSIN SIEGE, DROIT | 85801-42080 |
| 85802B | SOUS-ENS. SOUF., CLIMAT.COUSSIN SIEGE, GAUCHE | 85801-42080 |
| 85867 | Right seat back temperature control blower | 85867-42040 |
| 87501A | Right seat heater control sub-assembly | 87501-33010 |
| 87501B | Left side seat heater control sub-assembly | 87501-33010 |
| 87510K | Front right seat cushion heater assembly | 87510-12330 · 87510-12361 · 87510-12371 · 87510-12390 · 87510-42270 |
| 87510L | Front left seat cushion heater assembly | 87510-12371 · 87510-12381 · 87510-12390 · 87510-12420 · 87510-42270 |
| 87510M | Front right seat back heater assembly | 87530-12090 · 87530-12110 · 87530-42060 |
| 87510N | Front left seat back heater assembly | 87530-12090 · 87530-12110 · 87530-42060 |
