Toyota COROLLA 前门锁和车门把手 — Figure 6703

Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 25 PNC and OE references.

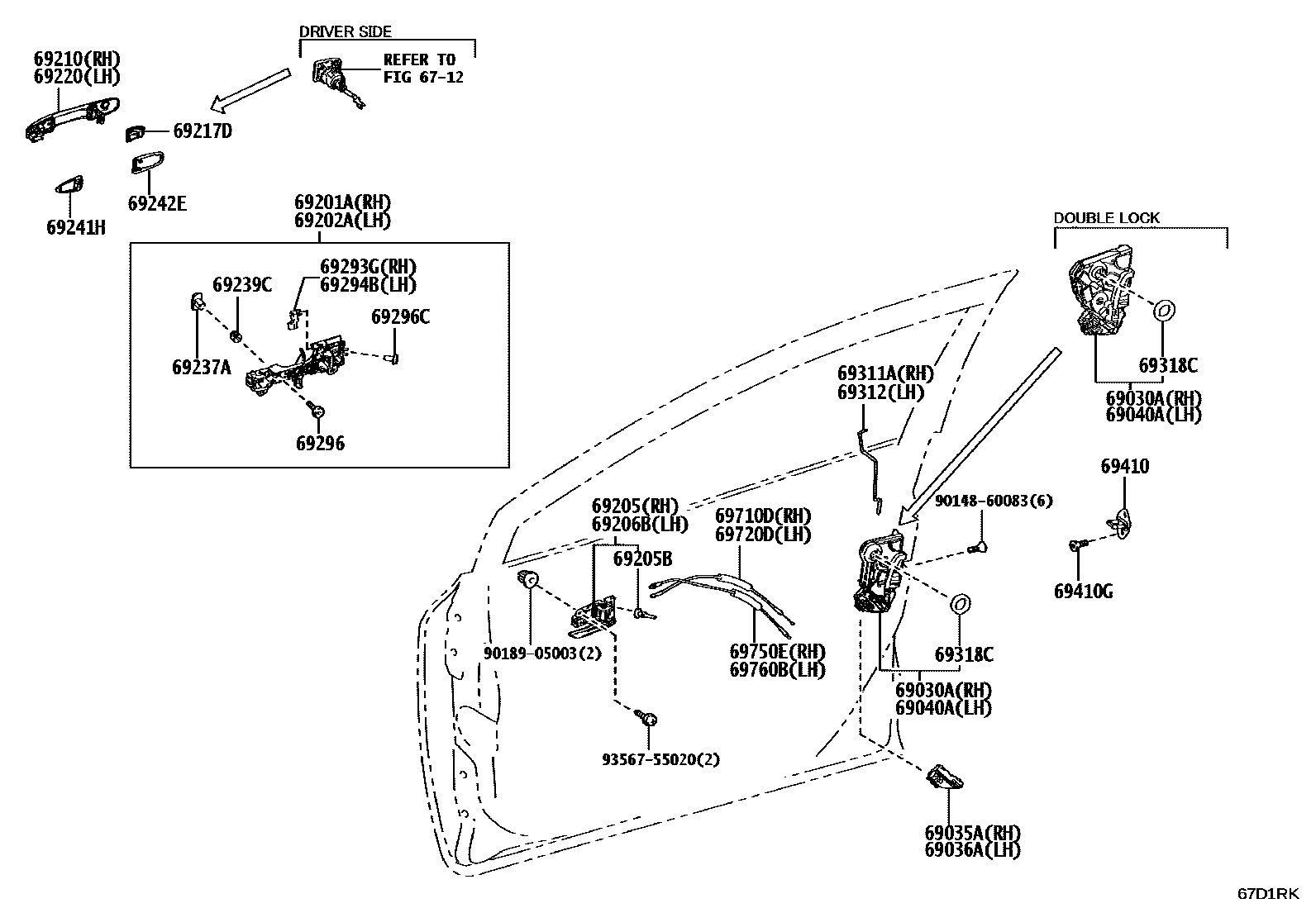

Toyota COROLLA 前门锁和车门把手 EPC diagram — 67D1RK
前门锁和车门把手 — 67D1RK (202505 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-30A70 · 69030-48110 · 69030-62010
69035ARight front door lock cover sub-assembly69035-30010
69036ALeft front door lock cover sub-assembly69036-30010
69040ALeft front door door lock assembly with motor69040-30A80 · 69040-48120 · 69040-53140
69201ARight front door outer handle frame sub-assembly69201-16030 · 69201-47070
69202ALeft front door outer handle frame sub-assembly69202-47040
69205BCushion pad (for inner front door handle)90541-04014
69217DFront door outer handle cover69217-47020
69237AFront door handle nut69237-62010
69239CFront door handle bushing69239-47010
69241HFront door exterior handle pad69241-47020
69242EFront door rear outer handle pad69242-47030
69293GRight front door outer handle buckle69293-12030
69294BLeft front door outer handle buckle69293-12040
69296Car door inner handle screws90148-50006
69296CCar door inner handle screws90148-50003 · 90148-50008
69311ARight front door lock opening lever69311-16050
69312Left front door lock opening lever69312-16050
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-20110
69410GFront door lock screw90148-80066
69710DRight front door lock remote control cable (for opening lever)69710-16030
69720DLeft front door lock remote control cable (for opening lever)69710-16030
69750ERight front door inner locking cable (for locking/unlocking handle)69750-16040
69760BLeft front door inner locking cable (for locking/unlocking handle)69750-16040
