Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 42 PNC and OE references.

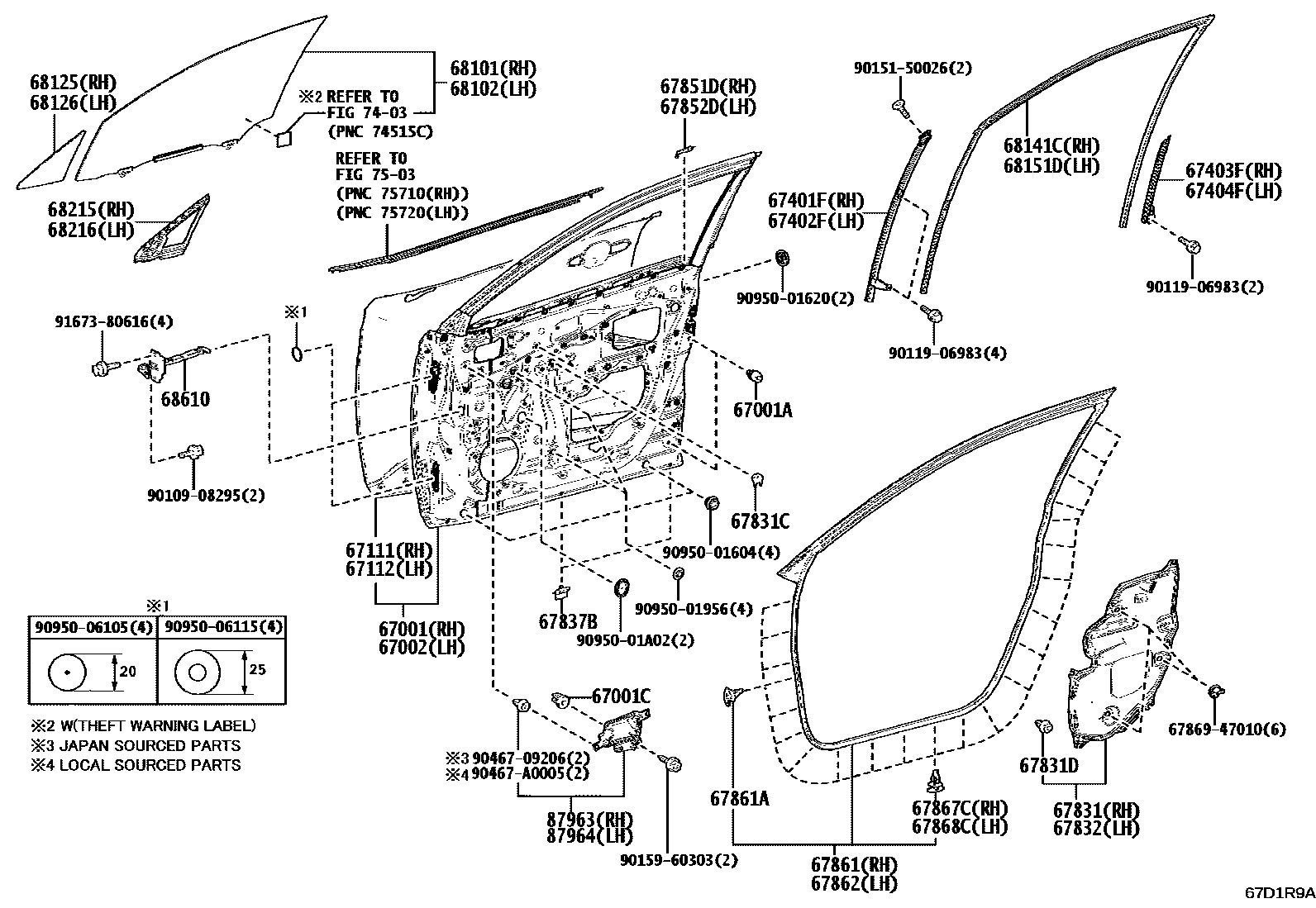

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 67D1R9A
前门板和前门玻璃 — 67D1R9A (202505 – 999999)

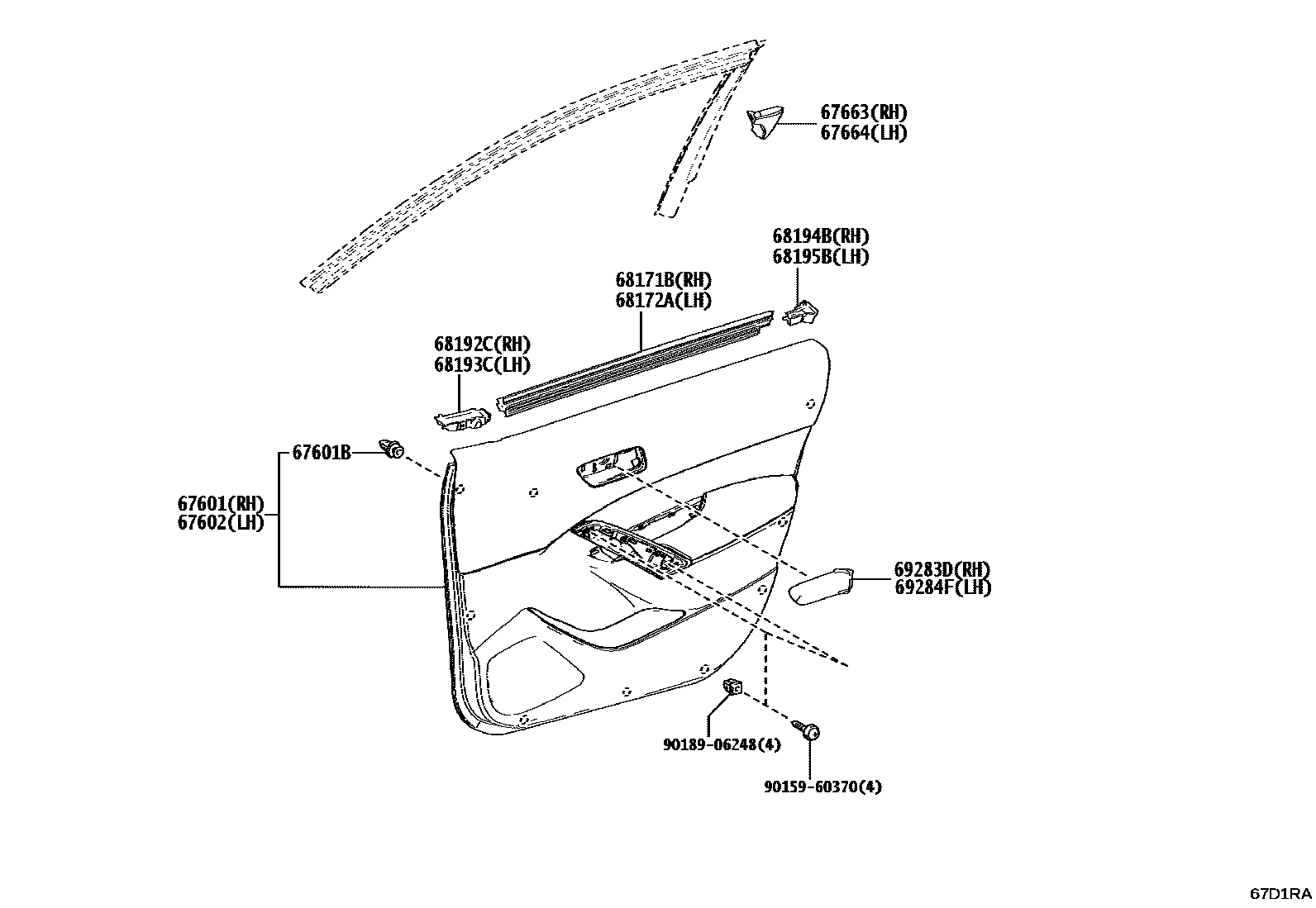

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 67D1RA
前门板和前门玻璃 — 67D1RA (202505 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-16680 · 67001-16690
67001AFront door panel cushion90541-09124 · 90541-09143
67001CSeals (for front door panels)90189-06227
67002Left front door panel sub-assembly67002-16610 · 67002-16620
67111Outer right front door panel67111-16240
67112Outer left front door panel67112-16250
67401FRight front door front lower door frame sub-assembly67401-16180
67402FLeft front door front lower door frame sub-assembly67402-16180
67403FRight front door rear lower door frame sub-assembly67403-16190 · 67403-16200
67404FLeft front door rear lower door frame sub-assembly67404-16190
67601BCatch (for front door trim panel)90467-09206
67663Decorative strip on right door frame67663-16010
67664Decorative strip on left door frame67664-16010
67831Right front door access hole cover67831-16441
67831CFront door access hole cover67833-47010
67831DCatch (for front door access hole cover)90467-09206
67832Left front door access hole cover67832-16281
67837BFront door dust seal retainer67837-47060
67851DRight front door rear outer seal67851-16010
67852DLeft front door rear outer seal67852-16010
67861Right front door seal67861-16330 · 67861-16340
67861AFixing piece (for front door sealing strip)67867-52040
67862Left front door seal67862-16330 · 67862-16340
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68101-16010 · 68101-16050
68102Left front door glass sub-assembly68102-16010 · 68102-16050
68125Right front door fixed window glass68125-16010
68126Left front door fixed window glass68126-16010
68141CRight front door glass lift channel68141-16260
68151DLeft front door glass lift channel68151-16090
68171BRight front door glass inner sealing strip68171-16230
68172ALeft front door glass inner sealing strip68172-16250
68192CRight front door beltline front seal68192-16020
68193CLeft front door beltline front seal68193-16010
68194BRight front door beltline rear seal68194-16020
68195BLeft front door beltline rear seal68195-16010
68215Right front door fixed window seal68215-16010
68216Left front door fixed window seal68216-16010
68610Front door opening limiter assembly68610-16100
87963Right exterior rearview mirror mounting hole cover87963-16010
87964Left exterior rearview mirror mounting hole cover87964-16010
