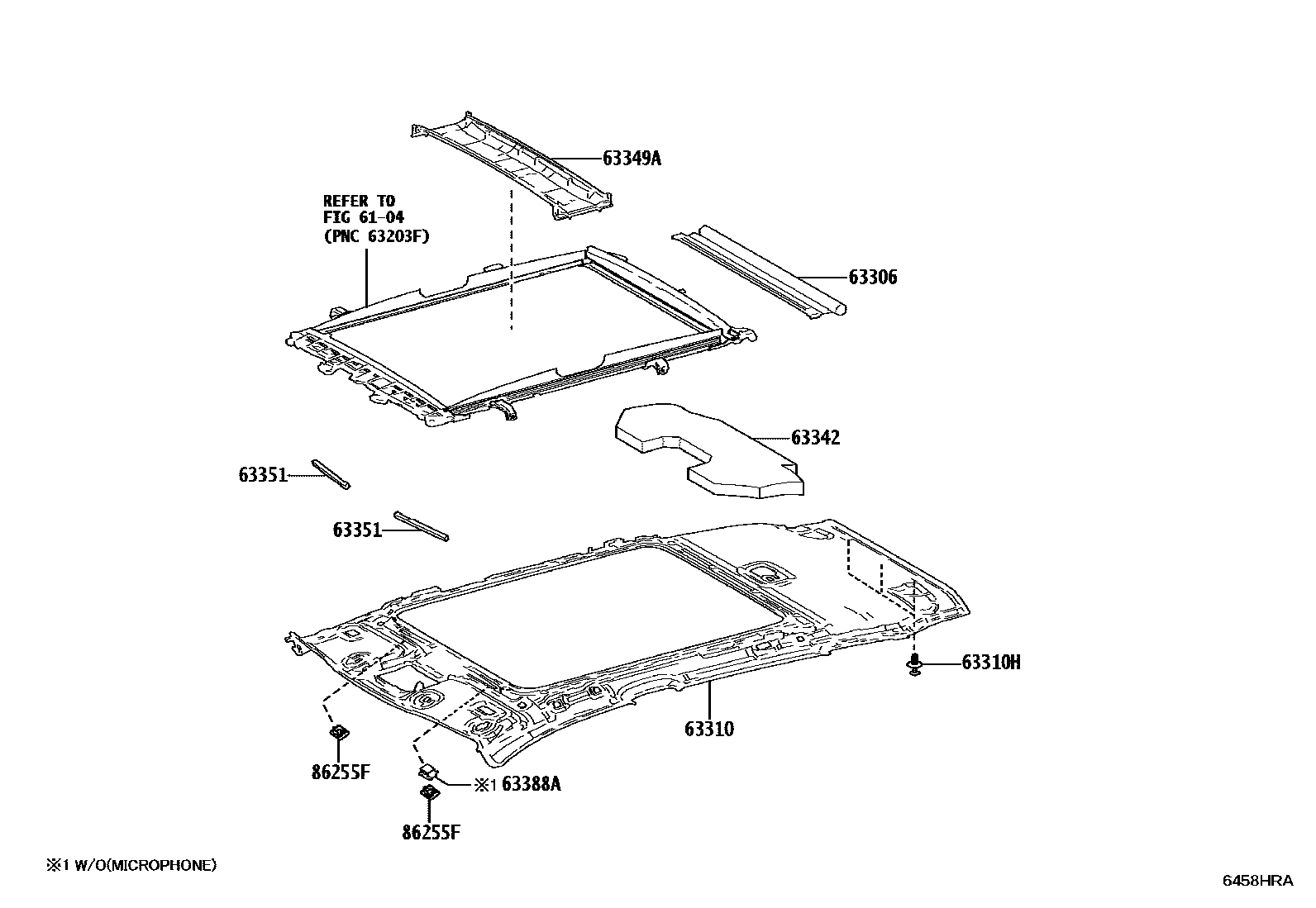

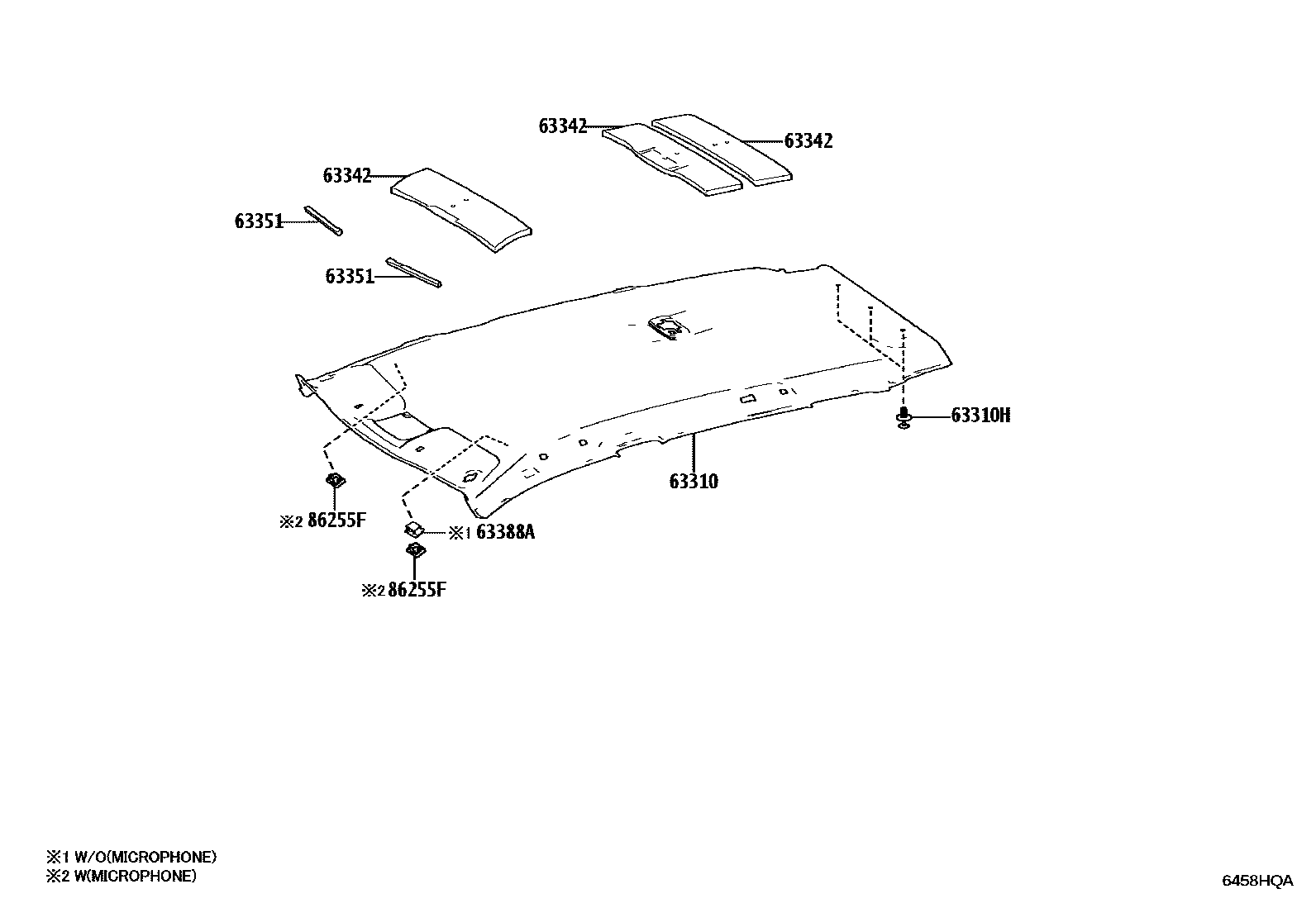

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63342 | No. 2 roof muffler pad | 63342-16030 · 63342-16040 |
| 63349A | Rear headliner trim | 63349-16010 |
| 63351 | Roof side silencers | 63351-16030 |
| 63388A | headliner fixing cover | 63388-52030 |
