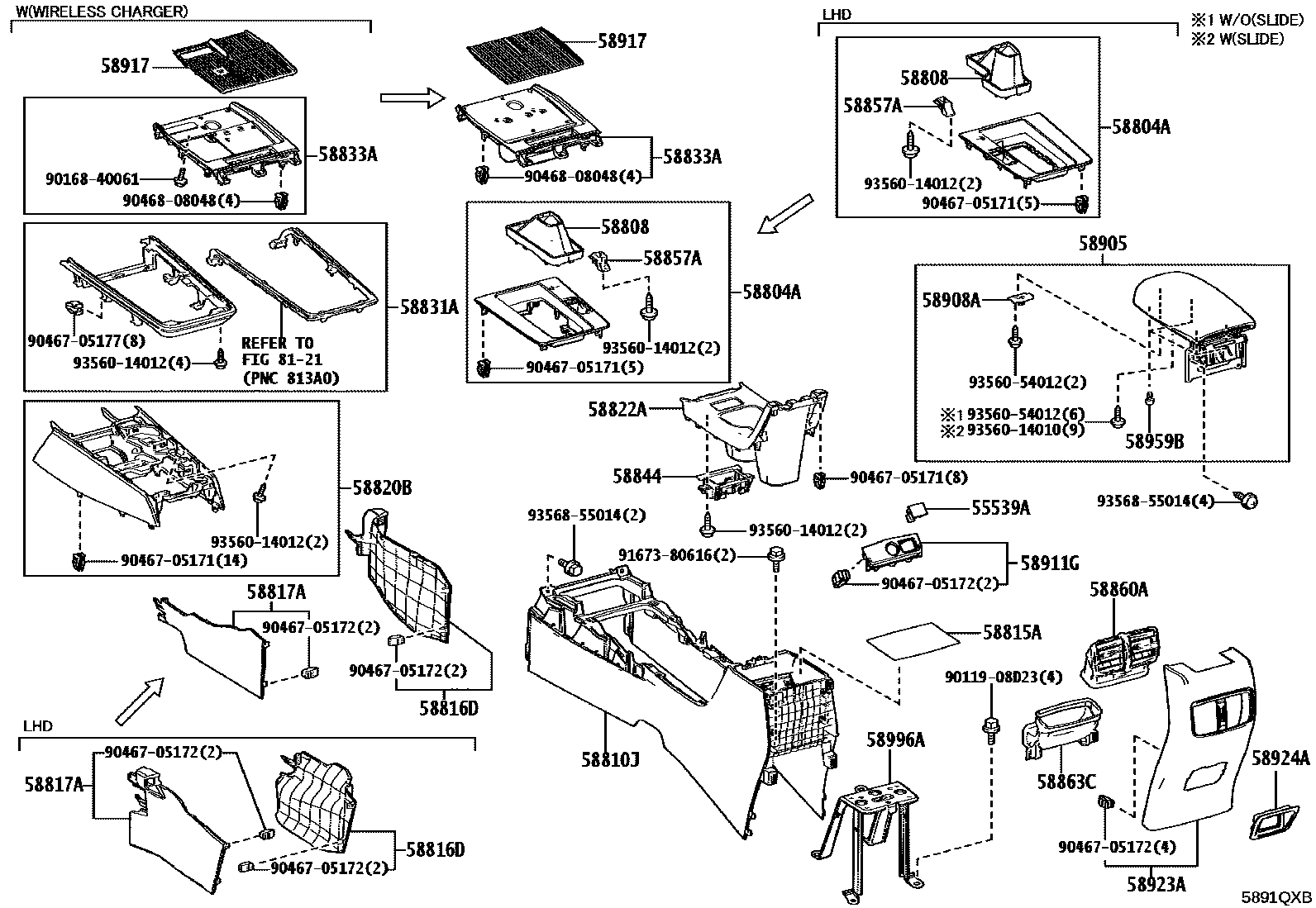

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815A | Armrest box felt pad | 58815-12240 |
| 58831A | Front armrest box upper panel decorative parts | 58831-16060 · 58831-16070 |
| 58833A | Armrest box upper cover | 58833-16050 · 58833-16060 |
| 58844 | armrest box frame | 58844-16030 |
| 58857A | Armrest box No. 1 upper bracket | 58857-16010 · 58857-16020 |
| 58860A | Armrest box air regulator assembly | 58860-16010 |
| 58863C | Armrest box No. 3 air duct | 58863-12040 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58917 | Armrest box bottom pad No. 2 | 58917-16030 · 58917-16040 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-16080 |
