Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 3 PNC and OE references.

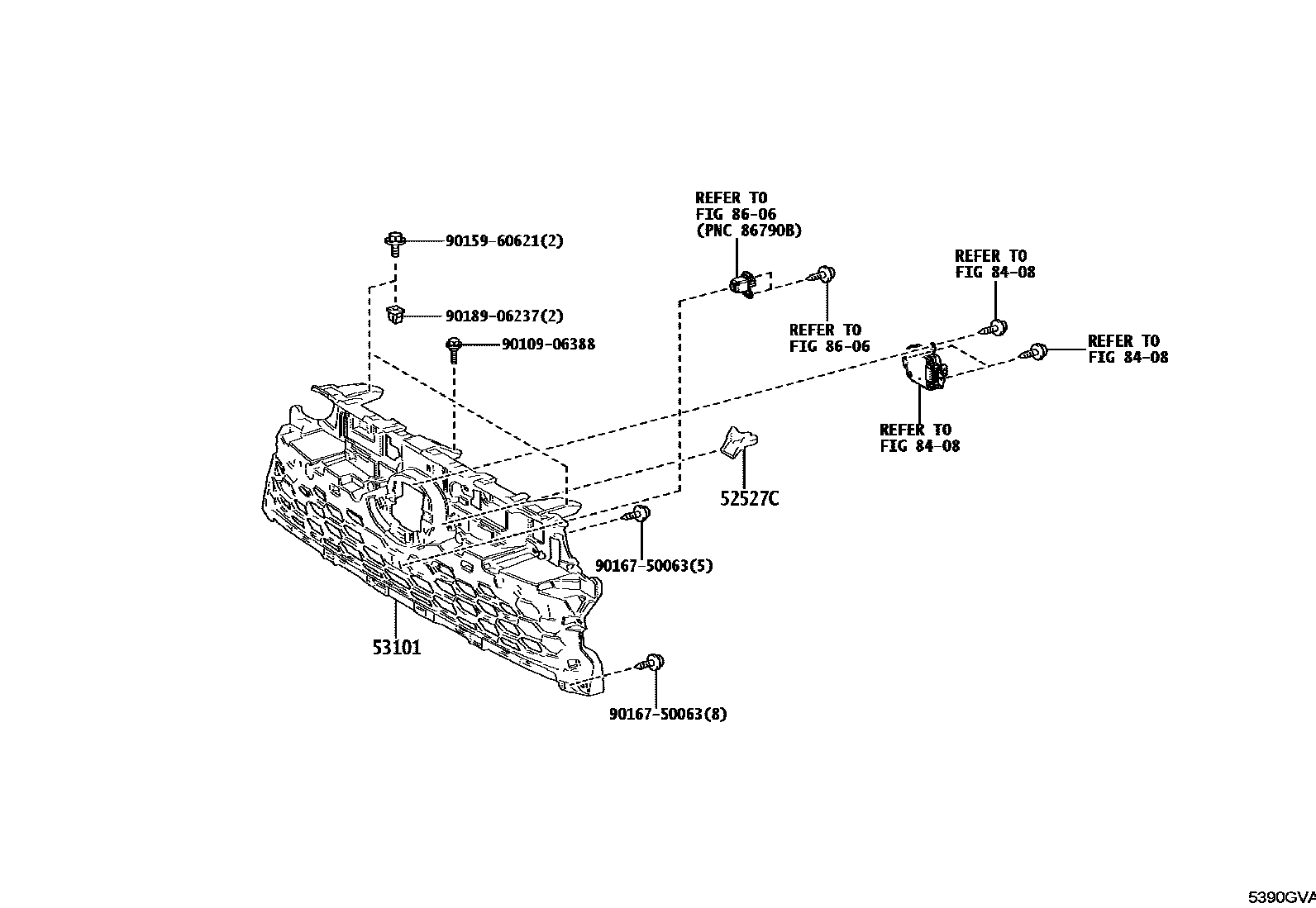

Toyota COROLLA radiator grille EPC diagram — 5390GVA
radiator grille — 5390GVA (202505 – 999999)

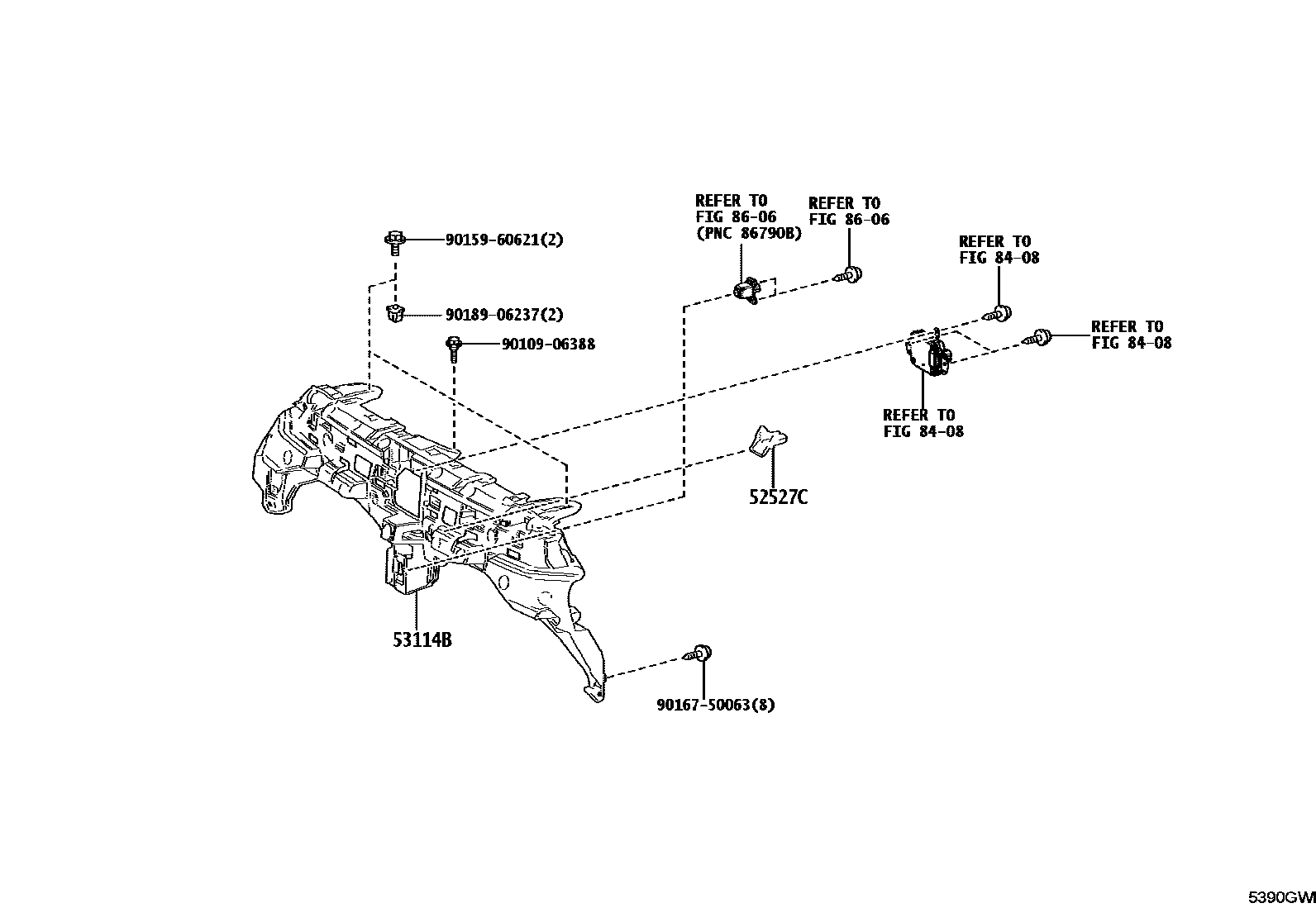

Toyota COROLLA radiator grille EPC diagram — 5390GWB
radiator grille — 5390GWB (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
52527CFront bumper No. 2 lower fixing bracket52527-12060
53101Radiator grille sub-assembly53101-16140 · 53101-16150
53114BUpper radiator grille53114-16100
