Toyota COROLLA 前保险杠及附件 — Figure 5201

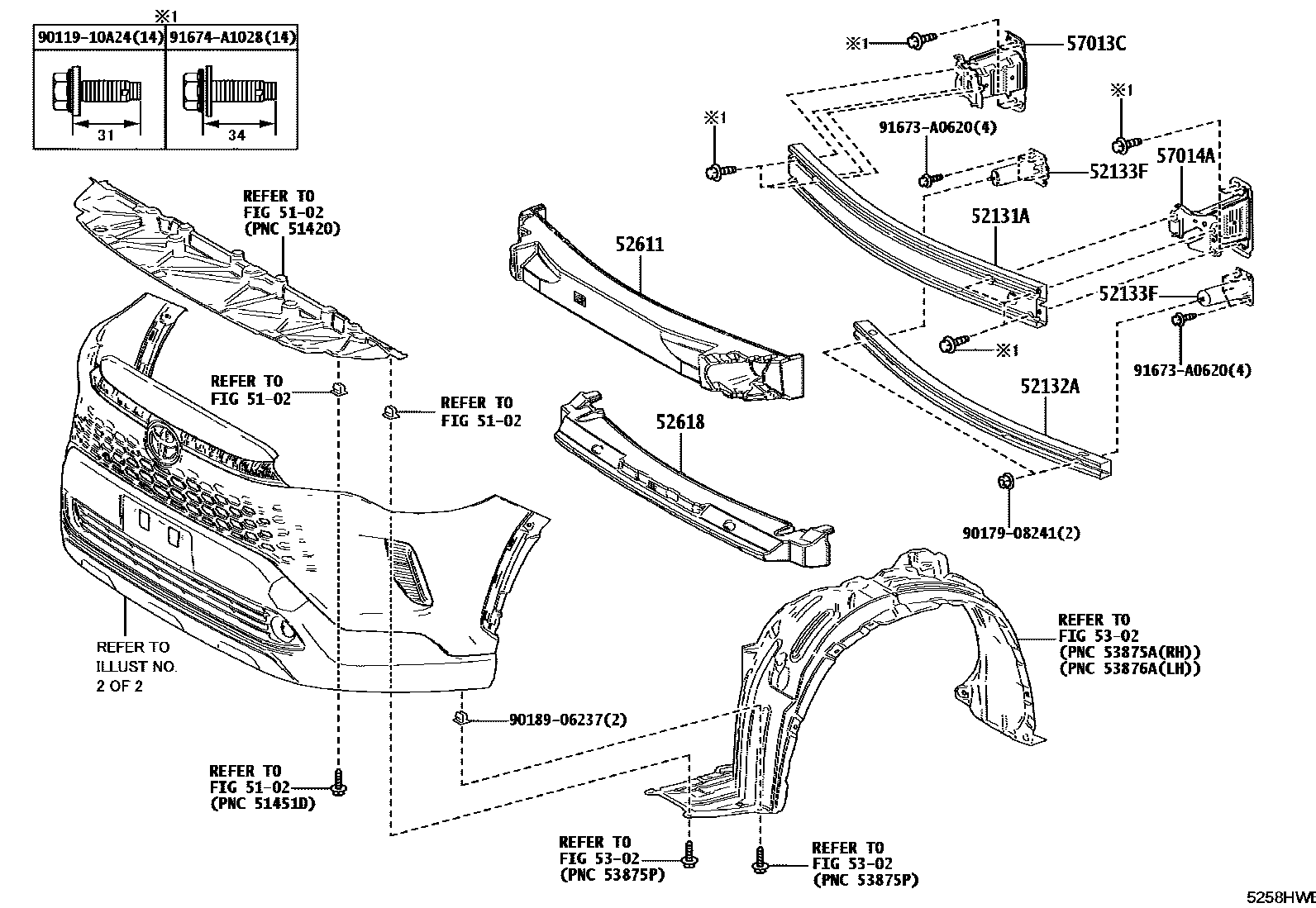

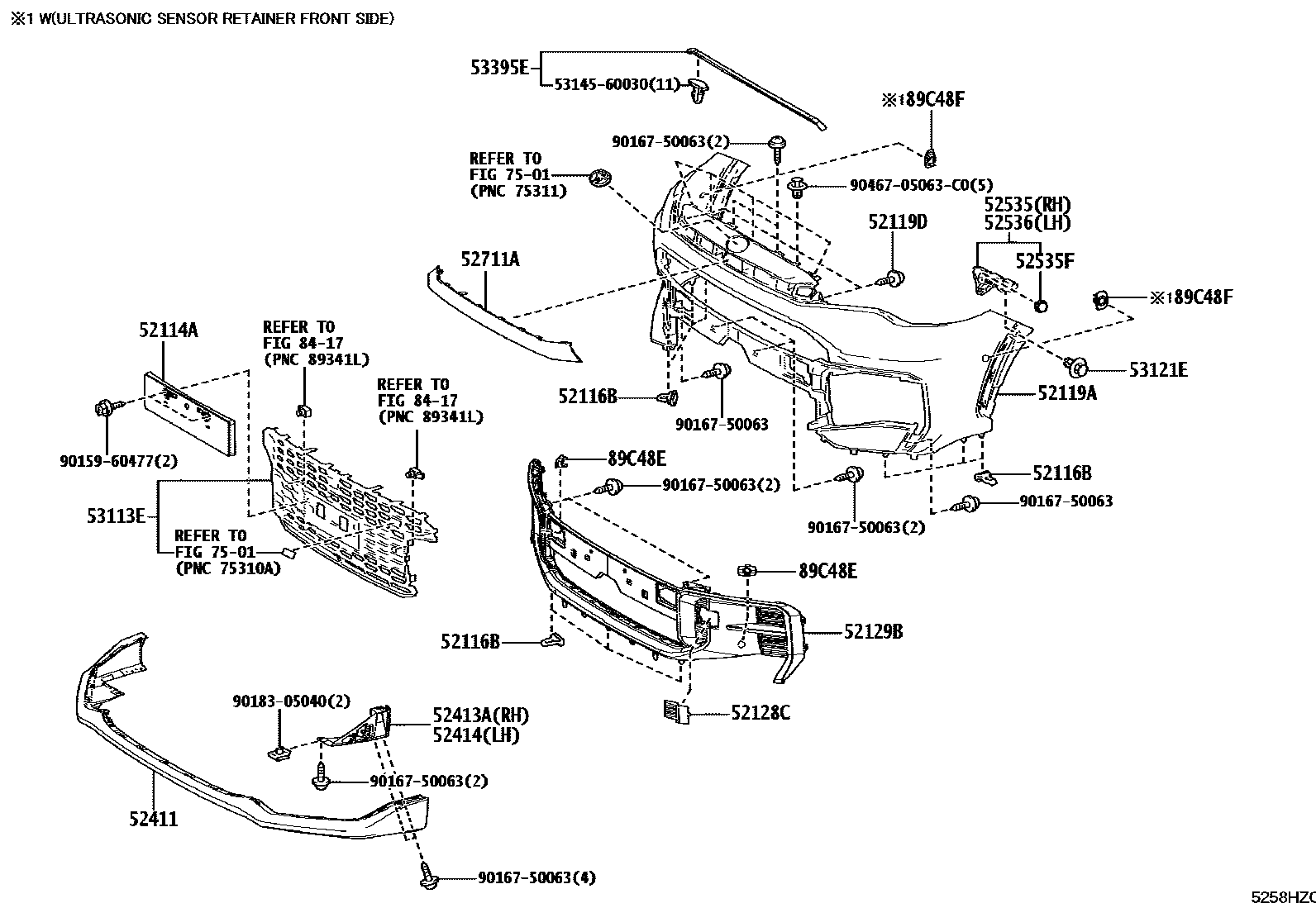

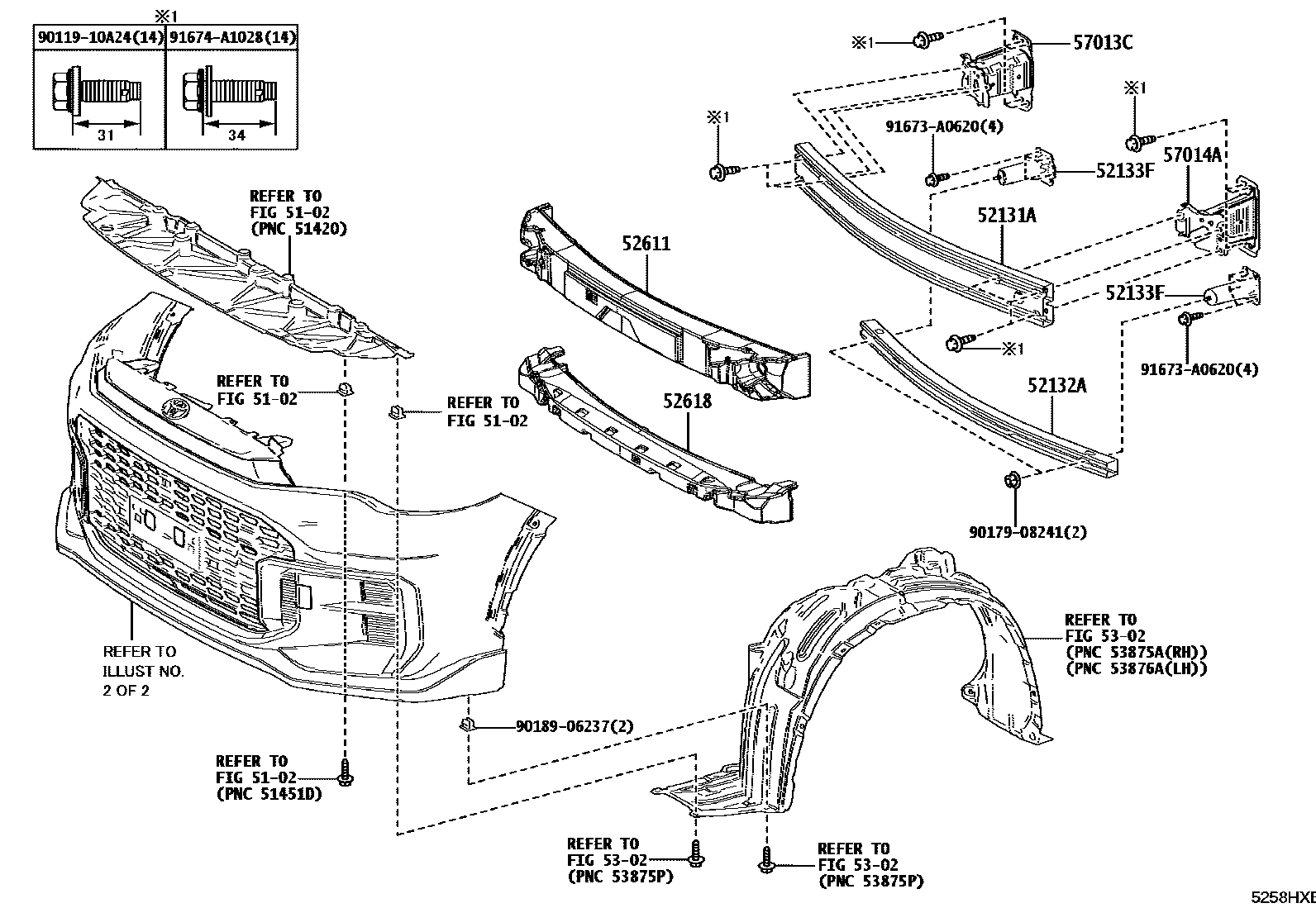

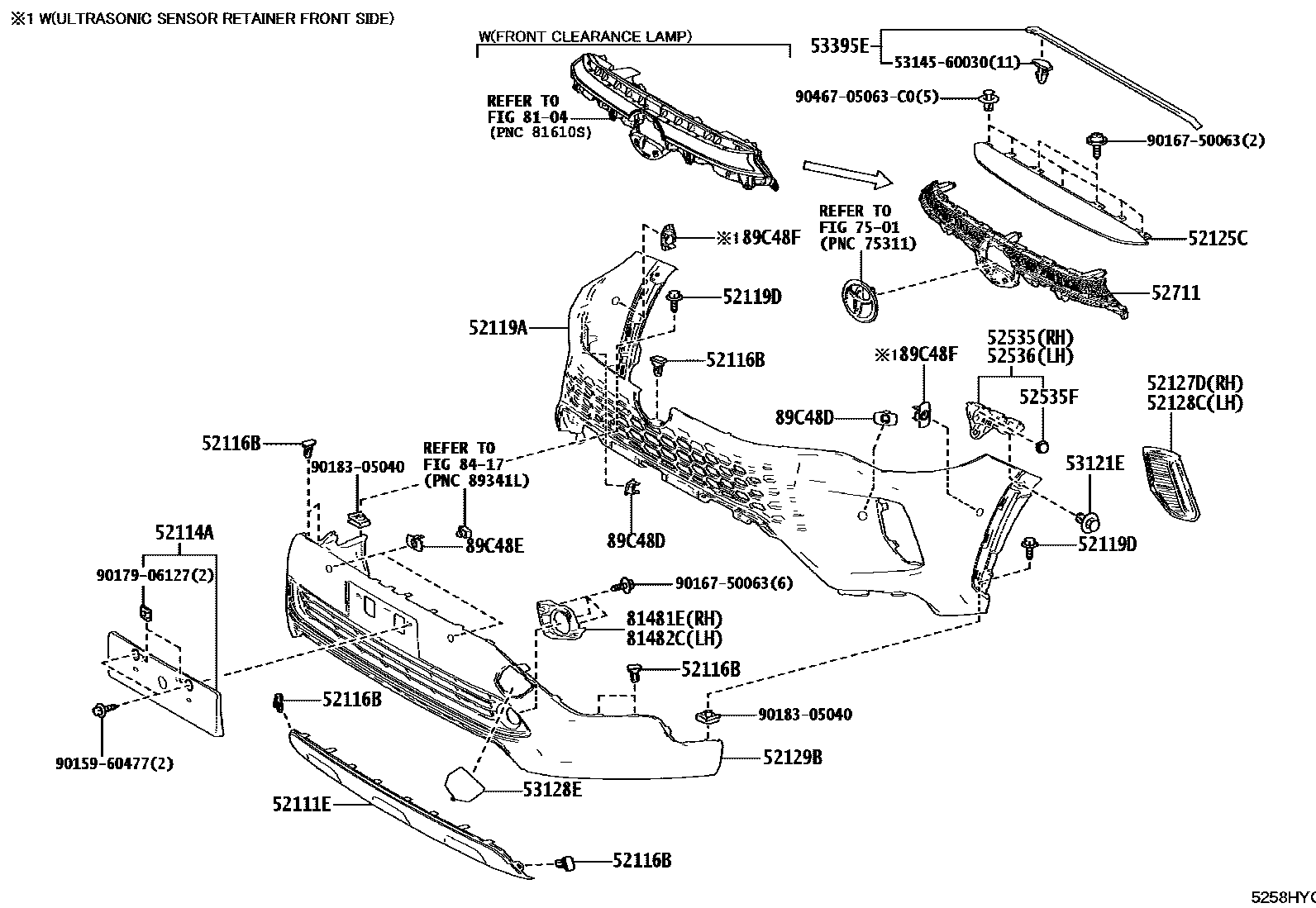

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111E | front bumper stay | 52111-16903 |
| 52114A | Front bumper extension mounting bracket | 52114-16020 · 52114-16030 |
| 52116B | front bumper fixings | 75392-35220 |
| 52119A | front bumper cover | 52119-16934 · 52119-16935 · 52119-16936 · 52119-16937 · 52119-16938 |
| 52119D | Screw No. 1 | 90167-50063 |
| 52125C | Front bumper reinforcement extension | 5212A-16900 |
| 52127D | Front bumper right hole cover | 52127-16090 |
| 52128C | Front bumper left hole cover | 52128-16040 · 52128-16090 |
| 52129B | Front bumper lower cover | 52129-16050 · 52129-16060 · 52129-16080 · 52129-16090 |
| 52131A | Front bumper reinforcement | 52131-16110 |
| 52132A | No. 2 front bumper reinforcement | 52132-12151 |
| 52133F | Front bumper right side bracket | 52133-12190 |
| 52411 | Front bumper anti-collision bar | 52411-16040 |
| 52413A | Front bumper right bumper pad | 52413-16010 |
| 52414 | Front bumper left bumper pad | 52414-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-16050 |
| 52535F | Front bumper side fixing clip | 90467-09237 |
| 52536 | Front bumper left fixed bracket | 52536-16040 |
| 52611 | front bumper energy absorber | 52611-16070 · 52611-16080 |
| 52618 | Front bumper lower shock absorber | 52618-16010 · 52618-16020 |
| 52711 | Front bumper protection strip | 52711-16050 · 52711-16060 |
| 52711A | front bumper decorative panel | 52711-16070 |
| 53113E | No. 2 radiator lower grille | 53102-16010 · 53102-16020 · 53102-16030 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-07220 |
| 53128E | Lower left radiator grille | 53128-16020 |
| 53395E | Engine cover to front end plate seal | 53395-16020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-16010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-16010 |
| 81481E | Right fog light cover | 81481-16040 · 81481-16050 |
| 81482C | Left fog light cover | 81482-16040 · 81482-16050 |
| 89C48E | Front central ultrasonic sensor holder | 89348-K0231 |
