Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707

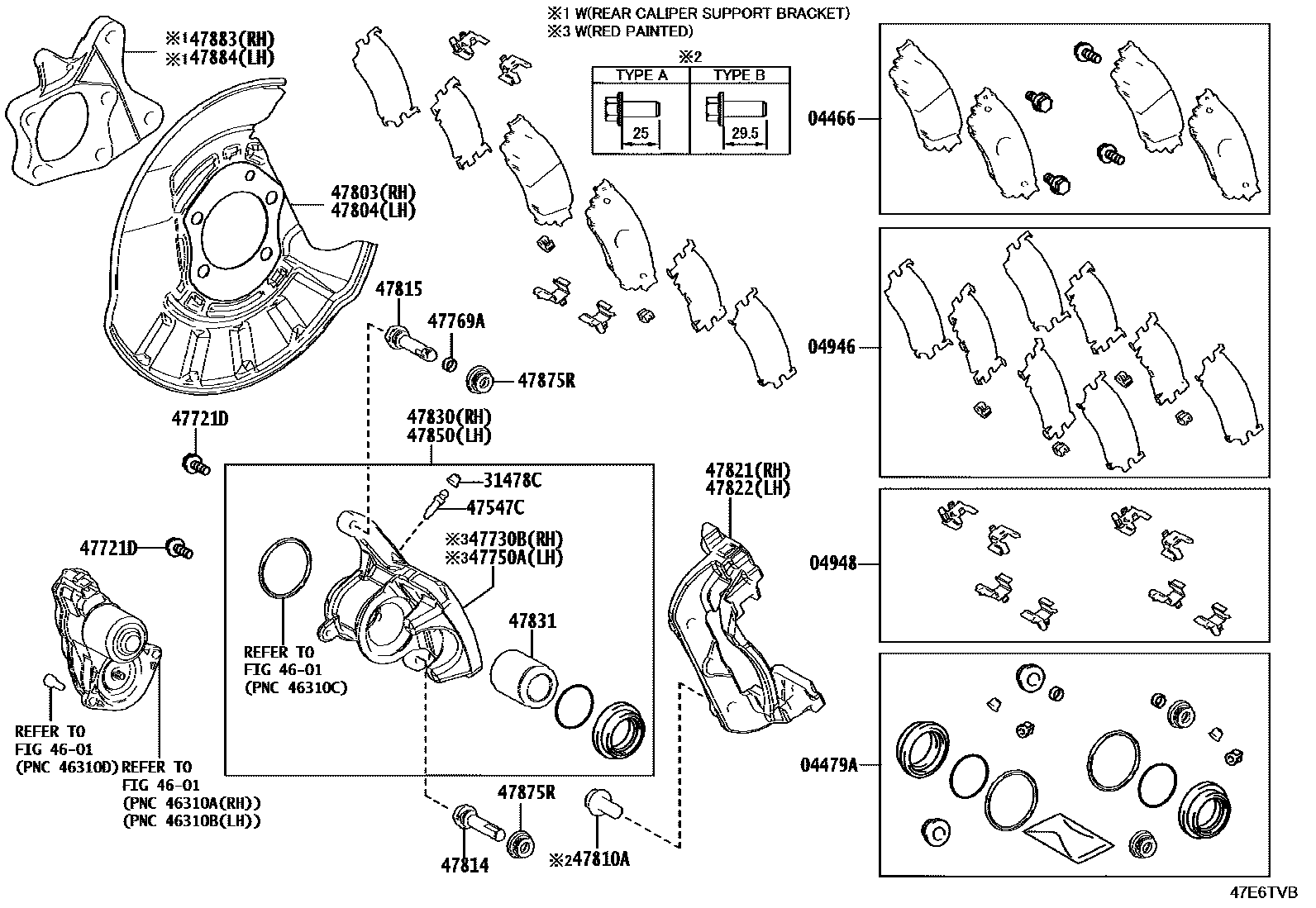

Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-42080 |
| 04479A | Rear disc brake cylinder assembly | 04479-42100 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-33090 |
| 04948 | Rear disc brake mounting assembly | 04948-12071 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90015-AA603 |
| 47730B | Right rear disc brake cylinder assembly | 47813-42140 |
| 47750A | Left rear disc brake cylinder assembly | 47823-42130 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-50010 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-16020 · 47803-33010 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-16020 · 47804-33010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12174 · 90105-12208 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-78010 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-78010 |
| 47821 | Right rear disc brake cylinder retainer | 47821-10030 · 47821-42140 |
| 47822 | Left rear disc brake cylinder retainer | 47822-10030 · 47822-42130 |
| 47830 | Right rear disc brake cylinder assembly | 47830-42090 · 47830-42140 |
| 47831 | rear disc brake piston | 47831-48130 |
| 47850 | Left rear disc brake cylinder assembly | 47850-42080 · 47850-42130 |
| 47875R | Bushing boot (for rear disc brake) | 47875-33270 |
| 47883 | Right rear brake caliper bracket | 47883-16020 |
| 47884 | Left rear brake caliper bracket | 47884-16020 |
