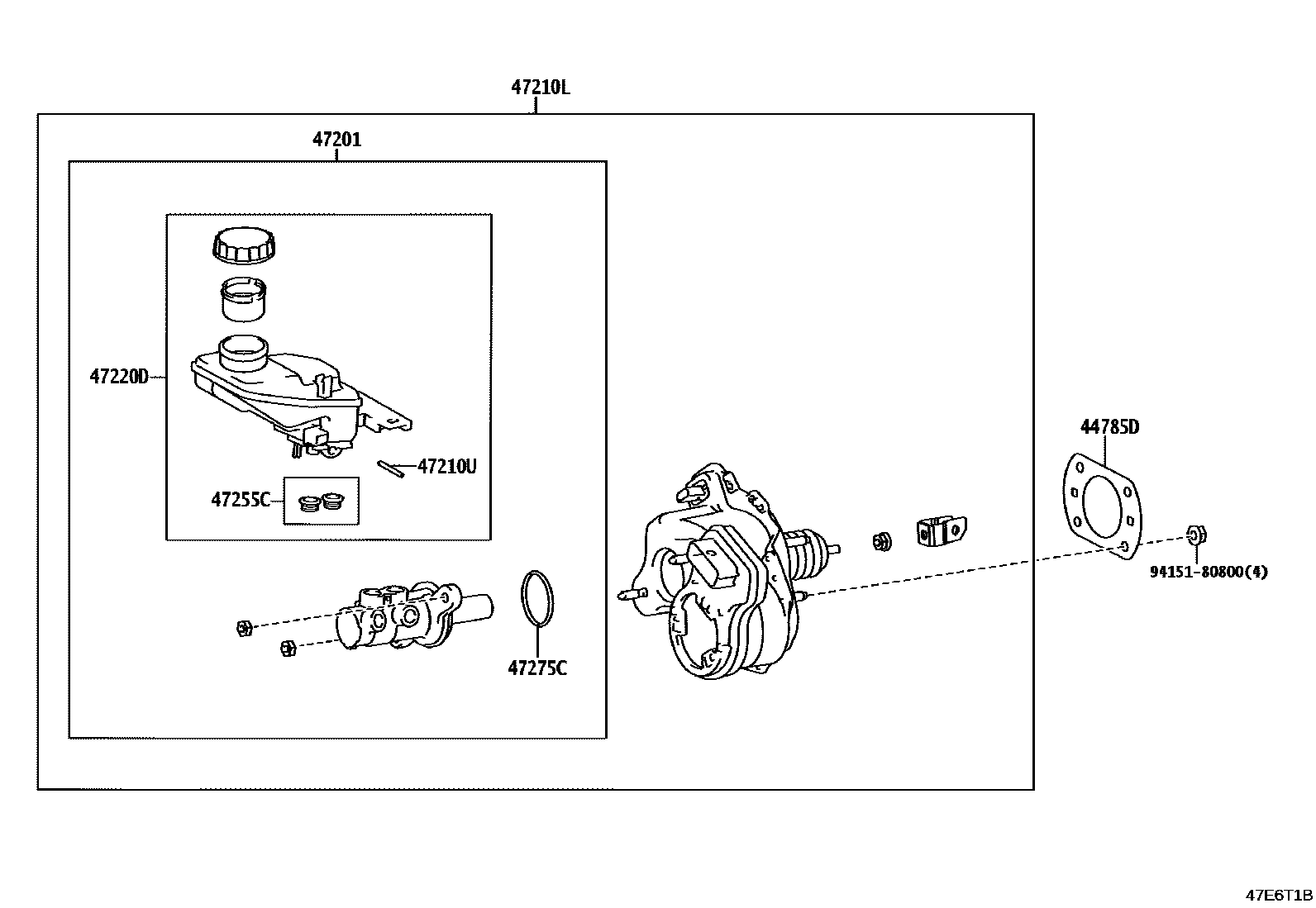

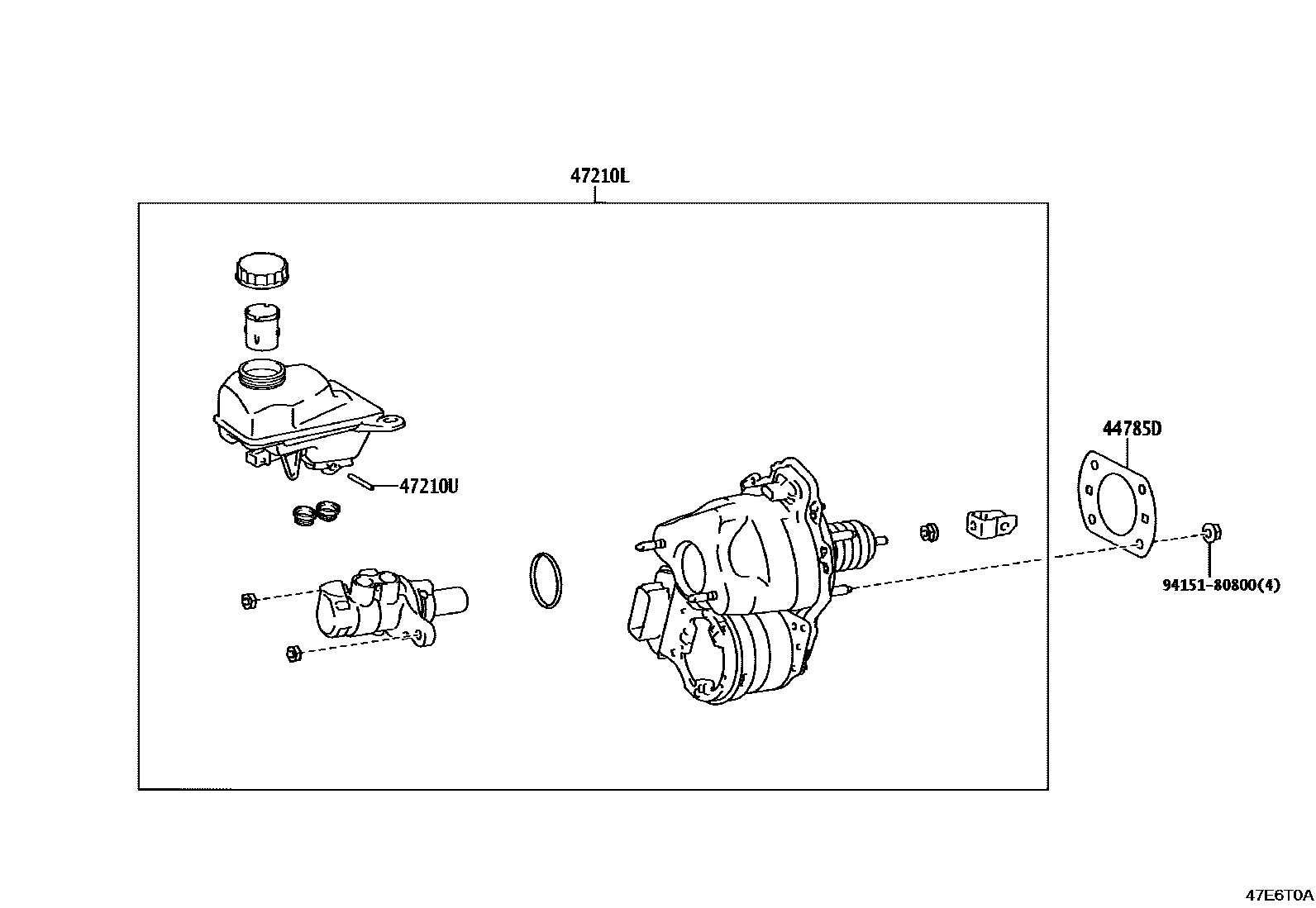

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785D | brake master cylinder gasket | 44785-12050 |
| 47201 | Brake master cylinder sub-assembly | 47201-19115 |
| 47210L | Brake booster assembly with master cylinder | 47210-16130 · 47210-16140 · 47210-16160 |
| 47210U | Direct sales (for brake master cylinder) | 90069-35007 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-19015 |
| 47255C | JEU OEILLET, RESERVOIR | 47255-09040 |
| 47275C | JEU REVISION, MAITRE CYLINDRE | 47275-09010 |
