Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

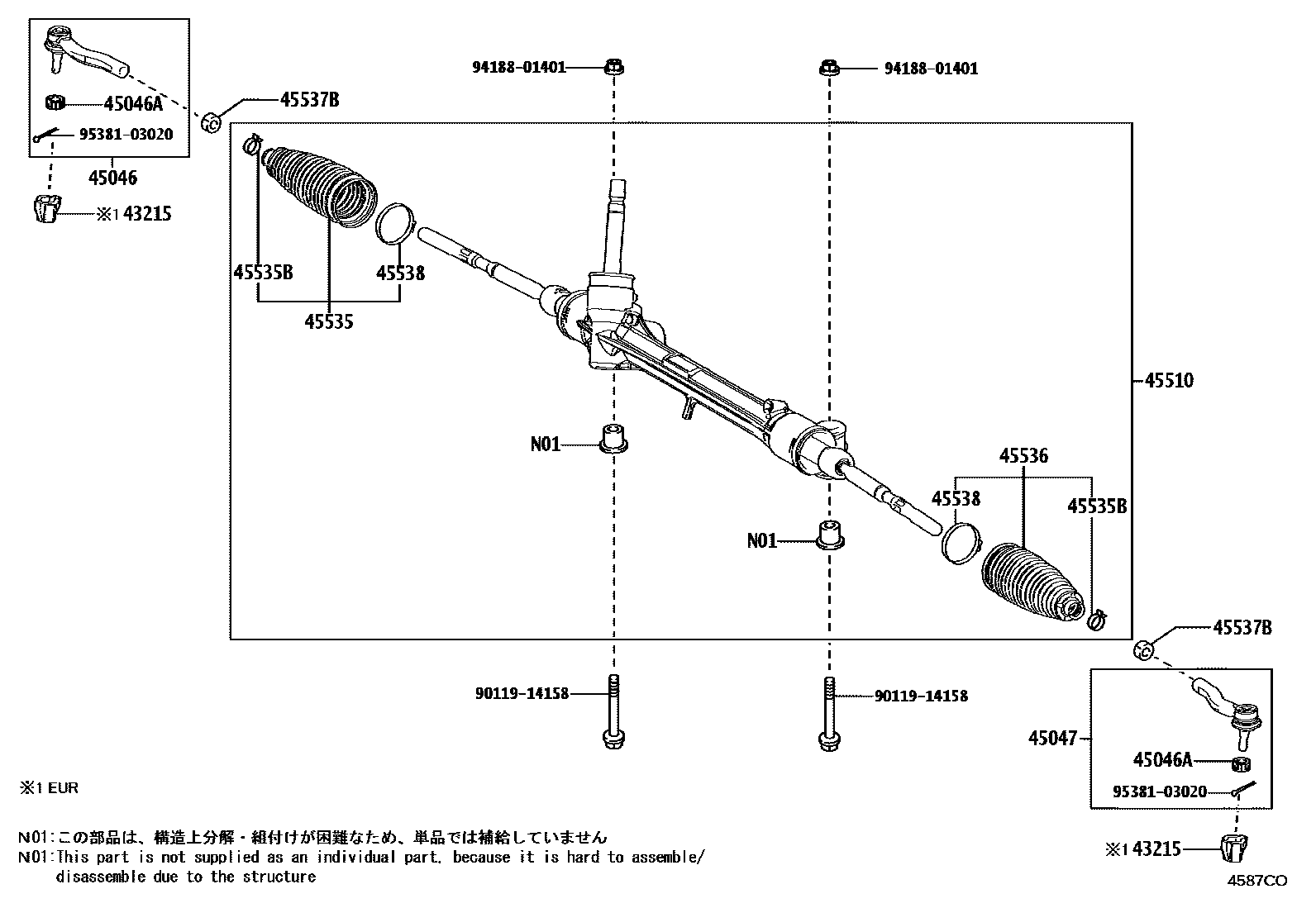

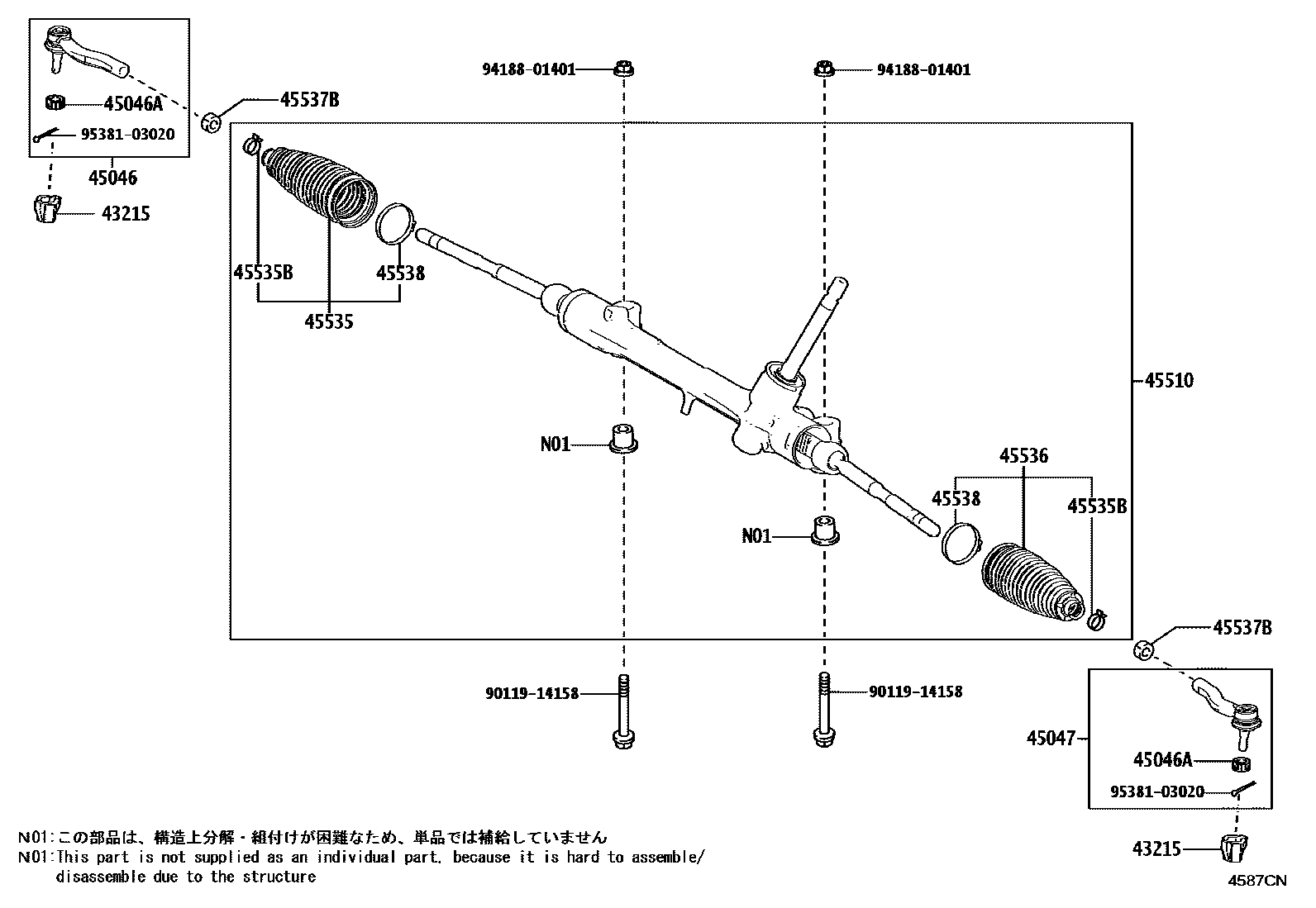

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43215 | Steering knuckle oil seal | 43215-12010 |
| 45046 | Right tie rod end sub-assembly | 45046-49255 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-49195 |
| 45510 | Steering gear assembly | 45510-16140 · 45510-16200 |
| 45535 | No. 1 steering rack dust cover | 45535-19025 |
| 45535B | Clamp (for steering rack dust boot) | 45537-42020 |
| 45536 | No. 2 steering rack dust cover | 45535-19025 |
| 45537B | Rack end lock nut | 90178-16001 |
| 45538 | Steering rack dust boot fixing | 45538-42010 |
