Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 26 PNC and OE references.

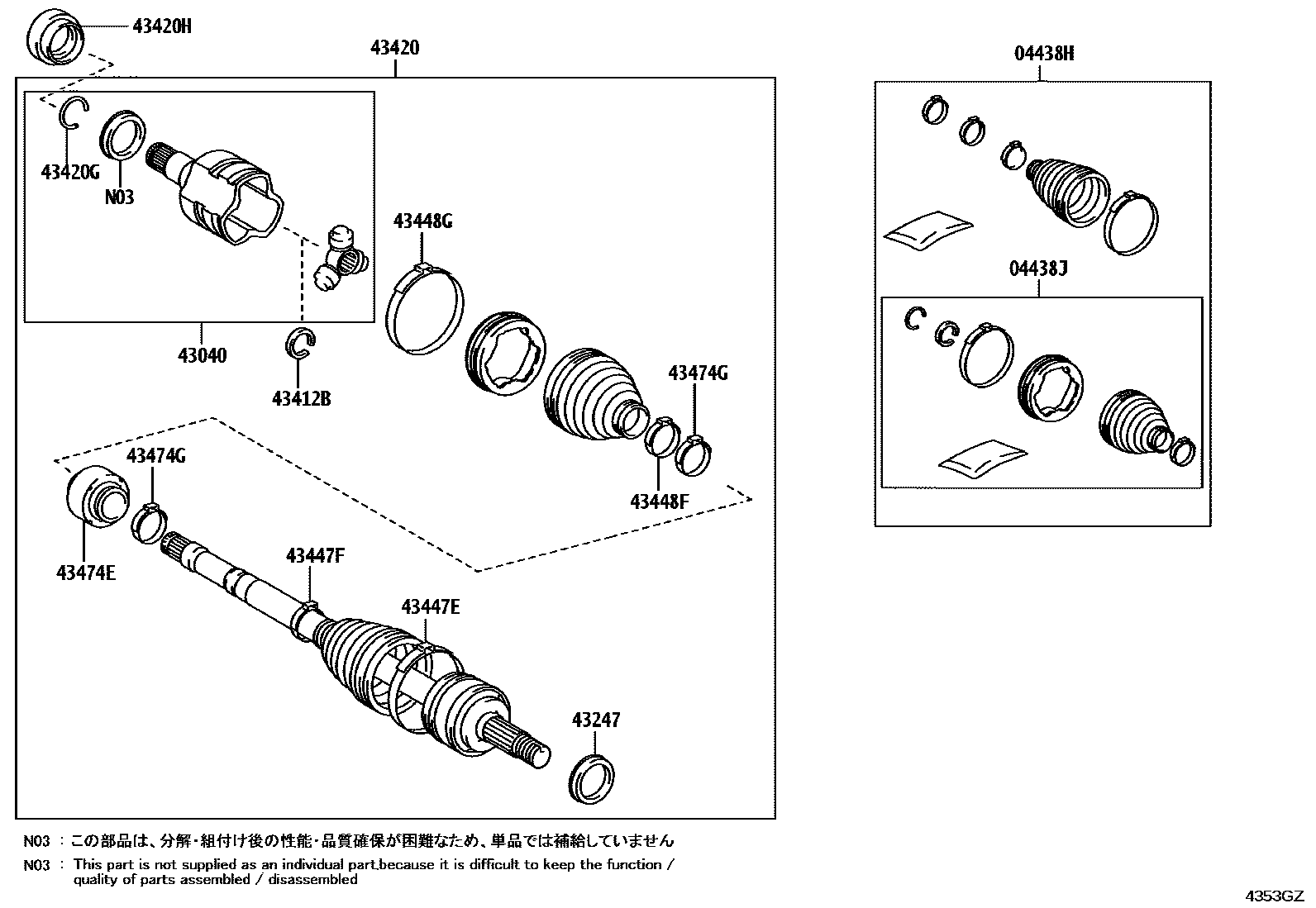

Toyota COROLLA Front Drive Shaft EPC diagram — 4353GZ
Front Drive Shaft — 4353GZ (202505 – 999999)

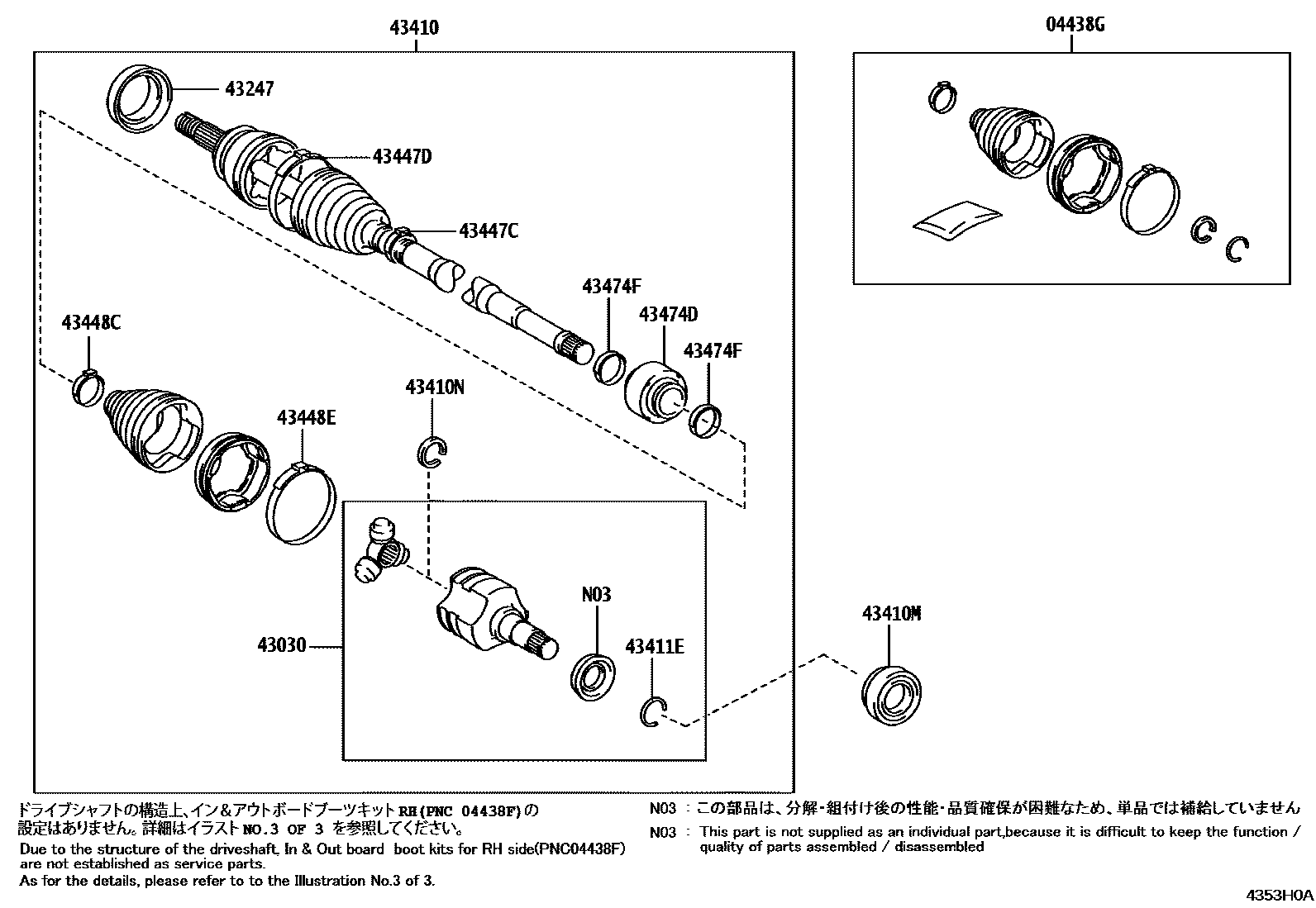

Toyota COROLLA Front Drive Shaft EPC diagram — 4353H0A
Front Drive Shaft — 4353H0A (202505 – 999999)

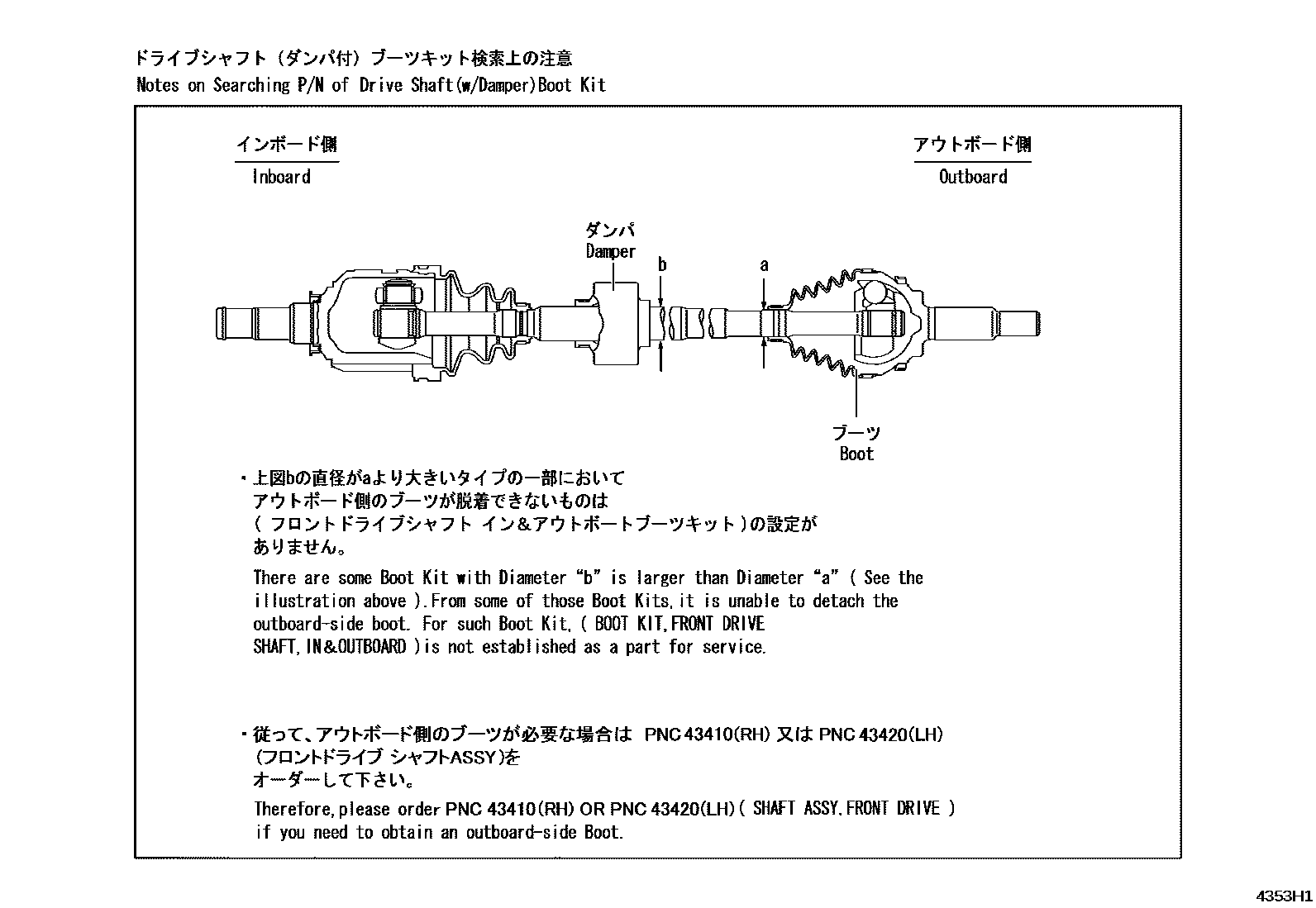

Toyota COROLLA Front Drive Shaft EPC diagram — 4353H1
Front Drive Shaft — 4353H1 (202505 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438GRight front drive shaft inner universal joint dust boot assembly04437-47033
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-10021
04438JLeft front drive shaft inner universal joint dust boot assembly04438-10120
43030Right front drive shaft inner universal joint assembly43040-12160
43040Left front drive shaft inner universal joint assembly43040-12170
43247No. 2 front wheel bearing dust cover43247-47010
43410Right front driveshaft assembly43410-76020
43410MFront drive shaft right oil seal90311-40051
43410NHole snap ring (for right front driveshaft)90521-33002
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-12070
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-12070
43420Left front drive shaft assembly43420-16340 · 43420-76020
43420GHole snap ring (for left front driveshaft)90521-33002
43420HFront drive shaft left oil seal90311-50062
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-12230
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-12240
43447EClamp (for left front axle outer universal joint dust cover)42345-12240
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-12230
43448CClamp (for the universal joint dust cover inside the right front axle)42345-12230
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-12180
43448FClamp (for left front axle inner universal joint dust cover)42345-12230
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-12180
43474DRight front driveshaft shock absorber43474-47020
43474ELeft front driveshaft shock absorber43474-12160 · 43474-47040
43474FClamp (for right front driveshaft shock absorber)42345-12100
43474GClamp (for left front driveshaft shock absorber)42345-12090
