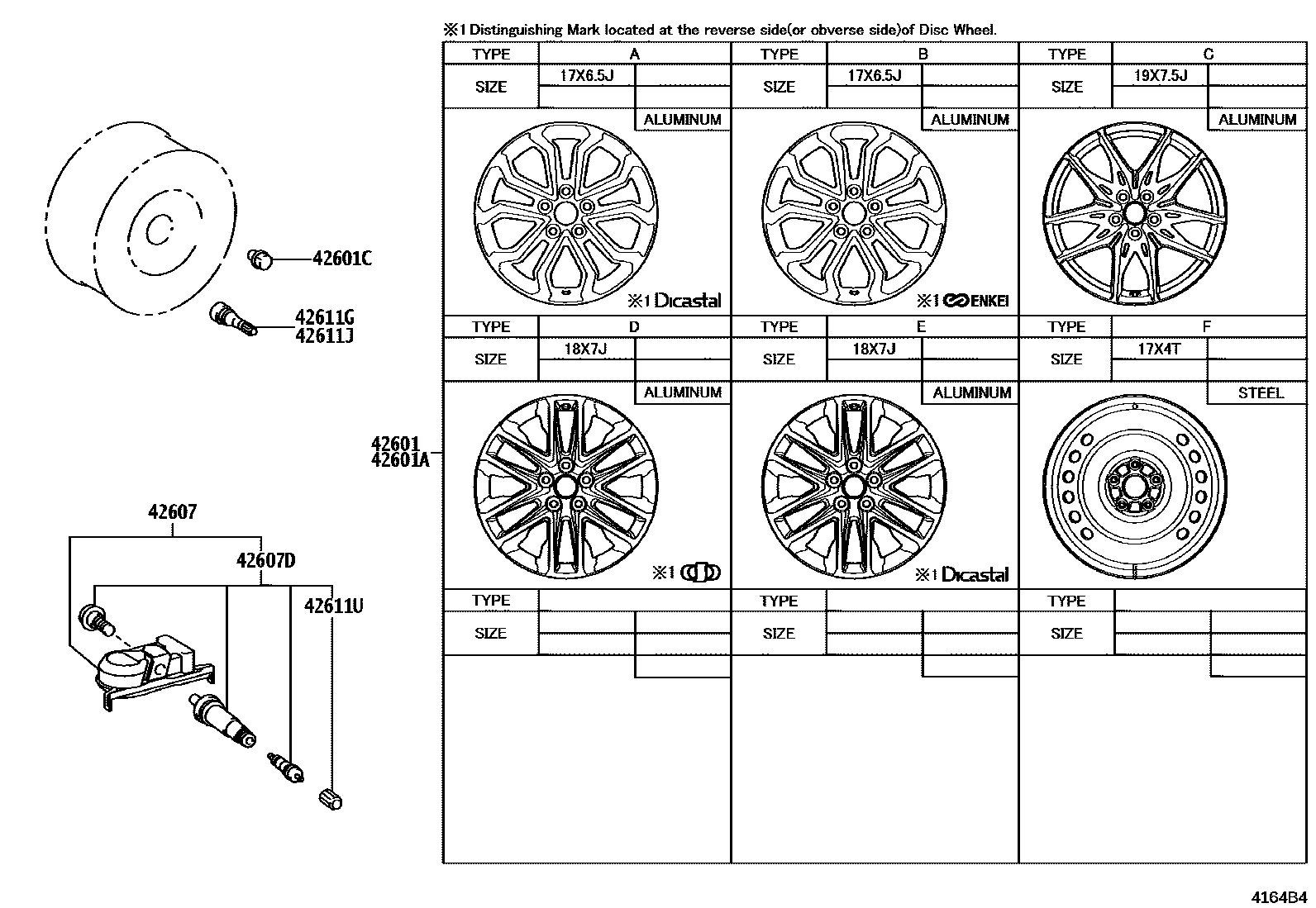

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-16530 · 42611-16550 · 42611-16570 · 42611-16580 · 42611-16590 · 42611-16610 · 42611-16620 · 42611-16630 |
| 42601A | Spoke wheel (for spare tire) | 4261B-42010 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01115 |

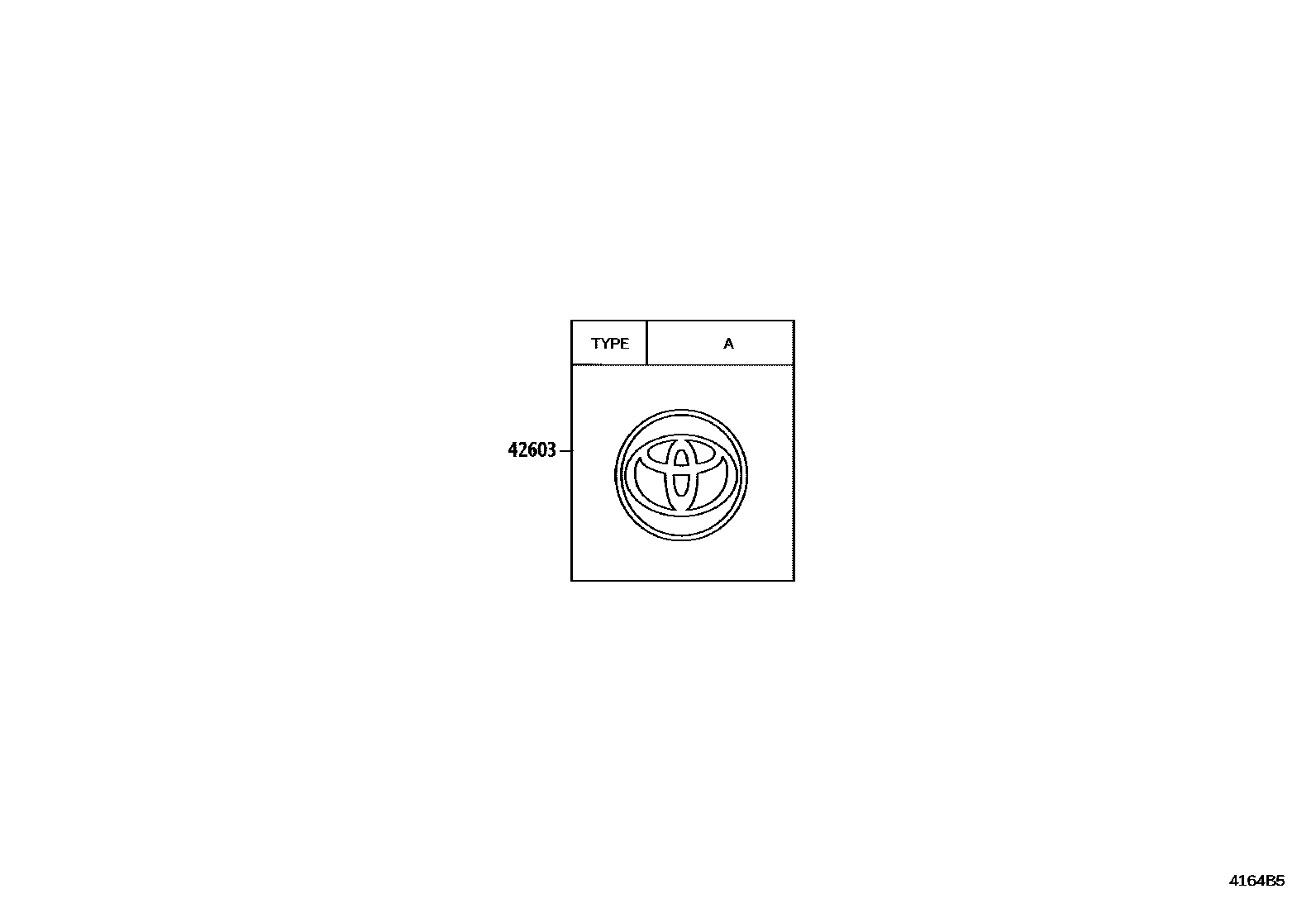

| 42603 | Wheel hub decorative parts sub-assembly | 42603-42170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-60030 |
| 42607D | tire pressure monitoring valve | 90942-05047 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
