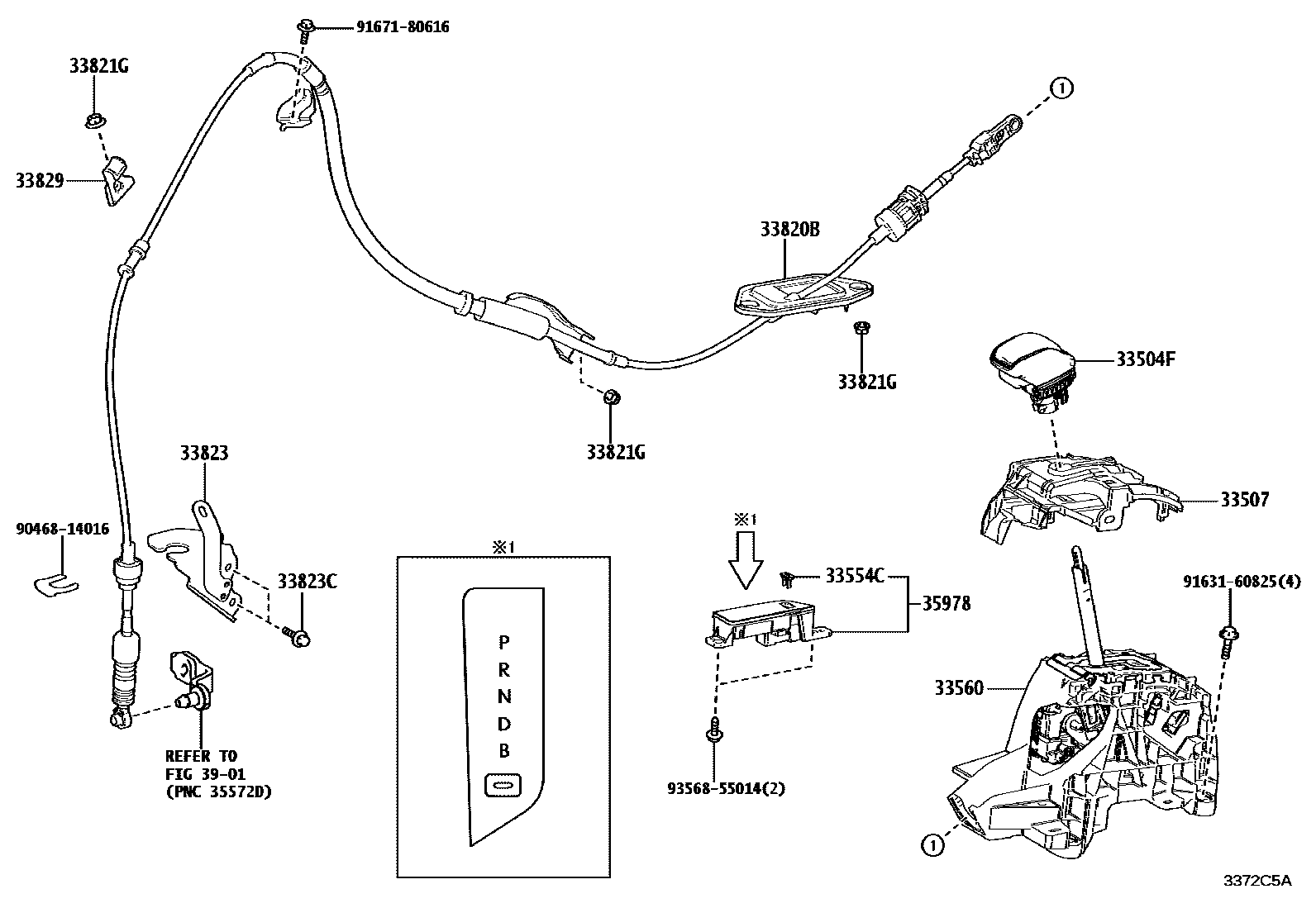

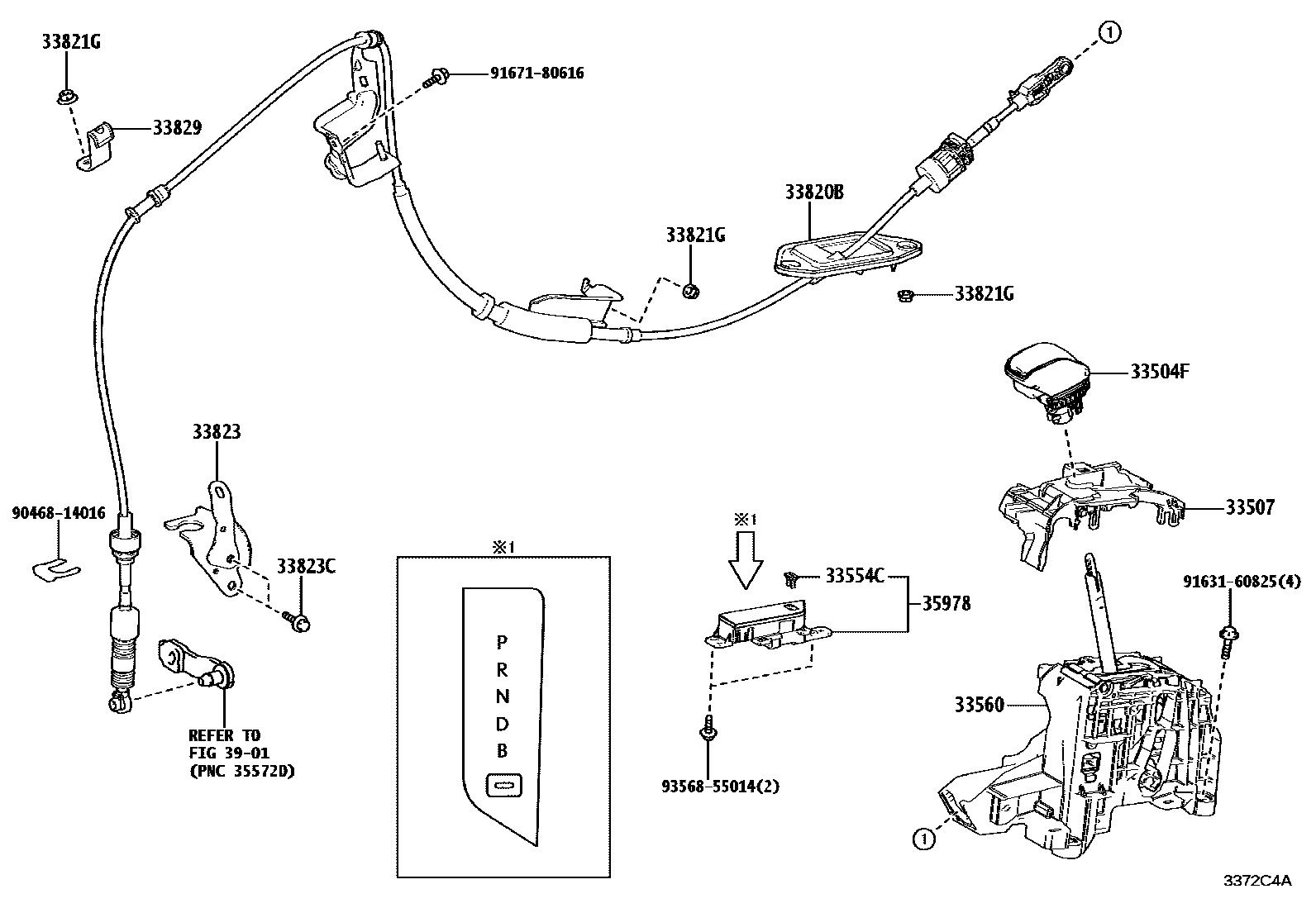

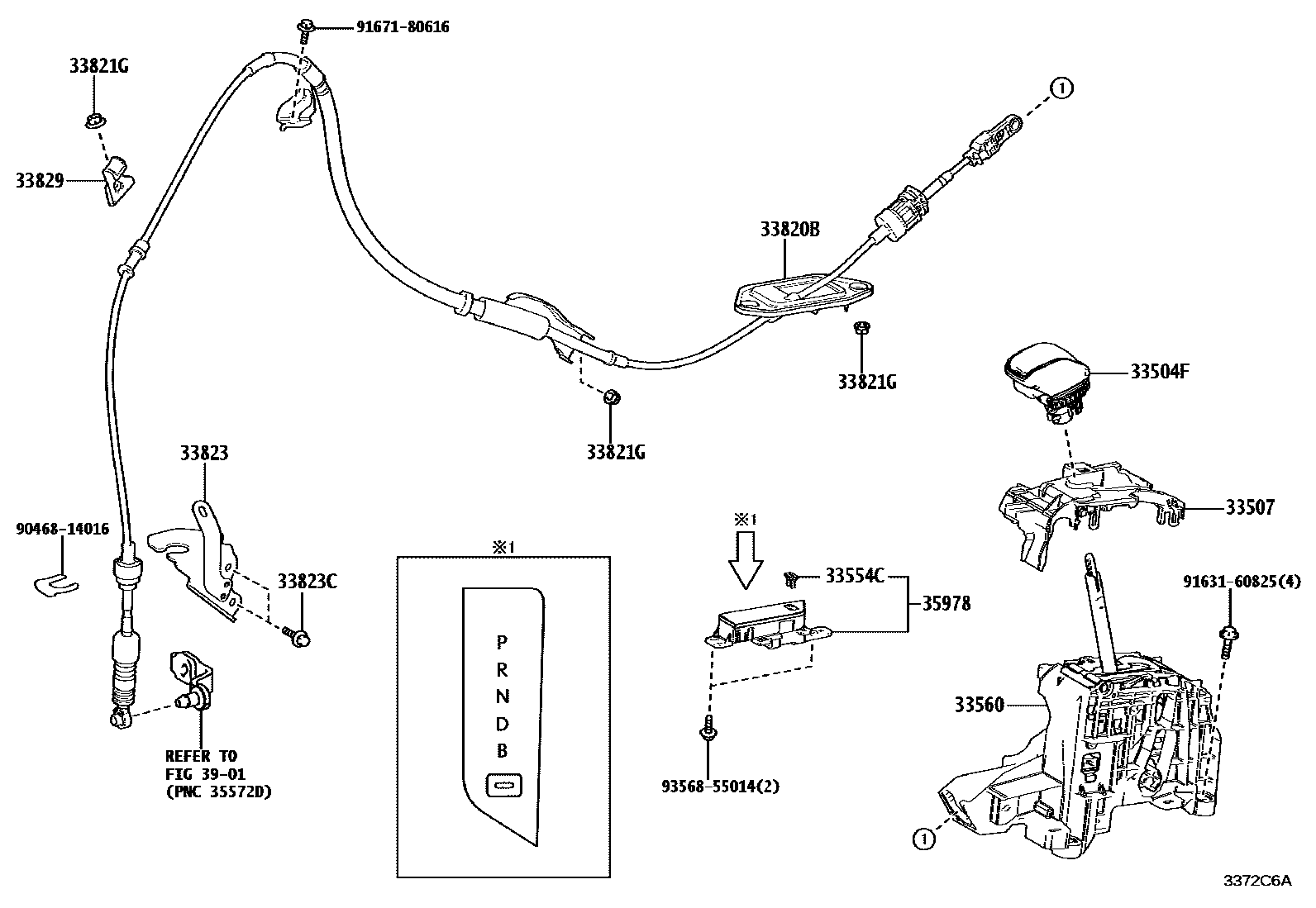

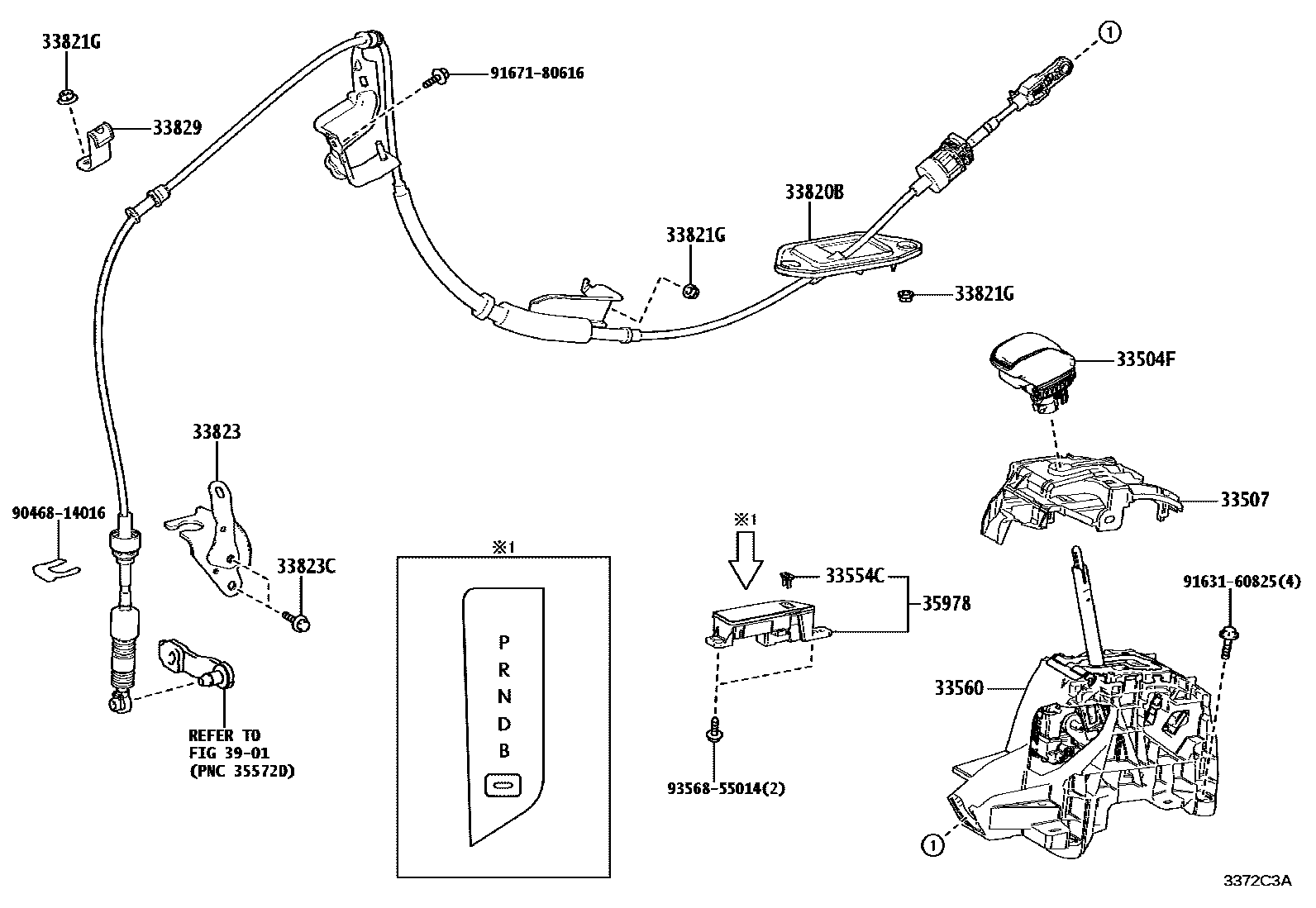

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33507 | Shift lever housing bracket sub-assembly | 33507-16020 · 33507-16030 |
| 33554C | Shift lock release button cover | 33554-16040 |
| 33560 | Shift lock control unit assembly | 33560-10020 · 33560-10030 · 33560-12650 · 33560-12670 |
| 33820B | Transmission control cable assembly | 33820-16260 · 33820-16270 · 33820-16280 |
| 33821G | Nut (for transmission control cable) | 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-12360 · 33823-16070 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 |
| 33829 | Transmission control cable bracket | 33829-12190 · 33829-16010 |
| 35978 | Shift lever position indicator light | 35978-16020 · 35978-16030 · 35978-16040 · 35978-16050 |
