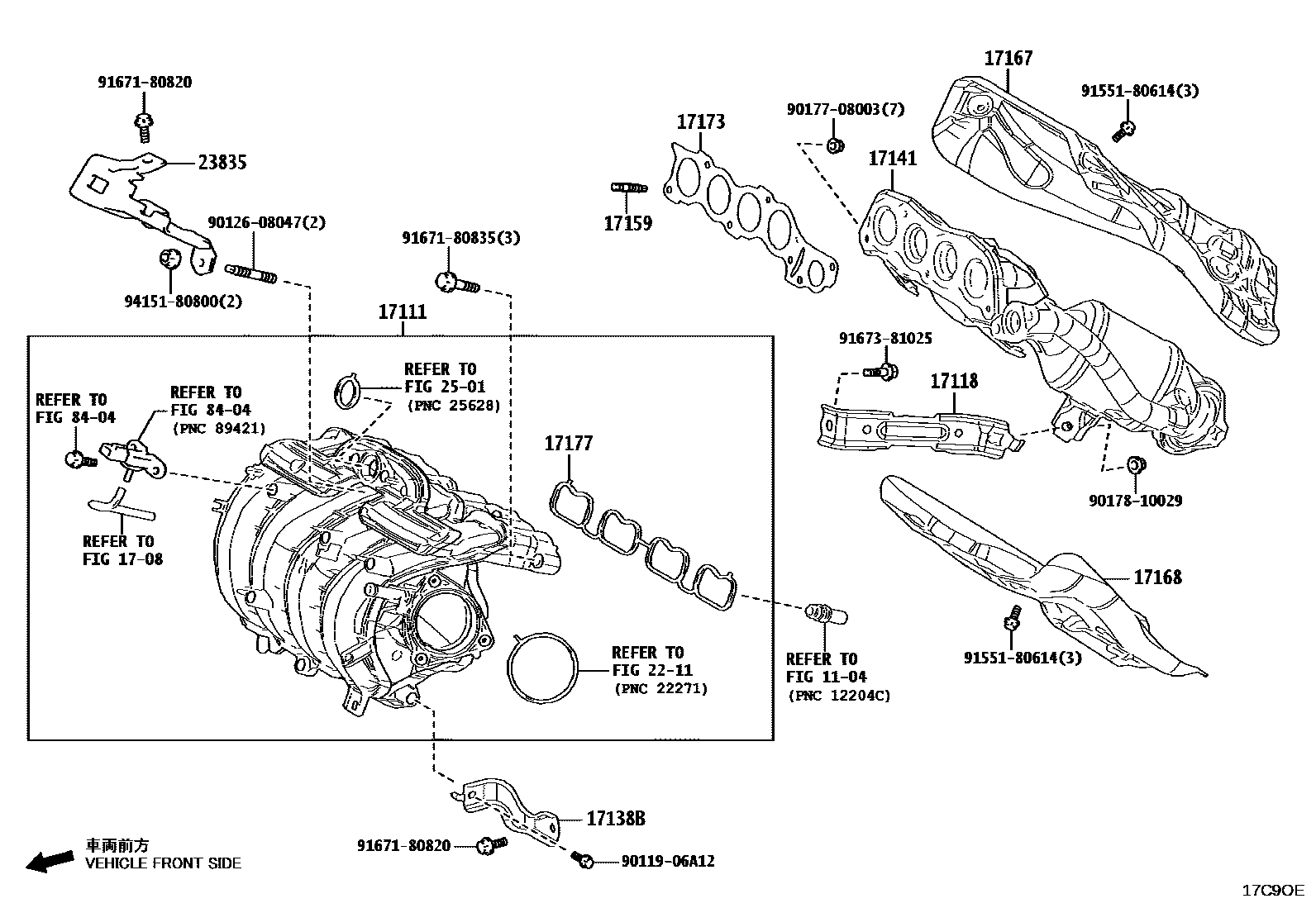

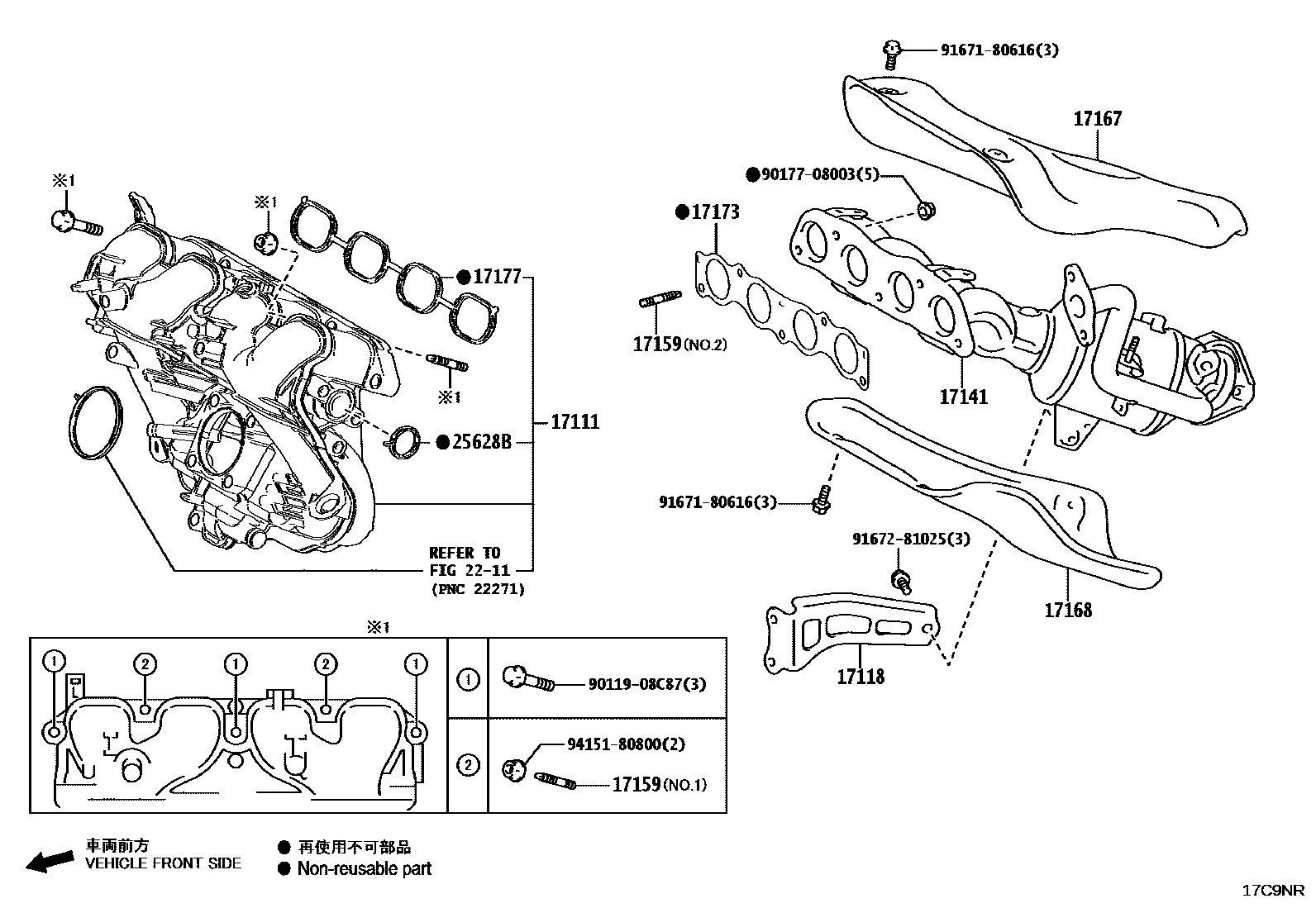

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-24020 · 17120-37110 |
| 17118 | Manifold stays | 17118-24010 · 17118-37100 |
| 17138B | Intake manifold stay | 17138-24020 |
| 17141 | exhaust manifold | 17141-24300 · 17141-24510 · 17141-37370 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08052 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-24030 · 17167-24061 · 17167-37120 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-24030 · 17168-37150 · 17168-F2050 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-24010 · 17173-37010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-24020 · 17177-37030 |
| 23835 | No. 2 oil pipeline anti-collision parts | 23835-24010 |
| 25628B | EGR air intake gasket | 25628-36020 |
