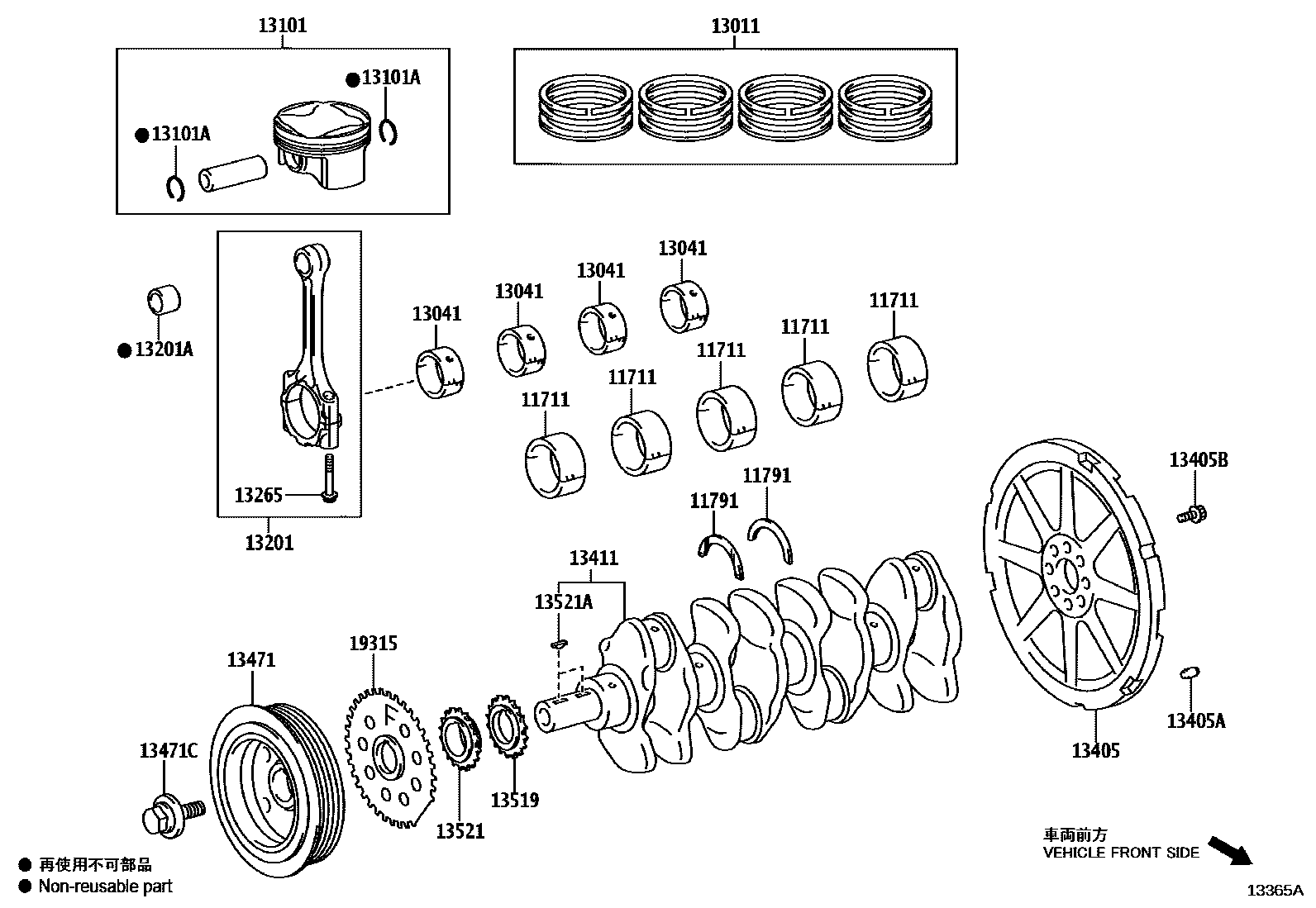

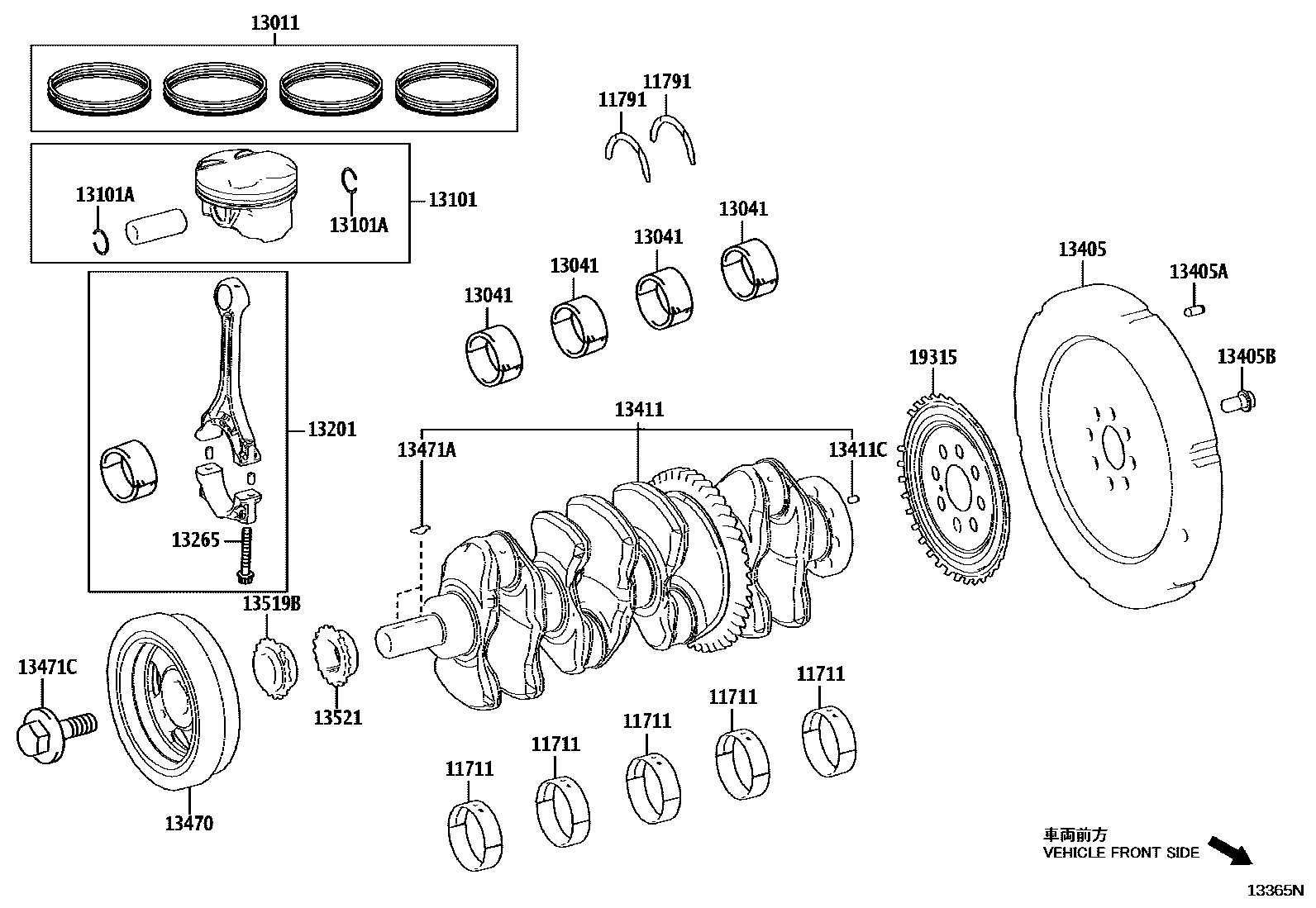

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-15030 · 11791-22020 |
| 13011 | Piston ring assembly | 13011-24040 · 13011-37270 |
| 13101 | Piston sub-assembly with pin | 13101-24050 · 13101-37440 |
| 13101A | Bore snap ring (for piston pin) | 90520-19019 · 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09C10 · 13201-39295 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13265 | Connecting rod bolts | 13265-22040 · 13265-25020 |
| 13405 | Flywheel sub-assembly | 13451-24081 · 13451-37070 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-12404 · 90913-01027 |
| 13411 | crankshaft | 13401-0T061 · 13401-24010 · 13401-37021 |
| 13411C | Direct sales (for crankshaft) | 90250-06035 |
| 13470 | Crankshaft wheel assembly | 13470-24020 |
| 13471 | crankshaft pulley | 13470-37060 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-04001 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-14106 · 90119-16020 |
| 13519 | Oil pump driving gear | 13519-37010 |
| 13519B | Oil pump sprocket | 13519-24010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-24010 · 13521-37011 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-24010 · 19315-37030 |
